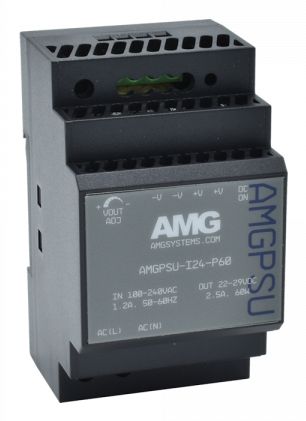

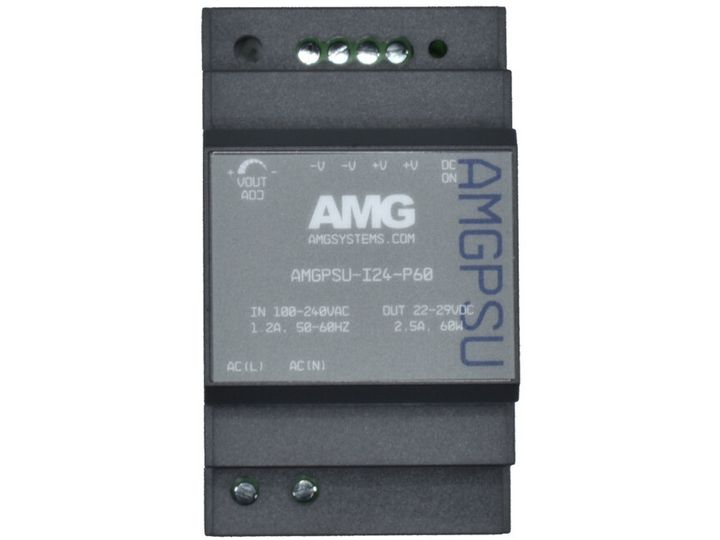

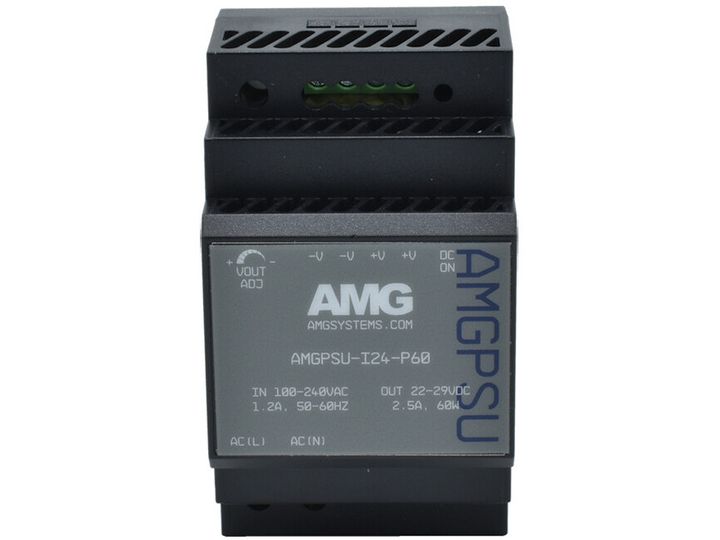

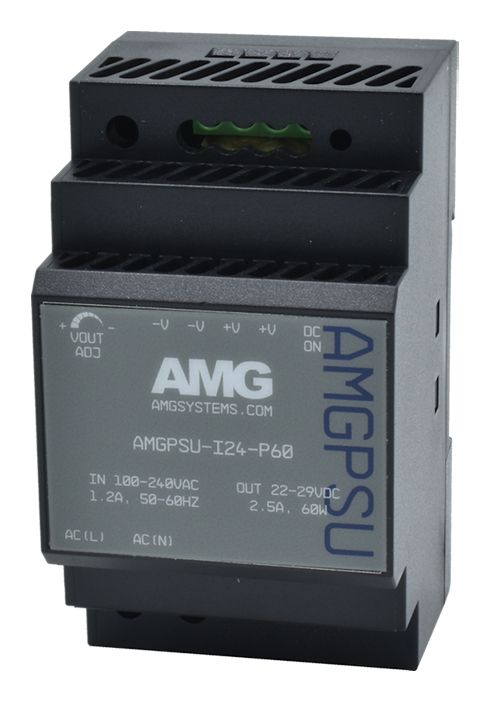

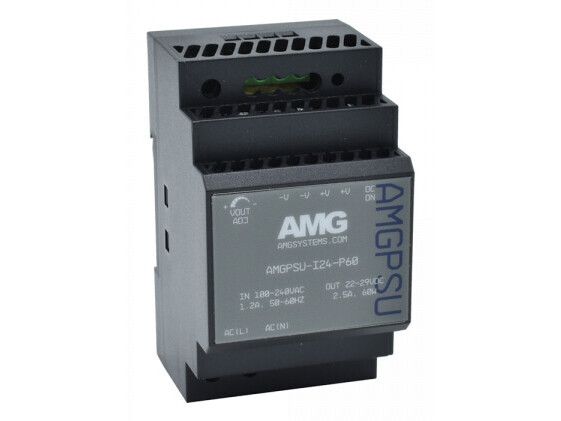

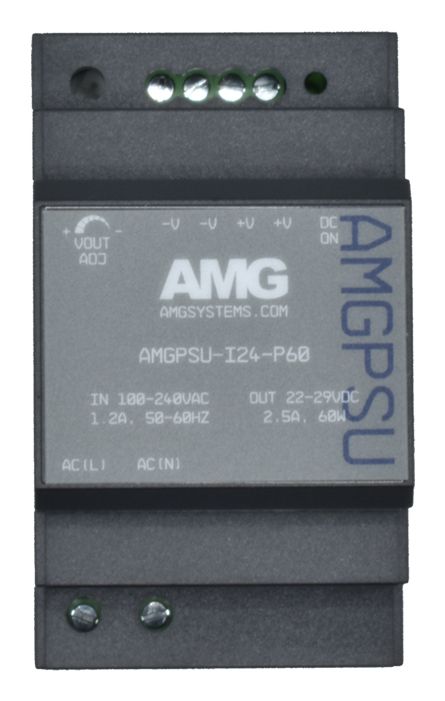

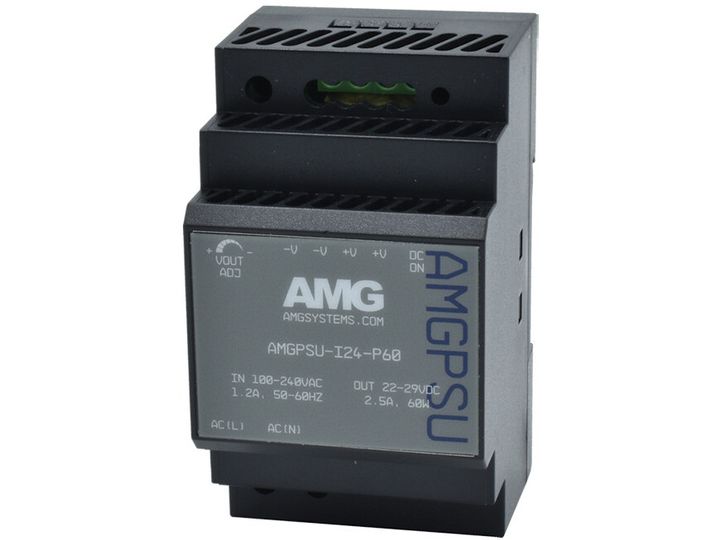

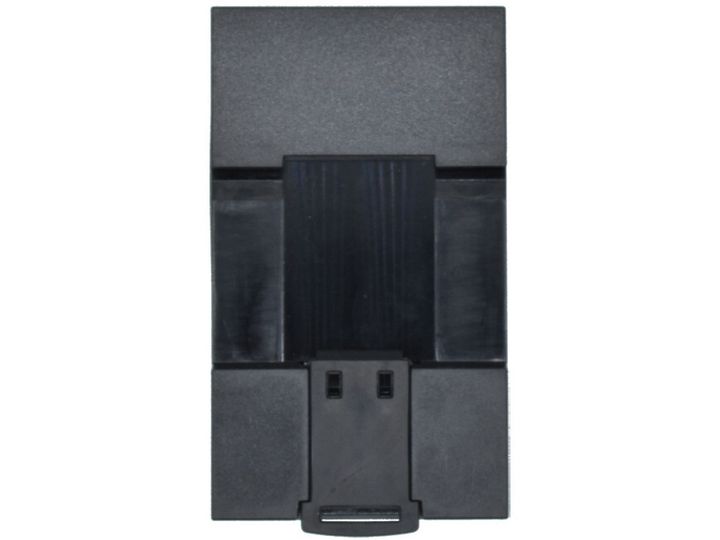

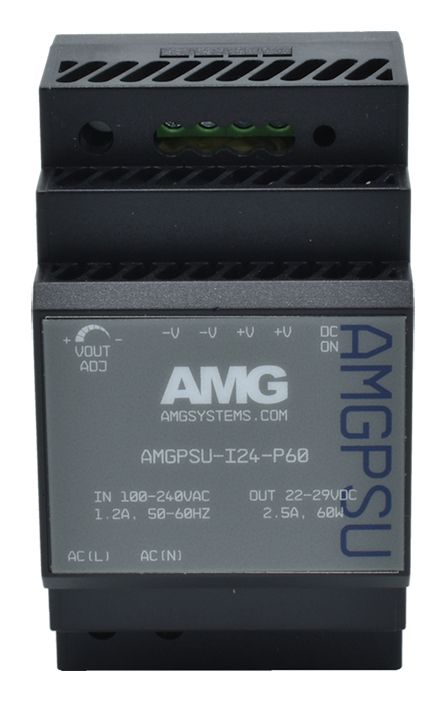

AMG’s industrial DIN-Rail 54/60W power supplies provide reliable power for AMG standard and PoE based products and ensure stable equipment operation over a wide temperature range. They are suitable for all AMG standard as well as PoE products (depending on voltage).
Designed in a compact, robust DIN rail housing, the AMGPSU-I[12,24,48]-P[54,60] series industrial power supplies are ideally suited for powering AMG standard and PoE Ethernet equipment. Its wide operating temperature range ensures reliable operation in even the harshest environments.
Available in 12, 24 or 48V output versions ensure the correct power supply is available for any requirement.
The power supply offers a high level of stability and immunity to noise and a low ripple for best in class performance.
Compliant to the international IEC62368 standards for EMC and are safety approved to IEC/EN61000-4, CISPR32, EN55032, UL62368, IEC62368 and EN62368.
A wide voltage input range that features dual-use inputs for both DC and AC voltages that support 85-264VAC or 120-370VDC ensures the widest possible site support.
A range of other output power levels are available within the AMGPSU product range.
Product colour
Black
Material
Plastic
Quantity
1
Operating temperature (T-T)
40 - 70 °C

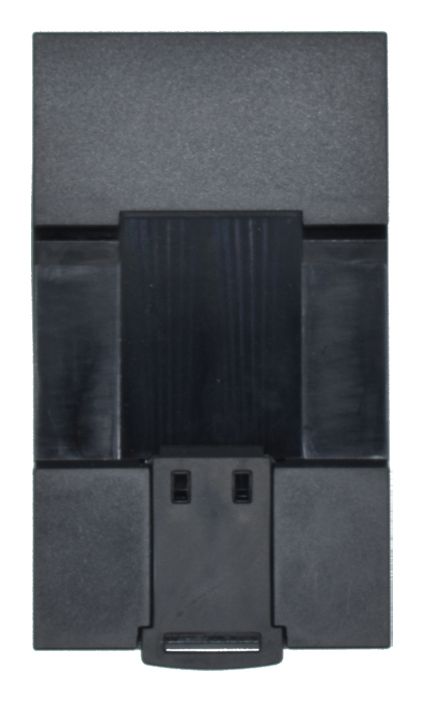

DIN rail mounting
Yes
Certification
EN62368 & UL
Width
52 mm
Depth
58 mm
Height
92.7 mm
Weight
175 g
Power
60 W
AC input voltage
85 - 264 V
AC input frequency
47 - 63 Hz
Input current
1.2 A
DC input voltage
120 - 370 V
Output voltage
24 V
