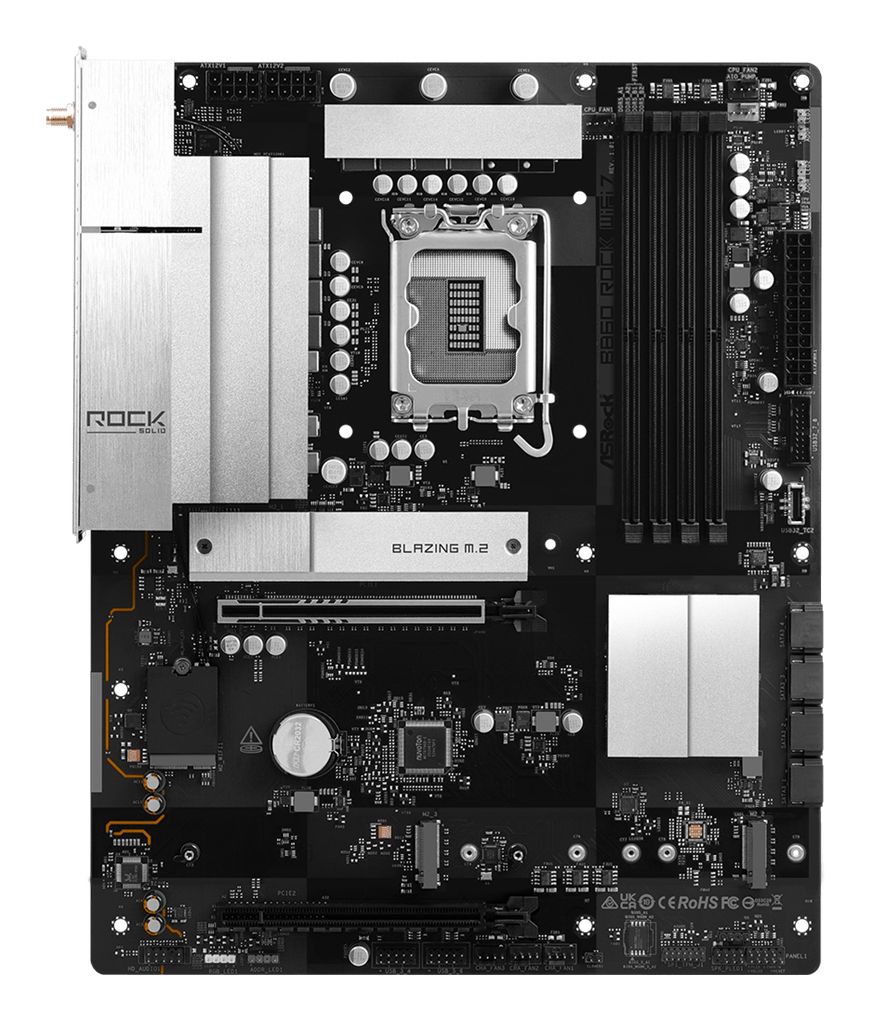

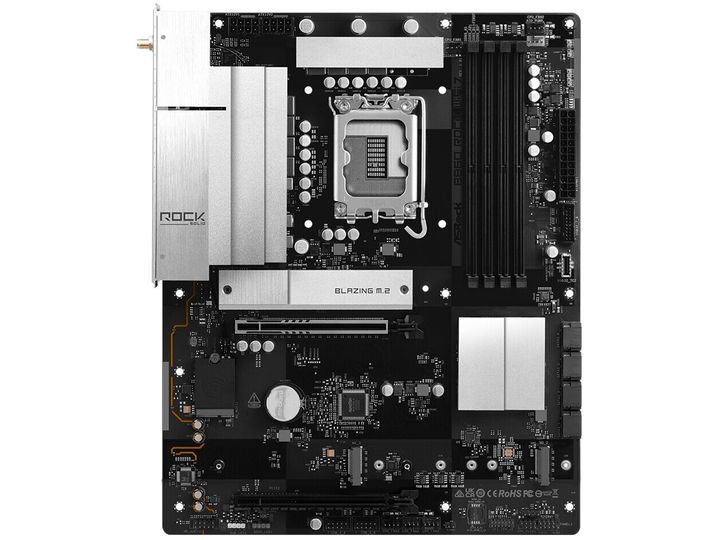

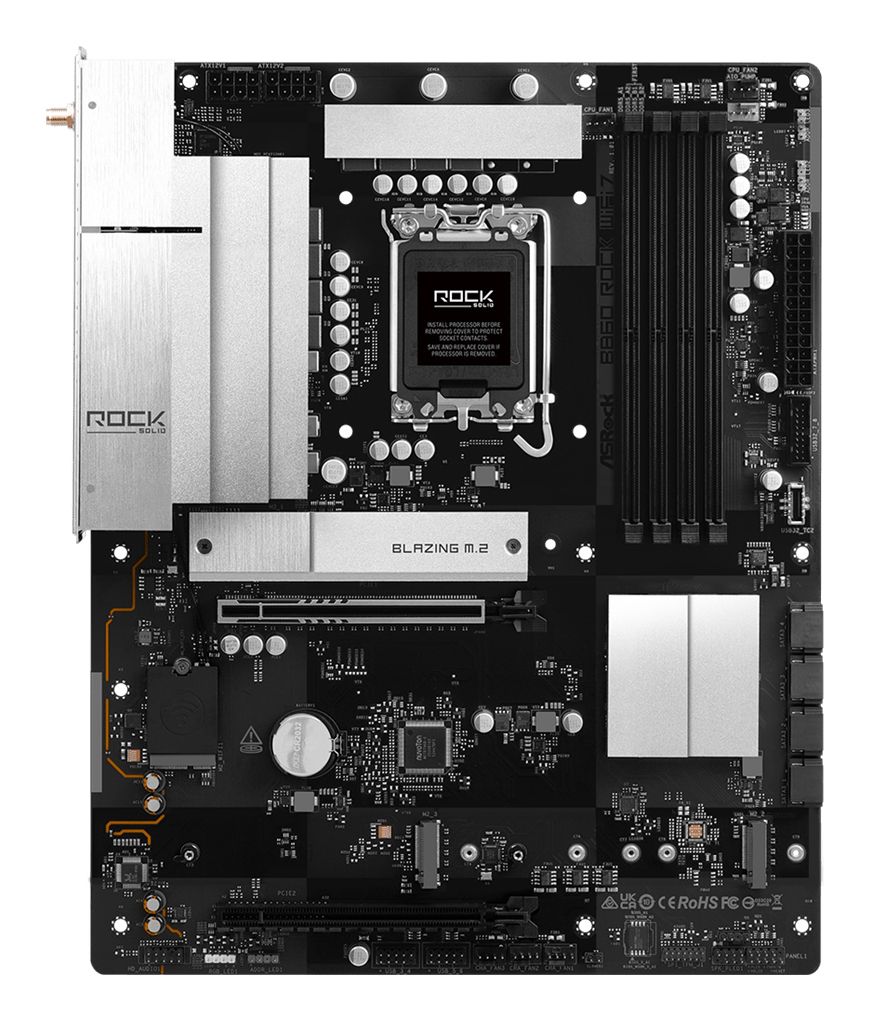

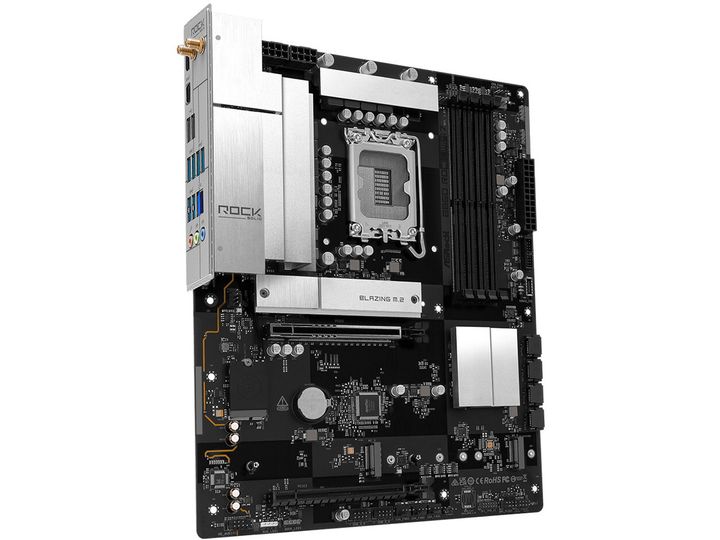

Asrock B860 Rock WiFi 7, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), LGA 1851, DDR5-SDRAM, 256 GB

Item no.: [25281827] | Manufacturer: ASRock | Model no.: 90-MXBUA0-A0UAYZ | EAN: 4711581494176

Remote stock (3-5 days)

The item is in a remote warehouse, delivery time is 3-5 business days. More info

Shipping @price - GLS

12,00

EUR 137,93

Incl. VAT 172,41

Total incl. delivery 187,41

Read further specifications and description

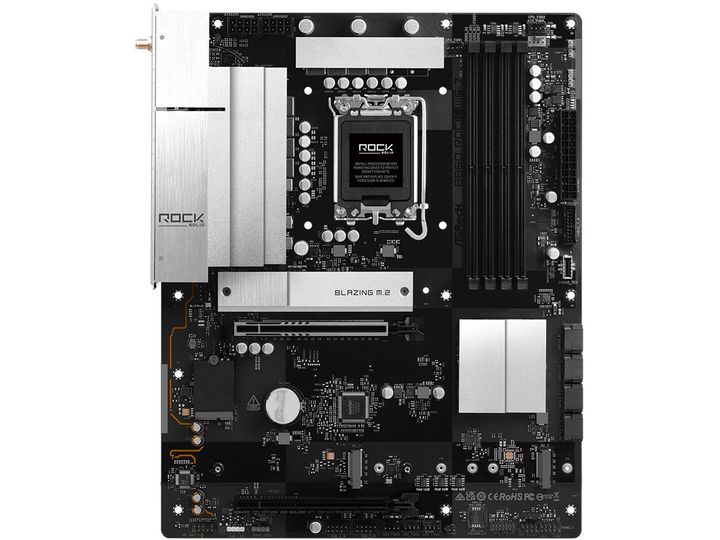

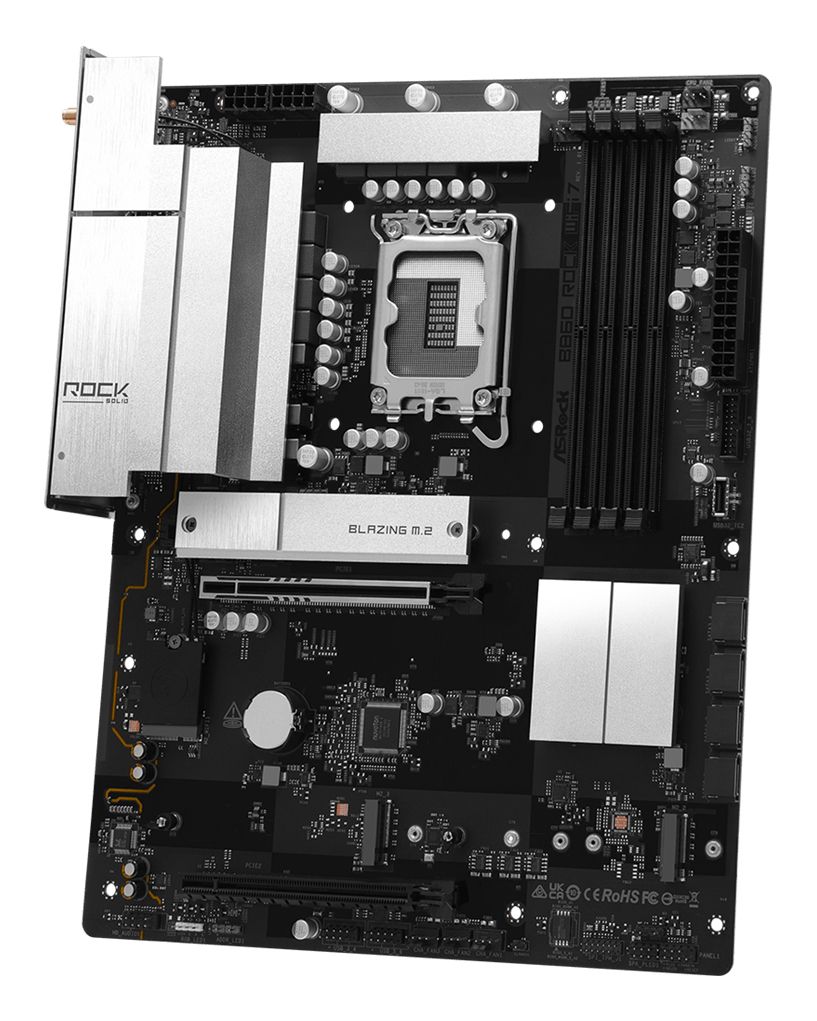

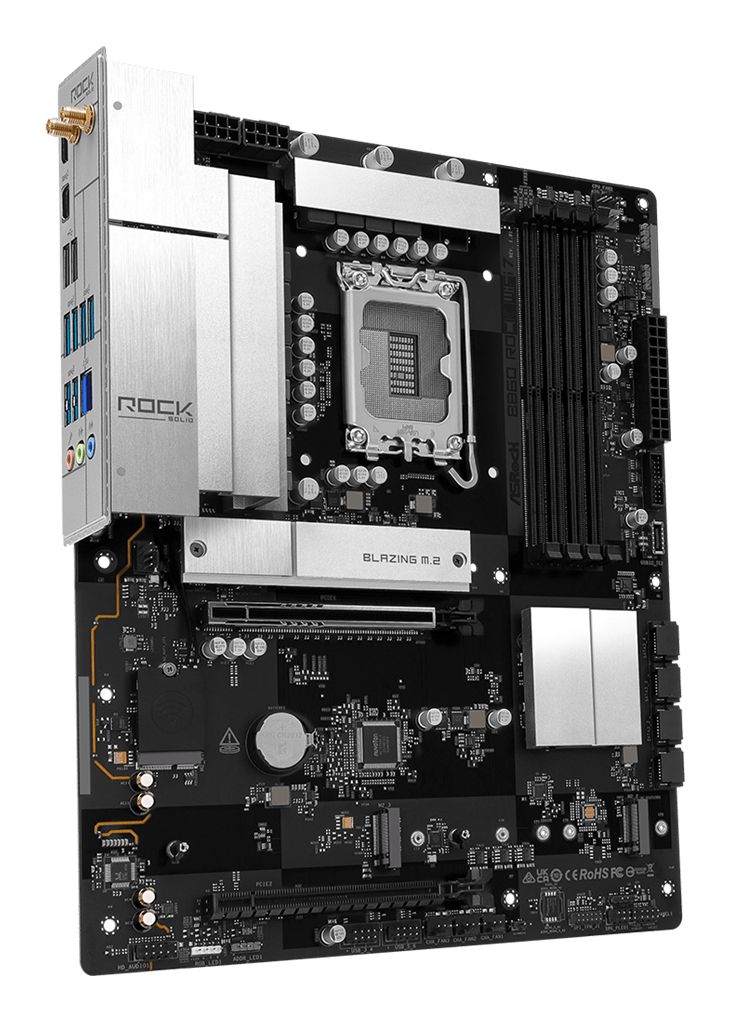

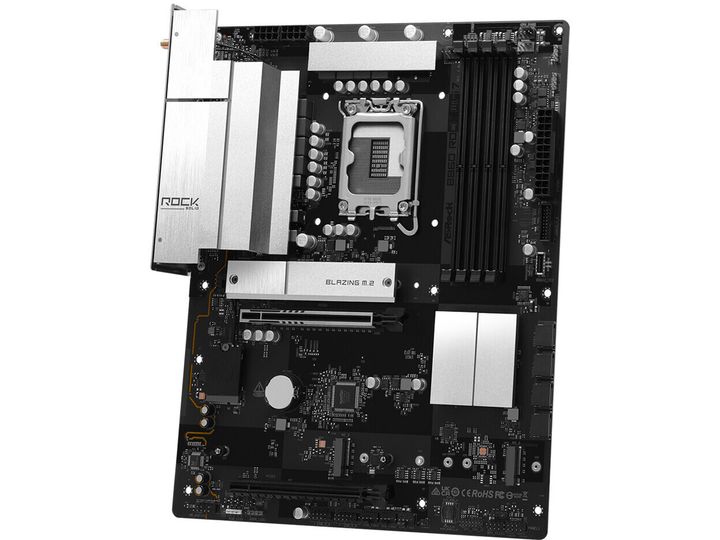

The ASRock B860 Rock WiFi 7 motherboard delivers a range of features that enhance performance and connectivity for gaming and productivity. Equipped with the Intel B860 chipset, it supports Intel Core Ultra processors and offers RAM capabilities with up to 8666 MHz speed while accommodating four DIMM slots. The motherboard also includes high-speed storage options like 4 x SATA-600 and 2 x Hyper M.2 connectors for RAID configurations, ensuring ample space for installations and rapid data access.

Connectivity is a strong point with support for Wi-Fi 7 and 2.5 Gigabit Ethernet, along with various USB ports including USB-C 3.2 Gen 1. Quality audio is ensured through the Realtek ALC897 codec, providing audio output. Additional features like ASRock's UEFI BIOS, Intel Turbo Boost Max Technology 3.0, and an 8+1+1+1+1 Phase Power Design help maximize system performance and stability, making this motherboard a choice for serious users and enthusiasts alike.

Produktbeskrivelse	ASRock B860 Rock WiFi 7 - bundkort - ATX - LGA1851 sokkel - B860
Produkttype	Bundkort - ATX
Chipsættype	Intel B860
Processor-socket	1 x LGA1851 sokkel
Kompatible processorer	(understøtter Intel Core Ultra-processorer (Serie 2))
Max RAM-størrelse	256 GB
RAM understøttet	4 DIMM åbninger - DDR5, ikke-ECC, ikke bufferet, clocked unbuffered
Lagringsporte	4 x SATA-600 (RAID), 2 x Hyper M.2, 1 x Blazing M.2
USB / FireWire porte	1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 6 x USB 2.0 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
Audio	HD Audio (8-kanaler)
LAN	2.5 Gigabit Ethernet, Bluetooth 5.4, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7)

Generelt
Produkttype	Bundkort - ATX
Chipsættype	Intel B860
Processor-socket	LGA1851 sokkel
Max antal processorer	1
Kompatible processorer	(understøtter Intel Core Ultra-processorer (Serie 2))
Understøttet RAM
Maks. størrelse	256 GB
Teknologi	DDR5
Bus Clock	8666 MHz (O.C.), 6800 MHz (O.C.), 5600 MHz, 4400 MHz, 4800 MHz, 6533 MHz (O.C.), 5600 MHz (O.C.)
Understøttet RAM-integritetskon	Ikke-ECC
Registreret eller buffer	Ikke bufferet, clocked unbuffered
Egenskaber	Intel Extreme Memory Profiles (XMP) 3.0, dobbelt kanal hukommelses arkitektur, AMD EXPO-teknologi
Audio
Type	HD Audio (8-kanaler)
Audio codec	Realtek ALC897
Overensstemmelsesstandarder	High Definition Audio
LAN
Netværk controller	Dragon RTL8125BG
Netværks interfaces	2.5 Gigabit Ethernet, Bluetooth 5.4, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7)
Ekspansion / Konnektivitet
Ekspansionsåbninger	1 x CPU 4 x DIMM 288-pins 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 1 x M.2 socket (2230 M.2 Key E-åbning) 2 x M.2 socket (2280 M.2 Key M-åbning) 1 x M.2 socket (2230/2242/2260/2280 M.2 Key M åbning)
Grænseflade (lagring)	SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -stikforbindelser: 2 x Hyper M.2 PCIe 5.0 -stikforbindelser: 1 x Blazing M.2

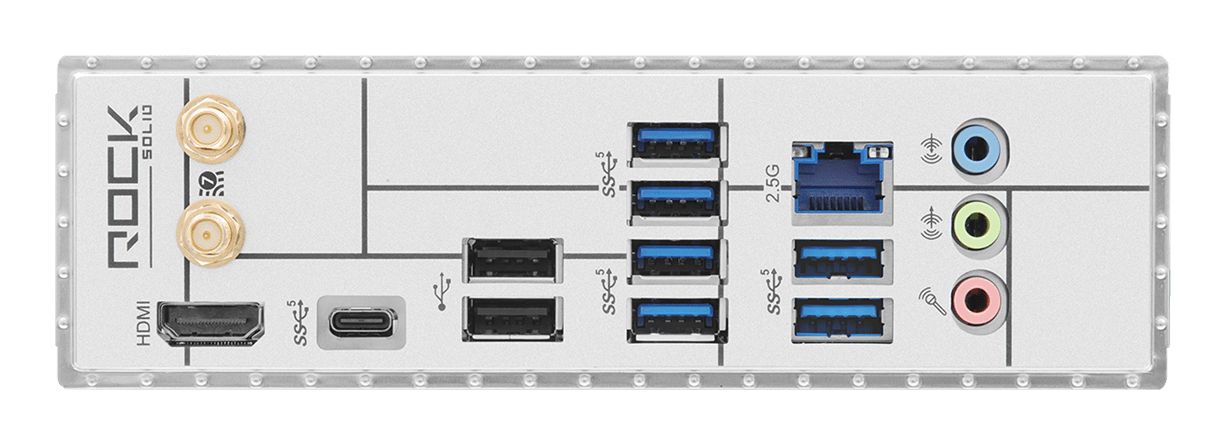

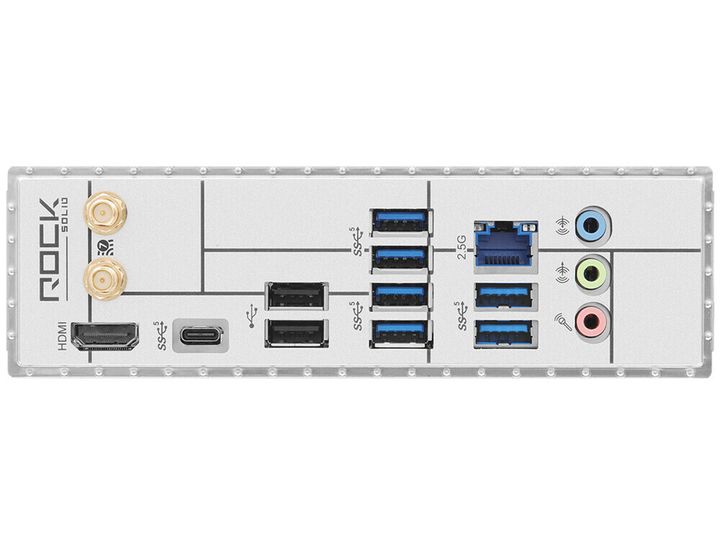

Interface	2 x antenne 1 x LAN (2.5Gigabit Ethernet) 1 x HDMI 6 x USB 3.2 Gen 1 2 x USB 2.0 1 x USB-C 3.2 Gen 1 1 x audio linje-ud - mini-jack 1 x mikrofon - mini-jack 1 x audio linje-ind - mini-jack
Interne interfaces	2 x USB 3.2 Gen 1 - intern stik 4 x USB 2.0 - intern stik 1 x SPI - intern stik 1 x højttaler - intern stik 1 x audio - intern stik
Strømkontakter	24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser
Egenskaber
BIOS-type (Basic Input/Output System)	AMI
BIOS-egenskaber	UEFI BIOS
Hardware egenskaber	8+1+1+1+1 Phase Power Design, ASRock Auto Driver Installer, ASRock EZ Mode, ASRock Full HD UEFI, ASRock Instant Flash, ASRock My Favorites in UEFI, ASRock POST Status Checker (PSC), Intel Adaptive Boost Technology (ABT), Intel Hybrid Technology, Intel Thermal Velocity Boost (TVB), Intel Turbo Boost Max Technology 3.0, præmonteret I/O-skjold
Diverse

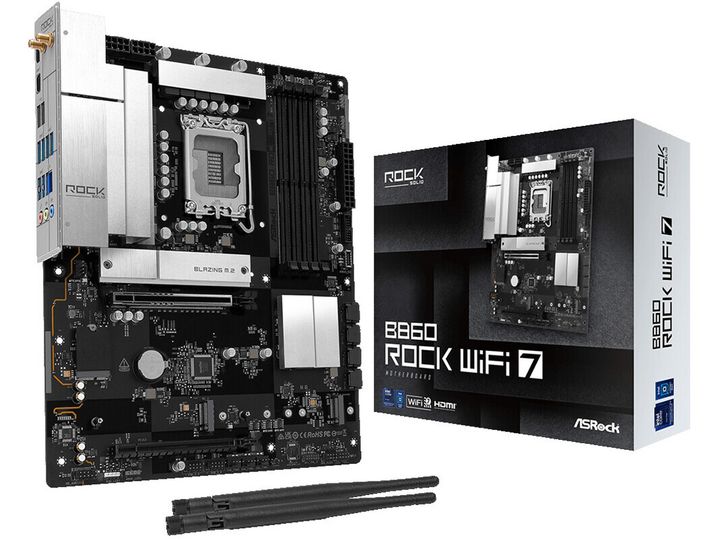

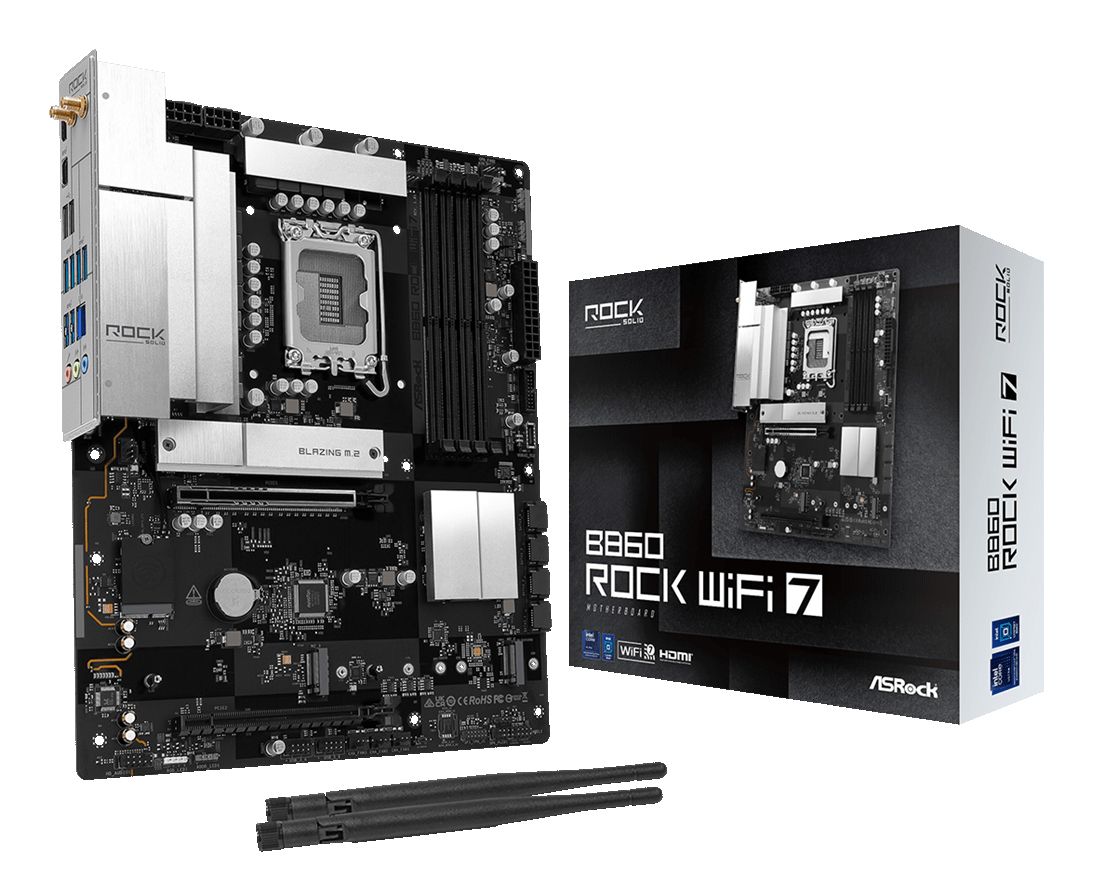

Udstyr inkluderet	2 x ASRock WiFi 2.4/5/6 GHz Antennas
Medfølgende ledninger	2 x Seriel ATA kabel
Med software	ASRock Polychrome SYNC, ASRock Dragon 2.5G LAN Software, ASRock A-Tuning
Overensstemmelsesstandarder	HDCP 2.3, FCC, EuP Ready, ErP Ready
Bredde	30.5 cm
Dybde	24.4 cm
