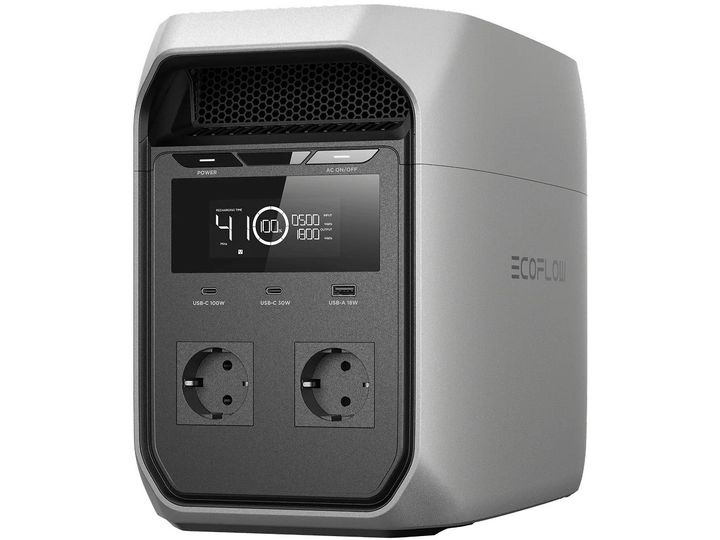

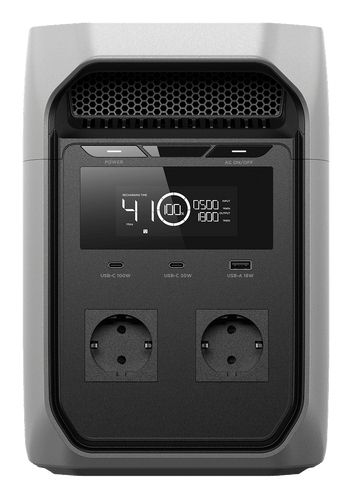

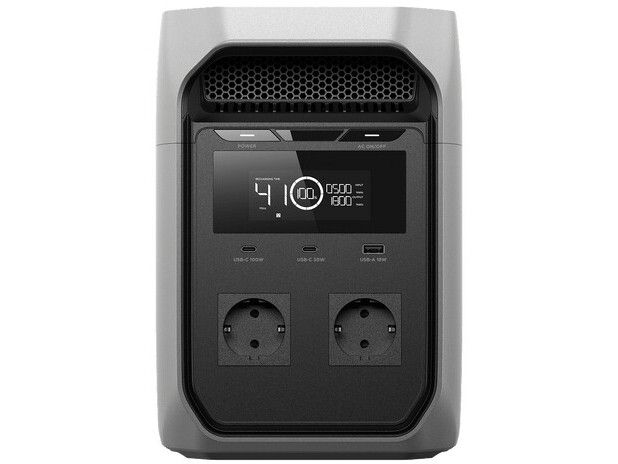

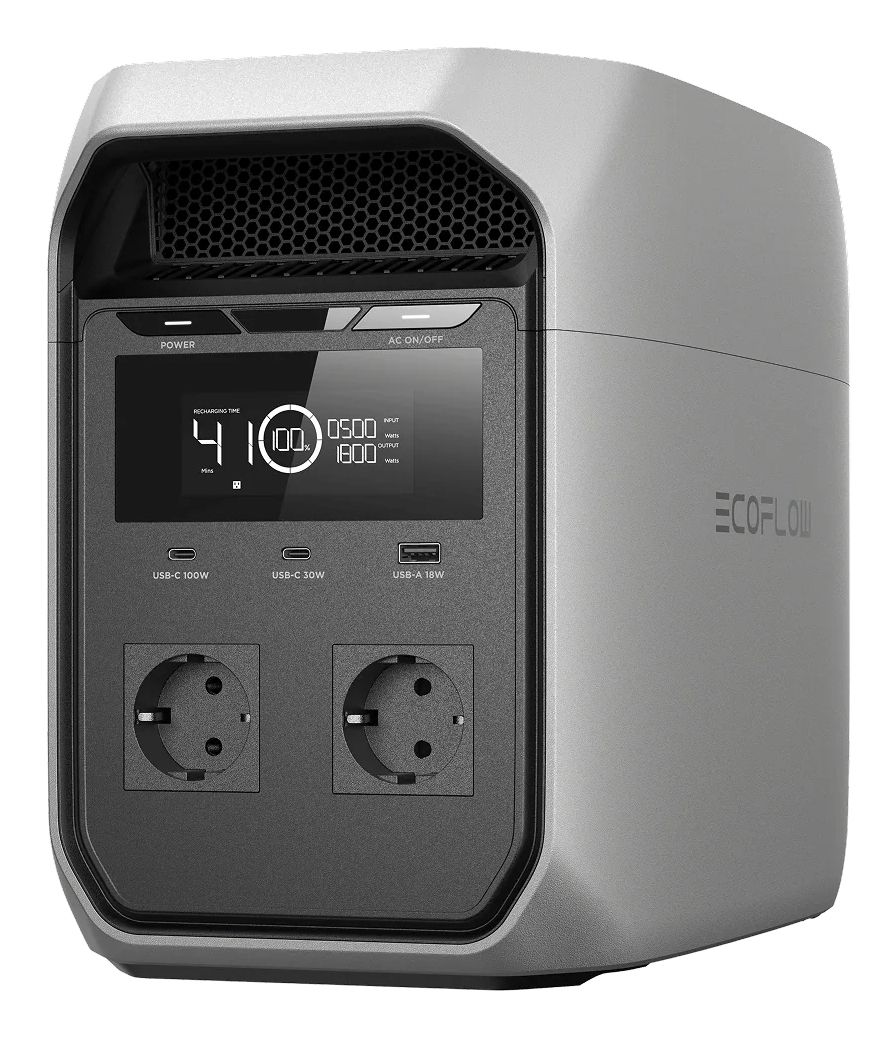

EcoFlow power station 1024 Wh DELTA 3 Classic 1800 W

The EcoFlow DELTA 3 Classic is a 1024 Wh battery station offering multiple inputs and outputs, including standard AC outlets, USB-A and USB-C ports that can power a variety of appliances and devices. Its various recharging options allow you to use each method according to your current needs. The station is therefore not only very reliable, but also a very flexible and quiet power source. It also has a spacious display that clearly shows information about its current operation.

Multiple charging methods
The station can be charged via AC mains sockets, solar panels, a generator or from a car socket. By plugging into a mains AC socket, it can be charged from 0 to 80% in just 45 minutes.

Durability and long life
The station's advanced internal battery design, with fewer cells and therefore cooler operation and longer life, provides users with greater stability. In addition, each cell is thoroughly tested and the whole set is optimally tuned to protect very well against overcharging, imbalance and premature wear. The battery contains LFP cells with an automotive-grade CTC structure that provide up to 10 years of reliable power and continuous BMS protection. The station is also well protected from shock, which is especially important for field use.

Wide range of appliance power options
The DELTA 3 Classic can power most household appliances, including refrigerators, televisions and computers. Because of its easy portability, it is also well suited for use in the outdoors or other remote locations where it can easily power recreational equipment and power work tools.

X-Boost: powering devices with high power input
X-Boost is an innovative technology that is exclusive to EcoFlow battery stations. It allows you to power certain types of appliances with power requirements higher than the rated power of the station.

Uninterrupted Power Supply (UPS)
The DELTA 3 Classic can also serve as part of an uninterrupted back-up power supply system for important household appliances in the event of mains power failures, with a switchover time of 10 ms.

Remote control by smart app
The operation of the station can be monitored and controlled from any location with internet access via the EcoFlow smart mobile app.


Technical specifications
General
Model: EF-DL3-C
Net weight: approx. 12.1 kg
Dimensions: approx. 398 × 200 × 283 mm
Wi-Fi (2.4 GHz): frequency 2 412 - 2 472 MHz, 2 422 - 2 462 MHz, max. output power 18.24 dBm
Bluetooth: frequency 2 402 - 2 480 MHz, maximum output power 20 dBm
Operating altitude: < 3000 m above sea level
Overvoltage category: II
Pollution level: 2

Output
AC socket (discharge only): pure sine wave, total 1 800 W, peak power 3 000 W, voltage 230 V
DC port USB-A: 5 V ? 3 A, 9 V ? 2 A, 12 V ? 1.5 A, max. 18 W
DC port USB-C1: 5/9/12/15 V ? 3 A, 20 V ? 5 A, max. 100 W
DC port USB-C2: 5/9 V ? 3 A, 15 V ? 2 A, max. 30 W

Input
AC outlet: 220-240 V ~ 10 A (50/60 Hz)
DC port (XT60) solar input: 11-60 V ? 15 A, max 500 W
DC port (XT60) automotive: max. 12 V ? 8 A, max. 96 W

Battery
Capacity: 1 024 Wh (51.2 V ? 20 Ah)
Type: LFP (LiFePO4)
Protection type: overvoltage protection, overload protection, overheat protection, short circuit protection, low temperature protection, undervoltage protection, overcurrent protection

Ambient temperature
Optimum operating temperature: 20 °C to 30 °C
Charging temperature: 0 °C to 45 °C
Discharge temperature: -10 °C to 45 °C
Storage temperature: -10 °C to 45 °C (optimum 20 °C to 30 °C)


Package contents
1. 1x EcoFlow DELTA 3 Classic, portable battery station
2. 1x AC charging cable
3. 1x manual and warranty card
