Newline WB5C820U, Intel® Core™ i5, i5-1240P, 8 GB, DDR4-SDRAM, 256 GB, Windows 11 Pro

Item no.: [25336204] | Manufacturer: Newline | Model no.: WB5E820U | EAN: 0850071711073

out of stock

The item is not in stock. More info

Varen er ikke på lager.

Brug funktionen ”Giv mig besked..." herunder for opdateringer.

Shipping @price - GLS

12,00

EUR 796,28

Incl. VAT 995,35

Total incl. delivery 1.010,35

Notify me when the item is in stock again

Read further specifications and description

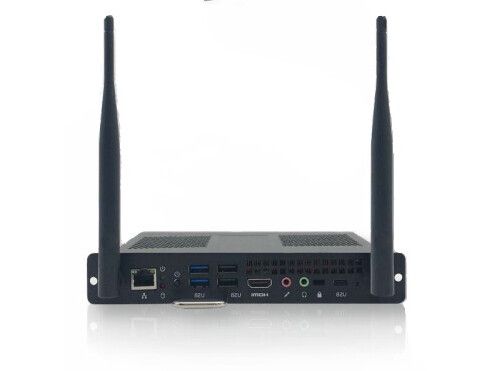

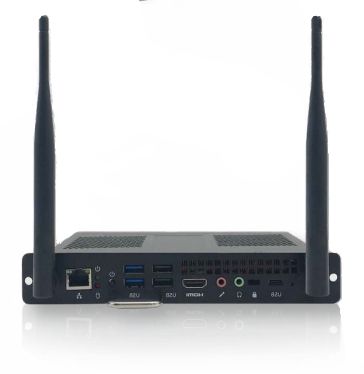

Newline WB5E820U OPS-PC Intel® Core™ Ultra 5 125H

Processor family	Intel® Core™ i5
Processor manufacturer	Intel
Processor model	i5-1240P
Processor generation	12th gen Intel® Core™ i5
Processor cores	12
Processor threads	16
Processor boost frequency	4.4 GHz
Performance cores	4
Efficient cores	8
Performance-core Max Turbo Frequency	4.4 GHz
Efficient-core Max Turbo Frequency	3.3 GHz
Processor cache	12 MB
Processor cache type	Smart Cache
Processor base power	28 W
Maximum turbo power	64 W
Internal memory	8 GB
Maximum internal memory	32 GB
Internal memory type	DDR4-SDRAM
Memory layout (slots x size)	2 x 4 GB
Memory slots	2x SO-DIMM
Total storage capacity	256 GB
Optical drive type	No
Storage media	SSD
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel Iris Xe Graphics
On-board GPU manufacturer	Intel
On-board graphics card family	Intel Iris Xe Graphics
Ethernet LAN	Yes
Wi-Fi	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Bluetooth	Yes
Bluetooth version	5.2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
HDMI ports quantity	1
Intel® Thunderbolt 4	Yes
Thunderbolt 4 ports quantity	2
HDMI version	2.0
Microphone in	Yes
Headphone outputs	1
Line-out	Yes
Chassis type	Mini PC
Product colour	Black
Placement supported	Horizontal
Cable lock slot	Yes
Cable lock slot type	Kensington
Housing material	Metal
Product type	PC
Audio chip	Realtek ALC662
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Operating system installed	Windows 11 Pro
Power supply input voltage	19 V
Operating temperature (T-T)	5 - 45 °C
Storage temperature (T-T)	10 - 50 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Width	180 mm
Depth	119 mm
Height	30 mm
Package width	258 mm
Package depth	250 mm
Package height	77 mm
Package weight	1 kg
Display included	No

The item is known under the following item numbers in our system

EAN:	0850071711073
UPC:	850071711073
SKU:	WB5E820U

Why do I find that the same product is available on different item numbers?

Manufacturers often release the same product with different item numbers, typically just different versions of the packaging. For example, the packaging may be targeted at different countries. We try our best to unify the products, but it can happen that the same product appears on different item numbers in our system.
