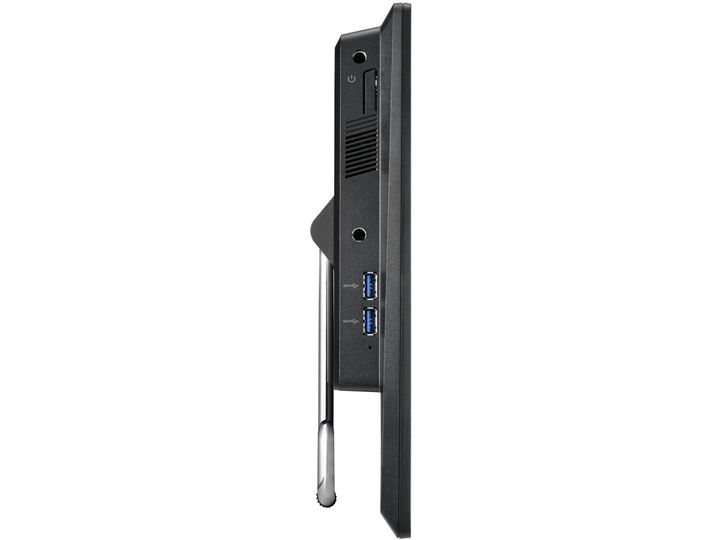

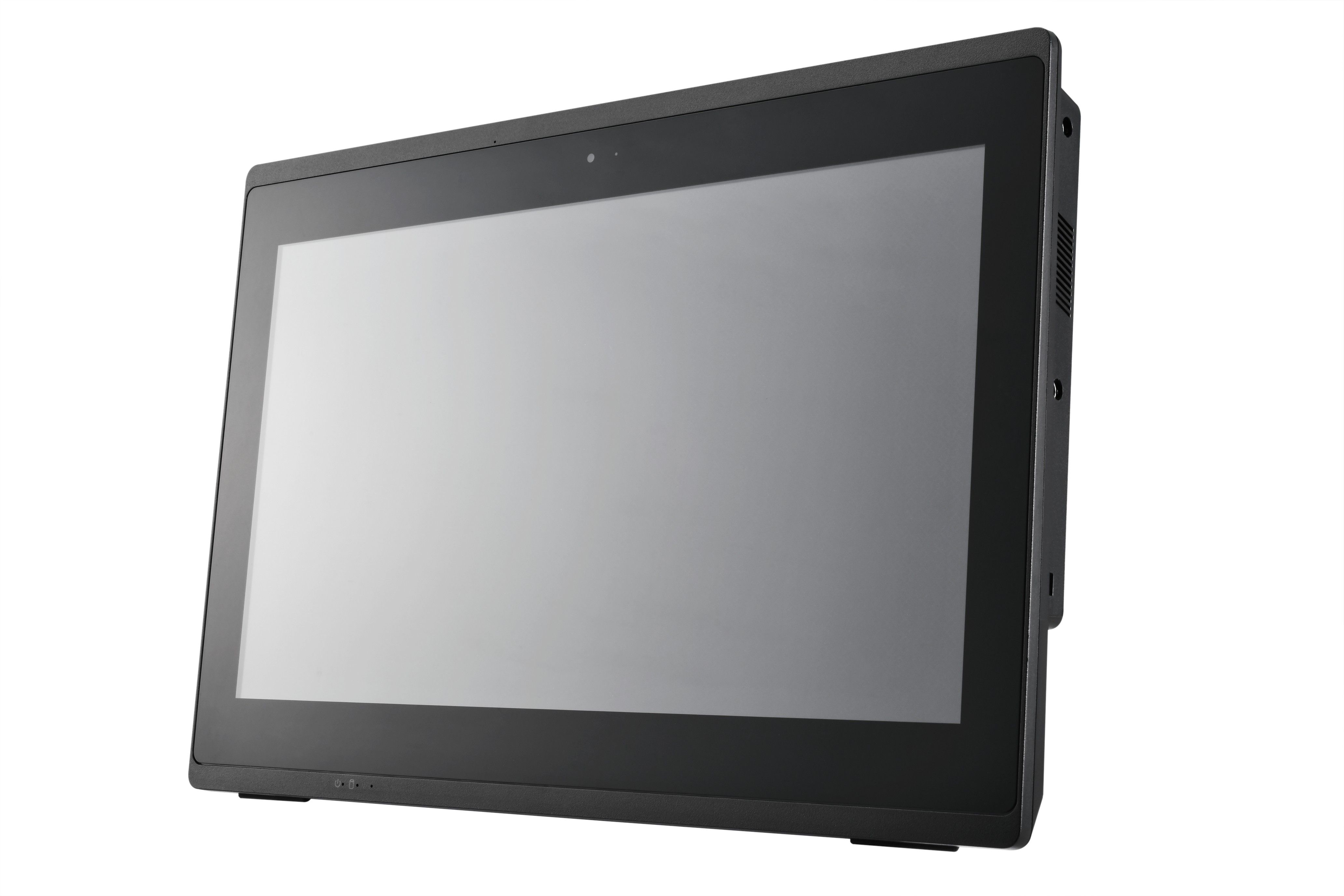

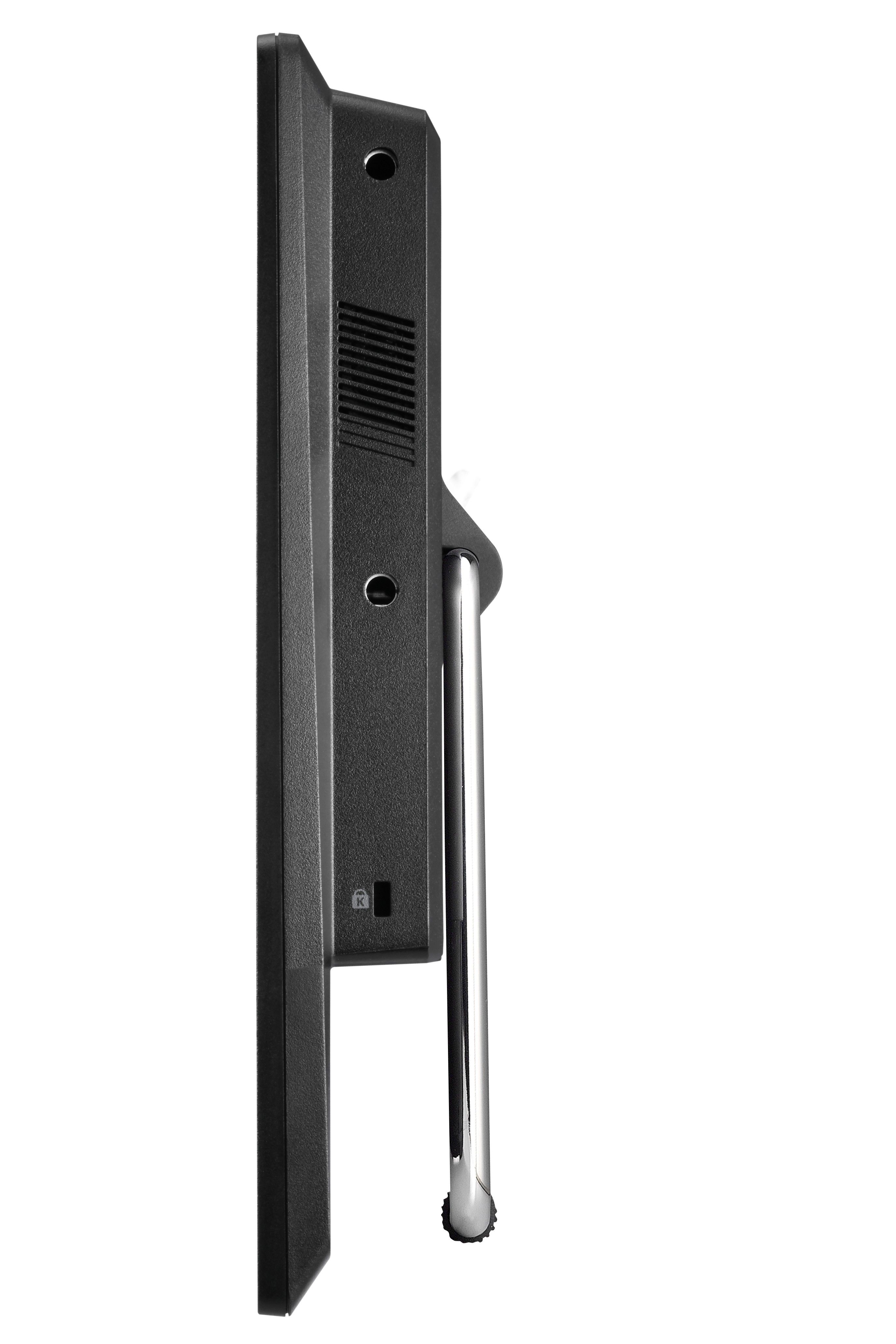

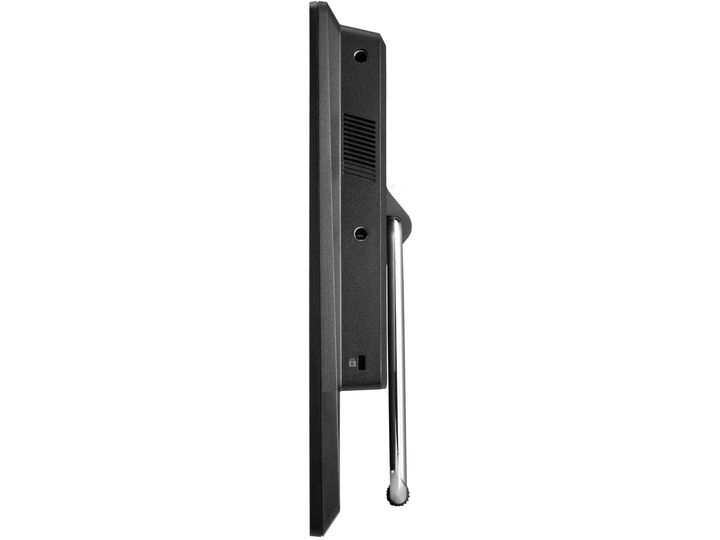

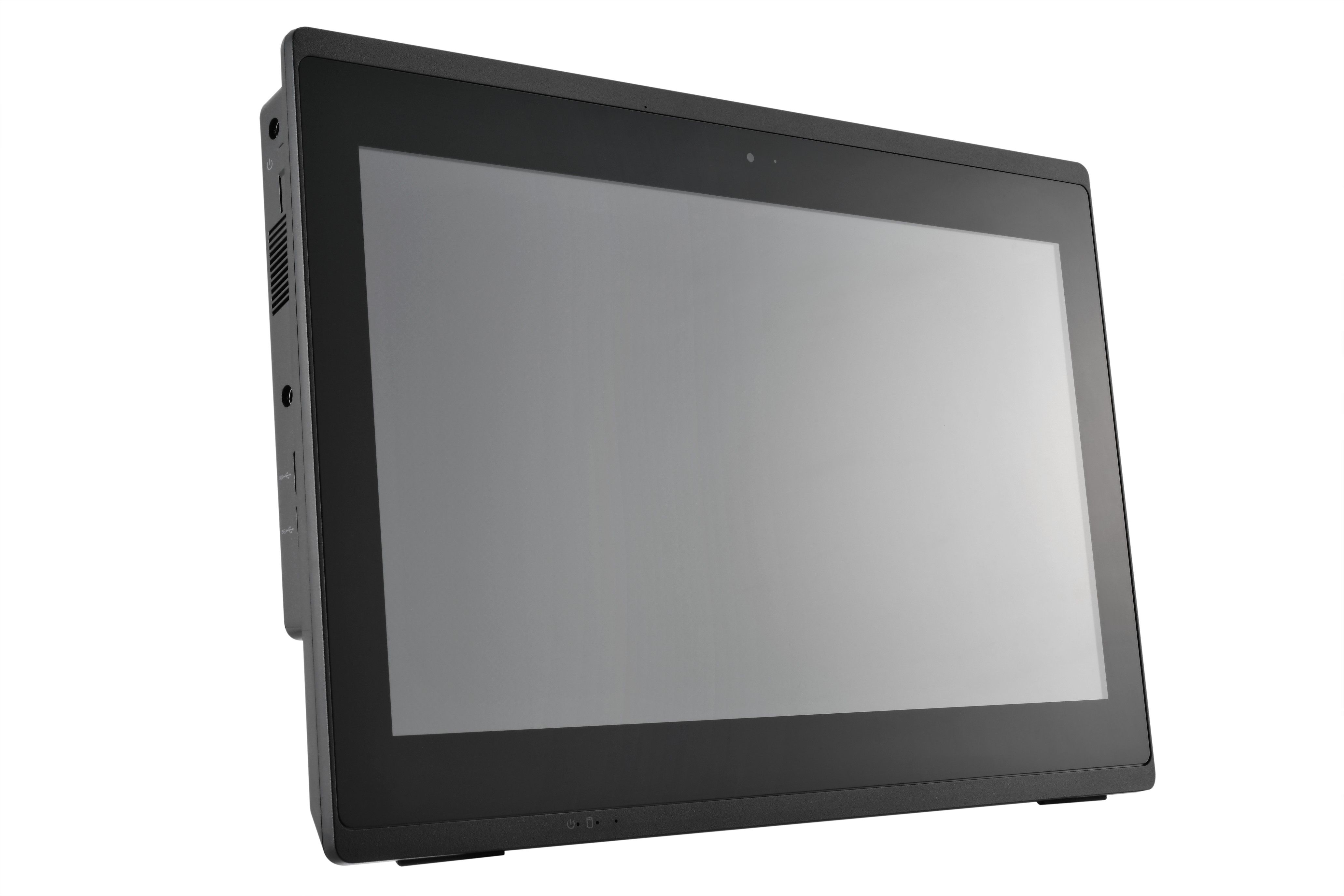

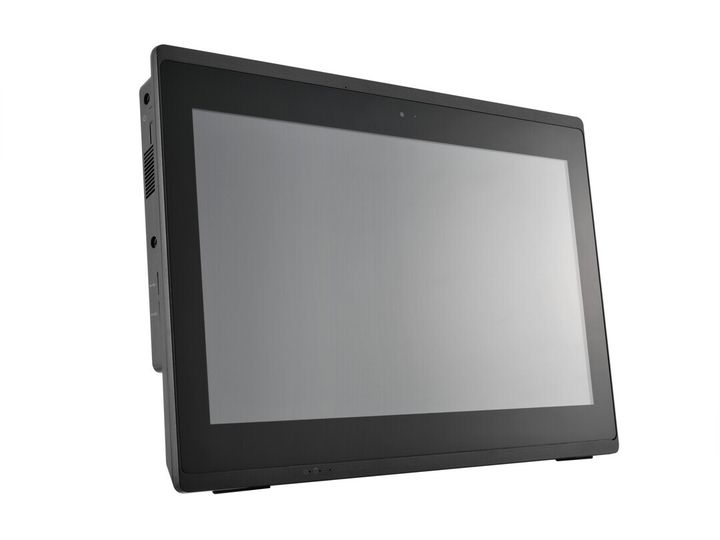

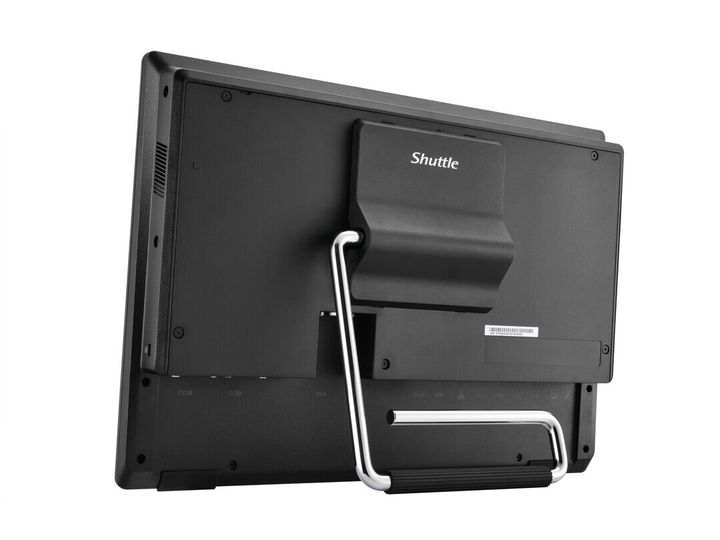

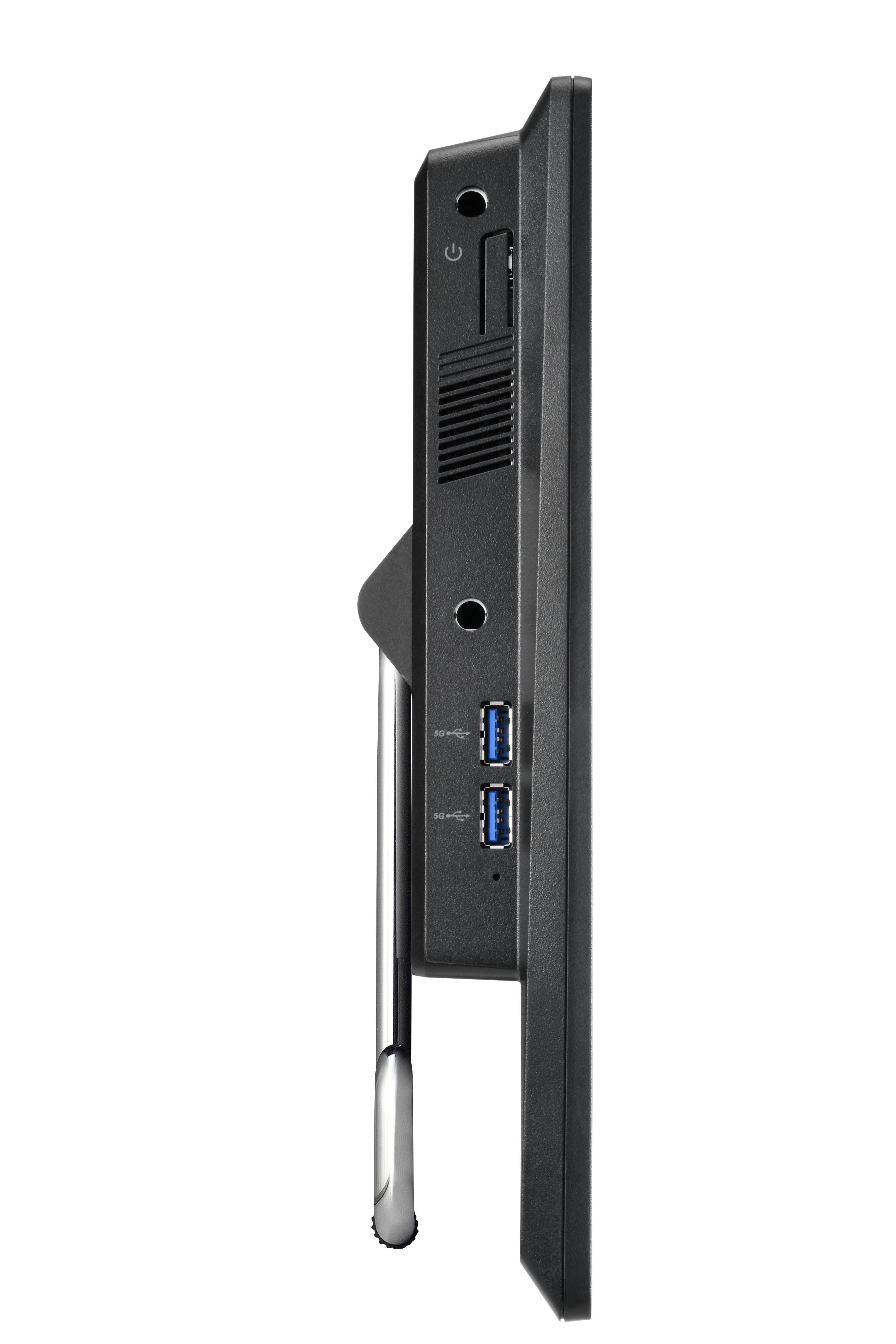

Shuttle All-In-One System IoT P5500PA 15.6" Multi-Touch-Screen, Windows 11 IoT LTSC, Celeron 7305, 8GB DDR5, 128GB M.2 SSD (NVMe) , 2x COM, Wifi, IP54, fanless, 24/7 permanent operation, 39.6 cm (15.6"), Full HD, Intel® Celeron®, 8 GB, 128 GB, Windows 11 IoT Enterprise

Item no.: [25354801] | Manufacturer: Shuttle Computer Group | Model no.: IoT P5500PA

out of stock

The item is not in stock. More info

Varen er ikke på lager.

Brug funktionen ”Giv mig besked..." herunder for opdateringer.

Shipping @price - GLS

12,00

EUR 863,35

Incl. VAT 1.079,19

Total incl. delivery 1.094,19

Notify me when the item is in stock again

Read further specifications and description

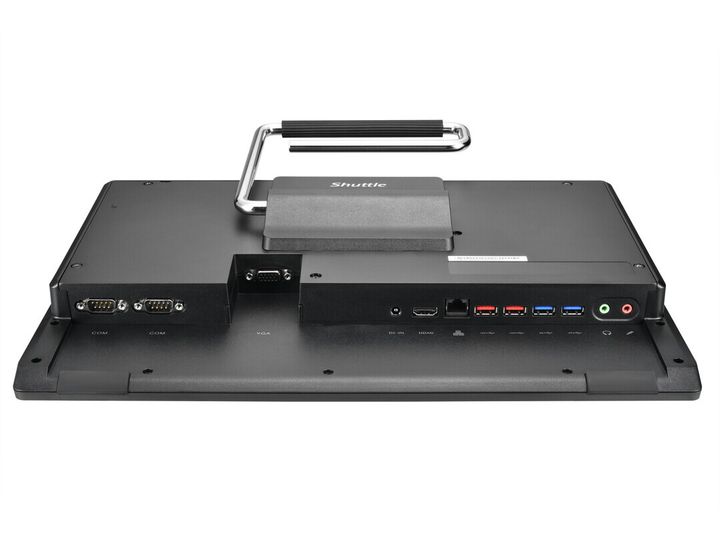

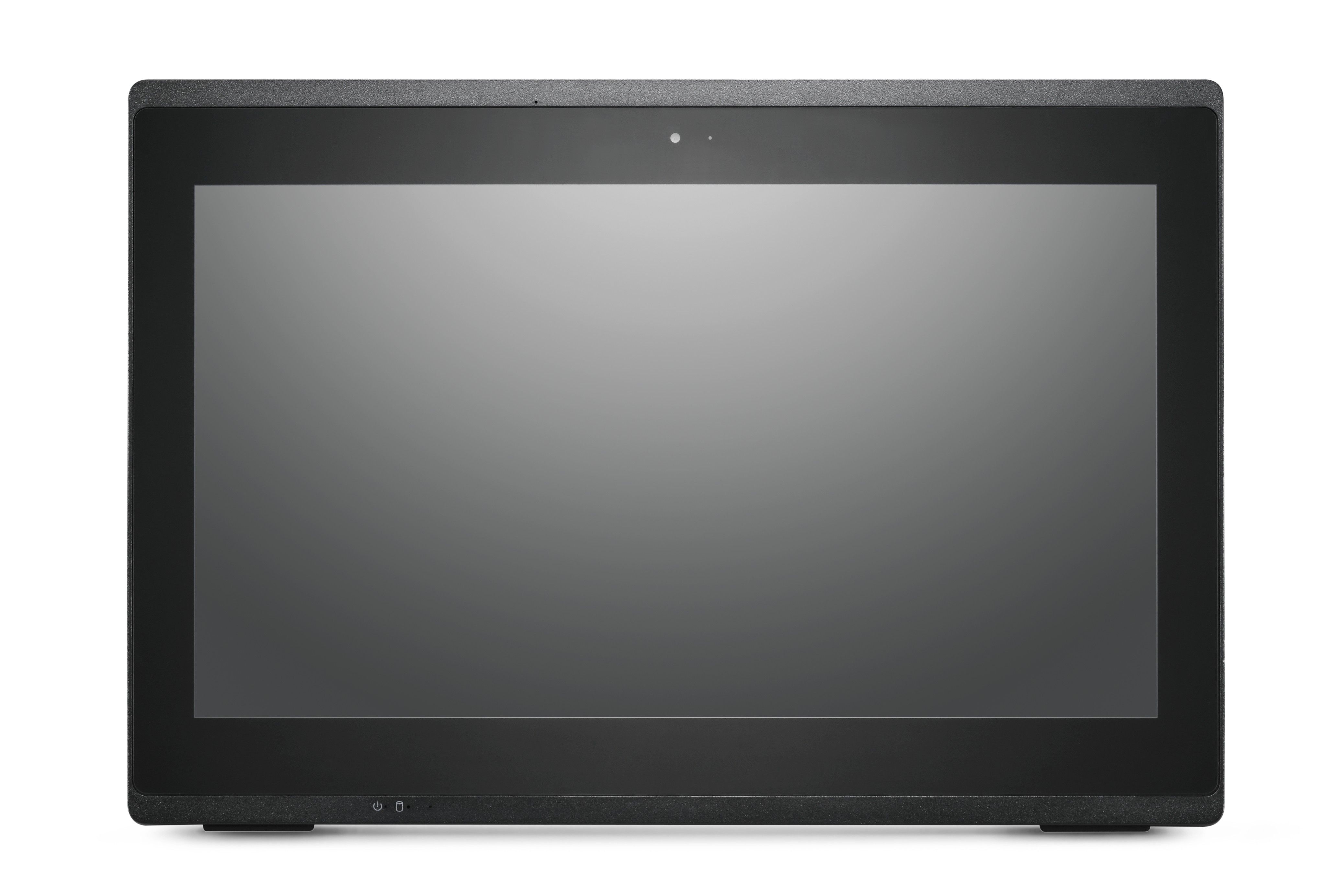

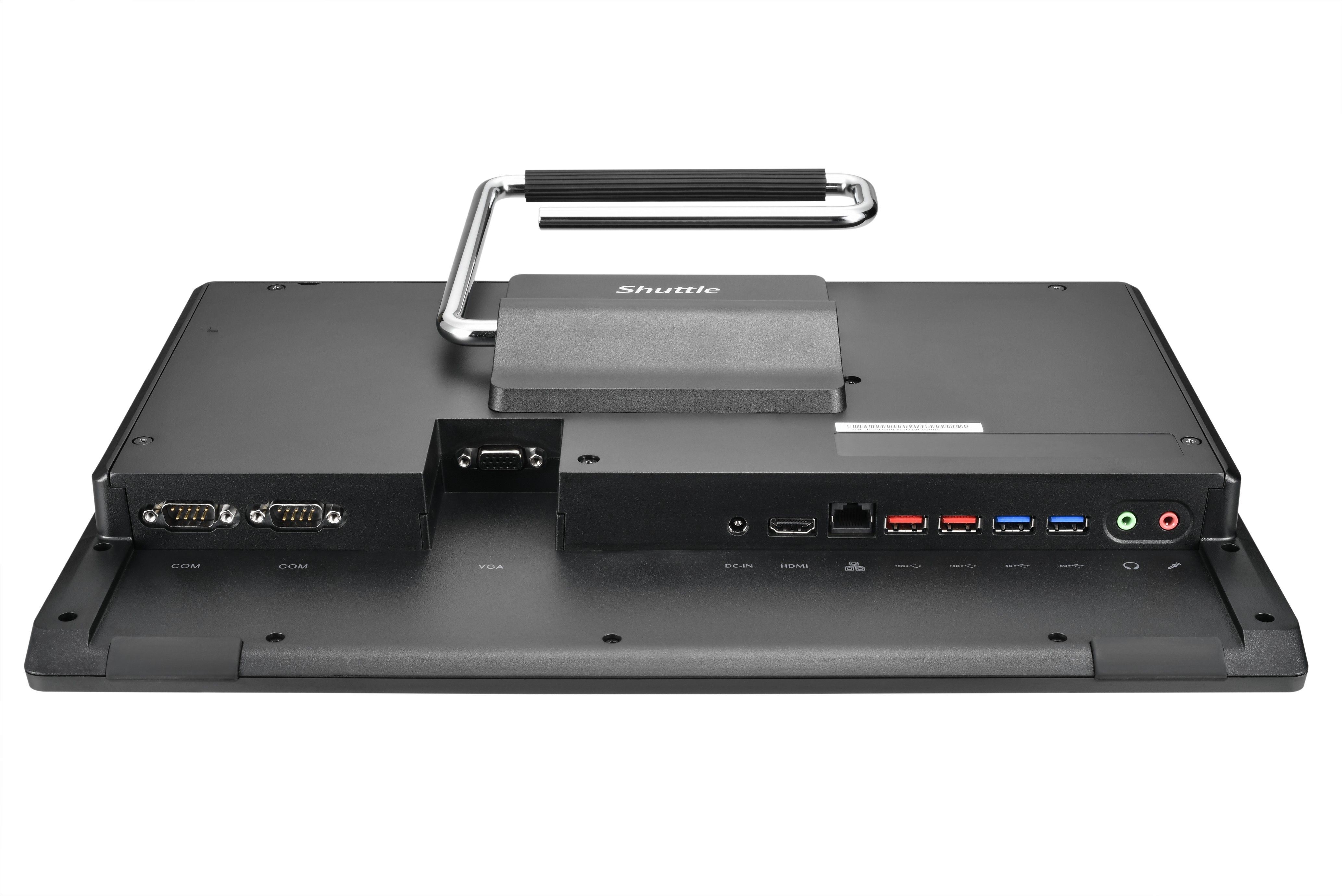

The Shuttle XPC all-in-one PC series P55U comes with a capacitive 15.6" multi-touchscreen in Full-HD resolution and is powered by a Gen12/13 Intel ULV processor. The modern processor architecture has a very positive effect on power consumption and computing performance. The existing WLAN function can optionally be supplemented with a 4G/5G function with up to 4 antennas. Thanks to its passive heatpipe cooling, the system is virtually noiseless, maintenance-free and approved for 24/7 nonstop operation. Particularly suitable for vertical applications is the arrangement of connectors at the bottom and the IP54 compliant front panel which is dust-protected and protected from splashing of water.

Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
HD type	Full HD
Native aspect ratio	16:9
Display brightness	250 cd/m²
Panel type	IPS
Processor family	Intel® Celeron®
Processor manufacturer	Intel
Processor model	7305
Processor cores	5
Processor threads	5
Performance cores	1
Efficient cores	4
Processor cache	8 MB
Processor cache type	Smart Cache
Processor base power	15 W
Maximum turbo power	55 W
Internal memory	8 GB
Maximum internal memory	64 GB
Internal memory type	DDR5-SDRAM
Memory slots	2
Memory slots type	SO-DIMM
Memory layout (slots x size)	1 x 8 GB
Memory form factor	DIMM/SO-DIMM
Memory data transfer rate	4800 MT/s
Total storage capacity	128 GB
Storage media	SSD
Optical drive type	No
Number of storage drives installed	1
Number of storage drives supported	2
Total SSDs capacity	128 GB
Number of SSDs installed	1
SSD capacity	128 GB
SSD interface	PCI Express
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card model	Intel® UHD Graphics
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® UHD Graphics
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	2 W
Audio chip	Realtek ALC888S
Built-in camera	Yes
Camera resolution	1920 x 1080 pixels
Camera HD type	Full HD
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Ethernet LAN	Yes
Bluetooth	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN controller manufacturer	Realtek
WLAN controller model	Realtek RTL8821CE
Antenna type	2x2
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth version	4.2
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB4 Gen 3x2 ports quantity	0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI version	2.0b
VGA (D-Sub) ports quantity	1
Headphone outputs	1
Microphone in	Yes
DC-in jack	Yes
Serial ports quantity	2
Product colour	Black
Cable lock slot	Yes
Cable lock slot type	Kensington
Wall mountable	Yes
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
On/off button	Yes
Product type	All-in-One PC
Market positioning	Business
Cooling type	Passive
Operating system installed	Windows?11?IoT?Enterprise
AC adapter power	90 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output voltage	19 V
Width (with stand)	393.6 mm
Depth (with stand)	39.8 mm
Height (with stand)	272.5 mm
Weight (with stand)	3.25 kg
Package weight	4.5 kg
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Compliance certificates	BSMI, CB, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, VCCI, cTUVus
Sustainability certificates	ENERGY STAR, ErP
Harmonized System (HS) code	84714100
