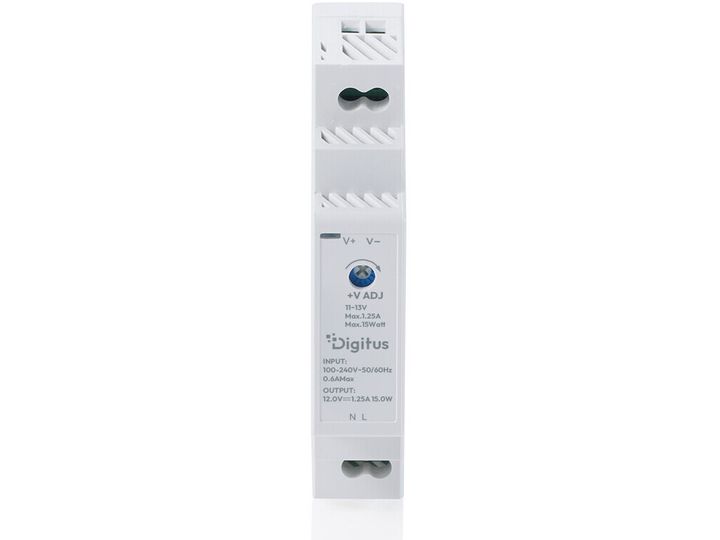

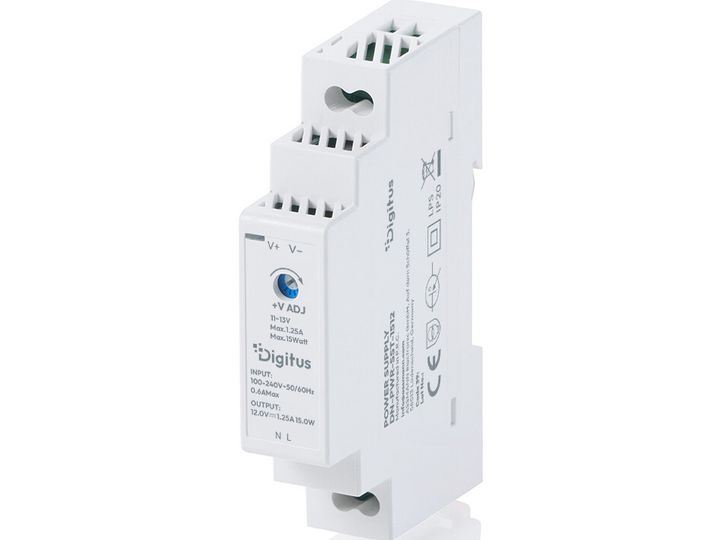

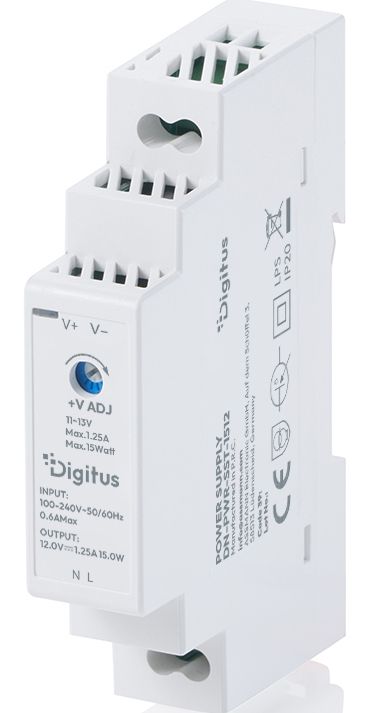

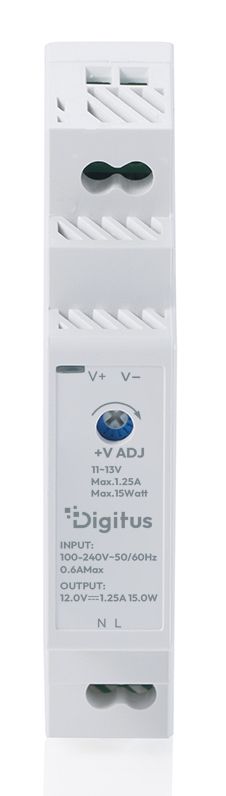

Digitus 12V / 1.25A / 15W Step-Shape DIN-Rail Power Supply (Ultra-Slim, Class II), Server, Indoor, 90 - 264 V, 47/63 Hz, 15 W, 12 V
Item no.: [25527235] | Manufacturer: Digitus | Model no.: DN-PWR-SST-1512 | EAN: 4016032508106
Remote stock (5-7 days)
The item is in a remote warehouse, delivery time is 5-7 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
17,42
Incl. VAT 21,78
Total incl. delivery
36,78
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Create user
Login
Create user
Login
Send på mail
Extremely slim 12 V power supply unit for narrow control cabinets - high efficiency, can be used worldwide and fully protected for a reliable supply of sensors, IoT and control systems.
- Extremely slim 18 mm step-shape housing - ideal for narrow distribution cabinets.
- 12 V / 1.25 A / 15 W stable DC supply - for industrial and building technology.
- High efficiency of 85 % - optimized for continuous operation.
- Wide-range input 90-264 V AC / 127-370 V DC - can be used globally
- Adjustable output voltage 10.8-13.8 V - for flexible applications.
- Comprehensive protection functions: Short-circuit, overload and overvoltage protection.

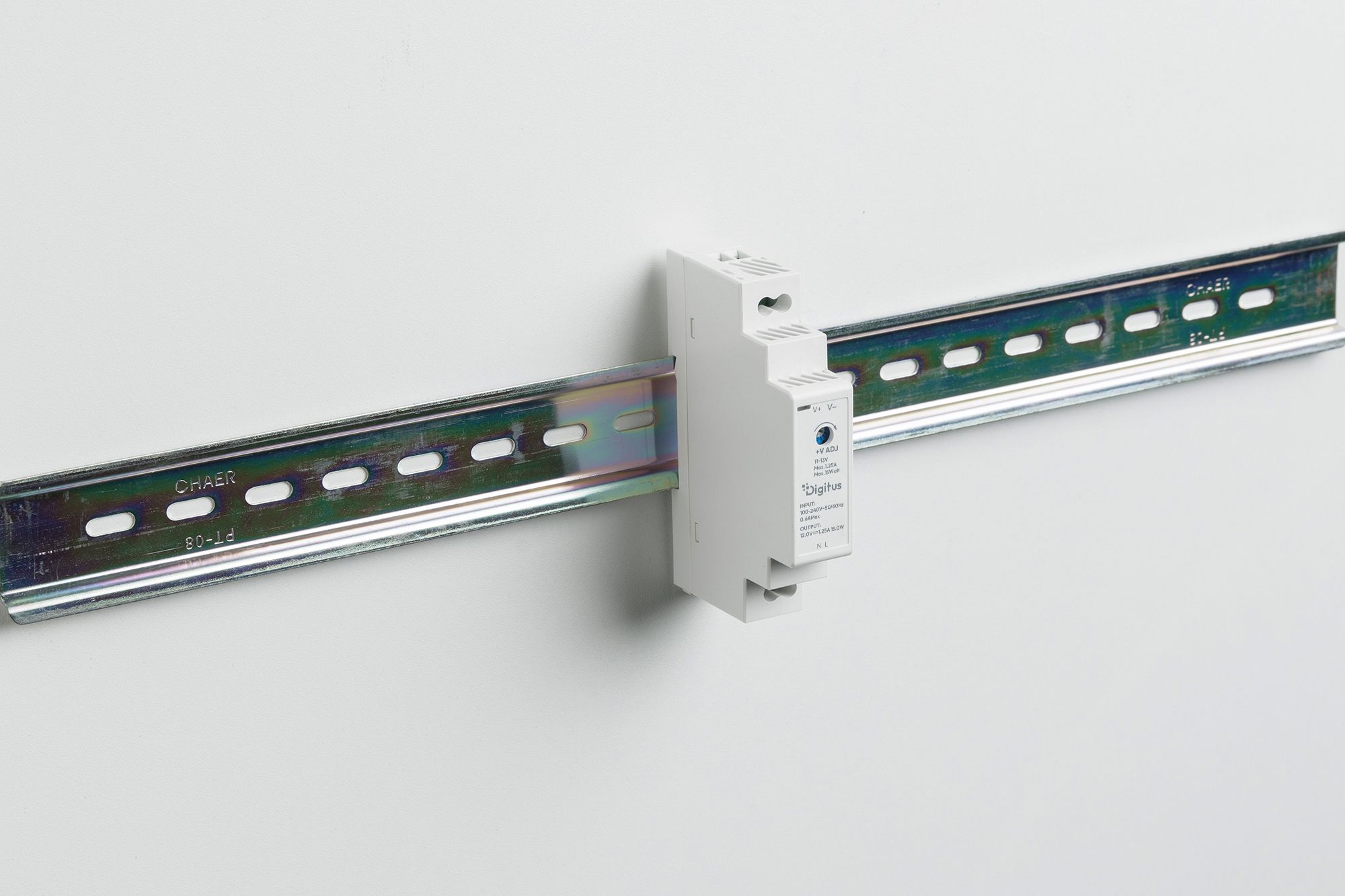

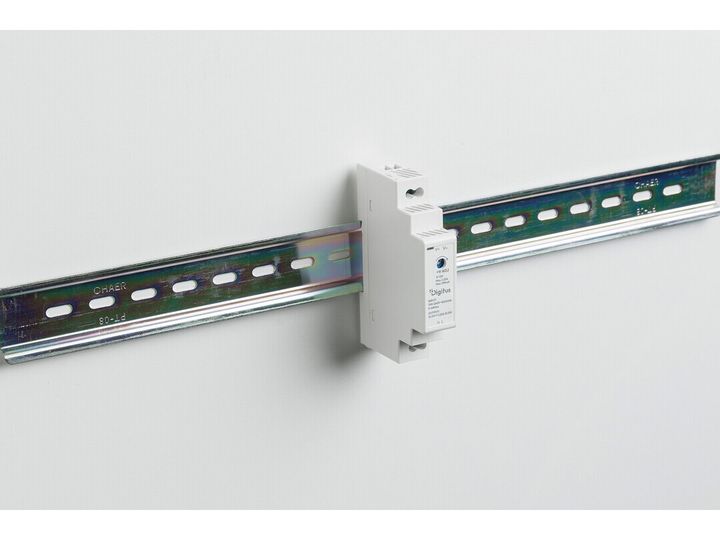

- DIN top-hat rail mounting (TH35) - quick and tool-free.
- Insulation Class II & Class 2/LPS - high electrical safety.
- Wide temperature range -20 to +47 °C - reliable in demanding environments.
- Perfect for control units, IoT gateways, door and access modules and KNX/Modbus peripherals.
The DIGITUS DN-PWR-SST-1512 is a particularly compact 12 V DIN rail power supply with 15 W output. With a width of just 18 mm, it is ideal for installations where every millimeter counts - for example in distribution cabinets, automation or IoT control cabinets. The wide input voltage range of 90-264 V AC / 127-370 V DC enables universal use. At the output, the power supply unit provides a stable 12 V DC voltage with 1.25 A, ideal for control systems, sensors, modules and numerous electronic systems. The output voltage can also be finely adjusted between 10.8 and 13.8 V. Thanks to integrated short-circuit, overload and overvoltage protection, the power supply works safely and reliably even in demanding environments. With Class II insulation, Class 2/LPS and tested EMC conformity, the DN-PWR-SST-1512 meets high requirements in control cabinets and building installations. It is ideal for applications in building automation, for example for supplying 12 V sensors and actuators, control modules such as relay cards or low-power actuators as well as door intercoms, switching modules and smart home logics. In industrial and automation technology, it supplies PLC sub-assemblies, I/O modules, RS485/RS232 communication devices, mini PLCs or relay field modules. It is also ideal for use in the IoT and edge sector - e.g. for gateways, protocol converters, edge sensors, low-power WLAN or mobile radio modules and microcontroller applications. In security and access technology, it serves as a stable power supply for door opener modules, card and RFID readers as well as intercom and intercom systems.
- Extremely slim 18 mm step-shape housing - ideal for narrow distribution cabinets.
- 12 V / 1.25 A / 15 W stable DC supply - for industrial and building technology.
- High efficiency of 85 % - optimized for continuous operation.
- Wide-range input 90-264 V AC / 127-370 V DC - can be used globally
- Adjustable output voltage 10.8-13.8 V - for flexible applications.
- Comprehensive protection functions: Short-circuit, overload and overvoltage protection.
- DIN top-hat rail mounting (TH35) - quick and tool-free.
- Insulation Class II & Class 2/LPS - high electrical safety.
- Wide temperature range -20 to +47 °C - reliable in demanding environments.
- Perfect for control units, IoT gateways, door and access modules and KNX/Modbus peripherals.
The DIGITUS DN-PWR-SST-1512 is a particularly compact 12 V DIN rail power supply with 15 W output. With a width of just 18 mm, it is ideal for installations where every millimeter counts - for example in distribution cabinets, automation or IoT control cabinets. The wide input voltage range of 90-264 V AC / 127-370 V DC enables universal use. At the output, the power supply unit provides a stable 12 V DC voltage with 1.25 A, ideal for control systems, sensors, modules and numerous electronic systems. The output voltage can also be finely adjusted between 10.8 and 13.8 V. Thanks to integrated short-circuit, overload and overvoltage protection, the power supply works safely and reliably even in demanding environments. With Class II insulation, Class 2/LPS and tested EMC conformity, the DN-PWR-SST-1512 meets high requirements in control cabinets and building installations. It is ideal for applications in building automation, for example for supplying 12 V sensors and actuators, control modules such as relay cards or low-power actuators as well as door intercoms, switching modules and smart home logics. In industrial and automation technology, it supplies PLC sub-assemblies, I/O modules, RS485/RS232 communication devices, mini PLCs or relay field modules. It is also ideal for use in the IoT and edge sector - e.g. for gateways, protocol converters, edge sensors, low-power WLAN or mobile radio modules and microcontroller applications. In security and access technology, it serves as a stable power supply for door opener modules, card and RFID readers as well as intercom and intercom systems.
