BUSNETZGERÄT
Item no.: [25536950] | Manufacturer: Siedle Nordic | EAN: 4015739351404
Remote stock (5-7 days)
The item is in a remote warehouse, delivery time is 5-7 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
295,07
Incl. VAT 368,84
Total incl. delivery
383,84
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Create user
Login
Create user
Login
Send på mail
Do you need a spare part for your phone?
Our configurator shows exactly the parts that fit 4015739351404 - batteries, displays, charging ports, back covers and much more.
Find spare parts for your model- Parts for this model in stock
- Delivery 1-2 working days
- Original and compatible parts

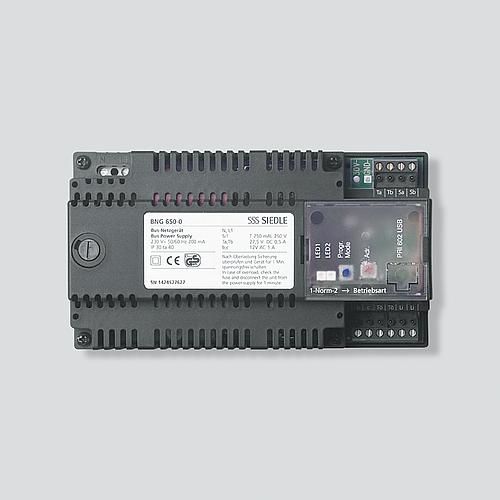

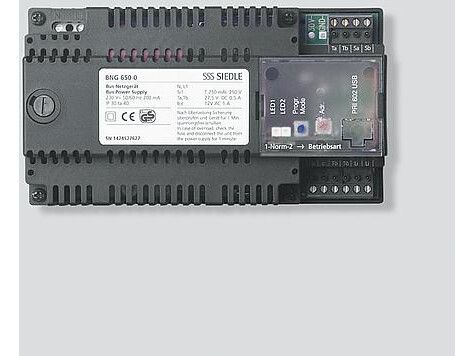

Bus line rectifier for Siedle In-Home bus: audio in switch panel housing for power supply to the bus users.
Technical data
Operating voltage:230 V AC, +/-10 %, 50/60 Hz
Operating current:200 mA
Output voltage:27.5 V DC, 12 V AC
Output current:0.5 A DC, 1 A AC
Fusing:primary fuse 1 T 250 mA L, secondary short circuit proof
Contact type:2 n.o. contacts 24 V, 2 A
Protection system:IP 30
Ambient temperature:0 °C to +40 °C
Horizontal pitch (HP):9
Dimensions (mm) W x H x D:162 x 89 x 60
Technical data
Operating voltage:230 V AC, +/-10 %, 50/60 Hz
Operating current:200 mA
Output voltage:27.5 V DC, 12 V AC
Output current:0.5 A DC, 1 A AC
Fusing:primary fuse 1 T 250 mA L, secondary short circuit proof
Contact type:2 n.o. contacts 24 V, 2 A
Protection system:IP 30
Ambient temperature:0 °C to +40 °C
Horizontal pitch (HP):9
Dimensions (mm) W x H x D:162 x 89 x 60
