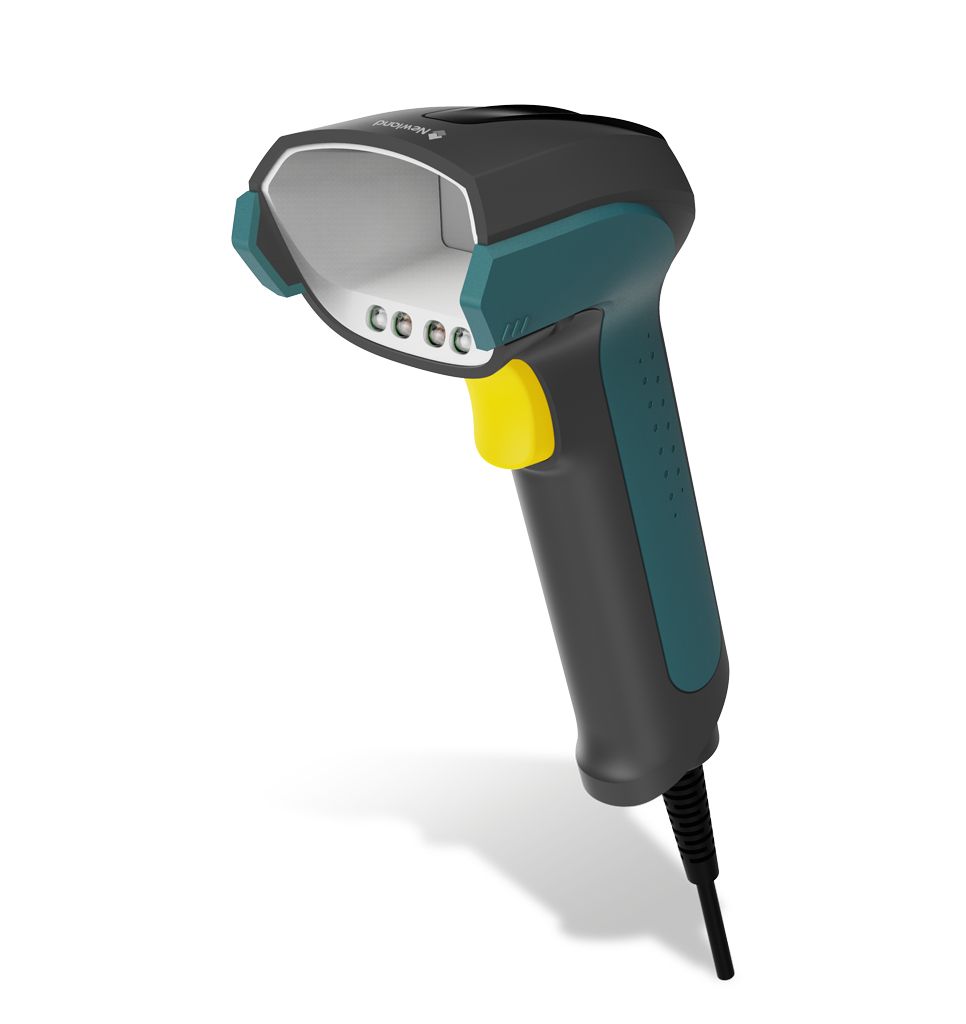

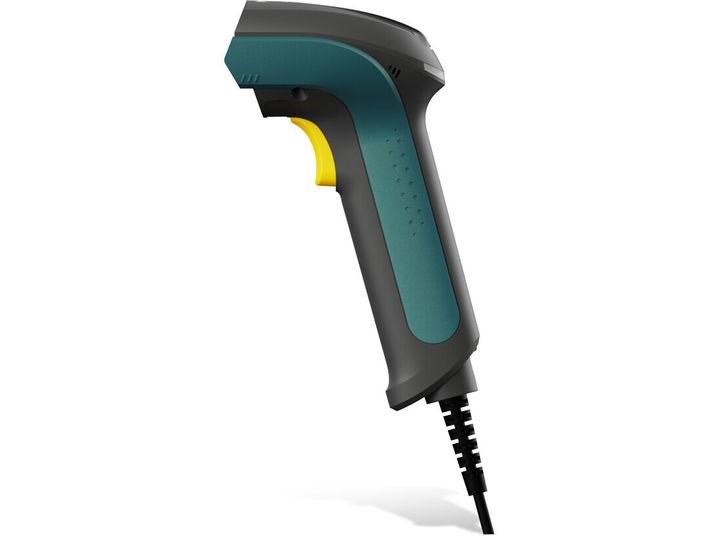

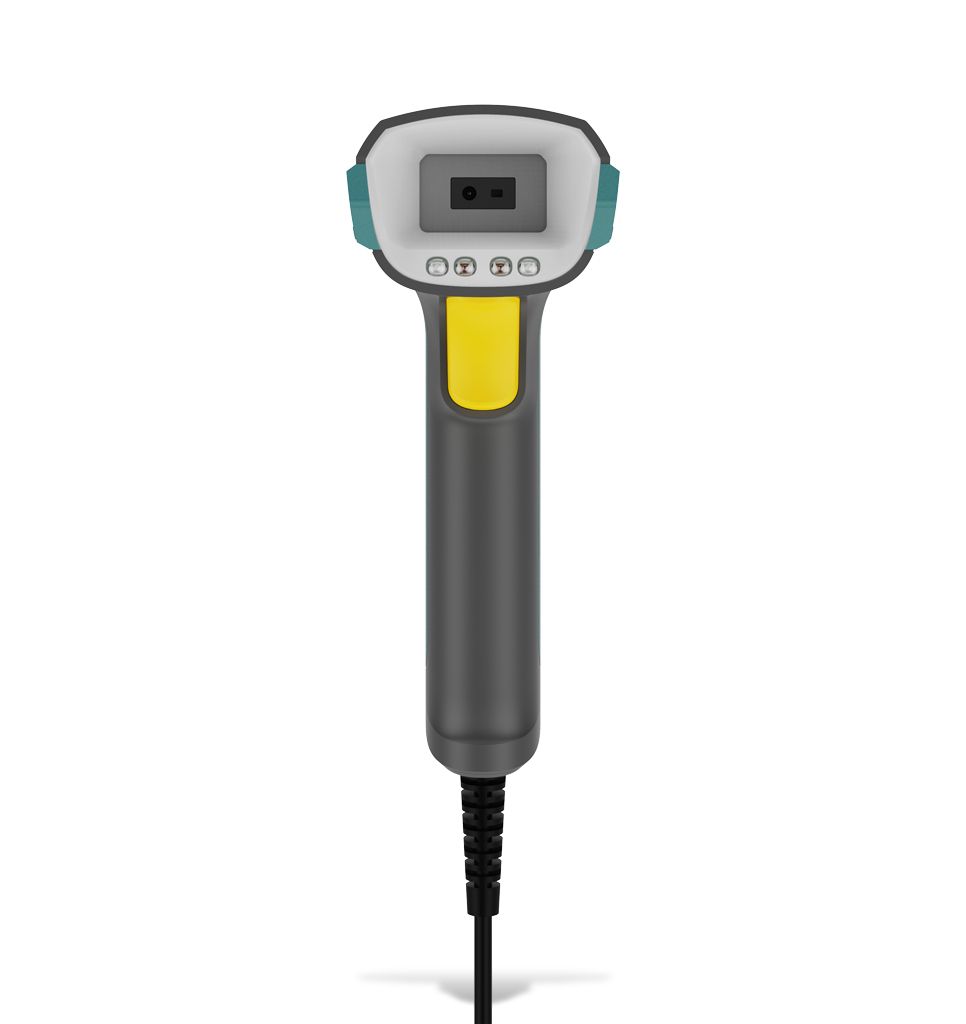

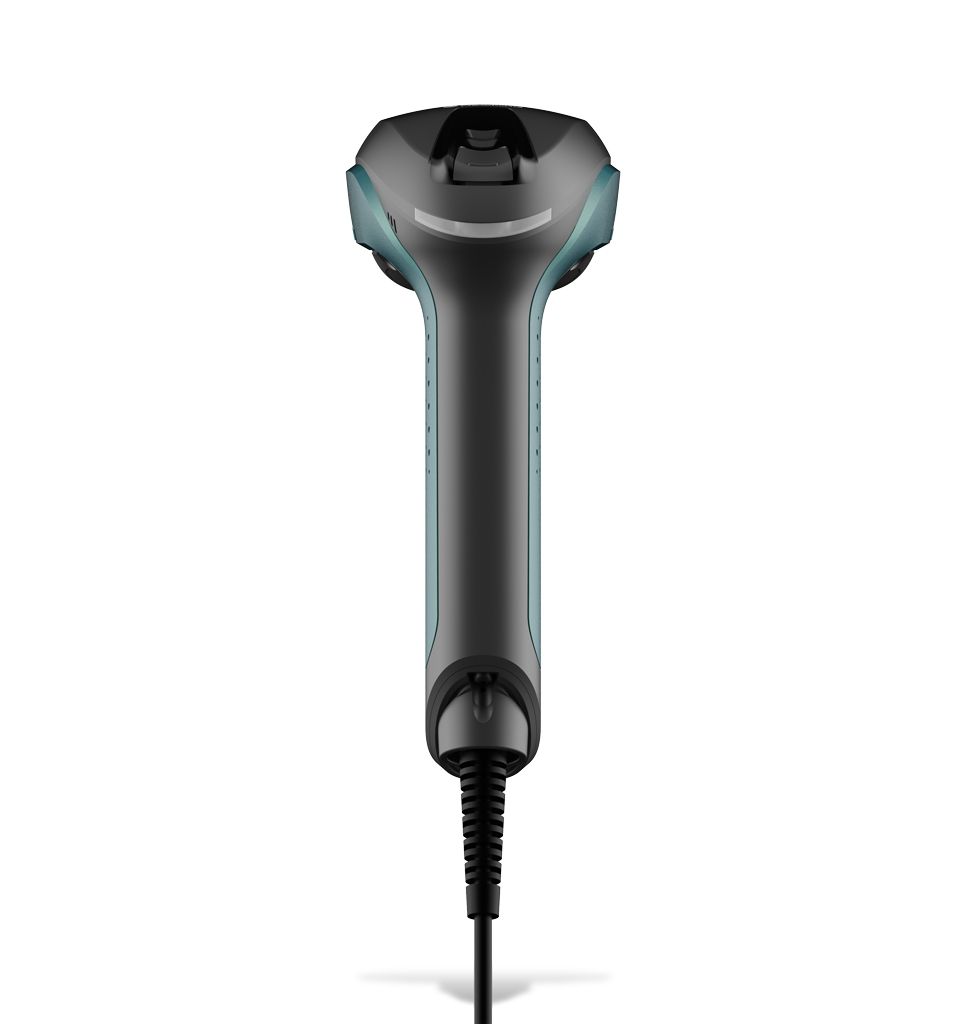

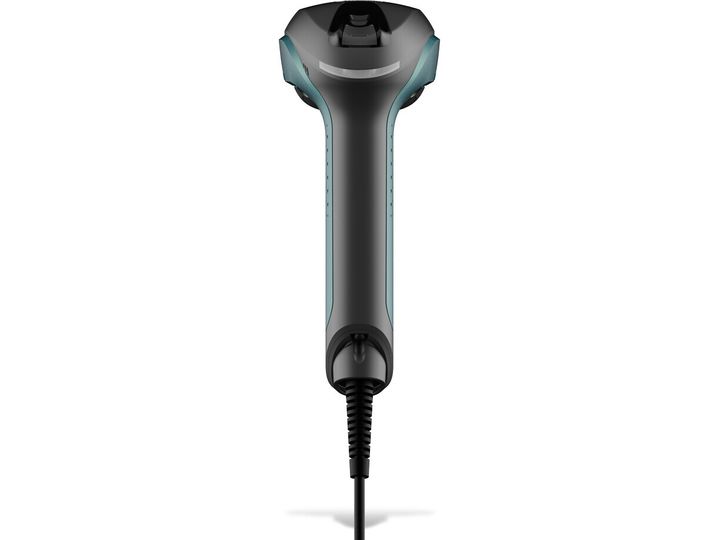

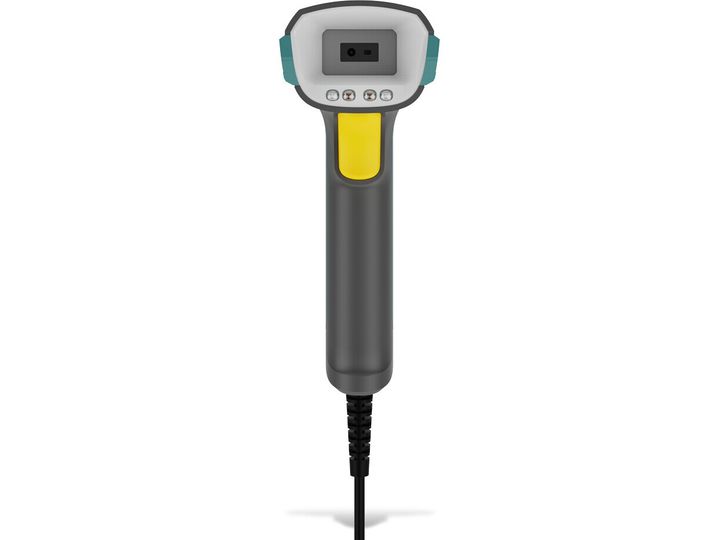

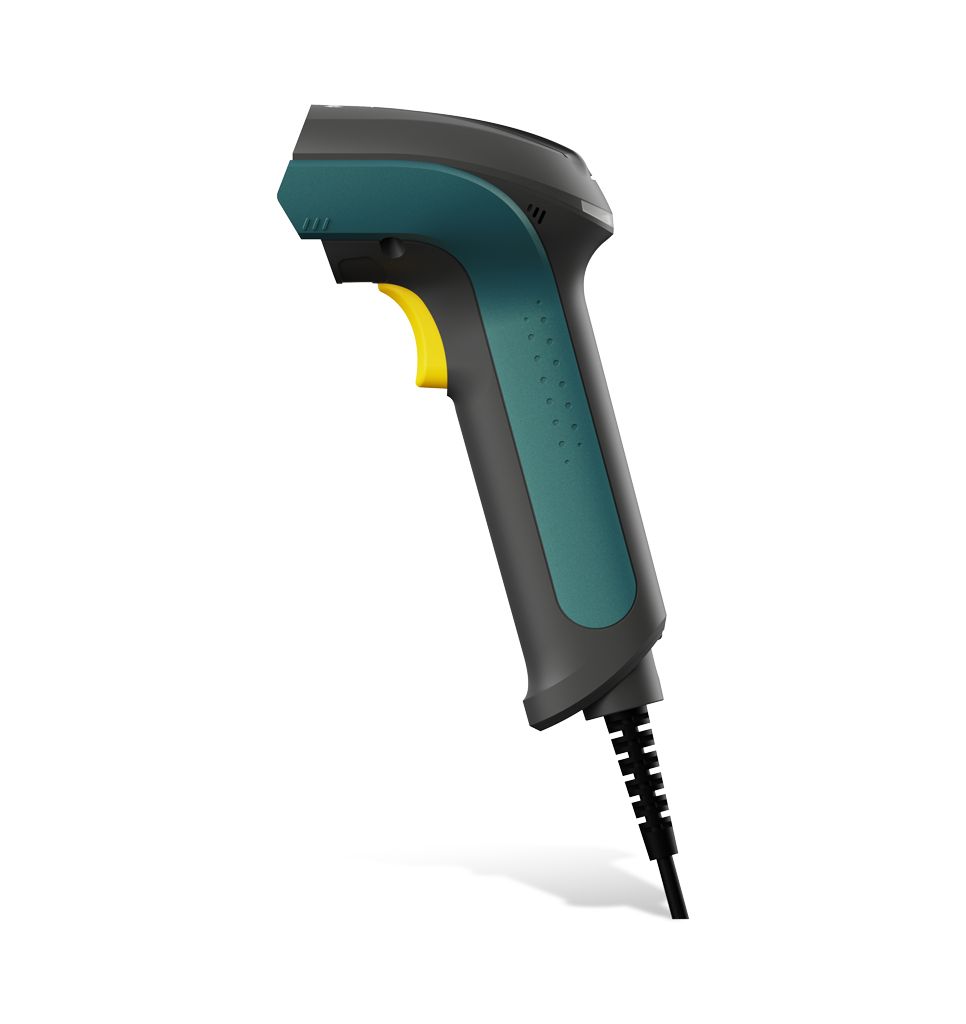

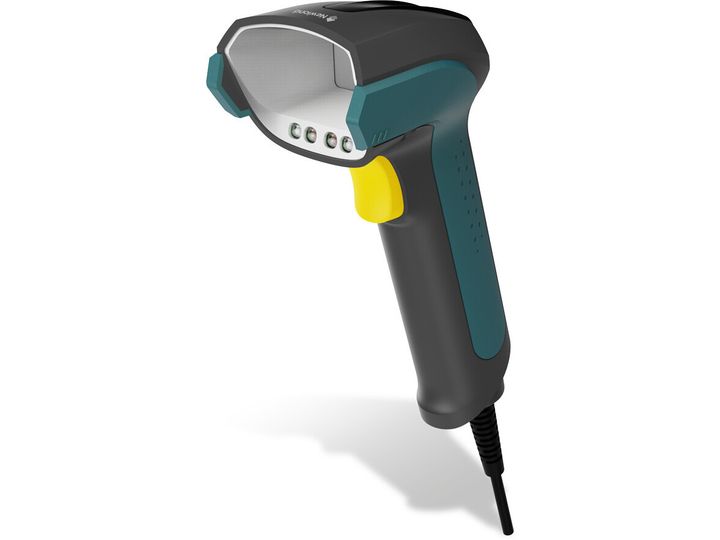

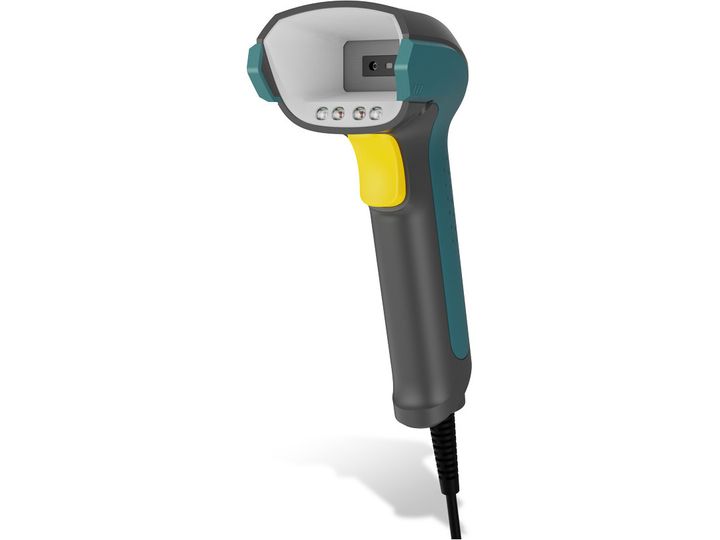

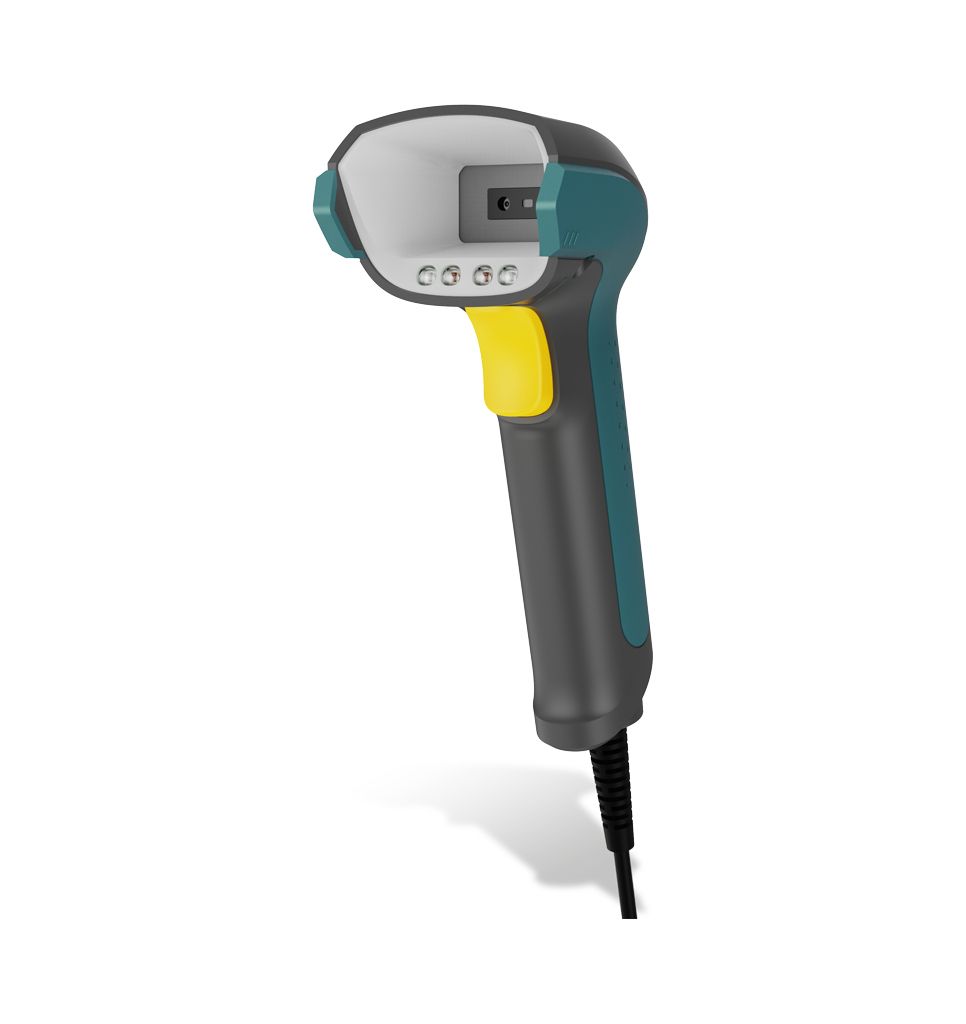

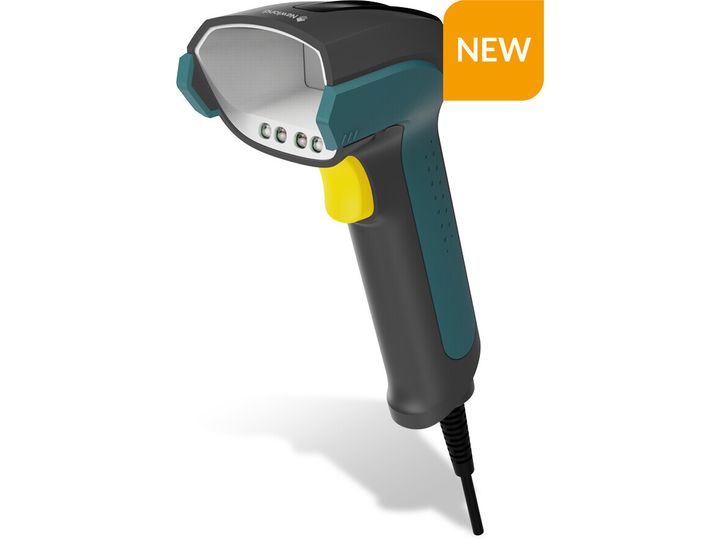

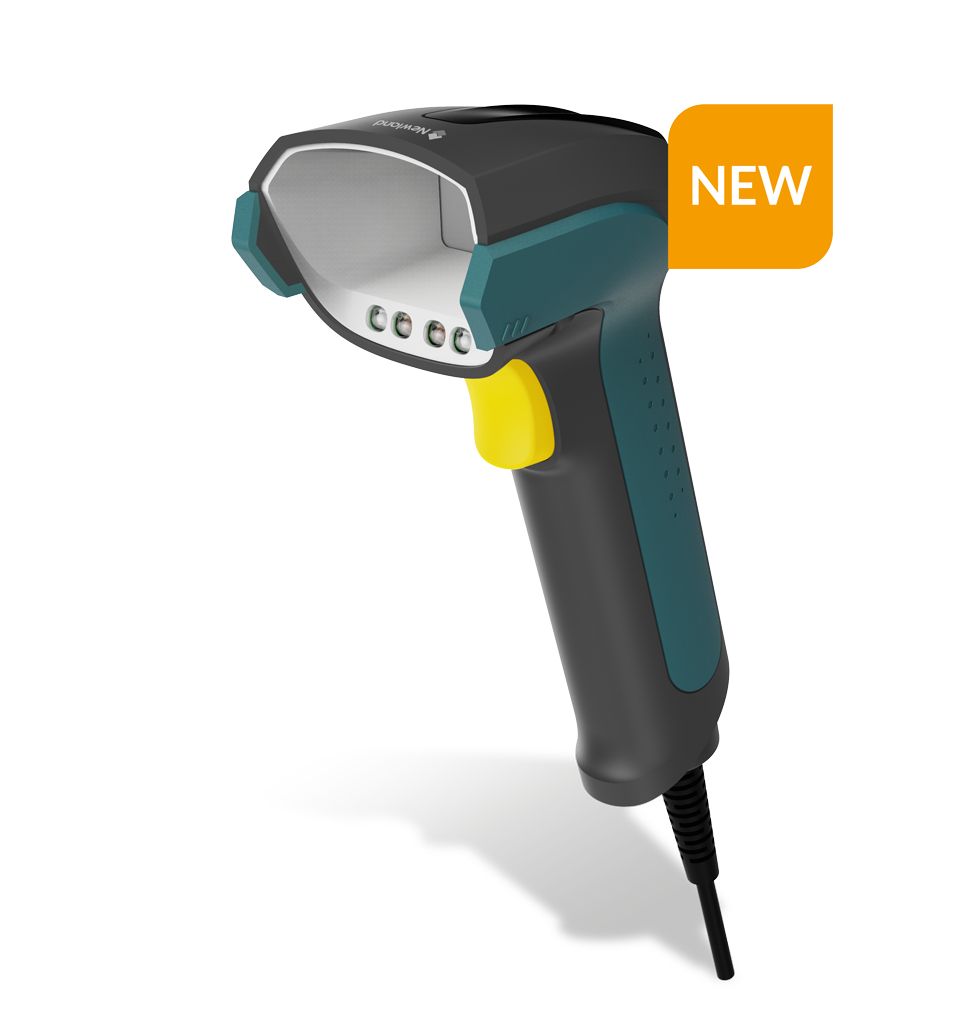

The NVH220 Lophius AI Corded is a reliable and cost-effective solution designed with ergonomics and a user-friendly interface in mind. It features AI-powered barcode detection and auto-learning capabilities, allowing it to accurately decode a wide range of barcodes in industrial applications, including Direct Part Marking (DPM), even on challenging surfaces. Its plug-and-play functionality makes it easy to set up and configure.
AI-Powered Scanning Technology. The NVH220 Lophius AI Corded is equipped with Newland’s UIMG and AI-Powered Barcode Detection scanning technologies. These advanced systems enable rapid, accurate, and reliable decoding of both 1D and 2D barcodes, even when they are damaged or distorted, as well as on reflective and curved surfaces. AI-powered devices utilize computer vision and self learning to interpret barcodes accurately. They efficiently analyze images to detect, locate, and read barcodes. The NVH220 Lophius AI Corded excels in challenging conditions, demonstrating advanced decoding performance and providing a reliable scanning solution that functions flawlessly in any situation.
High-Performance DPM Scanning The NVH220 Lophius AI Corded is distinguished by its outstanding ability to decode DPM barcodes, including those created using laser part marking and dotting techniques. Equipped with an upgraded dual-core processing platform, the NVH220 offers enhanced performance while consuming less power. This results in faster and more stable decoding, as well as improved image capture

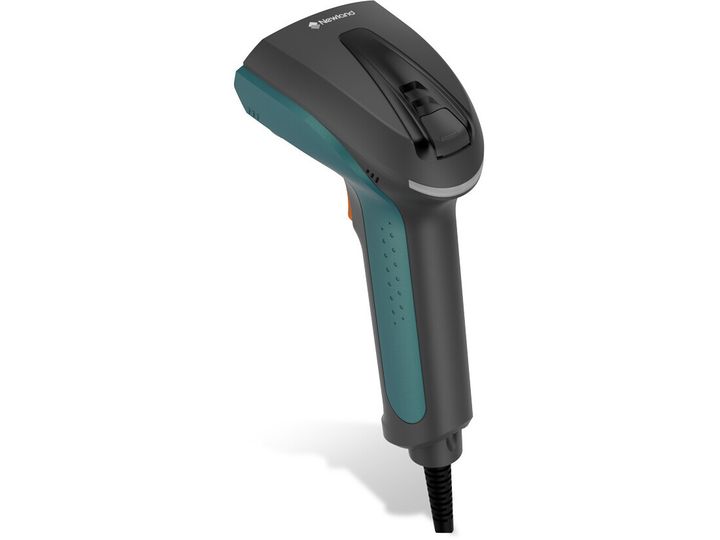

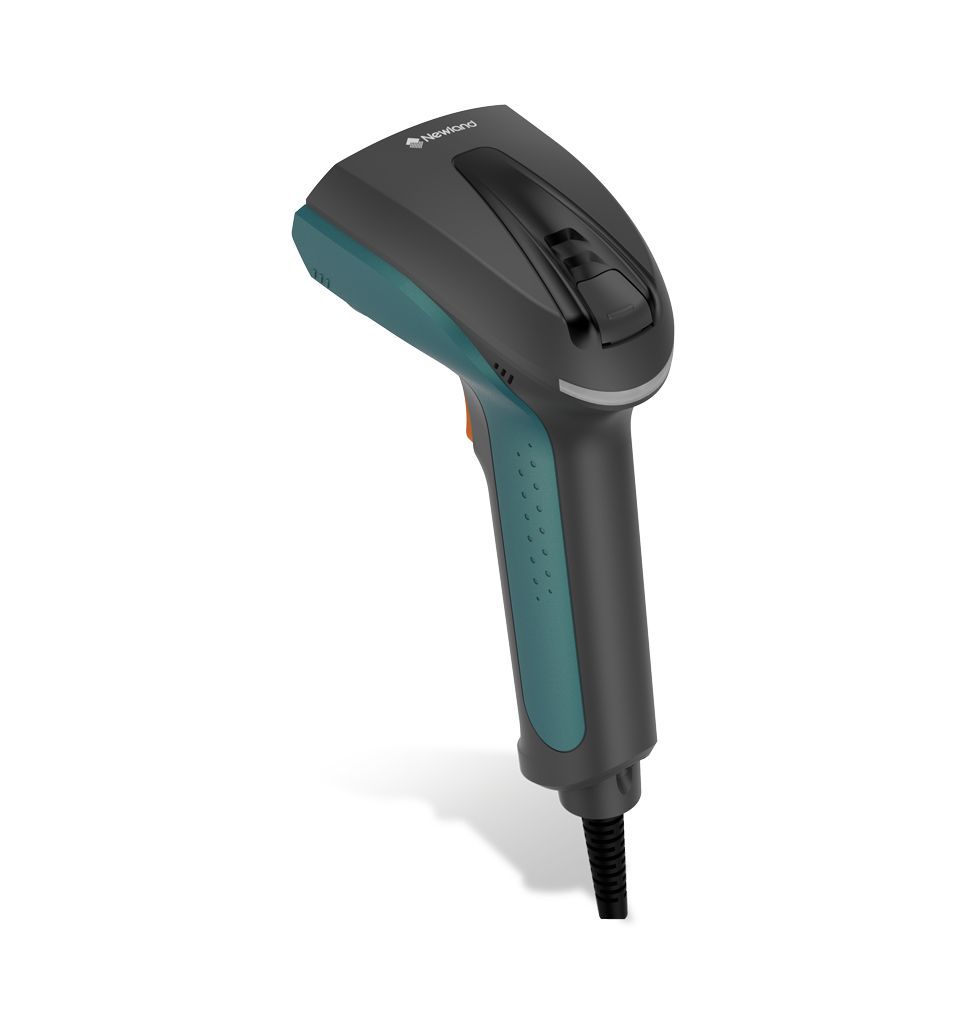

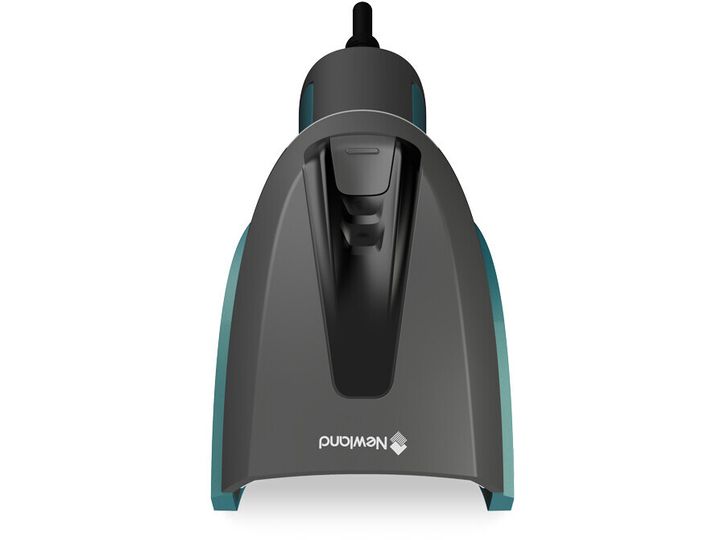

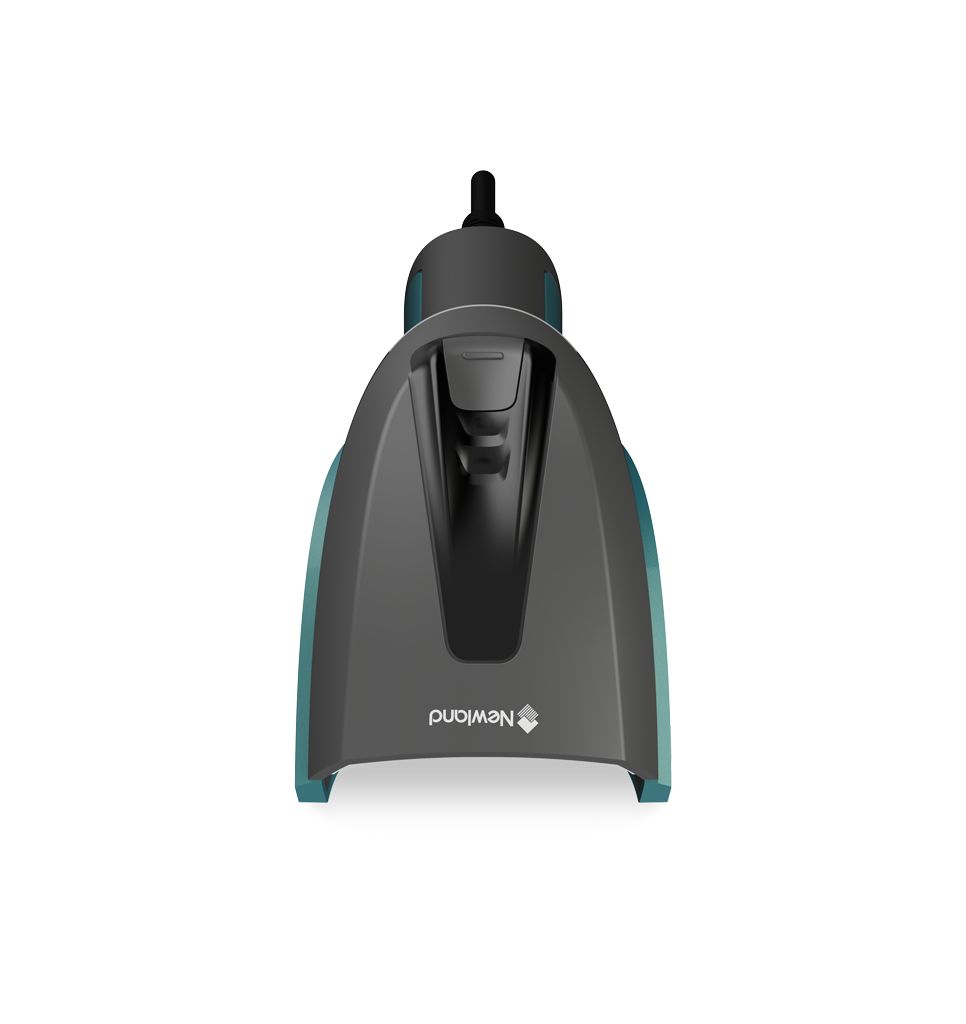

Advanced Illumination. The NVH220 Lophius AI Corded features both red and blue direct illumination and white diffuse lighting. These lighting options can be easily activated using the auto-learning function button located on the top of the device. With this feature, the NVH220 automatically adjusts brightness and light source to optimize barcode decoding, even on challenging materials. This includes reflective surfaces, curved shapes, varied backgrounds (ranging from low to high contrast), and different barcode colors.
Robust by Design. The NVH220 Lophius AI Corded is built for durability, featuring a robust design that can endure challenging conditions. Its high-protection construction and IP64-sealed housing ensure reliable performance, even in environments with dust and water exposure, as well as after repeated drops from heights of up to 1.8 meters.
Configure To Your Needs. The NVH220 Lophius AI Corded can be easily configured to meet the specific needs of any application using the free configuration software, EasySet.
Type
Handheld bar code reader
Scanner type
1D/2D
Sensor type
CMOS
Linear (1D) barcodes supported
AIM-128, Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 Composite, GS1-128 (UCC/EAN-128), ISBN, ISBT 128, ISSN, ITF-14, ITF-6, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI-Plessey, Plessey, Standard 2 of 5, UPC-A, UPC-E
2D (matrix & stacked) barcodes supported
Aztec Code, Data Matrix, Micro QR Code, PDF417, QR Code
Optical sensor resolution (W x H)
1280 x 800 pixels
Scanner resolution
0.0508 mm
Horizontal field of view
33°
Vertical field of view
22°
Wavelength
650 nm
Tilt reading angle
0 - 360°
Pitch reading angle
50 - 50°
Yaw reading angle
50 - 50°
Connectivity technology
Wired
Standard interfaces
RS-232, USB
Cable length
2 m
Product colour
Black
International Protection (IP) code
IP64
Protection features
Dust resistant, Water resistant
LED indicators
Yes
Buzzer
Yes
Built-in display
No
Print contrast
20%
Built-in processor
Yes
Processor cores
2
Programming function
Yes
Vibration function
Yes
Certification
FCC; IEC 62471; RoHS; CE
Power source type
DC
Power consumption (typical)
1.5 W
Input voltage
5 V
AC adapter output voltage
5 V
Power consumption
300 mA
Weight
160 g
Width
68 mm
Depth
86 mm
Height
180 mm
External power adapter
Yes
Cables included
USB
Stand included
No
Operating temperature (T-T)
20 - 50 °C
Storage temperature (T-T)
40 - 70 °C
Operating relative humidity (H-H)
5 - 95%
Drop resistance
1.8 m
Warranty period
5 year(s)
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
