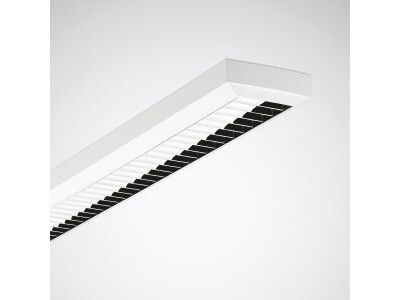

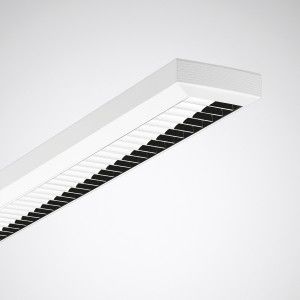

Trilux 6483640, LED, 4000 K, 3500 lm, IP20, White
Item no.: [25552466] | Manufacturer: Trilux | EAN: 4018242333554
Remote stock (3-5 days)
The item is in a remote warehouse, delivery time is 3-5 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
181,09
Incl. VAT 226,36
Total incl. delivery
241,36
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Create user
Login
Create user
Login
Send på mail
Luminaire type
Surface-mounted LED luminaire for single use or trunking applications.
Applications
Offices, Sales rooms, Recreation rooms, Exhibition rooms.
Mounting methods
For mounting to ceilings and overhangs indoors.
Optical system
With parabolic specular louvre, highly specular, anodised. Louvre mounting and self-actuating electrical earthing via sliding contact catches. Louvre can be hinged downwards and unhooked on both sides without tools. Glare evaluation (EN 12464-1) according to UGR < 19. Suitable for VDU workstations according to EN 12464-1 via limited luminance L = 1500 cd/m² for beam angle above 65° all-round.
LED system
Luminaire luminous flux 3500 lm, connected load 31,00 W, Leistungsfaktor ? > 0,95, luminous efficiency of luminaire 112 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K, Colour locus tolerance (initial MacAdam) = 3 SDCM, general colour rendering index (CRI) Ra > 80. Mean rated service life L80(tq 25 °C) = 35,000 h, mean rated service life L70(tq 25 °C) = 50,000 h.
Luminaire body
Luminaire body sheet steel. Surface coated white (RAL 9016). Flat profile design, underside angled at 55%. Dimensions (L x W): 1246 mm x 197 mm, luminaire height 75 mm. Weight: 3,5 kg. Please order end caps for individual luminaires or continuous lines separately. Luminaire body with integral coupling profiles for precise alignment of continuous lines with non-interrupted louvres. Permissible ambient temperature (ta): -20 °C - +25 °C.
Electrical version
With electronic transformer, switchable. The luminaire complies with fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol.
Counter weight:
The use of a counterweight may be necessary with suspended mounting. Further information can be found in the installation instructions.
