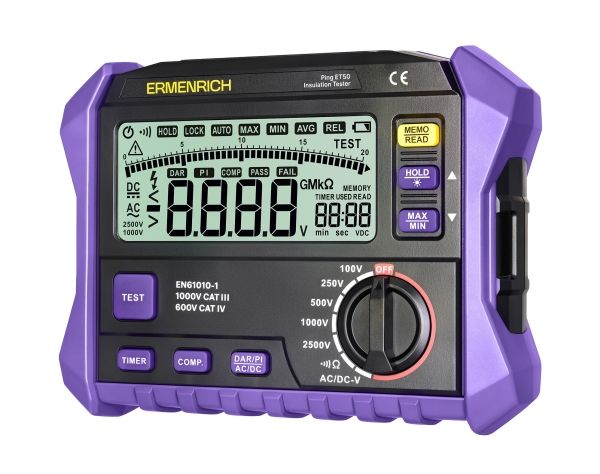

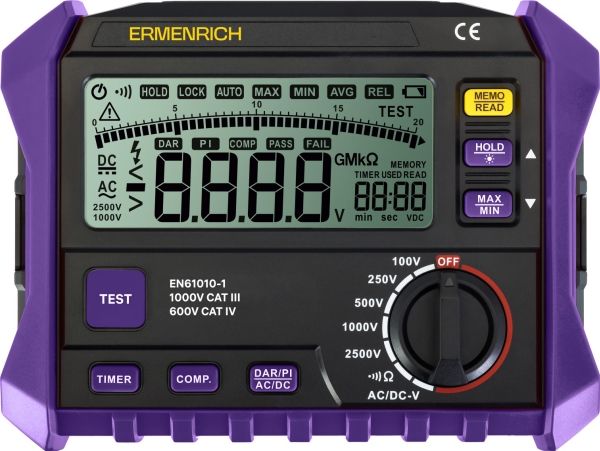

Ermenrich Ping ET50 Insulation Tester

Item no.: [25578543] | Manufacturer: Ermenrich | Model no.: 86320 | EAN: 5905555027333
Remote stock (5-7 days)
The item is in a remote warehouse, delivery time is 5-7 business days. More info
Delivery options  - Select at checkout
Shipping @price - GLS
12,00
EUR 132,72
Incl. VAT 165,90
Total incl. delivery 180,90
Read further specifications and description
Megaohmmeter (insulation resistance tester). Measurement range: 0 to 200GΩ

Ermenrich Ping ET50 is an insulation resistance meter, or megohmmeter, which is used to check the quality of cables. Damage or deterioration of the insulation on a live cable can lead to short circuits and fires. Regular megohmmeter inspection reduces the risk of such dangerous situations occurring. The device operates at 5 test voltages: 100, 250, 500, 1000, and 2500V. The total resistance measurement range is from 0 to 200GΩ.


The device also measures two additional parameters: dielectric absorption ratio (DAR) and polarization index (PI). The first indicates the amount of moisture in the insulation: Drying is required if the volume is high. The second parameter is used to determine the residual insulation life. The megohmmeter also measures AC and DC voltage, has a continuity test function and a timer for resistance measurement mode. The measurement re-sults and operating parameters are displayed on the built-in backlit screen. There are functions for recording data to memory, keeping data on the screen, and determining the minimums and maximums.


The device has a built-in flashlight for working in the dark. The power is supplied from batteries.


Key features:



  • Five test voltages: 100, 250, 500, 1000, and 2500V

  • Insulation resistance measurement in a range of 0 to 200GΩ

  • Absorption coefficient and polarization index measurements

  • Resistance measurement timer, recording results to memory

  • Measurement of DC and AC voltage, continuity mode

  • Flashlight, auto-off function, battery-powered


The kit includes:



  • Insulation tester

  • Probes

  • Alligator clips

  • Case bag

  • User manual and warranty card

BrandErmenrich
Warranty5 years
EAN5905555027333
Package size (LxWxH)33x27x9 cm
Shipping Weight1.53 kg
Test voltages, V100, 250, 500, 1000, 2500
Resistance measurement range (100V)0–1GΩ: error ±(3%+5)
Resistance measurement range (250V)0–2GΩ: error ±(3%+5)
Resistance measurement range (500V)0–20GΩ: error ±(3%+5)
Resistance measurement range (1000V)0–20GΩ: error ±(3%+5); 20–100GΩ ±(5%+5)
Resistance measurement range (2500V)0–20GΩ: error ±(3%+5); 20–200GΩ ±(8%+5)
Short circuit current3mA
DC voltage measuring range0–1000V: error ±(1%+5)
AC voltage measuring range0–750V: error ±(1%+5)
Continuity test+; combined with resistance measurement mode (0–200GΩ: error ±(1%+5))
Overvoltage categorycat. III (1000V), cat. IV (600V)
Displayyes
Graphic scaleyes
Flash lightyes
Safety standardsIEC/EN 61010-1
Dielectric absorption ratio (DAR)yes
Polarization index measurement (PI)yes
Data save/read functionyes
Data hold functionyes
Limit value memory (Min/Max)yes
Resistance measurement timeryes
Power supply6 AA batteries (not included)
Low battery status indicatoryes
Auto power offyes
