Teltonika Networks RUT286 – 4G/LTE/3G Industrial Router - RS232, RS485, PoE (Global)

Item no.: [25615526] | Manufacturer: Teltonika | Model no.: RUT286AAAAA0 | EAN: 4779051849345

In stock

In stock, order before 3 PM and we ship today (weekdays) More info

There are 5 in stock

The current price is valid as long as the local stock lasts

Shipping @price - GLS

12,00

EUR 367,26

Incl. VAT 459,08

Total incl. delivery 474,08

Read further specifications and description

Teltonika RUT286 industrial router 4G / LTE (RUT286AAAAA0)

Produktbeskrivelse	Teltonika RUT286 - trådløs router - WWAN - Wi-Fi - 2G, 3G, 4G - DIN monterbar på skinne, overflademonterbar, væg-monterbar
Enhedstype	Trådløs router - trådløs mobilmodem - 1-port switch (integreret)
Pakningstype	DIN monterbar på skinne, overflademonterbar, væg-monterbar
Mobilprotokol	4G LTE
Generation	2G, 3G, 4G
Mobilbånd	LTE B1, LTE B2, LTE B3, LTE B4, LTE B5, LTE B7, LTE B8, LTE B9, LTE B12, LTE B13, LTE B14, LTE B19, LTE B20, LTE B25, LTE B26, LTE B28
Antal WAN porte	1
Dataforbindelsesprotokol	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Ethernet, Fast Ethernet
Frekvensbånd	2,4 GHz
Kapacitet	Samtidige tilslutninger: 50
Netværks/overføselsprotokol	TCP, UDP, IPv4, IPv6, DNS, NTP, SFTP, FTP, SMTP, ARP, PPPoE, DHCP
Routingprotokol	Statisk IP routing, BGP, OSPFv2, RIP-1, RIP-2, NHRP, police-baseret routing (PBR), EIGRP, VRRP, VXLAN
Platform	ThingWorx, Cumulocity, AWS IoT Core, Azure IoT Hub
Protokol til fjernadministration	ICMP, HTTP, HTTPS, SSH, SSH-2, Telnet, SMPP, CLI, SNMP 1, SNMP 2, SNMP 3, TR-069, JSON-RPC
VoIP-protokoller	SIP, H.323
Egenskaber	PPP, WOL, eSIM support, kompakt, QoS, auto-uplink (auto MDI/MDI-X), brotilstand, 3GPP Release 10, 802.1x autentificering, Tilgangspunkt, drift, tillad/bloker-liste, auto APN, båndadministration, forbindelsesovervågning, DHCP videresendelse, DHCP server, DNS over HTTPS, e-mail underretning, ESSID stealth tilstand, firewall status side, hotspot captive portal, aktivitet, MAC filtering, fler-PDN, netværksbackup, SIM PIN-administration, SIM skift, SQM, SMS alarmer, SSHFS support, stationsdriftstilstand, trafikadministration, TravelMate, USSD support, trådløs QR-kodegenerator, OpenVPN-klient, OpenVPN server, GRE tunneling, DMVPN, SSTP-klient instanssupport, WireGuard, ZeroTier VPN-klient support, Tinc-kryptering, DLMS support, FOTA, firmware kan opgraderes, passiv PoE-understøttet, nulstillingsknap, SNMP fælde, aluminiumskabinet, Teltonika RMS, NAT64 understøttelse, Stealth Mode, MQTT-support, WMM support, IPSec NAT-T, VLAN-understøttet
Overensstemmelsesstandarder	UPnP, IEEE 802.11k, IEEE 802.11r, IEEE 802.11s, IEEE 802.11v, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11w, IEEE 802.3, IEEE 802.3az, IEEE 802.3u
Effekt	DC 9 - 57 V
Dimensioner (B x D x H)	8.3 cm x 8.3 cm x 2.5 cm
Vægt	132 g
Producentgaranti	2 års garanti

Generelt
Enhedstype	Trådløs router - 1-port switch (integreret)
Pakningstype	DIN monterbar på skinne, overflademonterbar, væg-monterbar
Forbindelsesteknologi	Kablet, trådløs
Dataforbindelsesprotokol	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Ethernet, Fast Ethernet
Frekvensbånd	2,4 GHz
Kapacitet	Samtidige tilslutninger: 50
Netværks/overføselsprotokol	TCP, UDP, IPv4, IPv6, DNS, NTP, SFTP, FTP, SMTP, ARP, PPPoE, DHCP
Routingprotokol	Statisk IP routing, BGP, OSPFv2, RIP-1, RIP-2, NHRP, police-baseret routing (PBR), EIGRP, VRRP, VXLAN
Protokol til fjernadministration	ICMP, HTTP, HTTPS, SSH, SSH-2, Telnet, SMPP, CLI, SNMP 1, SNMP 2, SNMP 3, TR-069, JSON-RPC
Krypterings algoritme	SSL, TLS, AES-CCMP, EAP-TLS, OWE, PEAP, PKCS#12, TKIP, WPA2-Enterprise, WPA2-PSK, WPA3-EAP, WPA3-SAE, WPA-EAP, WPA-PSK, 128-bit AES-CBC, 192-bit AES-CBC, 256-bit AES-CBC, DES, RC2, DESX, CAST5, IKEv1, IKEv2
Autentificeringsmetode	X.509 certifikater, TACACS+, RADIUS, Radio Service Set ID (SSID)
Egenskaber	PPP, WOL, eSIM support, kompakt, QoS, auto-uplink (auto MDI/MDI-X), brotilstand, 3GPP Release 10, 802.1x autentificering, Tilgangspunkt, drift, tillad/bloker-liste, auto APN, båndadministration, forbindelsesovervågning, DHCP videresendelse, DHCP server, DNS over HTTPS, e-mail underretning, ESSID stealth tilstand, firewall status side, hotspot captive portal, aktivitet, MAC filtering, fler-PDN, netværksbackup, SIM PIN-administration, SIM skift, SQM, SMS alarmer, SSHFS support, stationsdriftstilstand, trafikadministration, TravelMate, USSD support, trådløs QR-kodegenerator, OpenVPN-klient, OpenVPN server, GRE tunneling, DMVPN, SSTP-klient instanssupport, WireGuard, ZeroTier VPN-klient support, Tinc-kryptering, DLMS support, FOTA, firmware kan opgraderes, passiv PoE-understøttet, nulstillingsknap, SNMP fælde, aluminiumskabinet, Teltonika RMS, NAT64 understøttelse, Stealth Mode, MQTT-support, WMM support, IPSec NAT-T, VLAN-understøttet
Overensstemmelsesstandarder	UPnP, IEEE 802.11k, IEEE 802.11r, IEEE 802.11s, IEEE 802.11v, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11w, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IP30, UKCA, EAC, UCRF, FCC, ISED, RCM, CB, EN 55032:2015+A11:2020+A1:2020, EN 55035: 2017+A11:2020, EN IEC 61000-3-2:2019+A1:2021+A2:2024, EN 301 489-1 V2.2.3, EN 301 489-19 V2.2.1, EN 301 489-52 V1.2.1, AS/NZS CISPR 32:2015+A1:2020, FCC 47 CFR Part 15 Subpart B, ICES-003:2020 Issue 7, EN 61000-4-2:2009, EN IEC 61000-4-3:2020, EN 61000-4-4:2012, EN 61000-4-6:2014, EN 61000-4-11:2020, EN 300 328 V2.2.2, EN 301 511 V12.5.1, EN 301 908-1 V15.2.1, EN 301 908-13 V13.2.1, AS/NZS 4268:2017+A1:2021, AS/NZS 2772.2:2016+A1:2018, RSS-Gen Issue 5, RSS-102 Issue 6, EN IEC 62311:2020, AS/NZS 62368.1:2022, EN IEC 62368-1:2020+A11:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN 301489-17 V3.3.1:2024, EN 61000-4-5:2014+A1:2017
Processor	1 x MediaTek MIPS 24Kec 580 MHz
RAM	128 MB DDR2 SDRAM
Flashhukommelse	32 MB
Statusindikatorer	Forbindelsesstatus, signalstyrke, LAN, strøm
Kommunikationer
Type	Trådløs mobilmodem
Mobilprotokol	4G LTE
Generation	2G, 3G, 4G
Mobilbånd	LTE B1, LTE B2, LTE B3, LTE B4, LTE B5, LTE B7, LTE B8, LTE B9, LTE B12, LTE B13, LTE B14, LTE B19, LTE B20, LTE B25, LTE B26, LTE B28
Maks. overførselshastighed	150 Mbps
IP-telefoni
VoIP-protokoller	SIP, H.323
Internet of Things (IoT)
Internet of Things (IoT) kompatibel	Ja
Platform	ThingWorx, Cumulocity, AWS IoT Core, Azure IoT Hub
Ekspansion / Konnektivitet

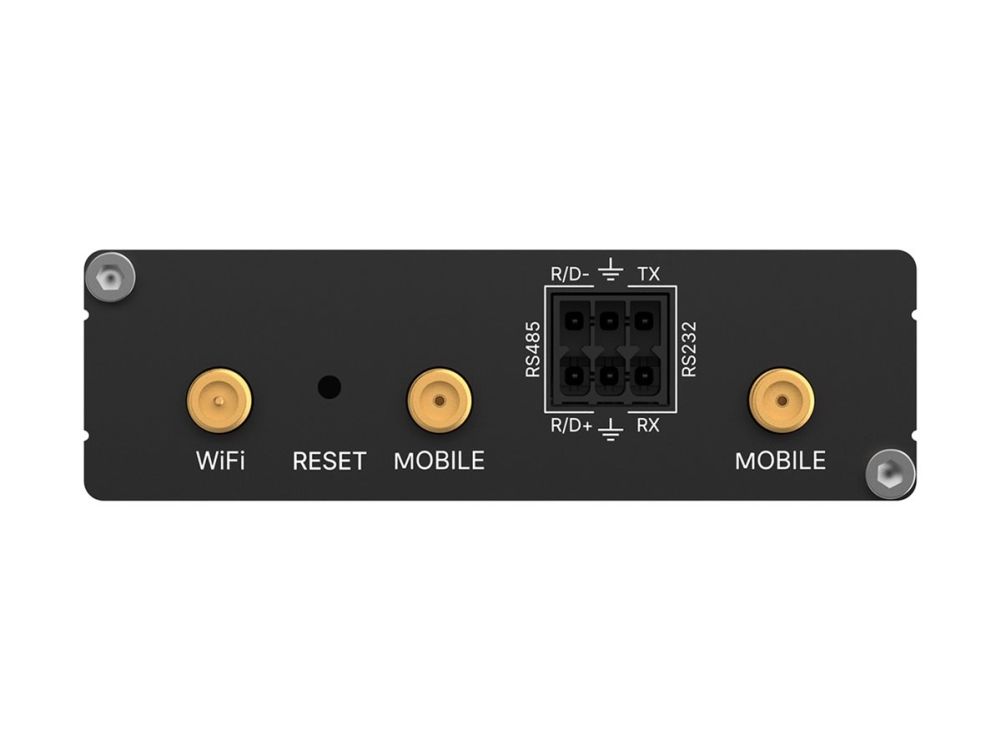

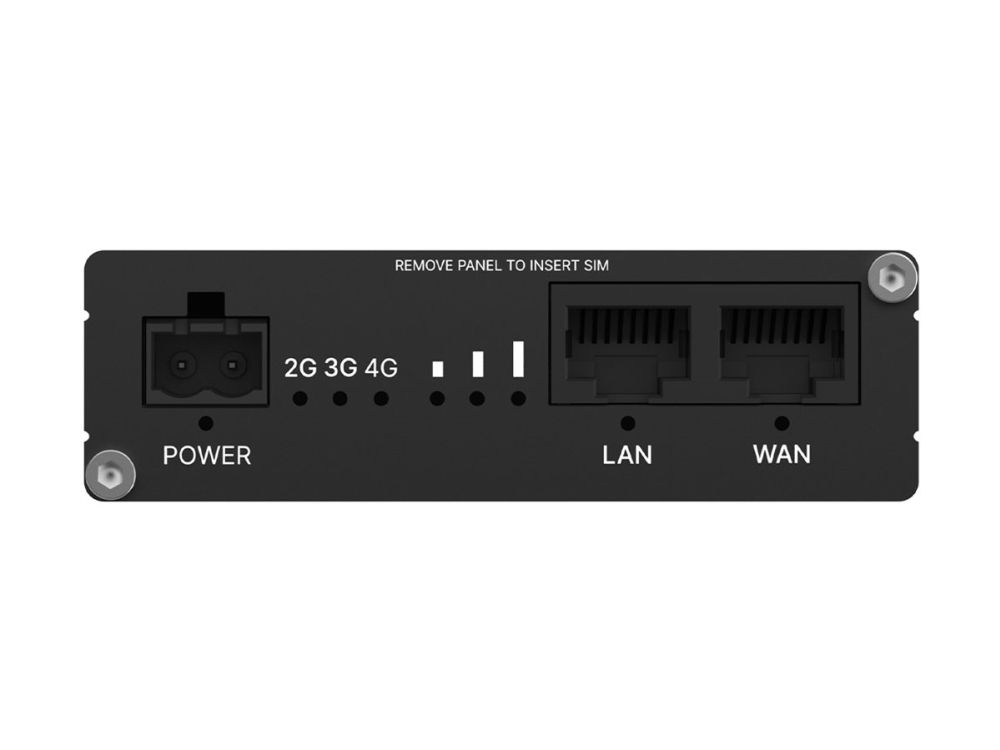

Interface	LAN: 1 x 10Base-T/100Base-TX - RJ-45 WAN: 1 x 10Base-T/100Base-TX - RJ-45 Antenne: 2 x SMA - LTE Antenne: 1 x RP-SMA - Wi-Fi 1 x DI - 4 pin stikforbindelse 1 x DO - 4 pin stikforbindelse
Ekspansionsåbninger	2 (total) / 2 (fri) x Mini-SIM
Antenne
Antenne	Aftagelig eksternt
Antal antenner	3
Effekt
Strømenhed	Ekstern strømforsyning
Nødvendig spænding	DC 9 - 57 V
Strømforbrug ved drift	2 watt
Diverse
Udstyr inkluderet	2 x LTE-antenner, WiFi-antenne, SIM-kortadaptersæt, strømadapter (EU)
Medfølgende ledninger	1 x netværkskabel - 1.5 m
Programmer / Systemkrav
Med OS	RutOS
Mål og vægt
Bredde	8.3 cm
Dybde	8.3 cm
Højde	2.5 cm
Vægt	132 g
Producentgaranti
Service & Support	Begrænset garanti - 2 år
Miljømæssige parametre
Min. driftstemperatur	-40 °C
Maks. driftstemperatur	65 °C
Fugtighedsgrad ved brug	10 - 90 % (ikke-kondenserende)

The item is known under the following item numbers in our system

EAN:	4779051849345
SKU:	RUT286AAAAA0
SKU:	4779051849345

Why do I find that the same product is available on different item numbers?

Manufacturers often release the same product with different item numbers, typically just different versions of the packaging. For example, the packaging may be targeted at different countries. We try our best to unify the products, but it can happen that the same product appears on different item numbers in our system.
