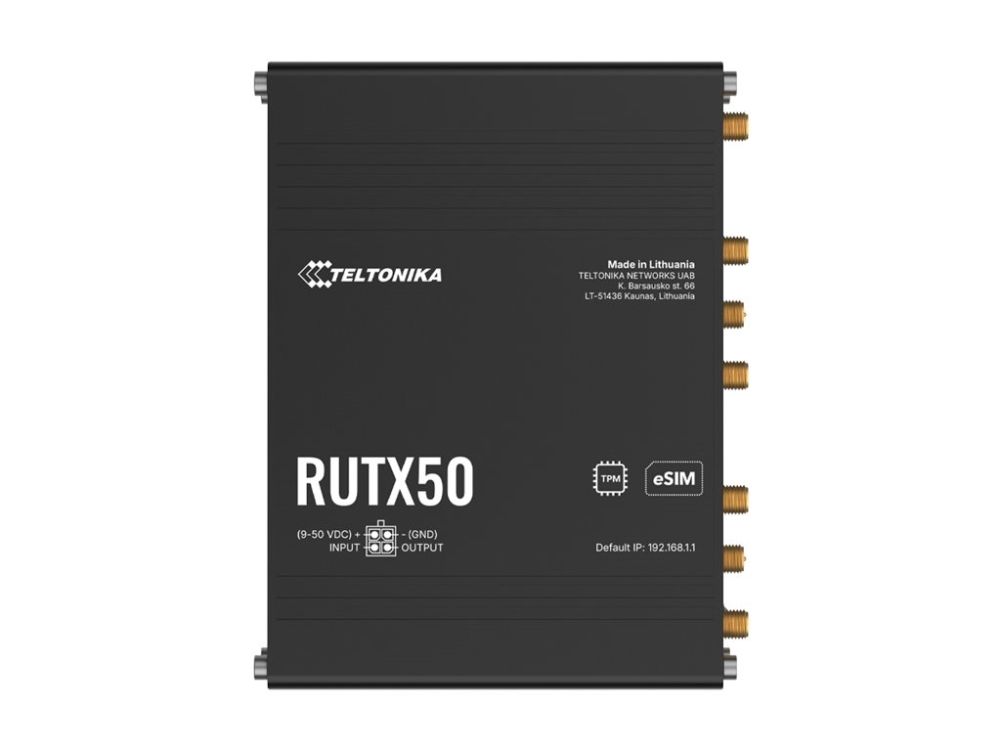

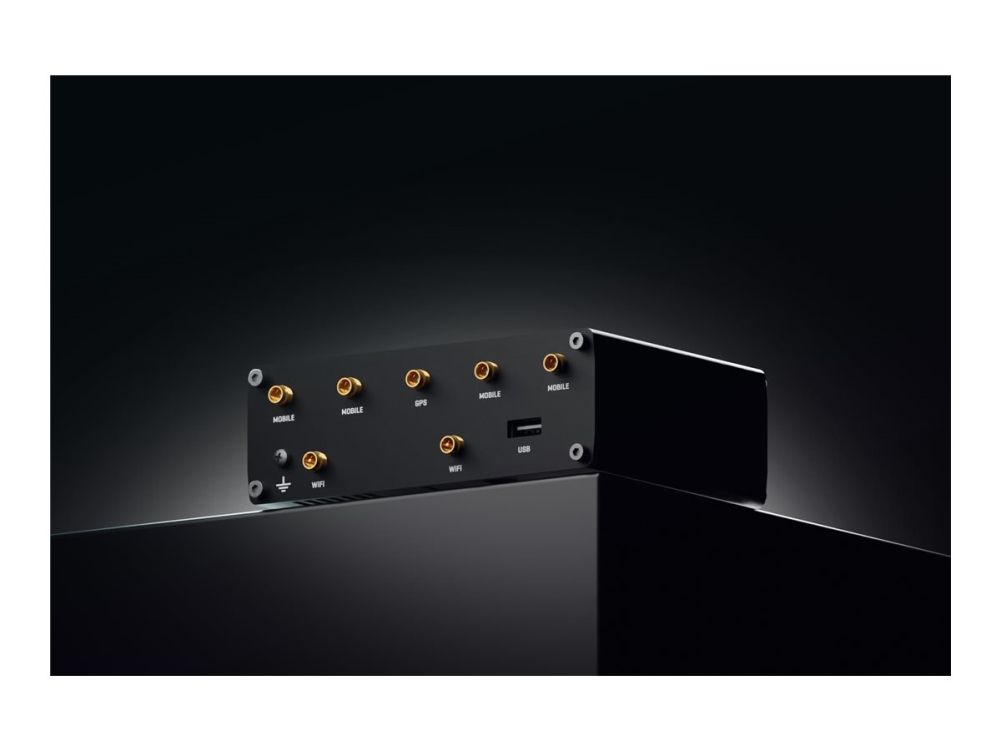

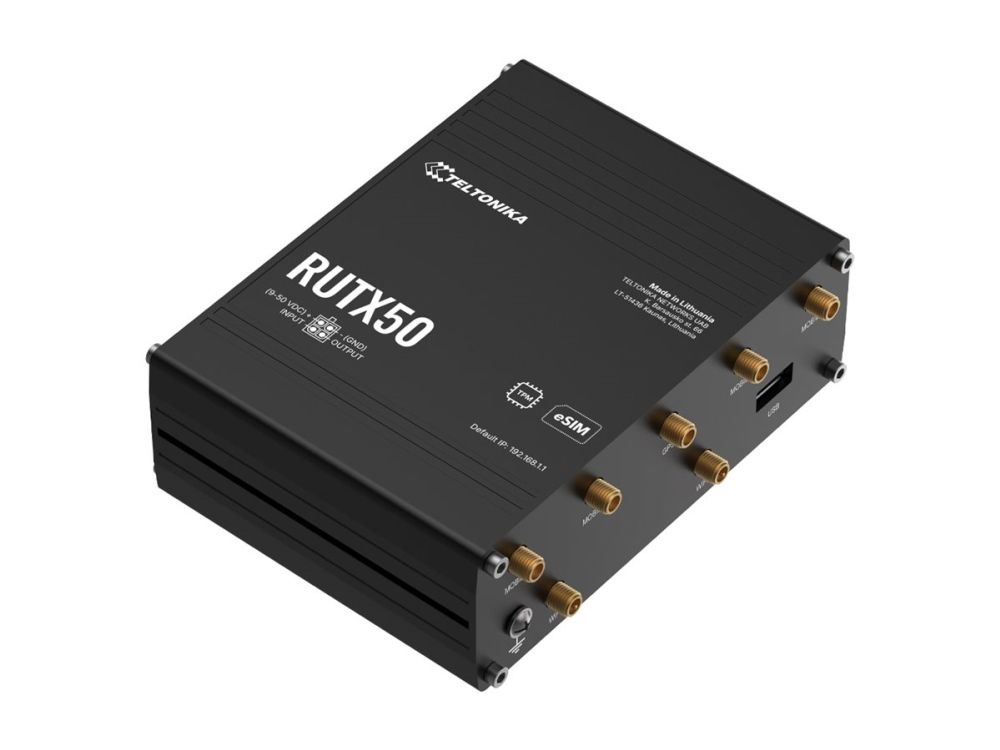

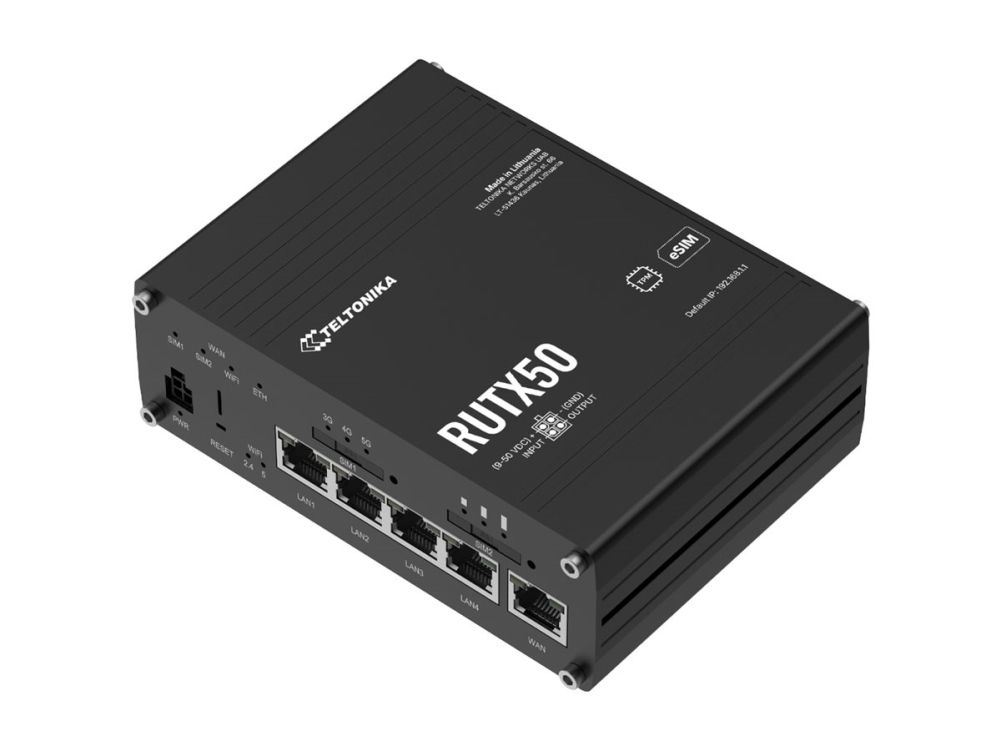

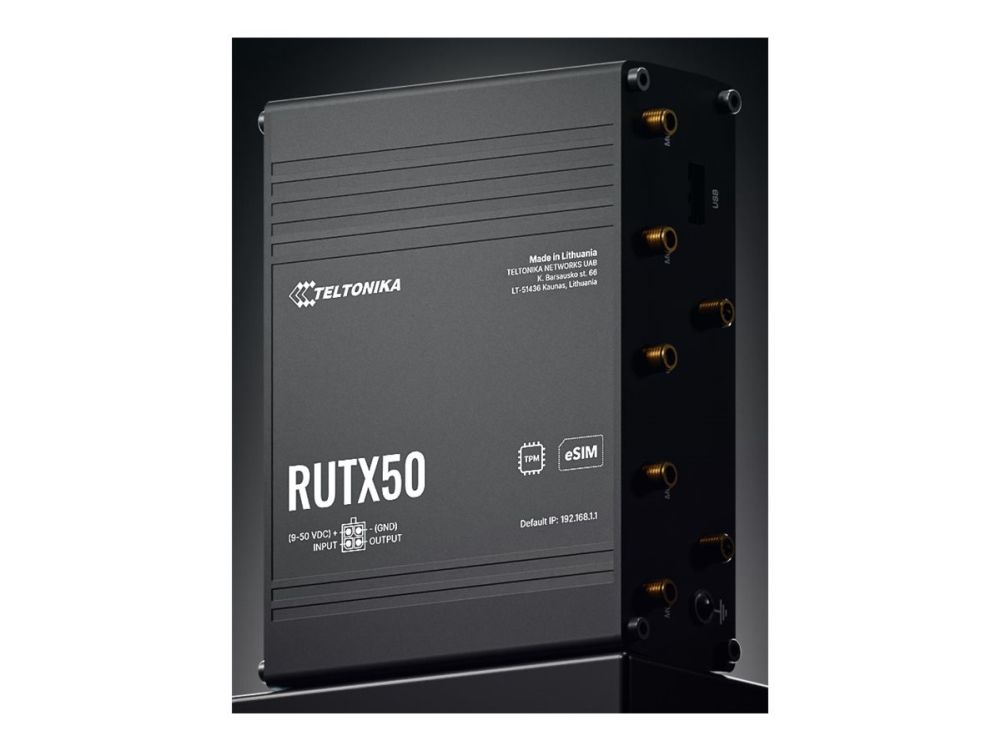

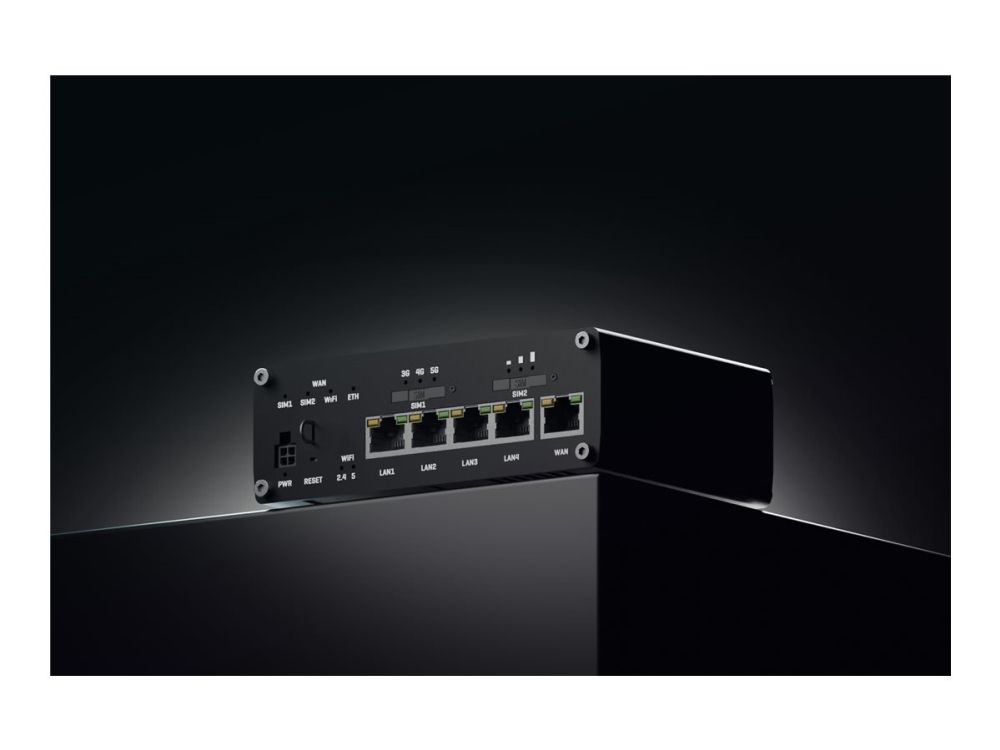

Teltonika RUTX50, Wi-Fi 5 (802.11ac), Ethernet LAN, 5G, Stainless steel, Portable router

Item no.: [25645717] | Manufacturer: Teltonika | Model no.: RUTX5000AC00 | EAN: 4778011801744

In stock

In stock, order before 3 PM and we ship today (weekdays) More info

There are 4 in stock

The current price is valid as long as the local stock lasts

Shipping @price - GLS

12,00

EUR 387,84

Incl. VAT 484,80

Total incl. delivery 499,80

Read further specifications and description

5G
Ultra-high cellular speeds of up to 3.3 Gbps

SA & NSA
Supports both architectures to leverage the 5G infrastructure

ULTRA-LOW LATENCY
Single-digit latency for mission-critical applications

DUAL SIM
Uninterrupted communication with auto-failover

WI-FI 5
Dual-band data throughput for up to 150 clients simultaneously

FUTURE-PROOFING
Backward compatible with 4G (LTE CAT 20) and 3G network technologies

Produktbeskrivelse	Teltonika RUTX50 - trådløs router - WWAN - Wi-Fi 5, LTE - 5G, 4G, 3G - DIN monterbar på skinne, overflademonterbar, væg-monterbar
Enhedstype	Trådløs router - trådløs mobilmodem - 4-port switch (integreret)
Pakningstype	DIN monterbar på skinne, overflademonterbar, væg-monterbar
Mobilprotokol	5G Sub-6 Ghz, FDD LTE, LTE, 5G NR
Generation	5G, 4G, 3G
Mobilbånd	5G NR NSA n1, 5G NR NSA n20, 5G NR NSA n28, 5G NR NSA n3, 5G NR NSA n38, 5G NR NSA n40, 5G NR NSA n41, 5G NR NSA n5, 5G NR NSA n7, 5G NR NSA n77, 5G NR NSA n78, 5G NR NSA n8, 5G NR SA n1, 5G NR SA n20, 5G NR SA n28, 5G NR SA n3, 5G NR SA n38, 5G NR SA n40, 5G NR SA n41, 5G NR SA n5, 5G NR SA n7, 5G NR SA n77, 5G NR SA n78, 5G NR SA n8, LTE B1, LTE B20, LTE B28, LTE B3, LTE B32, LTE B38, LTE B40, LTE B41, LTE B42, LTE B43, LTE B5, LTE B7, LTE B8
Antal WAN porte	1
Dataforbindelsesprotokol	Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, IEEE 802.11b
Frekvensbånd	2,4 GHz/5 GHz
Kapacitet	Samtidige tilslutninger: 150
Netværks/overføselsprotokol	TCP, UDP, IPv4, IPv6, ICMP/IP, NTP, DNS, HTTP, HTTPs, SFTP, FTP, SMTP, ARP, PPPoE, DHCP, IPSec, L2TP, L2TPv3
Routingprotokol	Statisk IP routing, BGP, OSPFv2, RIP-1, RIP-2, EIGRP, NHRP, police-baseret routing (PBR), VRRP, PPPoE, VXLAN, VRF, GRE
Platform	ThingWorx, Clouds of Things, Azure IoT Hub, AWS IoT Core, Cumulocity
Protokol til fjernadministration	SSH, Telnet, SMPP, SMNP, MQTT, HTTP, HTTPS, CLI, SSH-2, TR-069, SNMP 1, SNMP 2, SNMP 3, JSON-RPC, Modbus
VoIP-protokoller	H.323, SIP
Egenskaber	3GPP Release 16, 4x4 MIMO-teknologi, 2x2 MIMO-teknologi, USSD support, tillad/bloker-liste, SMS-fjernstyring, fler-PDN, båndadministration, auto APN, brotilstand, rammet routing, trådløs QR-kodegenerator, TravelMate, ESSID stealth tilstand, auto-uplink (auto MDI/MDI-X), PPP, WOL, DHCP videresendelse, DHCP server, QoS, SQM, DNS over HTTPS, aktivitet, SSHFS support, trafikadministration, 802.1x autentificering, PSK, digitale certifikater, DMZ-support, NAT-understøtning, IPSec NAT-T, NAT64 understøttelse, DDos attack beskyttelse, port scan prevention, VLAN-understøttet, mobil kvotekontrol, Web Filtering, DMVPN, SSTP-klient instanssupport, ZeroTier VPN-klient support, WireGuard, Tinc-kryptering, Tailscale kryptering, DNP3 outstation, DNP3 station, DLMS support, FOTA, Teltonika RMS, Quad-core CPU, NTRIP, nulstillingsknap, jordpunkter, aluminiumskabinet
Overensstemmelsesstandarder	UPnP, IEEE 802.3, IEEE 802.3u, IEEE 802.3az, IEEE 802.11r, IEEE 802.11w, IEEE 802.11s, IEEE 802.11v, IEEE 802.11k
Dimensioner (B x D x H)	13.2 cm x 9.51 cm x 4.42 cm
Vægt	533 g
Lokalisering	Europa (eksklusive Belarus, Rusland), Afrika, Brasilien, Mellemøsten (undtagen Iran), Oceania
Producentgaranti	2 års garanti

Generelt
Enhedstype	Trådløs router - 4-port switch (integreret)
Pakningstype	DIN monterbar på skinne, overflademonterbar, væg-monterbar
Forbindelsesteknologi	Kablet, trådløs
Dataforbindelsesprotokol	Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, IEEE 802.11b
Frekvensbånd	2,4 GHz/5 GHz
Kapacitet	Samtidige tilslutninger: 150
Netværks/overføselsprotokol	TCP, UDP, IPv4, IPv6, ICMP/IP, NTP, DNS, HTTP, HTTPs, SFTP, FTP, SMTP, ARP, PPPoE, DHCP, IPSec, L2TP, L2TPv3
Routingprotokol	Statisk IP routing, BGP, OSPFv2, RIP-1, RIP-2, EIGRP, NHRP, police-baseret routing (PBR), VRRP, PPPoE, VXLAN, VRF, GRE
Protokol til fjernadministration	SSH, Telnet, SMPP, SMNP, MQTT, HTTP, HTTPS, CLI, SSH-2, TR-069, SNMP 1, SNMP 2, SNMP 3, JSON-RPC, Modbus
Krypterings algoritme	WPA2-Enterprise, PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE, AES-CCMP, TKIP, EAP-TLS, PKCS#12
Autentificeringsmetode	X.509 certifikater, TACACS+, RADIUS
Egenskaber	3GPP Release 16, 4x4 MIMO-teknologi, 2x2 MIMO-teknologi, USSD support, tillad/bloker-liste, SMS-fjernstyring, fler-PDN, båndadministration, auto APN, brotilstand, rammet routing, trådløs QR-kodegenerator, TravelMate, ESSID stealth tilstand, auto-uplink (auto MDI/MDI-X), PPP, WOL, DHCP videresendelse, DHCP server, QoS, SQM, DNS over HTTPS, aktivitet, SSHFS support, trafikadministration, 802.1x autentificering, PSK, digitale certifikater, DMZ-support, NAT-understøtning, IPSec NAT-T, NAT64 understøttelse, DDos attack beskyttelse, port scan prevention, VLAN-understøttet, mobil kvotekontrol, Web Filtering, DMVPN, SSTP-klient instanssupport, ZeroTier VPN-klient support, WireGuard, Tinc-kryptering, Tailscale kryptering, DNP3 outstation, DNP3 station, DLMS support, FOTA, Teltonika RMS, Quad-core CPU, NTRIP, nulstillingsknap, jordpunkter, aluminiumskabinet
Overensstemmelsesstandarder	UPnP, IEEE 802.3, IEEE 802.3u, IEEE 802.3az, IEEE 802.11r, IEEE 802.11w, IEEE 802.11s, IEEE 802.11v, IEEE 802.11k, IP30, RED, UKCA, RCM, IMDA, CB, e-mark certified, SIRIM, ETSI EN 303 645, SDPPI, Postel, EN 55032:2015+A11:2021+A1:2020, EN 55035:2017 + A11:2020, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013 + A1:2019 + A2:2021, EN 301 489-1 V2.2.3, EN 301 489-3 V2.1.1, EN 301 489-17 V3.2.4, EN 301 489-19 V2.2.1, EN 301 489-52 V1.2.1, EN 61000-4-2:2009, EN IEC 61000-4-3:2020, EN 61000-4-4:2012, EN 61000-4-5:2014+A1:2017, EN 61000-4-6:2014, EN IEC 61000-4-11:2020, EN 300 328 V2.2.2, EN 300 440 V2.2.1, EN 301 893 V2.1.1, EN 301 908-1 V13.1.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.1.1, EN 301 908-25 V15.1.1_15.0.6, EN 303 413 V1.2.1, EN IEC 62368-1:2020 + A11:2020, EN 62311:2020, AS/NZS 62368.1:2022, IEC 62368-1:2018
Processor	1 x ARM Cortex-A7 717 MHz
RAM	256 MB
Flashhukommelse	256 MB
Indbygget udstyr	GPS / GLONASS / Galileo / Beidou / QZSS
Statusindikatorer	WAN, LAN, signalstyrke, forbindelsesstatus, strøm, Wi-Fi
Kommunikationer
Type	Trådløs mobilmodem
Mobilprotokol	5G Sub-6 Ghz, FDD LTE, LTE, 5G NR
Generation	5G, 4G, 3G
Mobilbånd	5G NR NSA n1, 5G NR NSA n20, 5G NR NSA n28, 5G NR NSA n3, 5G NR NSA n38, 5G NR NSA n40, 5G NR NSA n41, 5G NR NSA n5, 5G NR NSA n7, 5G NR NSA n77, 5G NR NSA n78, 5G NR NSA n8, 5G NR SA n1, 5G NR SA n20, 5G NR SA n28, 5G NR SA n3, 5G NR SA n38, 5G NR SA n40, 5G NR SA n41, 5G NR SA n5, 5G NR SA n7, 5G NR SA n77, 5G NR SA n78, 5G NR SA n8, LTE B1, LTE B20, LTE B28, LTE B3, LTE B32, LTE B38, LTE B40, LTE B41, LTE B42, LTE B43, LTE B5, LTE B7, LTE B8
Maks. overførselshastighed	3.3 Gbps
IP-telefoni
VoIP-protokoller	H.323, SIP
Internet of Things (IoT)
Internet of Things (IoT) kompatibel	Ja
Platform	ThingWorx, Clouds of Things, Azure IoT Hub, AWS IoT Core, Cumulocity
Ekspansion / Konnektivitet

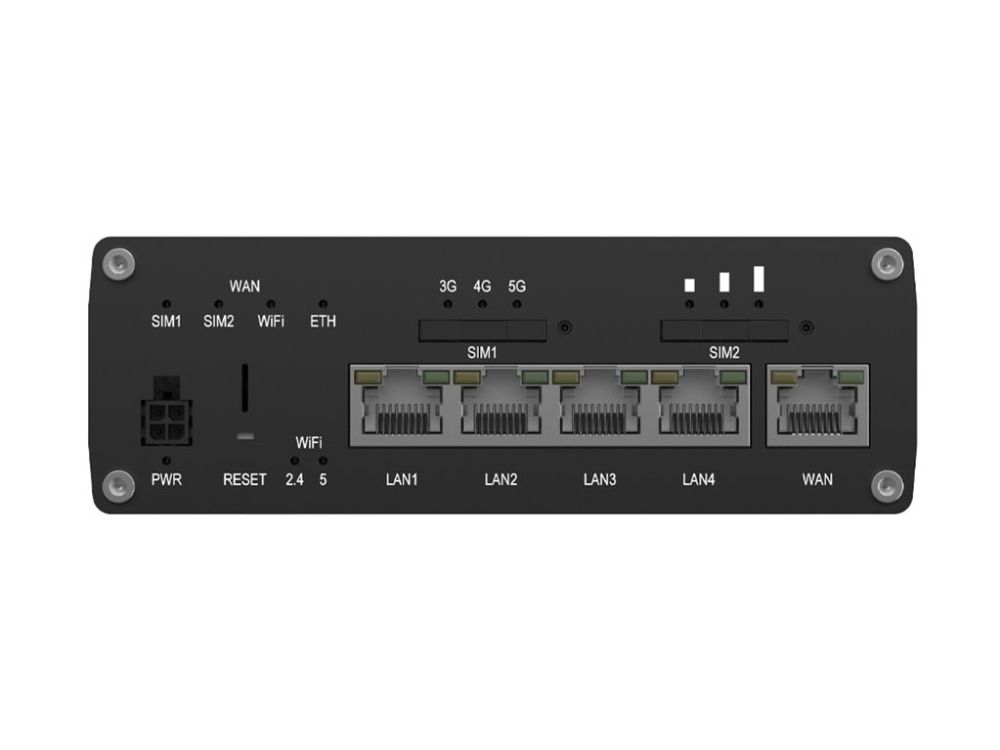

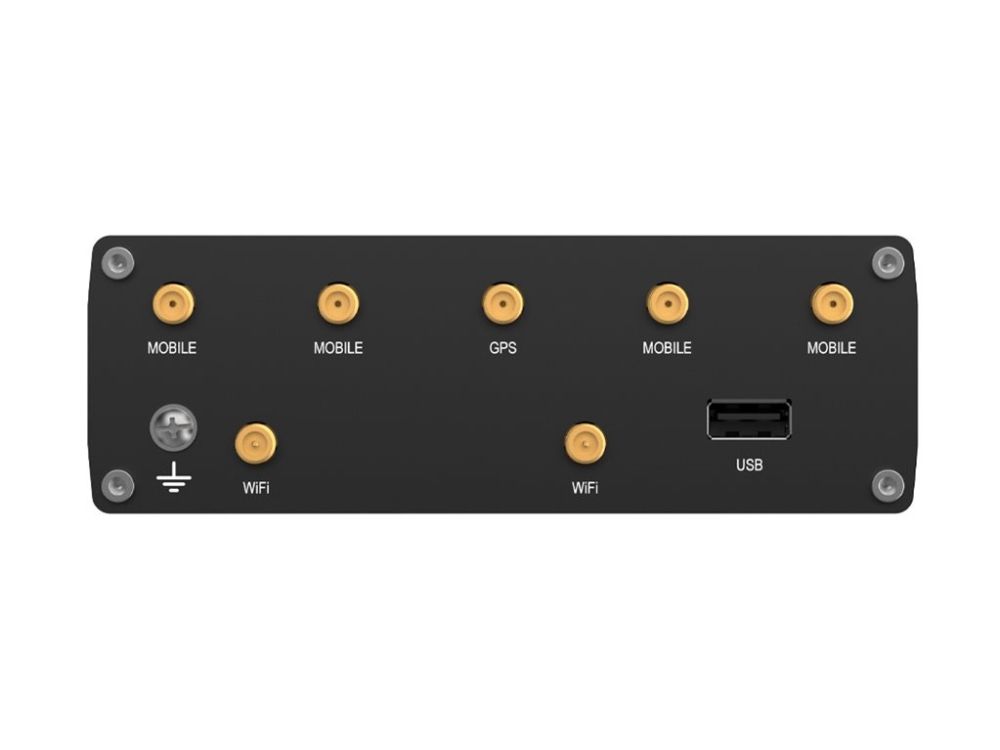

Interface	WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 Antenne: 4 x SMA - LTE Antenne: 2 x RP-SMA - Wi-Fi Antenne: 1 x SMA - GNSS-antenne Digital indgang: 1 x DI Digital udgang: 1 x DO - 4 pin strøm
Ekspansionsåbninger	2 (total) / 2 (fri) x Mini-SIM
Antenne
Antenne	Aftagelig eksternt
Antal antenner	7
Effekt
Strømenhed	Ekstern strømforsyning - 18 watt
Diverse
Udstyr inkluderet	4 x antenner, 2 x Wi-Fi antenner, GNSS-antenne, SIM-kortadaptersæt, strømkabel (EU)
Medfølgende ledninger	1 x netværkskabel - 1.5 m
Lokalisering	Europa (eksklusive Belarus, Rusland), Afrika, Brasilien, Mellemøsten (undtagen Iran), Oceania
Programmer / Systemkrav
Med OS	RutOS
Mål og vægt
Bredde	13.2 cm
Dybde	9.51 cm
Højde	4.42 cm
Vægt	533 g
Producentgaranti
Service & Support	Begrænset garanti - 2 år
Miljømæssige parametre
Min. driftstemperatur	-40 °C
Maks. driftstemperatur	75 °C
Fugtighedsgrad ved brug	10 - 90 % (ikke-kondenserende)
