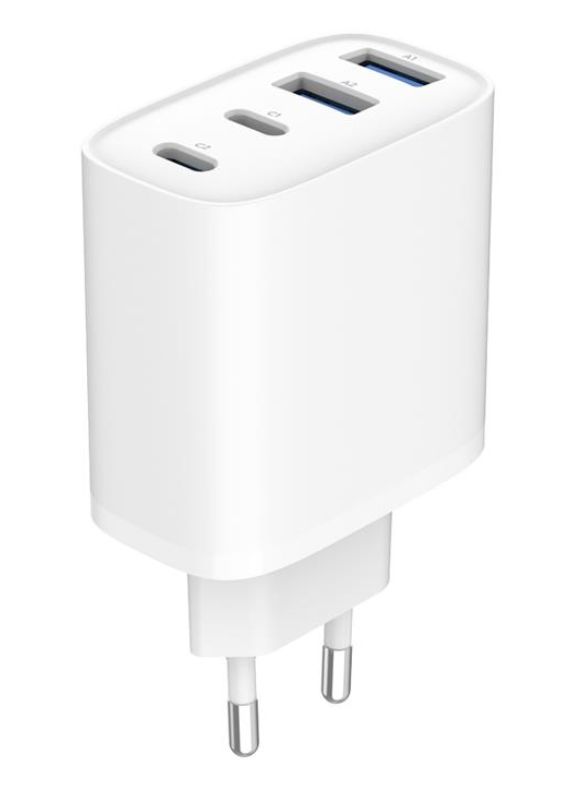

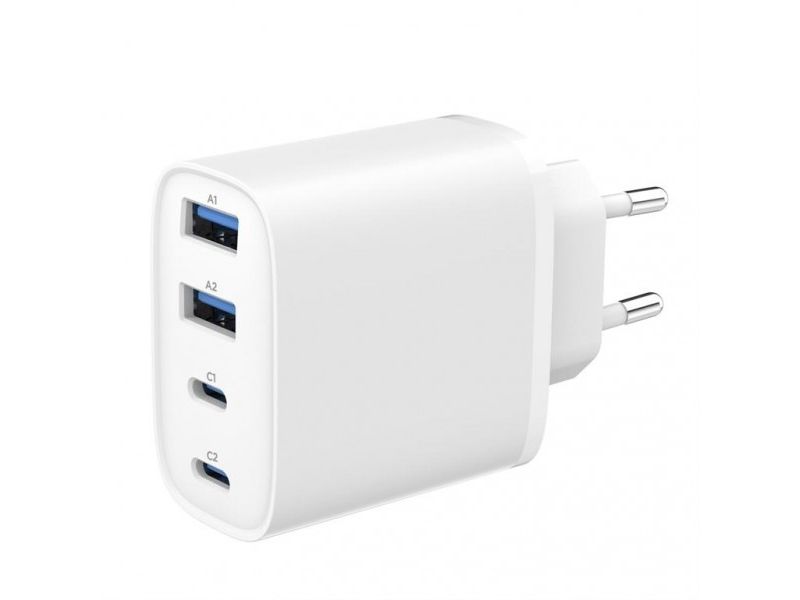

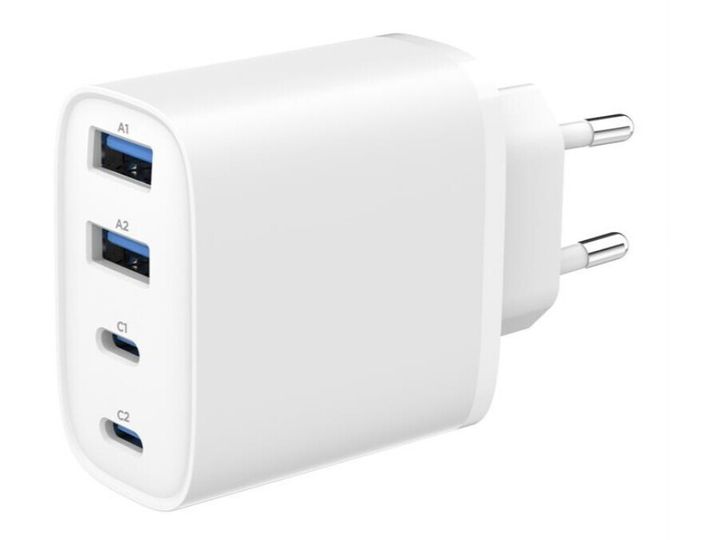

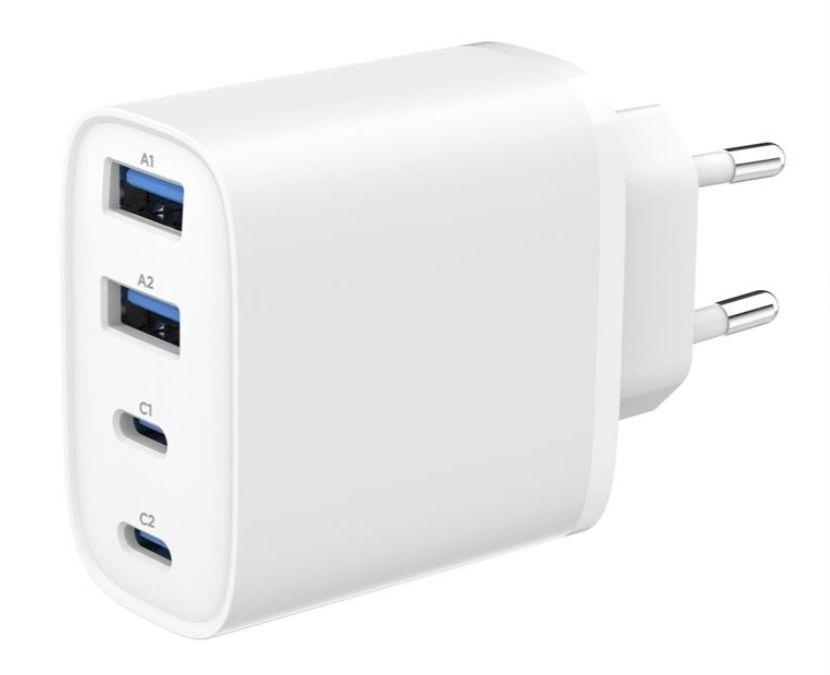

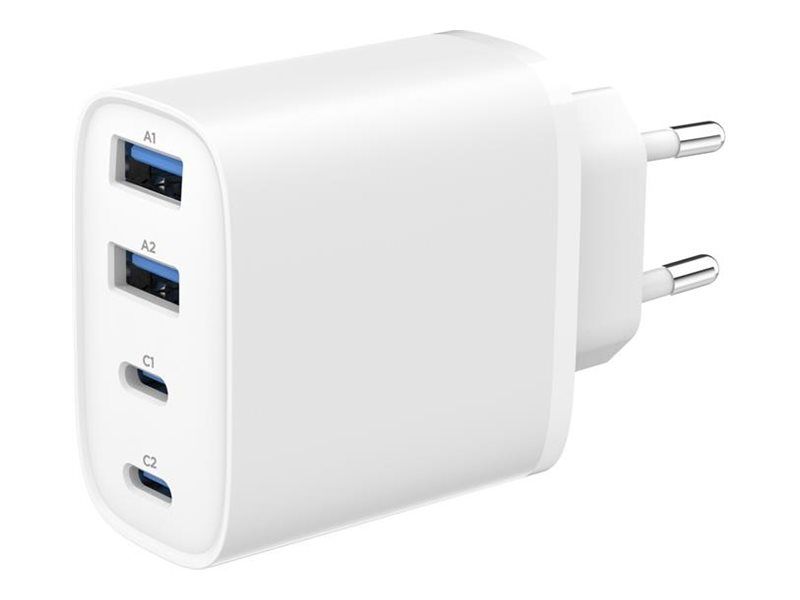

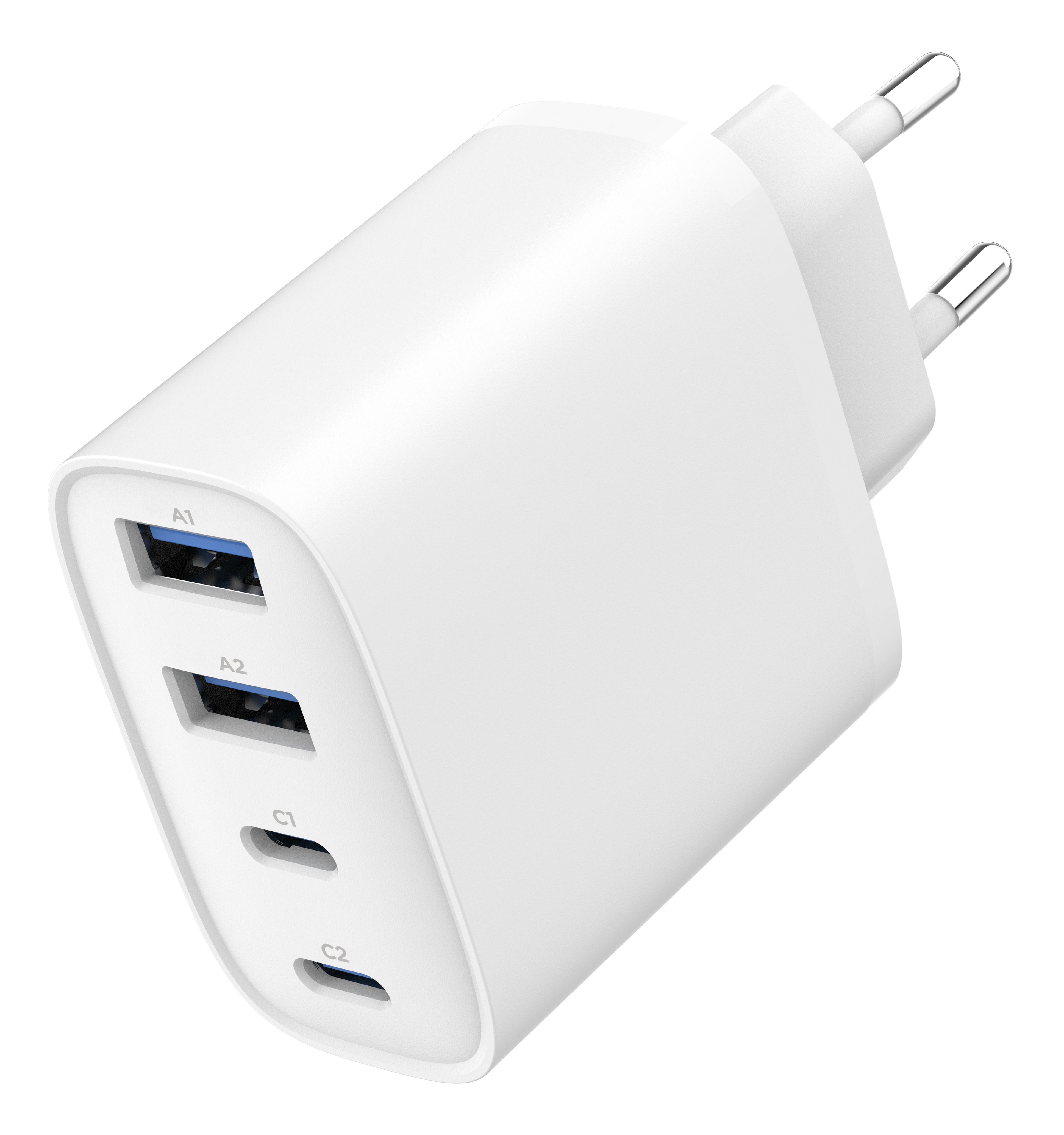

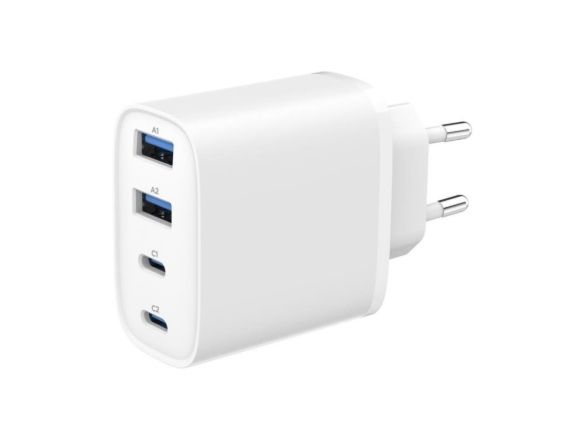

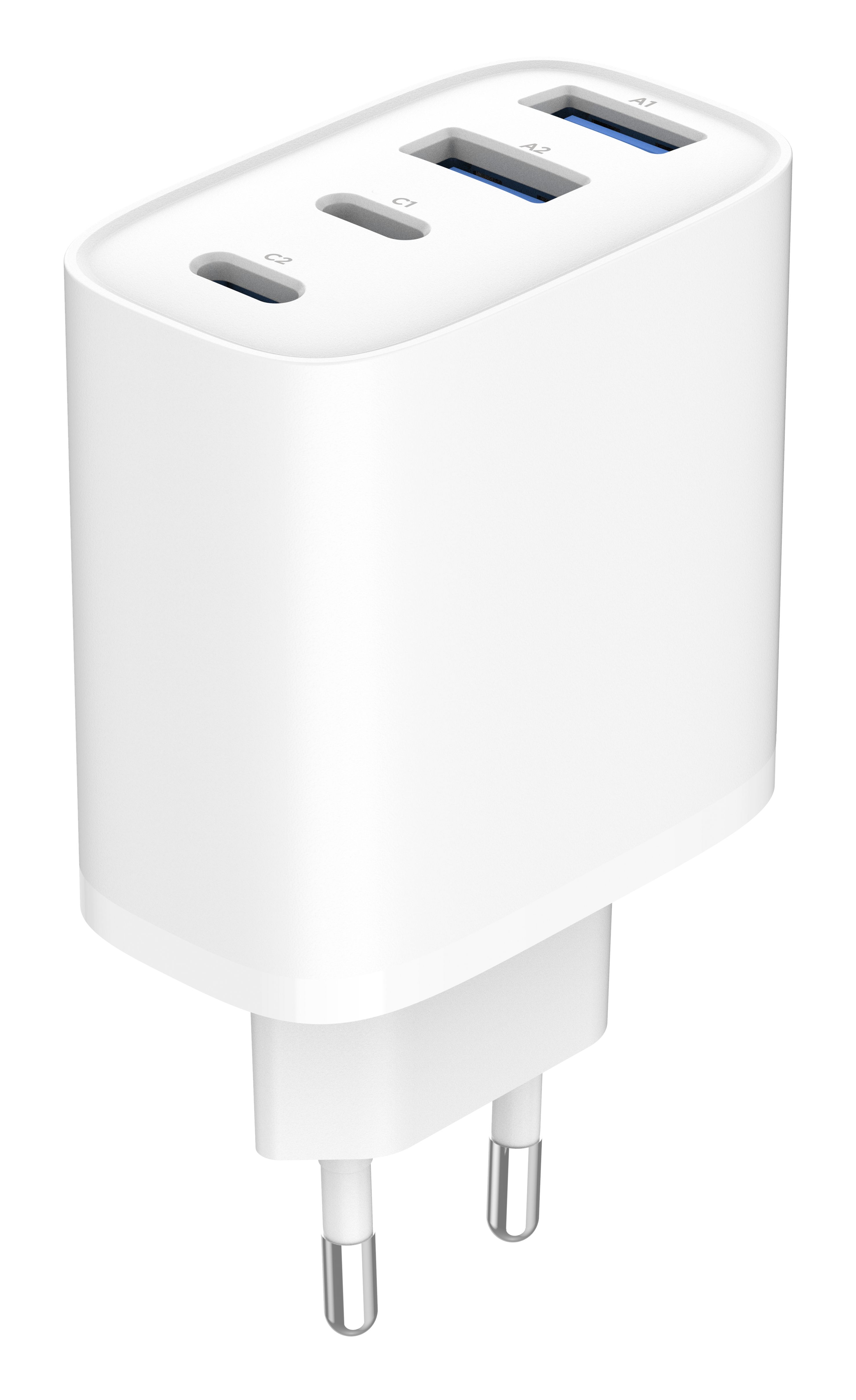

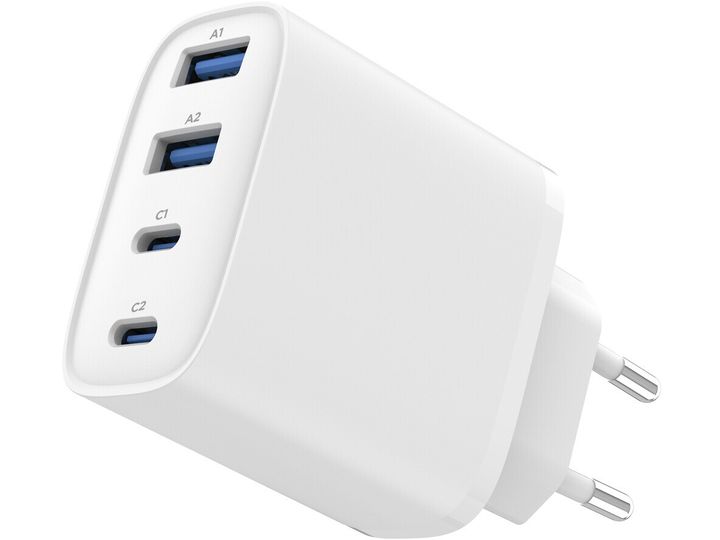

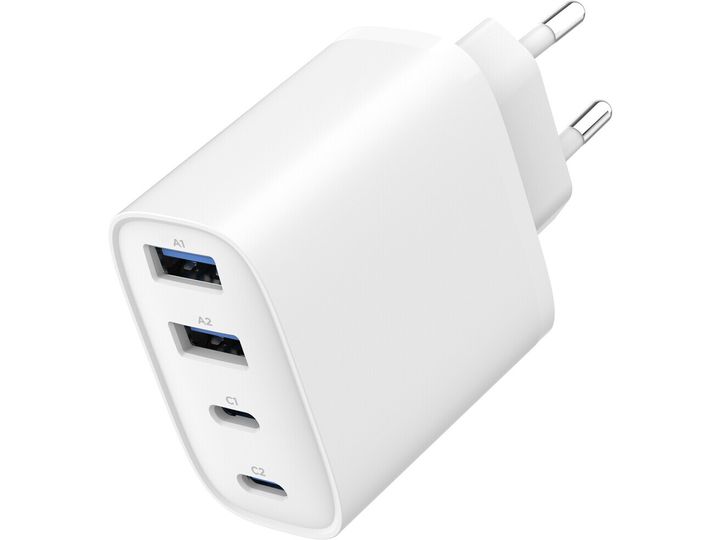

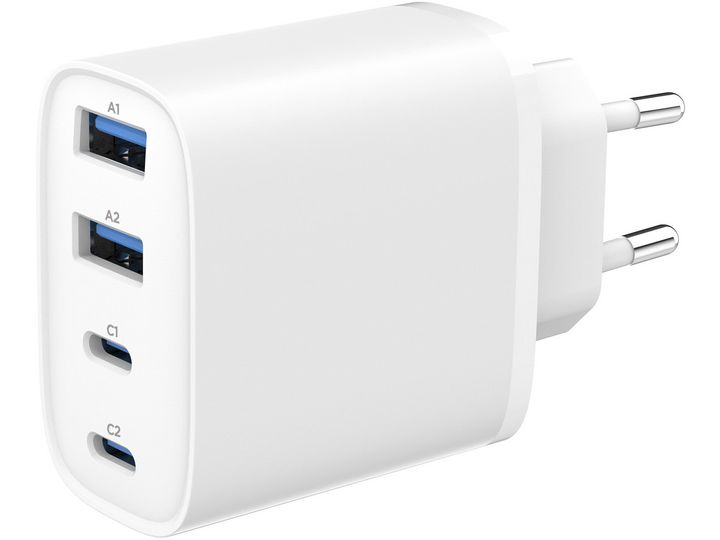

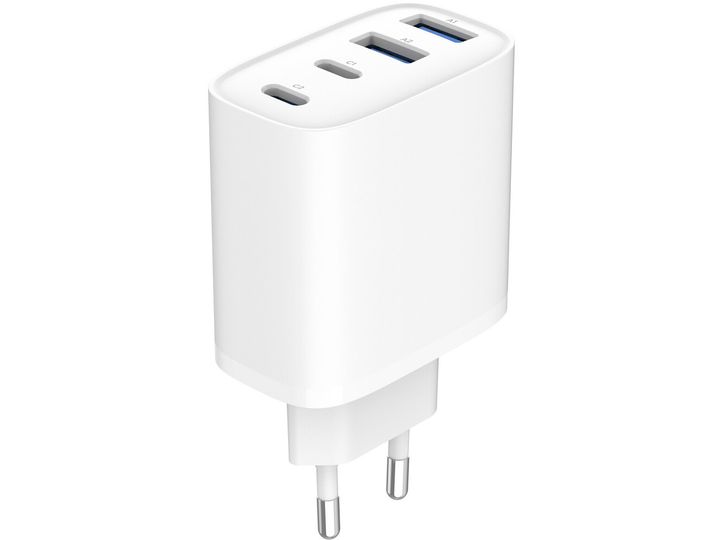

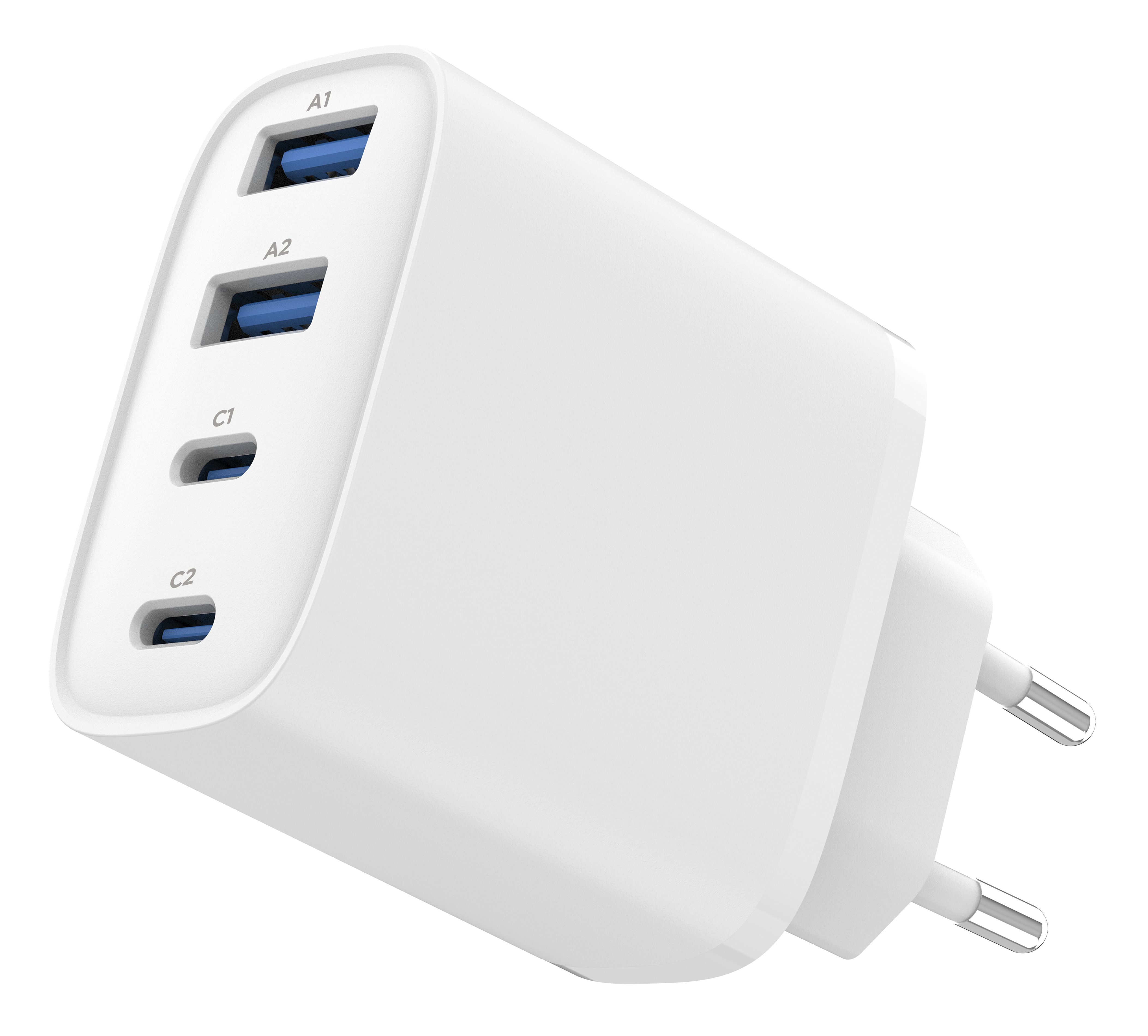

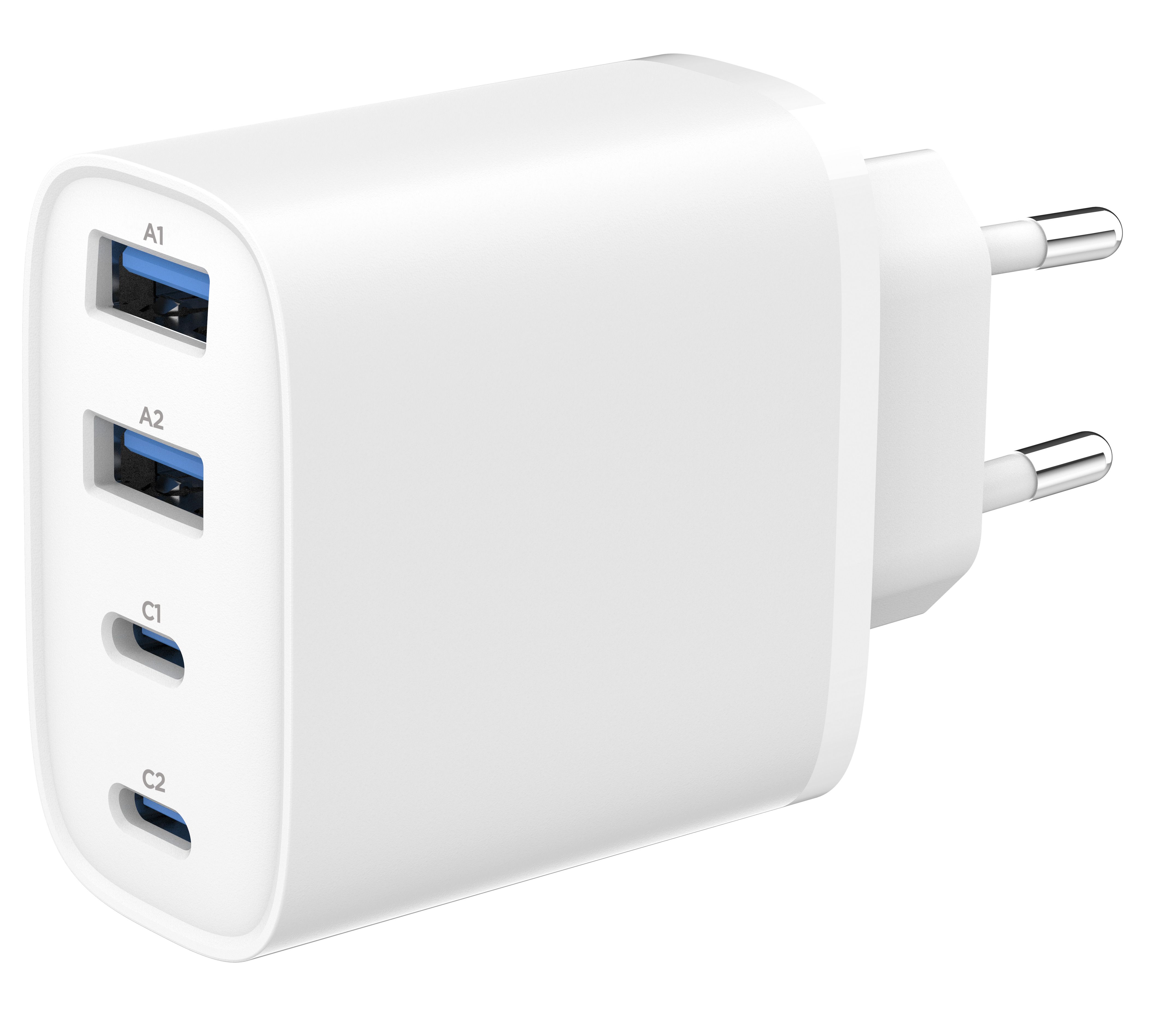

Gembird USB Charger - 4-Port 40W GaN USB PowerDelivery Fast Charger, White

Compact and efficient 40 W GaN charger with four USB ports, designed to quickly and safely charge smartphones, tablets, and other USB-powered devices. The charger supports both USB Power Delivery (PD) and Quick Charge 3.0 (QC 3.0) fast-charging standards.

Advanced GaN technology enables a more compact design, higher energy efficiency, and lower heat generation compared to traditional chargers. The two USB-C ports each support up to 20 W PD charging, while the two USB-A ports each support up to 18 W QC 3.0 charging.

Built-in protection against over-current, over-voltage, short circuits, overcharging, and overheating ensures safe and reliable operation.

Specifications

Input voltage: 100 V - 240 V AC, up to 1.0 A

USB-C (C1/C2): 5.0V/3.0A, 9.0V/2.22A, 12.0V/1.67A (Max. 20 W)

USB-A (A1/A2): 5.0V/3.0A, 9.0V/2.0A, 12.0V/1.5A (Max. 18 W)

Output C1 + C2: 20 W + 20 W (Max. 40 W)

Output C1 + A1 / C2 + A2: 5.0V/3.0A (Max. 15 W)

Output C1 + A2 / C2 + A1: 20 W + 18 W (Max. 38 W)

Output A1 + A2: 18 W + 18 W (Max. 36 W)

Output C1/C2 + (C1+A1)/(C2+A2): 20 W + 15 W (Max. 35 W)

Output A1/A2 + (C1+A1)/(C2+A2): 18 W + 15 W (Max. 33 W)

Output (C1+A1) + (C2+A2): 15 W + 15 W (Max. 30 W)

Standby power consumption: < 0.3 W

Average efficiency: 84.77 %

Efficiency at 25% load: 80 %

Efficiency at 100% load: > 87 %

Protection: Short circuit, over-voltage, overcharge, overheating

Kenmerken:
4-port 40 W USB fast charger: supports both QC 3.0 and PowerDelivery (PD) specification
GaN technology: compact design and increased energy efficiency
Type-C ports each support 20 W PD, Type-A port each support 18 W QC 3.0
Intelligent over-current, over-voltage, short circuit and overheat protection
Specificaties:
Input voltage: 100 V - 240 V AC, up to 1.0 A

Output C1/C2: 5.0 V? 3.0 A, 9.0 V? 2.22 A, 12.0 V? 1.67 A (max. 20 W)

Output A1/A2: 5.0 V? 3.0 A, 9.0 V? 2.0 A, 12.0 V? 1.5 A (max. 18 W)

Output C1+C2: 20 W (5.0 V? 3.0 A, 9.0 V? 2.22 A, 12.0 V? 1.67 A)+ 20 W (5.0 V? 3.0 A, 9.0 V? 2.22 A, 12.0 V? 1.67 A)(max. 40 W)

Output C1+A1/C2+A2: 5.0 V? 3.0A (max. 15 W)

Output C1+A2/C2+A1:20 W(5.0 V? 3.0 A, 9.0 V? 2.22 A, 12.0 V? 1.67 A)+18W(5.0 V? 3.0 A, 9.0 V? 2.0 A, 12.0 V? 1.5 A)(max. 38 W)

Output A1+A2: 18 W (5.0 V? 3.0 A, 9.0 V? 2.0 A, 12.0 V? 1.5 A)+ 18 W (5.0 V? 3.0 A, 9.0 V? 2.0 A, 12.0 V? 1.5 ) (max. 36 W)

Output C1/C2+(C1+A1)/(C2+A2): 20 W(5.0 V? 3.0 A, 9.0 V? 2.22 A, 12.0 V? 1.67 A) + 15 W (5.0 V? 3.0 A) (max. 35 W)

Output A1/A2+(C1+A1)/(C2+A2): 18 W(5.0 V? 3.0 A, 9.0 V? 2.0 A, 12.0 V? 1.5 A)+ 15 W (5.0 V? 3.0A) (max. 33W)

Output (C1+A1)+(C2+A2): 15 W (5.0 V? 3.0 A) + 15 W (5.0V? 3.0A) (max. 30W)

Standby power consumption: <0.3 W

Average efficiency: 84.77 %

Efficiency at 25% load: 80 %

Efficiency at 100% load: > 87%

Output protection: short circuit, over-voltage, overcharge, overheat
Systemeisen:
Phone fast charging is only supported on iPhone 8 or newer
