The Reliable Engine of Your PC Build Support MSI Exclusive GPU Safeguard+, it’s the comprehensive and precisely protection, while under of computer using scenario.
SiC MOSFETs Server-grade material, resulting in 10% less waste heat.
ATX 3.1 READY Handle up to 240% total power excursion, 300% GPU power excursion.
TITANIUM Energy efficiency, offering up to 94% efficiency.
2 x 12V-2x6 Comes with 2 x native 12V-2x6 connectors.
STABLE POWER DELIVERY Minimizing the +12V regulation fluctuation into ±1%.
FULL DIGITAL DESIGN The MCU controller can quickly manage dynamic adjustments.
NIGHT SOUND LEVEL Low noise design.
ZERO FAN MODE Fan completely stops under low load, delivering silent operating environment.
FDB FAN BEARING To improve thermal performance and reduce noise, choose a larger, longer-lasting fan.
100% SERVER-GRADE 105°C CAPACITOR High quality Japanese capacitor for the stability and durability.
ALLOY COPPER For safety, offering superior current handling capability for higher current surges.
SAFETY CABLE UL certified cable, robust high current handling capability.
PROTECTION Equipped with multiple protection mechanisms, ensuring your system operates worry-free at all times.
DUAL COLOR 12V-2x6 CONNECTOR Allowing you to quickly confirm connection tightness.
EMBOSSED CABLE More Flexibility and Bendability, easy for the cable management.
CABLE ORGANIZER Pre-installed with cable organizers, streamline the cable management process, resulting in a cleaner pc build.
POWER SUPPLY OVERVIEW Overall real-time current, output wattage, energy efficiency.
REAL-TIME DASHBOARD Monitor the PSU detail message, and exporting selected real-time data.
COOLING WIZARD Zero fan mode switch, and Allows users to customize the fan curve.
MSI Center MSI’s exclusive MSI Center software allows you to customize power settings and monitor real-time electrical data through an intuitive graphical interface; please connect the USB Type-C cable to sync your power supply information.
Afterburner MSI Afterburner (version 4.6.7 Beta 2) now supports individual pin current monitoring. This update also allows you to limit GPU power consumption automatically whenever the GPU Safeguard+ protection is triggered.
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 3.1/ EPS12V
80 PLUS certificering
80 PLUS Titanium
Cybenetics-certificering
Cybenetics Titanium
Indgangspænding
AC 100-240 V
Udgangspænding
+3.3, +5, ±12 V, +5Vsb V
Strømkapacitet
1300 watt
Output Current
+3.3V - 22 A +5V - 22 A +12V - 108.33 A +5VSB - 3 A

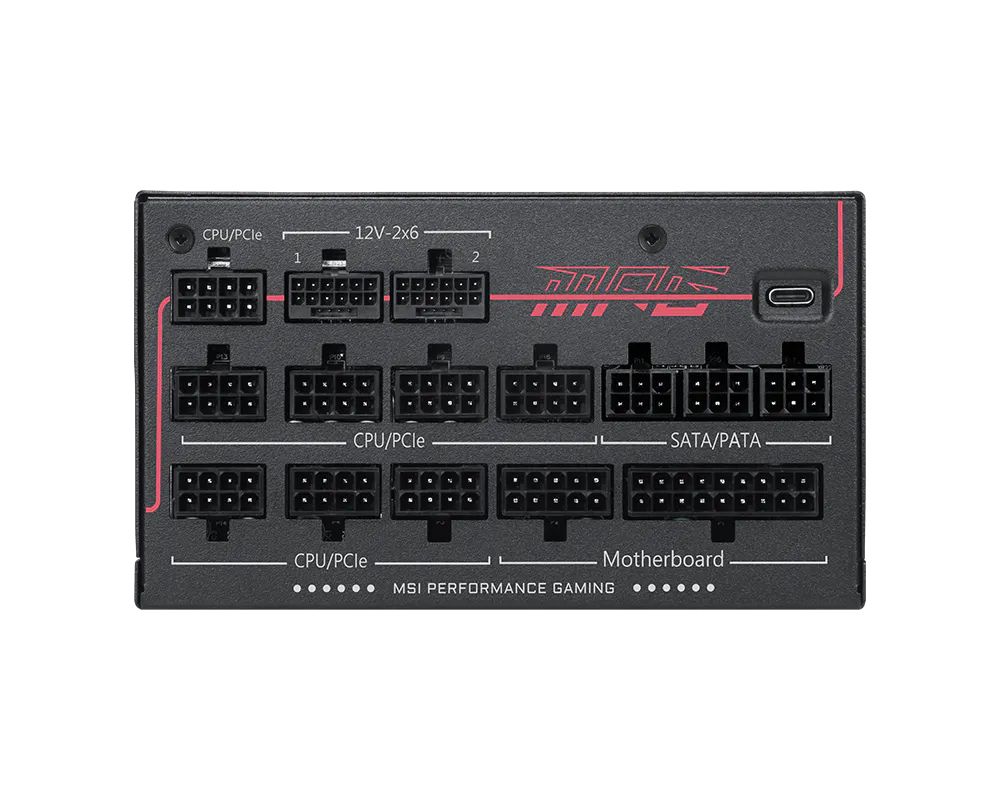

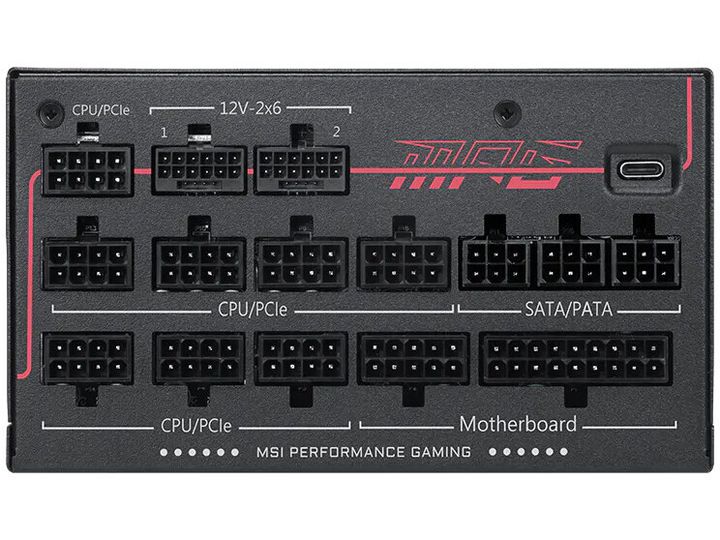

Output-stikforbindelser
1 x strøm 24 pin ATX 2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion 6 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 8 x 15 pin Serial ATA strøm 4 x 4-PIN intern strøm 2 x 16-pin PCI Express-strøm
Modulær Kabel Administration
Ja
Kølesystem

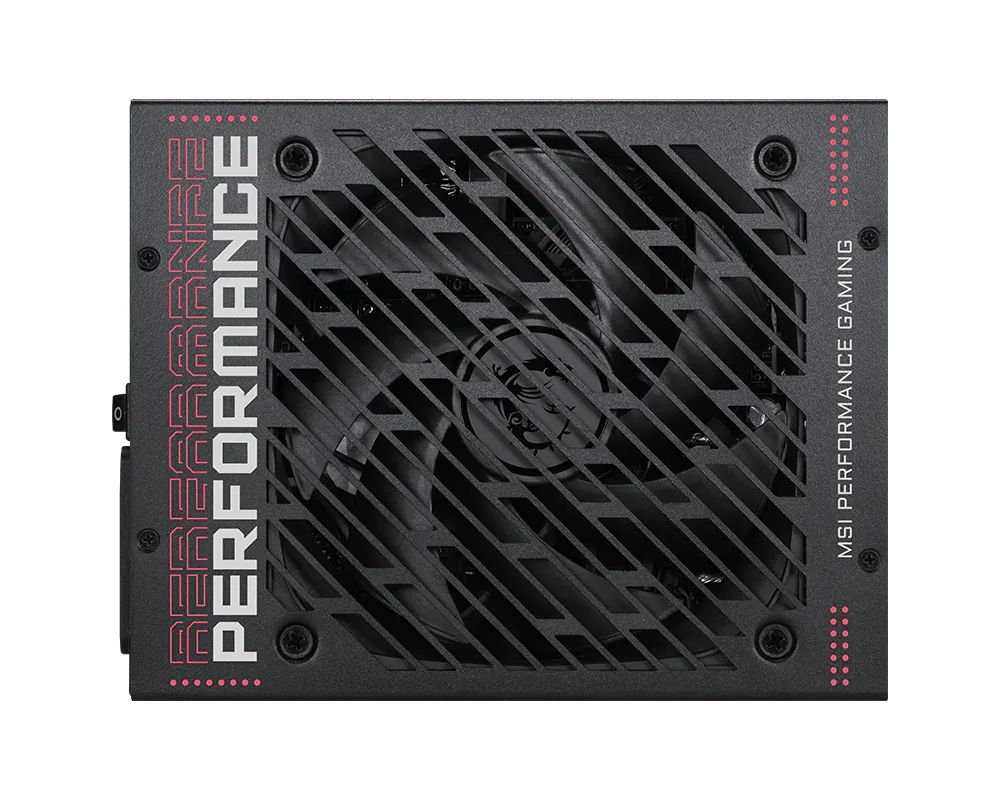

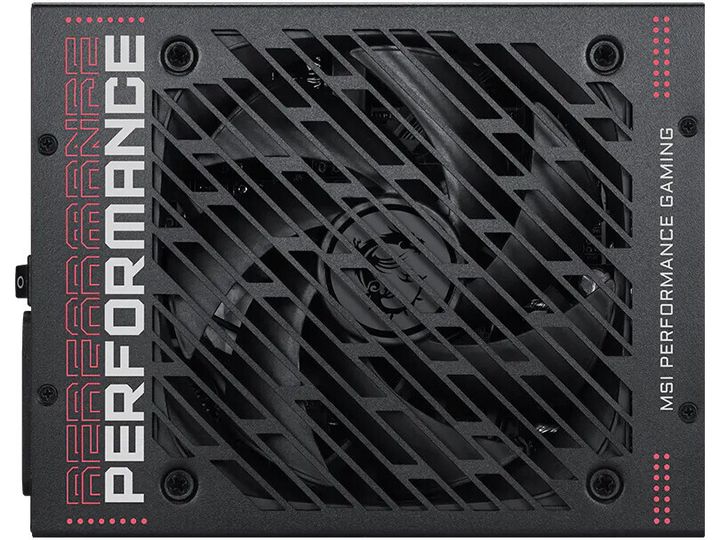

135 mm ventilator
Dimensioner (B x D x H)
15 cm x 19 cm x 8.6 cm
Generelt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 3.1/ EPS12V
PSU formfaktor
ATX
Strømenhed
Indgangspænding
AC 100-240 V
Nødvendig frekvens
50 - 60 Hz
Detaljer om strømudgangskonnektorer
1 x strøm 24 pin ATX 2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion 6 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 8 x 15 pin Serial ATA strøm 4 x 4-PIN intern strøm 2 x 16-pin PCI Express-strøm
Udgangspænding
+3.3, +5, ±12 V, +5Vsb V
Strømkapacitet
1300 watt
Output Current
+3.3V - 22 A +5V - 22 A +12V - 108.33 A +5VSB - 3 A
Modulær Kabel Administration
Ja
80 PLUS certificering
80 PLUS Titanium
Cybenetics-certificering
Cybenetics Titanium
Diverse
Medfølgende ledninger

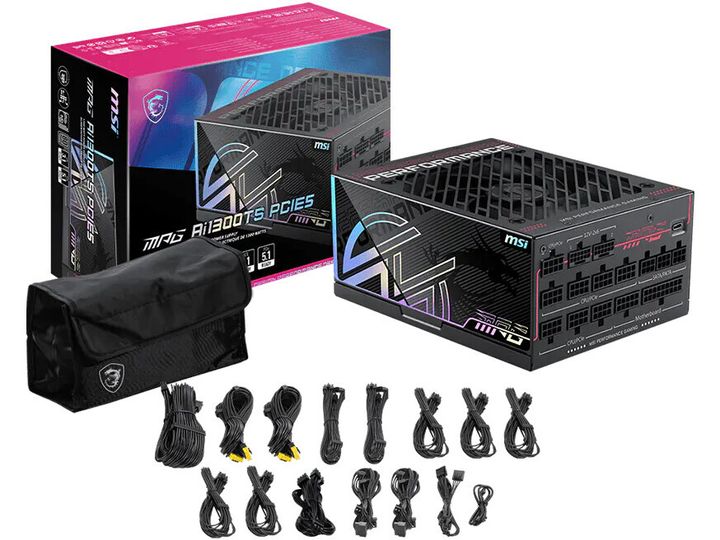

AC-strømkabel - ekstern Strøm 24 pin ATX med aftageligt 4 pin sektion modulært kabel 60 cm 2 x strøm 8 pin +12 V med aftageligt 4 pin sektion modulært kabel 65 cm 2 x 16-pin 12VHPWR strøm modulær kabel 60 cm 5 x 8 pin PCI Express strøm med udtrækkelig 2 pin sektion modulærtkabel 60 cm 2x 8 pin PCI Express strøm med aftagelig 2 pin sektion modulært kabel 60 cm 2 x 15 pin Serial ATA strøm modulært kabel 80 cm 4 pin strøm modulært kabel 80 cm USB-samlestykkekabel 60 cm
Kølesystem
135 mm ventilator
Egenskaber
Kobberlegering kontakter, kabelorganisator, sorte kabler, prægede kabler, fuld modulær, køleblæser til flydende dynamisk leje, overbelastningsbeskyttelse, beskyttelse mod overstrøm, beskyttelse mod overophedning, overspændingsbeskyttelse, kortslutnings beskyttelse, beskyttelse mod underspænding, spændings- og tilstrømningsbeskyttelse, ingen lastdriftbeskyttelse, GPU Safeguard+, SiC MOSFET, Zero RPM-blæsermodus
Programmer / Systemkrav
Med software
MSI Center, MSI Afterburner
Mål og vægt
Bredde
15 cm
Dybde
19 cm
Højde
8.6 cm
