LevelOne GEMINI 8-Channel PoE Network Video Recorder, 8 PoE Outputs, H.265, 8 channels, 3840 x 2160 pixels, 720p, 1080p, 64 user(s), H.264, H.264+, H.265, MPEG4, Embedded LINUX
Item no.: [25685672] | Manufacturer: Level One | Model no.: 53132003201 | EAN: 4015867236000
Remote stock (2-3 days)
The item is in a remote warehouse, delivery time is 2-3 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
429,99
Incl. VAT 537,49
Total incl. delivery
552,49
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists. Create user Login
Send på mail
Do you need a spare part for your audio equipment?
Our configurator shows exactly the parts that fit 53132003201 - drivers, belts, styli, remote controls, power supplies and much more.

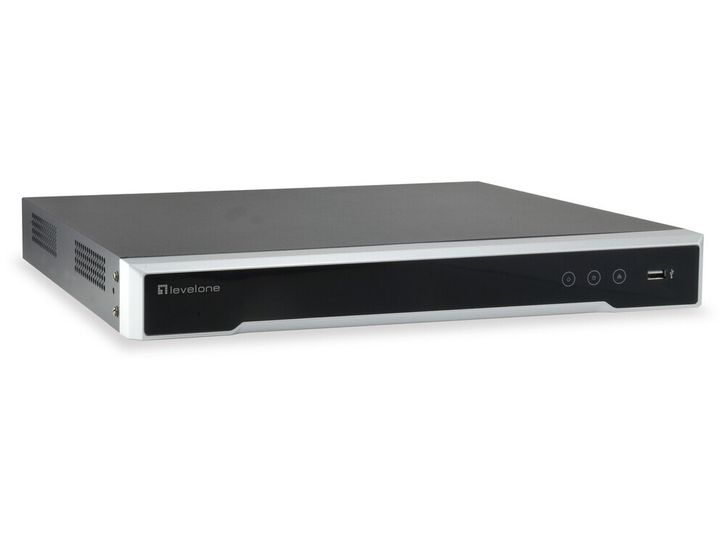

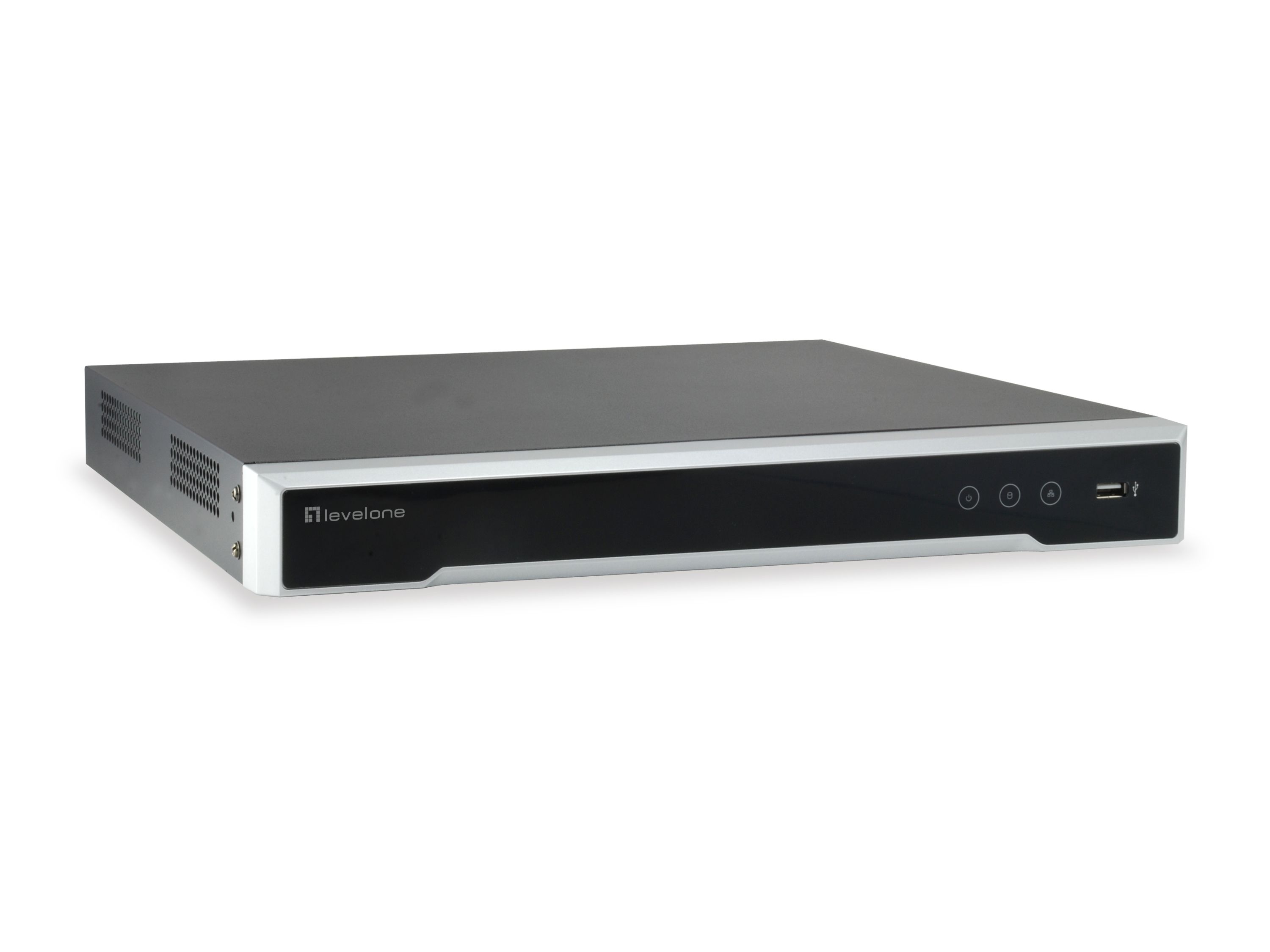

The LevelOne NVR-0508 NVR enables live view, recording and playback for up to 8 IP network cameras at the same time, featuring up to 8-megapixel resolution and H.265/H.264+/H.264/MPEG4 video compression. Operation is easy and intuitive via the web browser interface (IE), enabling remote monitoring and functionality. Mobile device operations are also supported (iOS/Android), with remote viewing via the LevelOne NVR app.

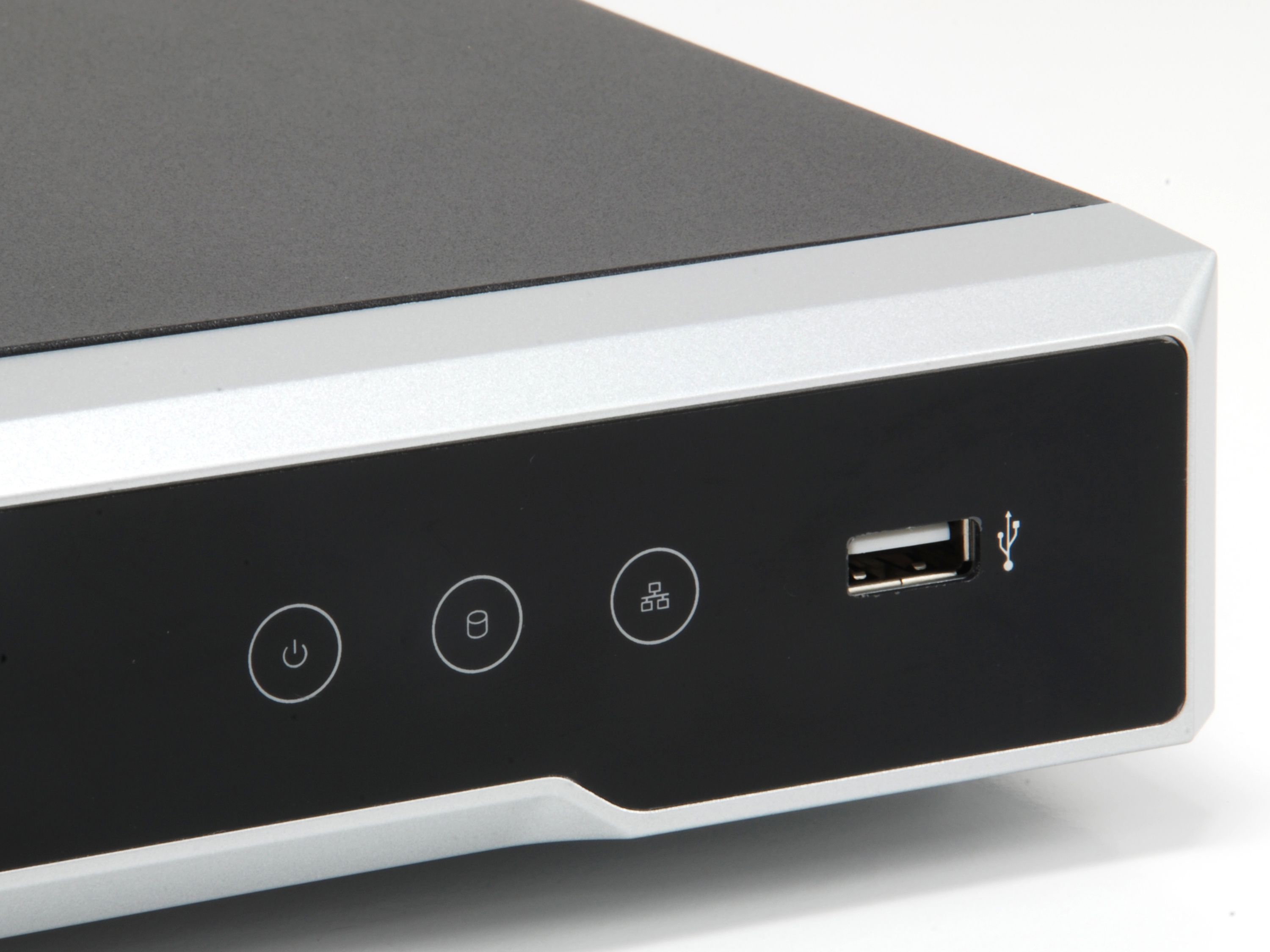

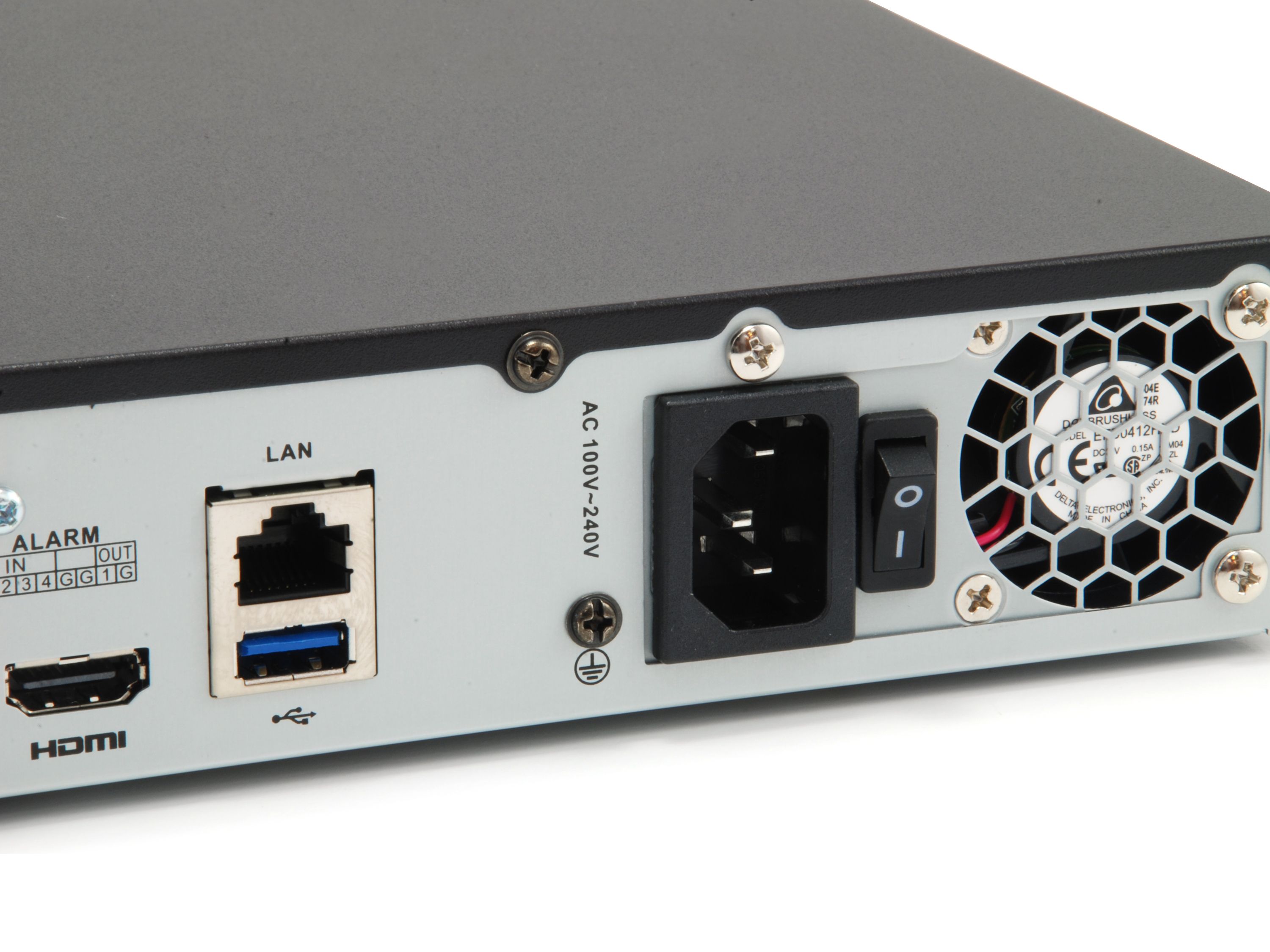

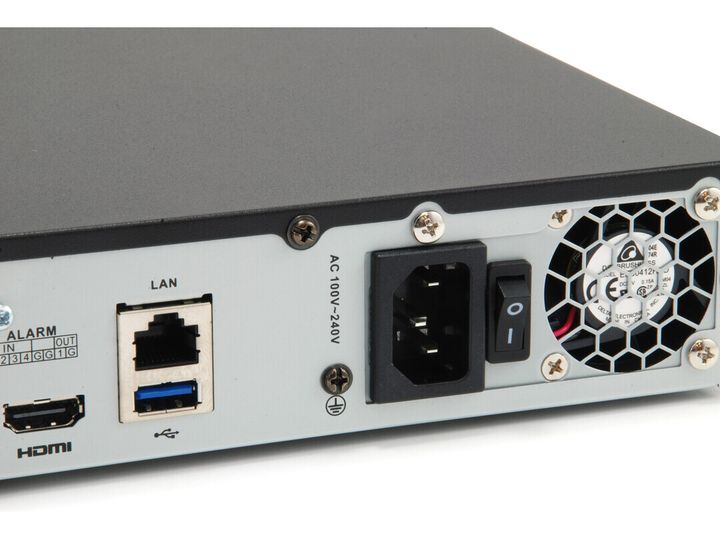

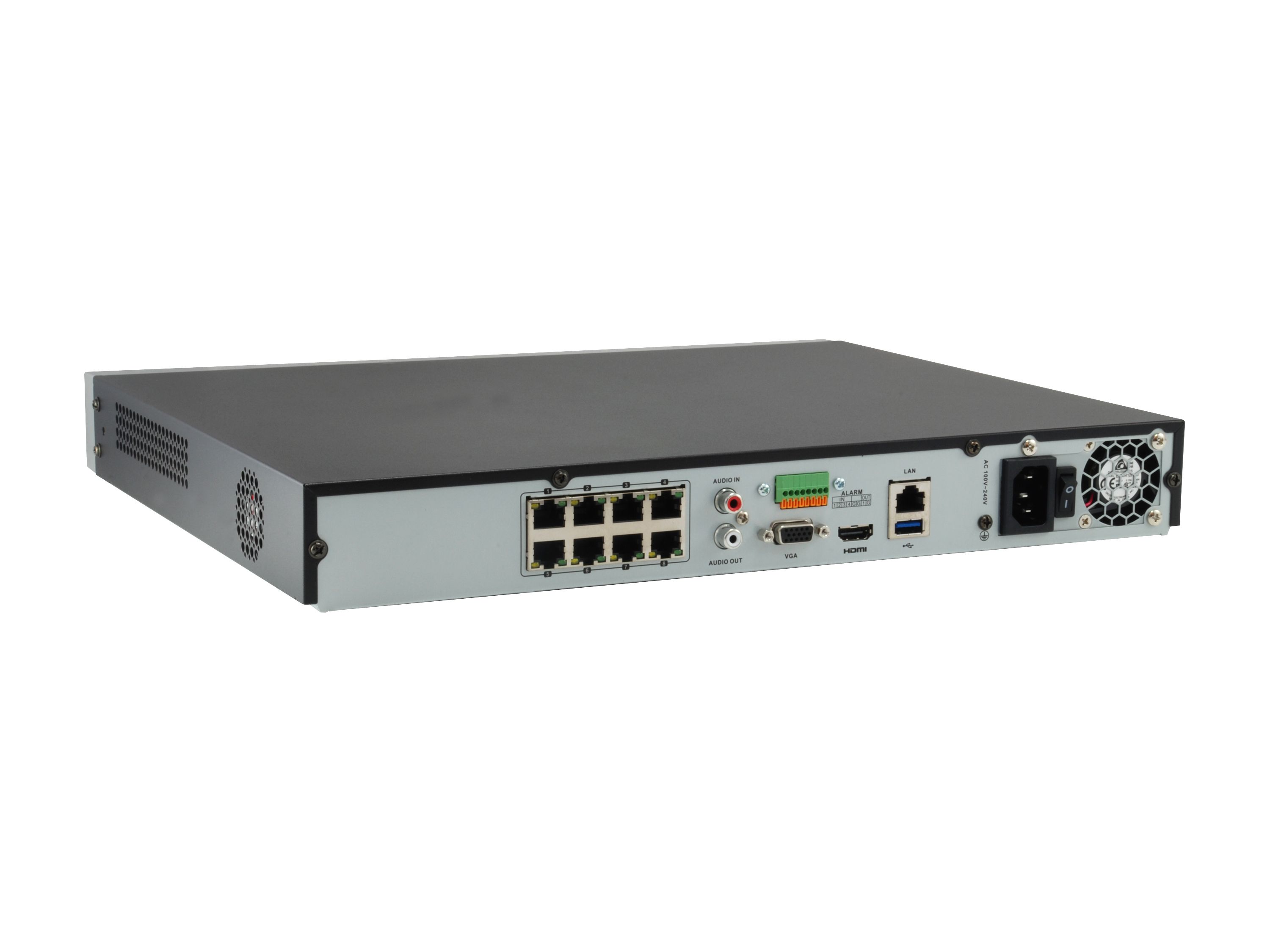

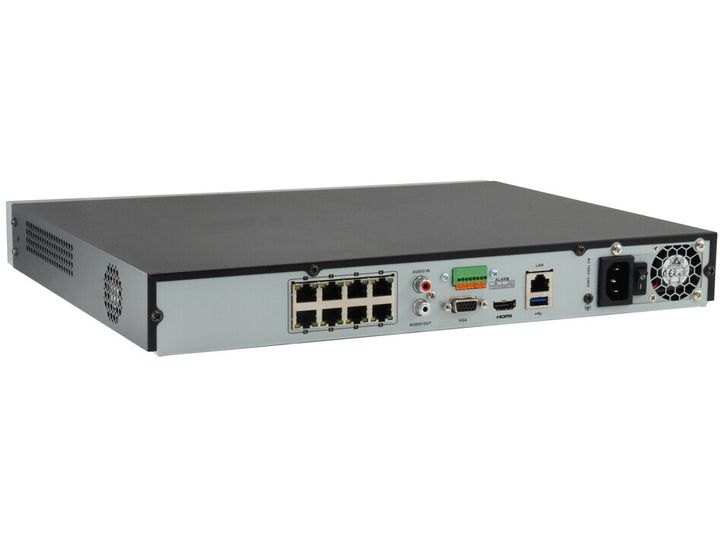

The NVR also features built-in HDMI, VGA and USB ports for peripheral devices such as a monitor, mouse or keyboard, allowing users to operate directly from the NVR without the cost of adding a PC to the deployment. 2 HDD bays complete the package, with a disk capacity of up to 6TB making the LevelOne NVR-0508 a powerful, smart and cost-effective solution for managing your security network.

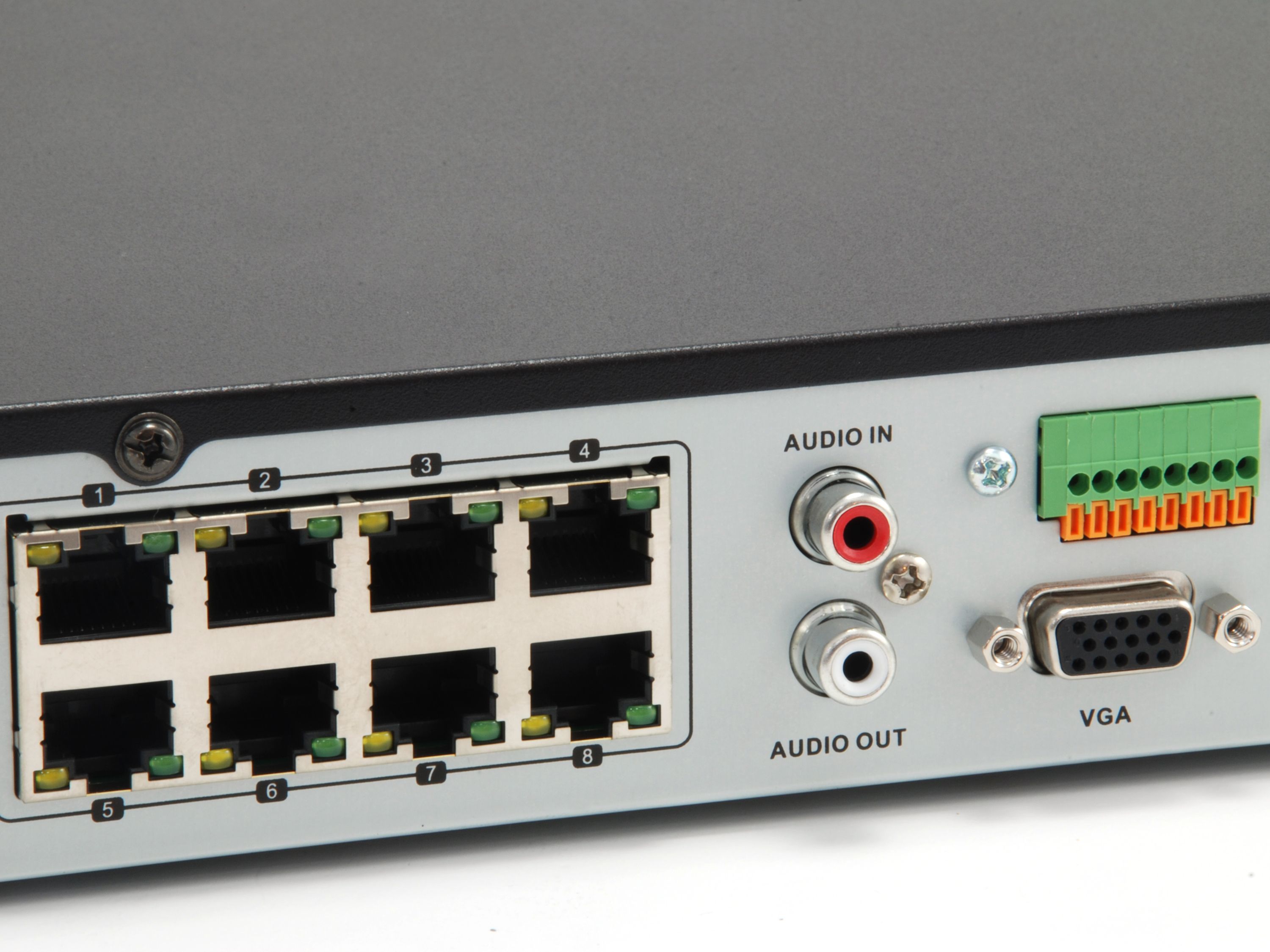

An integrated 8-port 802.3at PoE switch enables the NVR to run both power and data on the one cable to power up connected PoE cameras.
Central Management System (CMS) software is included for free, with no license fees. The CMS is capable of managing up to 256 NVRs, making it suitable for large scale surveillance applications.
Video input channels
8 channels
Maximum resolution
3840 x 2160 pixels
Video recording modes
720p, 1080p
Number of users
64 user(s)
Video formats supported
H.264, H.264+, H.265, MPEG4
Operating system installed
Embedded LINUX
Throughput data rate
160 Mbit/s
Number of fans
1 fan(s)
Wi-Fi
No
Number of HDDs installed
0
HDD capacity
0 GB
Maximum storage capacity
12 TB
HDD interface
Serial ATA
Number of HDDs supported
2
Ethernet LAN (RJ-45) ports
9
Power over Ethernet (PoE)
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Power over Ethernet (PoE) ports quantity
8
HDMI output
Yes
VGA (D-Sub) output ports
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Audio RCA inputs
1
Audio RCA outputs
1
Networking standards
IEEE 802.3at
Supported network protocols
TCP,UDP,IPv4,IPv6,Http,Https,SMTP,NTP,SNTP
Rack mounting
Yes
LED indicators
Alarm, HDD, Power
On/off switch
Yes
Product colour
Black
Compatible products
Onvif camera
Country of origin
China
Certification
CE, FCC, ISO9001, ISO14001, uL
Power consumption (typical)
180 W
AC input voltage
100 - 230 V
Browser supported
Internet Explorer 9+
Operating temperature (T-T)
10 - 55 °C
Operating relative humidity (H-H)
10 - 90%
Width
315 mm
Depth
52 mm
Height
385 mm
Weight
3 kg
Package width
435 mm
Package depth
450 mm
Package height
387 mm
Package type
Box
Package weight
3.23 kg
Cables included
AC
AC adapter included
Yes
CD manual
Yes
Master (outer) case width
548 mm
Master (outer) case length
450 mm
Master (outer) case height
412 mm
Master (outer) case gross weight
14.1 kg
Products per master (outer) case
4 pc(s)
