InLine 57887A, HDMI, 4x HDMI, 2.0b, 3840 x 2160 pixels, Black, Metal

Reliable 4K 60 Hz signal distribution:Distributes one HDMI input signal to up to four HDMI outputs simultaneously with a maximum data rate of 18 Gb/s and supports resolutions up to 3840 x 2160 @ 60 Hz.
High compatibility thanks to HDMI 2.0b and HDCP 2.2:Supports current HDMI standards and enables the transmission of protected content without restrictions.
Integrated EDID management:Allows the output signal to be adapted to connected displays. Choice of fixed 1080p EDID or adoption of the EDID from HDMI output 1.
Support for high-quality audio formats:Transmits not only video but also multi-channel audio formats such as LPCM up to 7.1, Dolby TrueHD and DTS-HD Master Audio.
Robust metal housing for installations:Compact and stable design for permanent use in AV environments and technical installations.

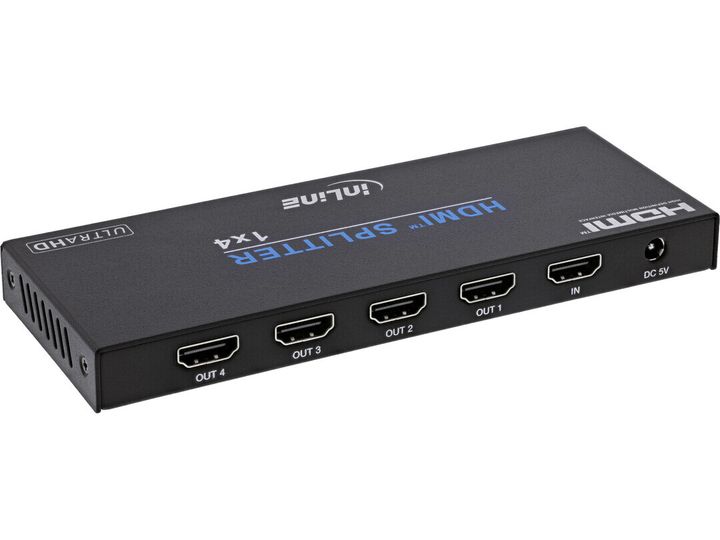

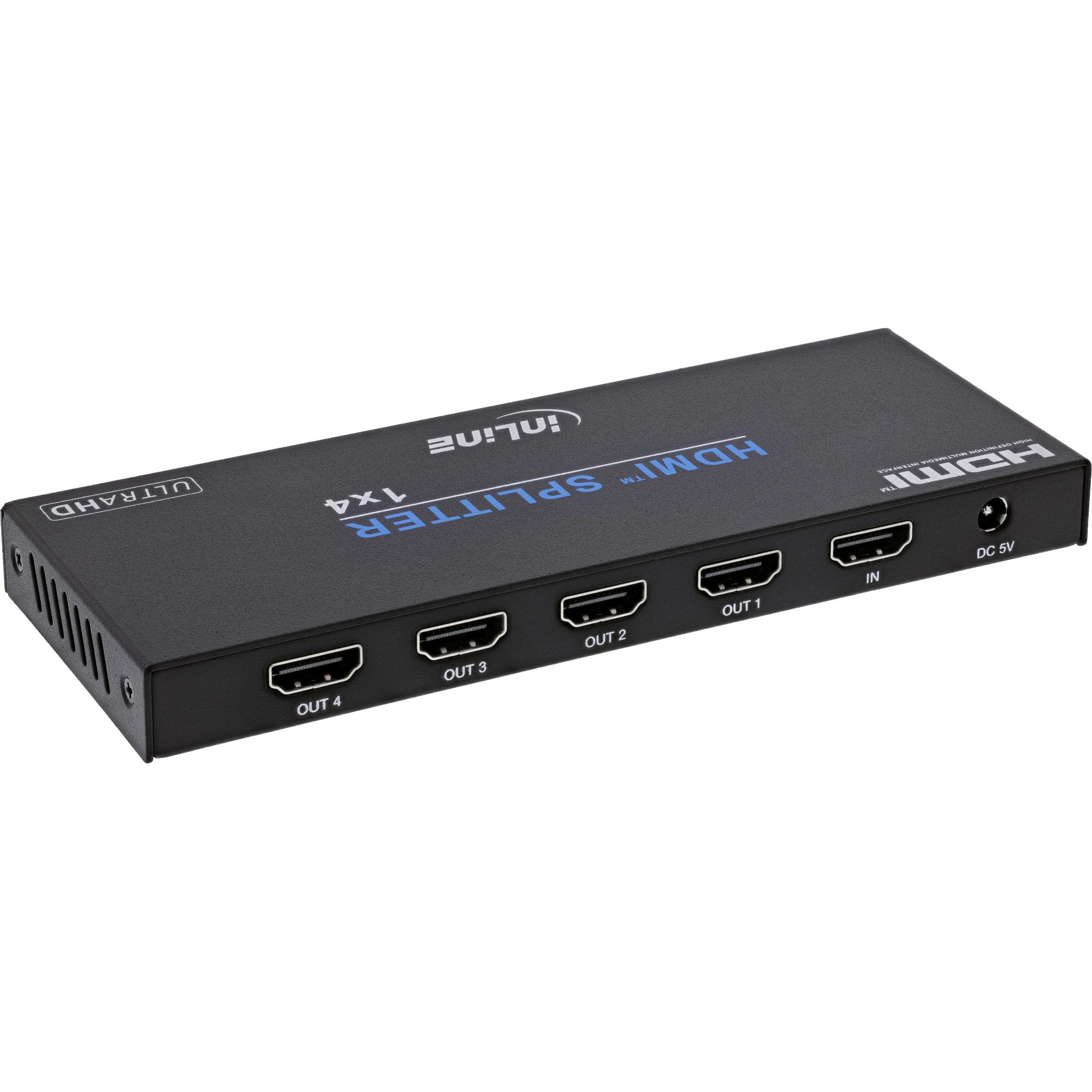

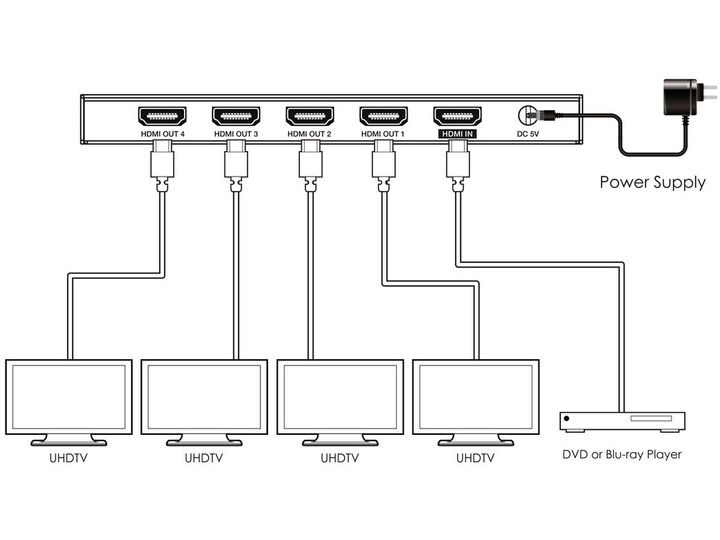

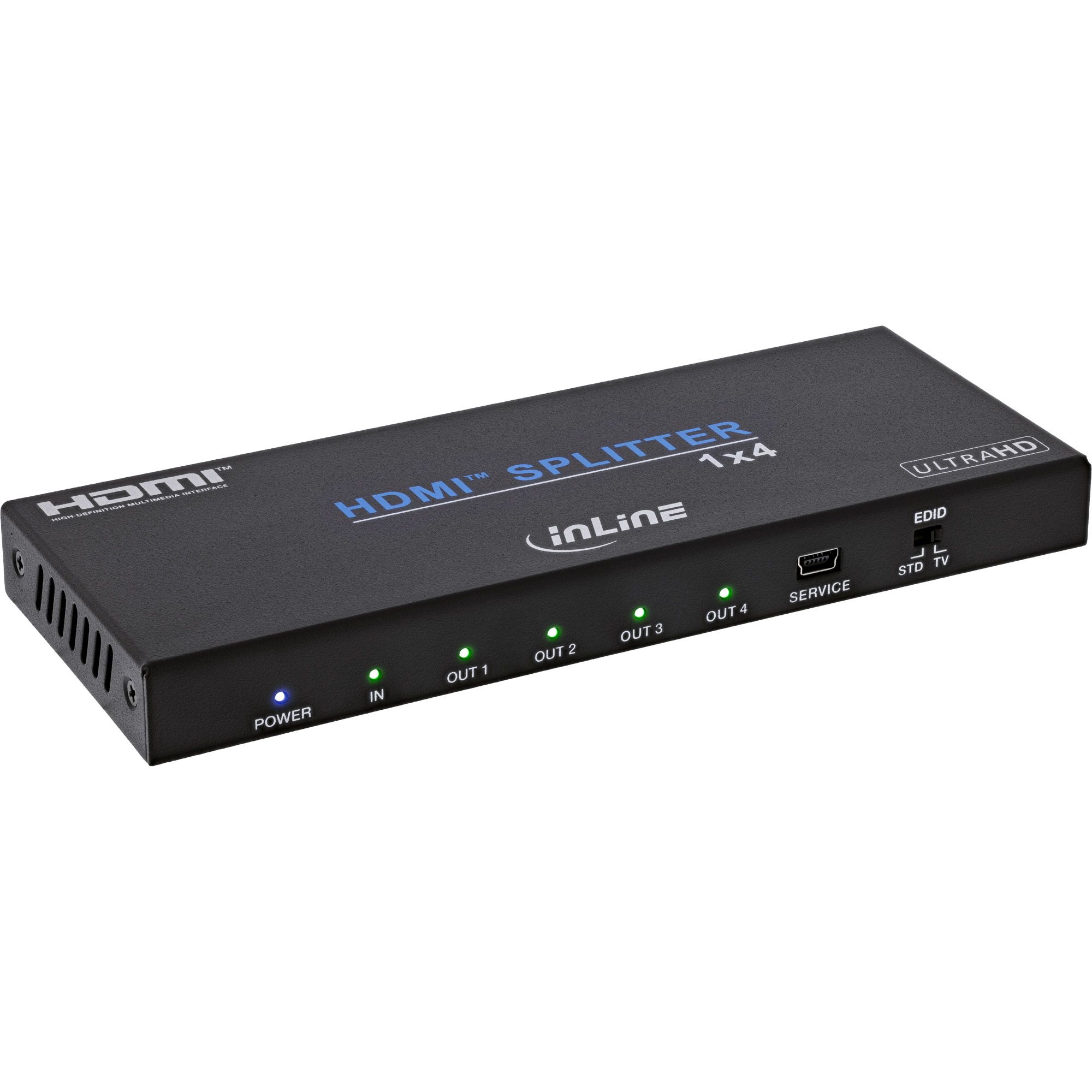

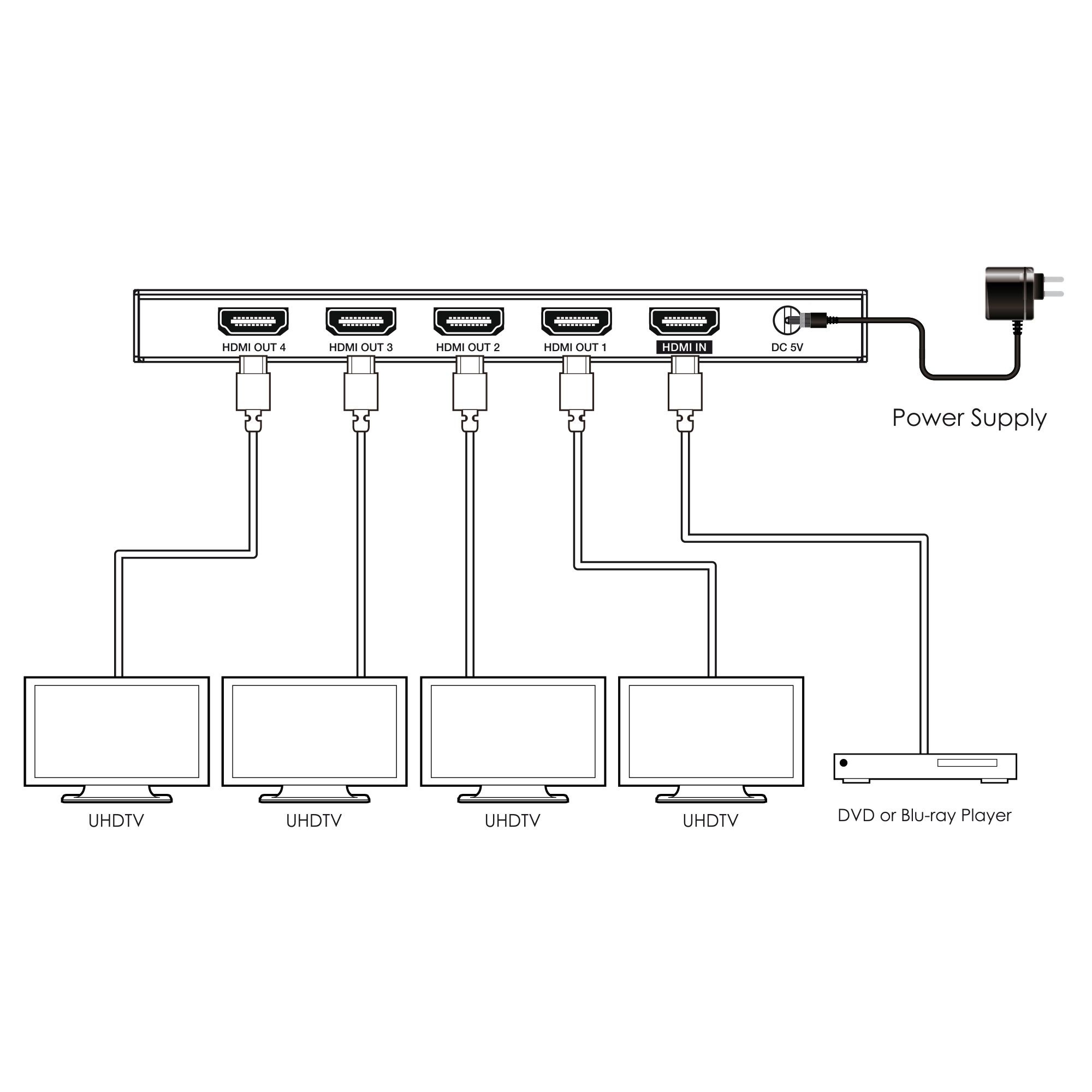

The InLine® 1x4 HDMI Splitter enables the simultaneous distribution of an HDMI signal from one source to up to four display devices. All connected displays output identical image and sound signals. The device is suitable for installations where content is to be displayed synchronously on multiple screens.
The splitter supports HDMI 2.0b and HDCP 2.2 and processes data rates of up to 18 Gb/s. Resolutions of up to 3840 x 2160 @ 60 Hz are supported. This enables the transmission of 4K signals with 60 Hz and 4:4:4 colour sampling. Full HD and 3D formats are also processed.

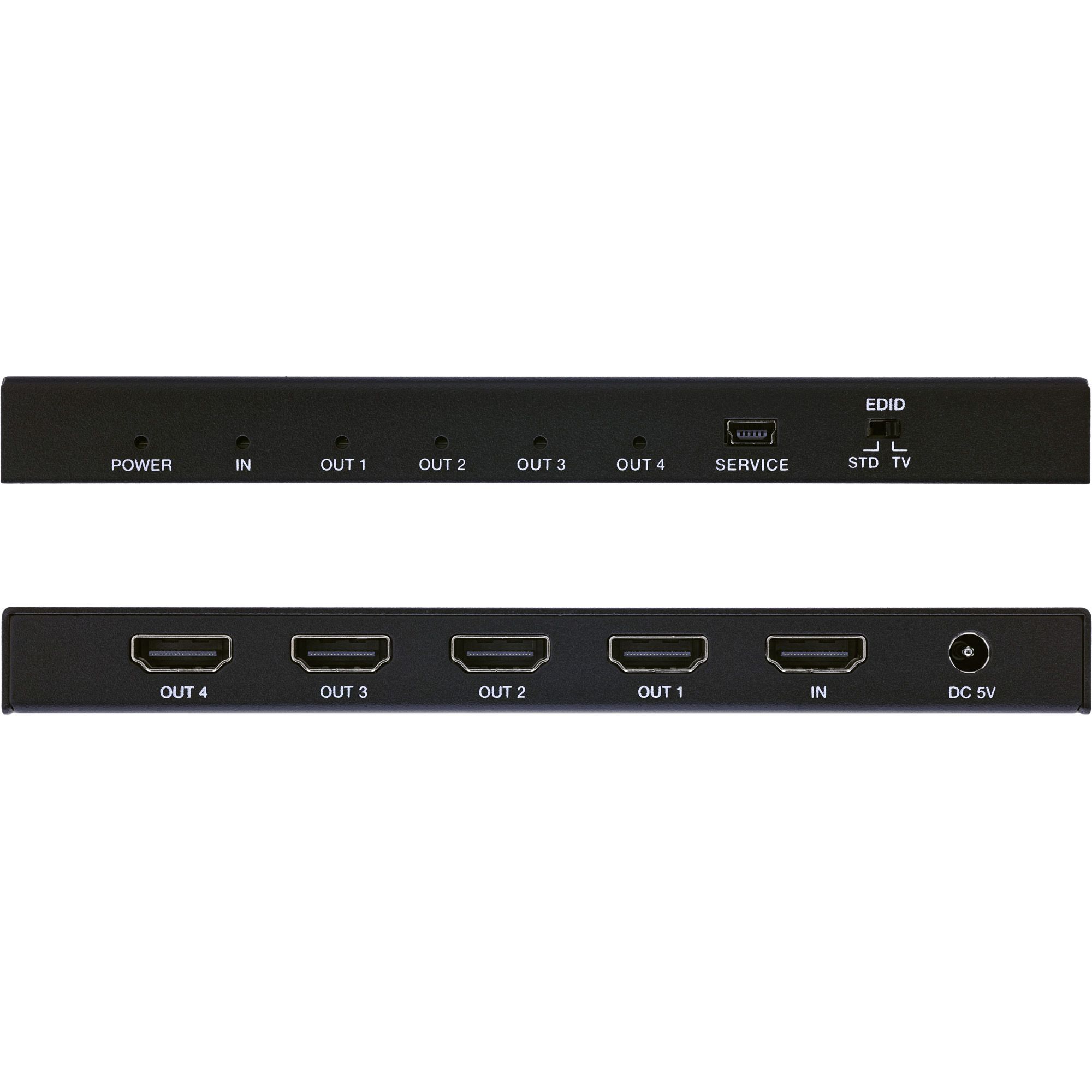

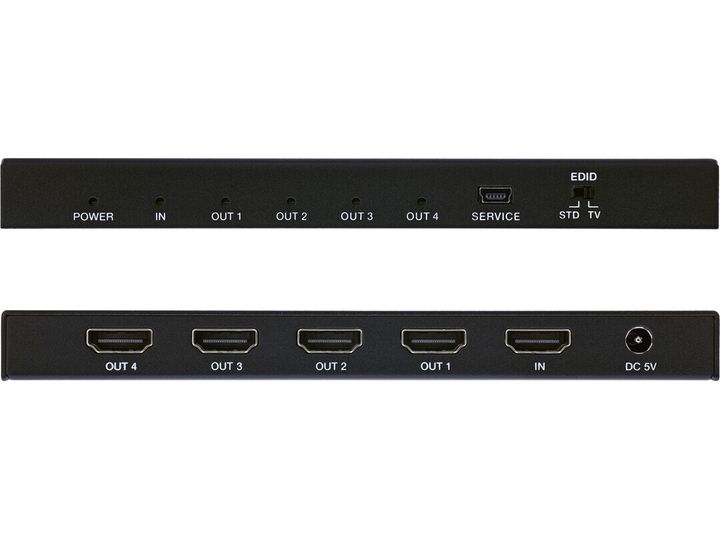

The integrated EDID management allows the output signal to be adjusted to the connected displays. In STD mode, a fixed EDID with 1920 x 1080 @ 60 Hz and 2-channel audio is used. In TV mode, the EDID of the display connected to HDMI output 1 is used.
In addition to video transmission, the device supports high-quality audio formats such as LPCM up to 7.1 channels, Dolby TrueHD and DTS-HD Master Audio. The metal housing ensures mechanical stability in the installation environment. Power is supplied via an external 5.0 V power supply unit.
The integrated service connection is used exclusively for firmware updates.
Technical features
Video

HDMI standard: HDMI 2.0b
HDCP standard: HDCP 2.2
Maximum data rate: 18 Gb/s (600 MHz)
Supported resolutions:
- 3840 x 2160 @ 60 Hz (RGB / YCbCr 4:4:4, 8 bits)
- 3840 x 2160 @ 30 Hz
- 1920 x 1080 @ 60 Hz
Supported 3D formats:
- Frame sequential up to 1080p @ 60 Hz
- Frame sequential up to 4K @ 30 Hz

Audio
Supported audio formats:

LPCM up to 7.1 channels
Dolby TrueHD
DTS-HD Master Audio

Mechanical and environmental data

Housing material: Metal
Colour: Black

Operating temperature: 0 °C to +40 °C
Storage temperature: −20 °C to +60 °C
Permissible humidity: 20–90 %, non-condensing

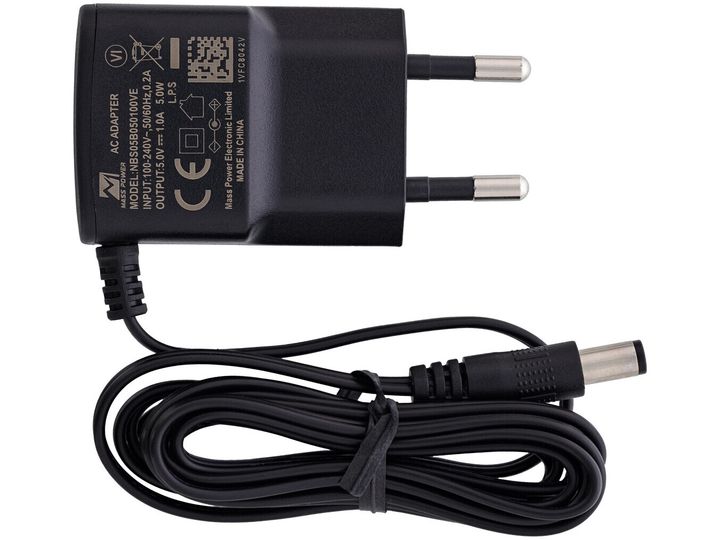

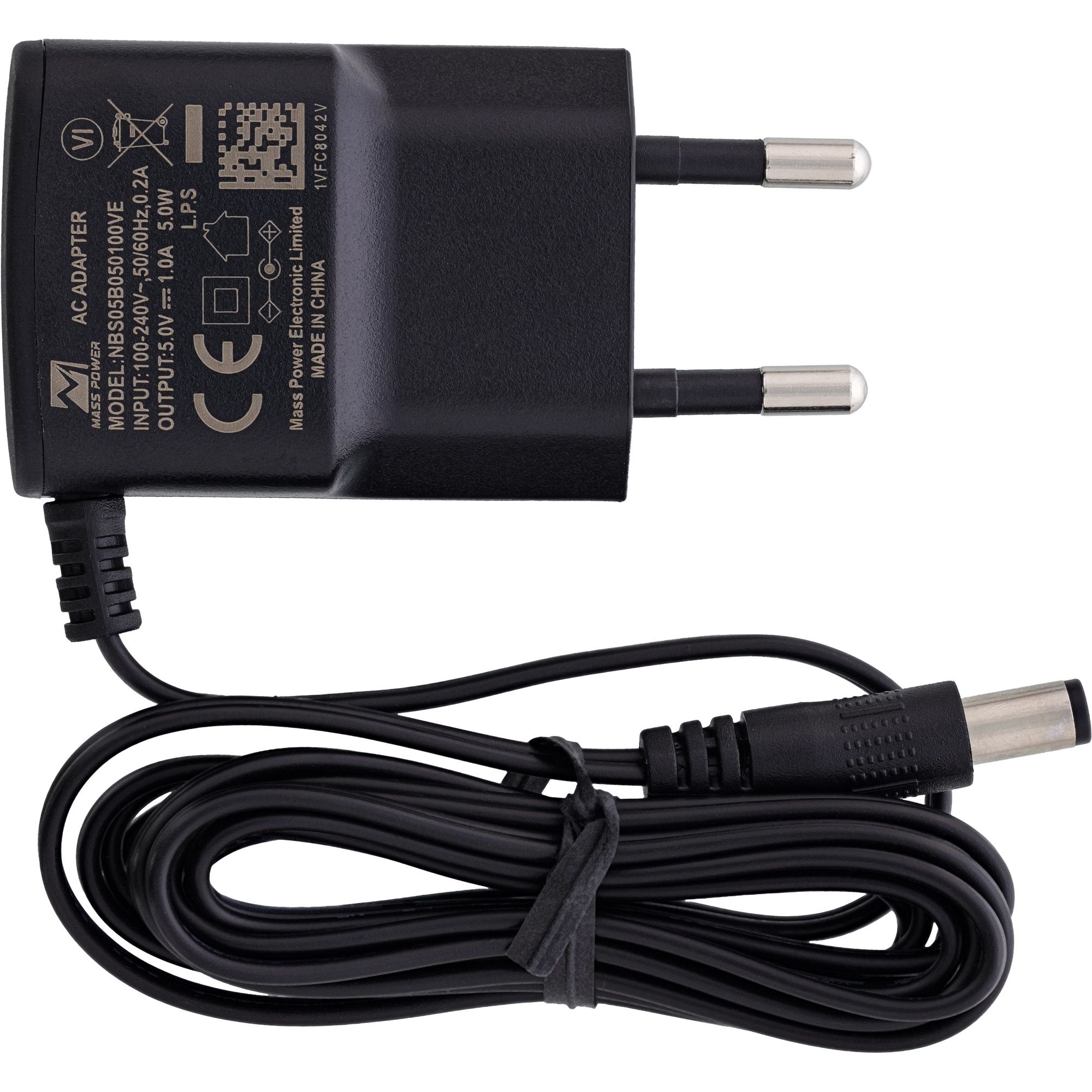

Power supply (external)

Input: AC 100–240 V / 50–60 Hz
Output: DC 5.0 V / 1.0 A
Output power: max. 5.0 W
Average operating efficiency (230 V / 50 Hz): 79.70%
Power consumption at zero load (230 V / 50 Hz): 0.09 W
Efficiency at low load (10%) (230 V / 50 Hz): 76.78%

Scope of delivery

1 x 1x4 HDMI splitter
1 x power supply (DC 5.0 V / 1.0 A)
1 x user manual (German/English)
