The MSI MAG X870E GAMING PLUS MAX WIFI motherboard offers a robust platform built for performance and versatility. With an AMD X870E chipset, it is designed to support Ryzen 7000/8000/9000 Series processors, delivering strong processing capabilities. This motherboard features four DIMM slots supporting DDR5 SDRAM with speeds up to 8200 MT/s (O.C.), allowing for extensive multitasking and performance enhancements in demanding applications.
Equipped with advanced networking features, the motherboard supports 5 Gigabit Ethernet and Wi-Fi 7 (802.11a/b/g/n/ac/ax/be), ensuring high-speed connectivity for gaming and streaming. The integrated audio capabilities provide high-definition audio output, while a variety of ports and expansion slots, including PCIe 5.0 and multiple USB configurations, enhance flexibility for future upgrades and expansions.
Produktbeskrivelse

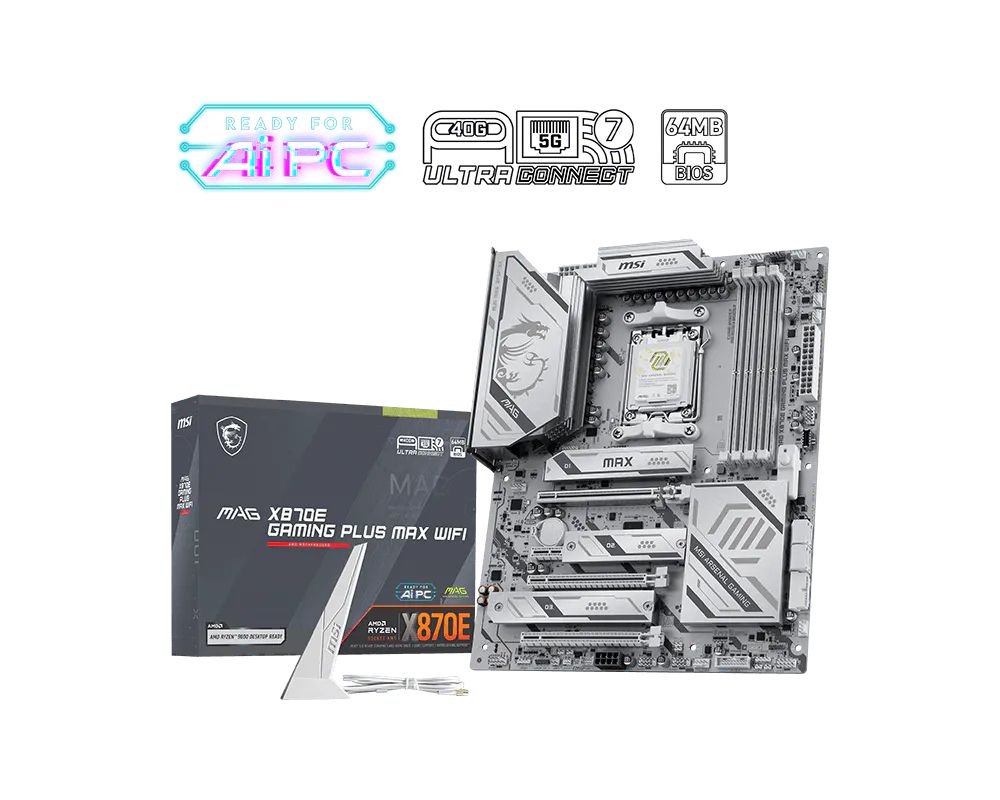

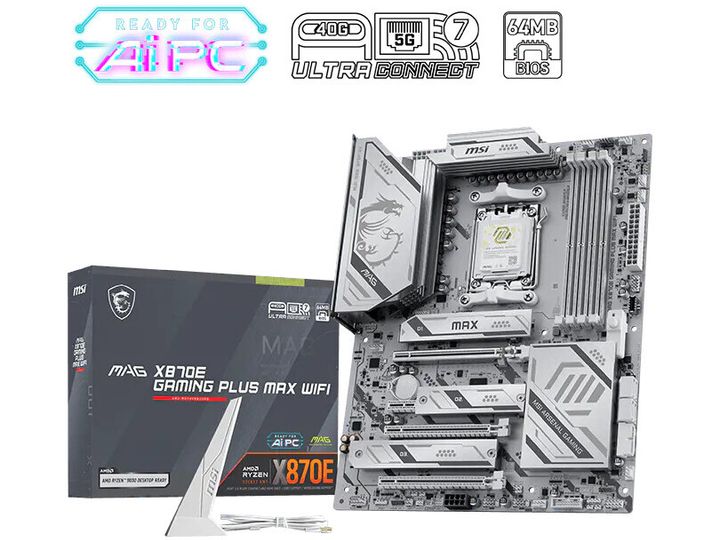

MSI MAG X870E GAMING PLUS MAX WIFI - bundkort - ATX - Socket AM5 - AMD X870E
Produkttype
Bundkort - ATX
Chipsættype
AMD X870E
Processor-socket
1 x Socket AM5
Kompatible processorer
(understøtter Ryzen 7000/8000/9000 Serien)
Max RAM-størrelse
256 GB
RAM understøttet
4 DIMM åbninger - DDR5, ikke-ECC, ikke bufferet, clocked unbuffered
Lagringsporte
4 x SATA-600 (RAID), 3 x M.2
USB / FireWire porte
1 x USB4 + 1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 6 x USB 2.0 via samlekasser)
Audio
HD Audio (8-kanaler)
LAN
5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4
Dobbelt kanal hukommelses arkitektur, AMD EXPO-teknologi, A-XMP support
Audio
Type
HD Audio (8-kanaler)
Audio codec
Realtek ALC897
Overensstemmelsesstandarder
High Definition Audio
LAN
Netværk controller
Realtek RTL8126
Netværks interfaces
5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4
Ekspansion / Konnektivitet
Ekspansionsåbninger
1 x CPU 4 x DIMM 288-pins 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4-modus) 2 x PCIe 3.0 x1 2 x M.2 socket (2260/2280 M.2 Key M-åbning) 1 x M.2 socket (2280/22.110 M.2 Key M-åbning) 1 x M.2 socket (Key E)
1 x HDMI 4 x USB 2.0 2 x USB 3.2 Gen 1 2 x USB 3.2 Gen 2 1 x USB-C 3.2 Gen2x2 1 x USB4 2 x antenne 1 x audio linje-ud - mini-jack 1 x mikrofon - mini-jack 1 x audio linje-ind - mini-jack 1 x LAN (5Gigabit Ethernet)
Interne interfaces
1 x USB-C 3.2 Gen 2 - intern stik 4 x USB 3.2 Gen 1 - intern stik 6 x USB 2.0 - intern stik 1 x audio - intern stik 1 x SPI - intern stik
14+2+1 Phase Power Design, MSI EZ DIY, Extended Heatsink Design, MSI EZ OC, 8 Layer PCB, 2oz Copper PCB, EZ M.2 Sheild FROZR II, M.2 Shield FROZR, flash BIOS-knap, Clear CMOS Button, EZ Debug LED, præmonteret I/O-skjold, MSI Steel Armor II, EZ PCIe frigivelse, EZ Conn-Design, MSI AI Engine, MSI AI LAN Manager, Frozr AI Cooling, MSI Memory Boost, Surface Mount Technology (SMT), transiente spændingsdæmpere, MSI Stainless Steel Back I/O, MSI Audio Boost, MSI Mystic Light
Diverse
Udstyr inkluderet
EZ Wi-Fi antenne, EZ M.2 clip II, EZ M.2 klips II fjerner, EZ-frontpanelkabel, 1 to 2 EZ Conn-Cable, kabelmærkat
Medfølgende ledninger
2 x Seriel ATA kabel
Bredde
30.48 cm
Dybde
24.384 cm
