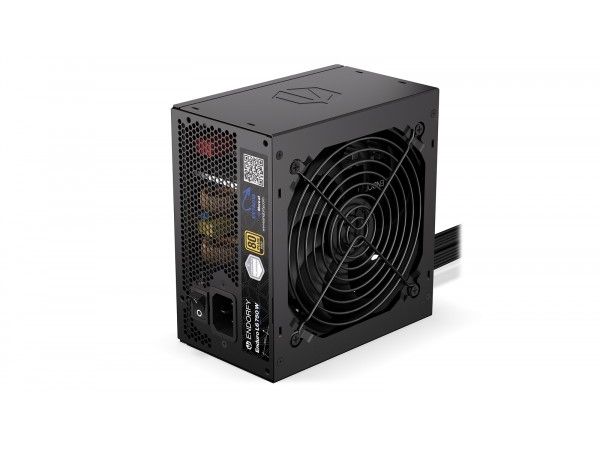

ENDORFY Enduro L6 750 W Power Supply
Item no.: [25709141] | Manufacturer: ENDORFY | EAN: 5903018669359
Remote stock (2-3 days)
The item is in a remote warehouse, delivery time is 2-3 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
98,18
Incl. VAT 122,73
Total incl. delivery
137,73
Add to list
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Send på mail
The Enduro L6 750W power supply is fully ATX 3.1 compliant and features a native 12V-2x6 connector to support PCIe 5.1 graphics cards.
The high energy efficiency is confirmed by the 80 PLUS Gold and Cybenetics ETA Platinum certifications. The platform was designed with the Gold standard in mind, but achieved ETA Platinum in testing, resulting in lower power consumption and cooler operation of the entire assembly. Stable voltage regulation on the +3.3V and +5V branches is provided by the DC-DC topology, which is typical of more expensive designs and provides an advantage over older solutions with group voltage regulation.
Cooling is provided by a 120 mm Stratus fan with FDB bearing and an optimized speed curve developed for the Enduro L6 series. The power supply is equipped with seven independent protections (OVP, UVP, OCP, SCP, OPP, SIP, OTP) and gold contacts in the high-current connections to reduce contact resistance and increase connector durability.
Fully compliant with ATX 3.1 standard for stable operation during sudden peaks in power consumption of modern graphics systems.
Native 12V-2x6 connector with 600W of power directly from the power supply allows support of PCIe 5.1 graphics cards without adapters.
The 80 PLUS Gold and Cybenetics ETA Platinum certifications confirm the platform's extremely high energy efficiency.
The DC-DC topology ensures stable voltage regulation on the +3.3 V and +5 V branches even under variable loads.
The 120 mm Stratus fan with FDB bearing and dedicated speed curve balances cooling performance and noise even at full load.
Seven independent protections (OVP, UVP, OCP, SCP, OPP, SIP, OTP) protect the entire assembly from overvoltage, overload, short circuit and overheating.
Gold contacts in high-current connections reduce contact resistance and increase connector immunity.
Flat black wiring with fixed wiring makes it easy to organize cables in the computer case.
Included 12V-2x6 cable clips facilitate proper placement and lighten the connection without the need for pull-tabs.
Package contents
Power supply, power cord with EU plug, 4× UNC #6-32 mounting screw, 3× tightening tape, user manual.
BASIC SPECIFICATIONS
Power: 750 W
Efficiency: 80 PLUS Gold, Cybenetics ETA Platinum
Input voltage: 100-240 V
Fan: Stratus 120 mm, FDB bearing
Topology: DC-DC
Wiring: solid, flat, black
Protection: OVP, UVP, OCP, SCP, OPP, SIP, OTP
Connectors: 1× ATX 24pin (570 mm), 2× EPS 12V 4+4pin (670 mm + 150 mm), 1× 12V-2x6 600 W (600 mm), 3× PCIe 6+2pin (560-710 mm), 4× SATA (500-800 mm), 1× Molex (800 mm)
Color: Black
Dimensions: 150 × 140 × 87 mm
MTBF: 80 000 h
The high energy efficiency is confirmed by the 80 PLUS Gold and Cybenetics ETA Platinum certifications. The platform was designed with the Gold standard in mind, but achieved ETA Platinum in testing, resulting in lower power consumption and cooler operation of the entire assembly. Stable voltage regulation on the +3.3V and +5V branches is provided by the DC-DC topology, which is typical of more expensive designs and provides an advantage over older solutions with group voltage regulation.
Cooling is provided by a 120 mm Stratus fan with FDB bearing and an optimized speed curve developed for the Enduro L6 series. The power supply is equipped with seven independent protections (OVP, UVP, OCP, SCP, OPP, SIP, OTP) and gold contacts in the high-current connections to reduce contact resistance and increase connector durability.
Fully compliant with ATX 3.1 standard for stable operation during sudden peaks in power consumption of modern graphics systems.
Native 12V-2x6 connector with 600W of power directly from the power supply allows support of PCIe 5.1 graphics cards without adapters.
The 80 PLUS Gold and Cybenetics ETA Platinum certifications confirm the platform's extremely high energy efficiency.
The DC-DC topology ensures stable voltage regulation on the +3.3 V and +5 V branches even under variable loads.
The 120 mm Stratus fan with FDB bearing and dedicated speed curve balances cooling performance and noise even at full load.
Seven independent protections (OVP, UVP, OCP, SCP, OPP, SIP, OTP) protect the entire assembly from overvoltage, overload, short circuit and overheating.
Gold contacts in high-current connections reduce contact resistance and increase connector immunity.
Flat black wiring with fixed wiring makes it easy to organize cables in the computer case.
Included 12V-2x6 cable clips facilitate proper placement and lighten the connection without the need for pull-tabs.
Package contents
Power supply, power cord with EU plug, 4× UNC #6-32 mounting screw, 3× tightening tape, user manual.
BASIC SPECIFICATIONS
Power: 750 W
Efficiency: 80 PLUS Gold, Cybenetics ETA Platinum
Input voltage: 100-240 V
Fan: Stratus 120 mm, FDB bearing
Topology: DC-DC
Wiring: solid, flat, black
Protection: OVP, UVP, OCP, SCP, OPP, SIP, OTP
Connectors: 1× ATX 24pin (570 mm), 2× EPS 12V 4+4pin (670 mm + 150 mm), 1× 12V-2x6 600 W (600 mm), 3× PCIe 6+2pin (560-710 mm), 4× SATA (500-800 mm), 1× Molex (800 mm)
Color: Black
Dimensions: 150 × 140 × 87 mm
MTBF: 80 000 h
