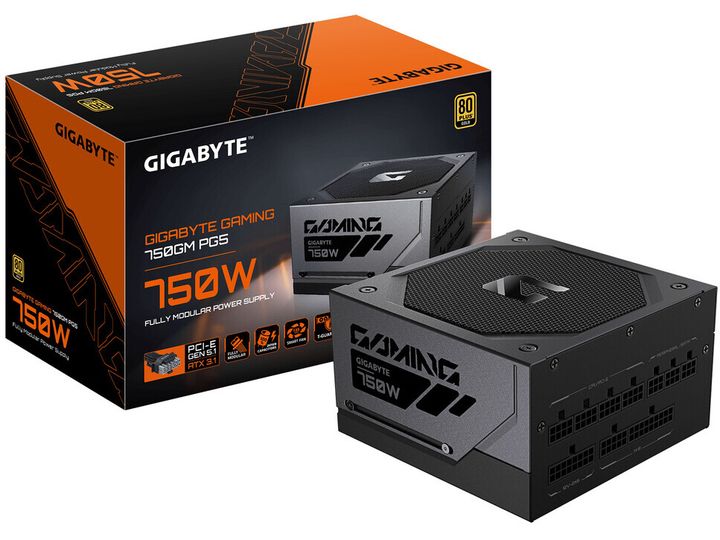

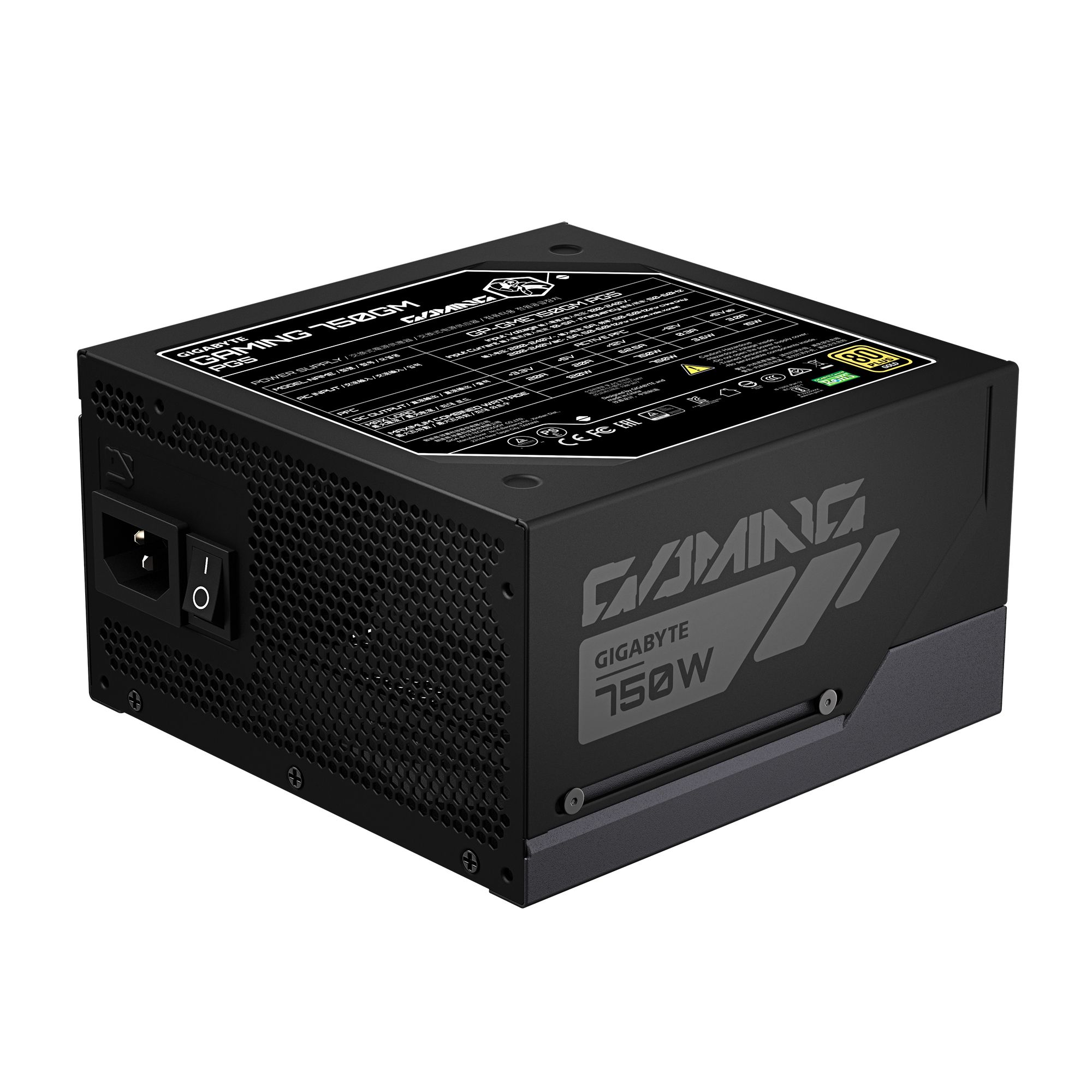

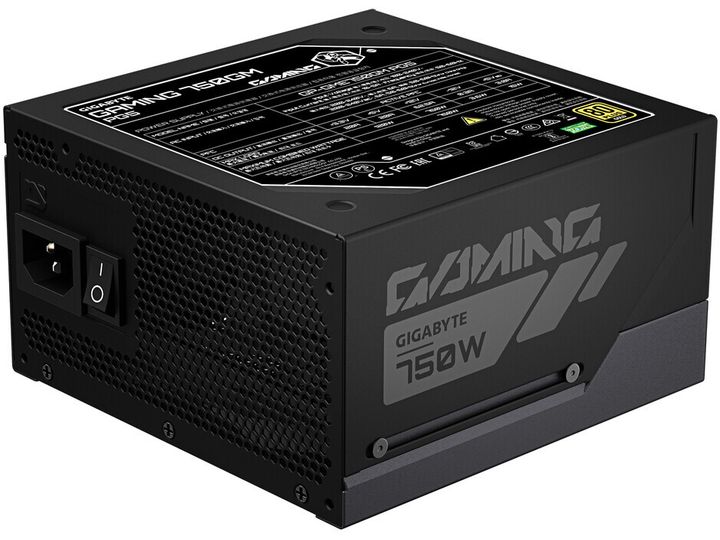

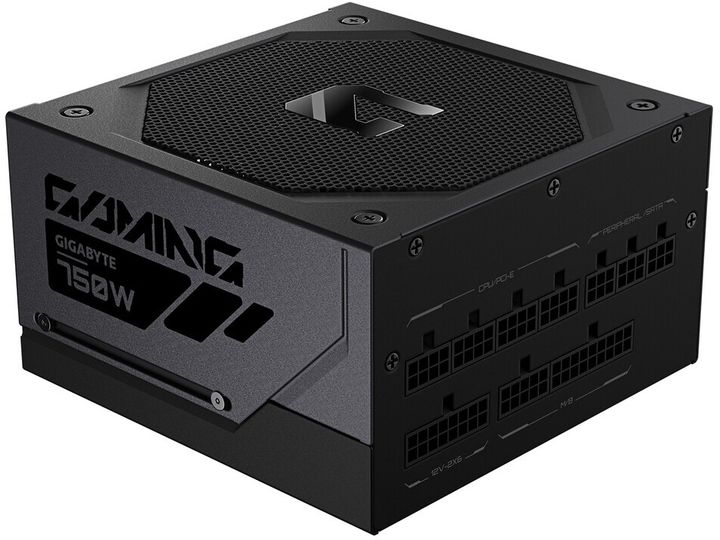

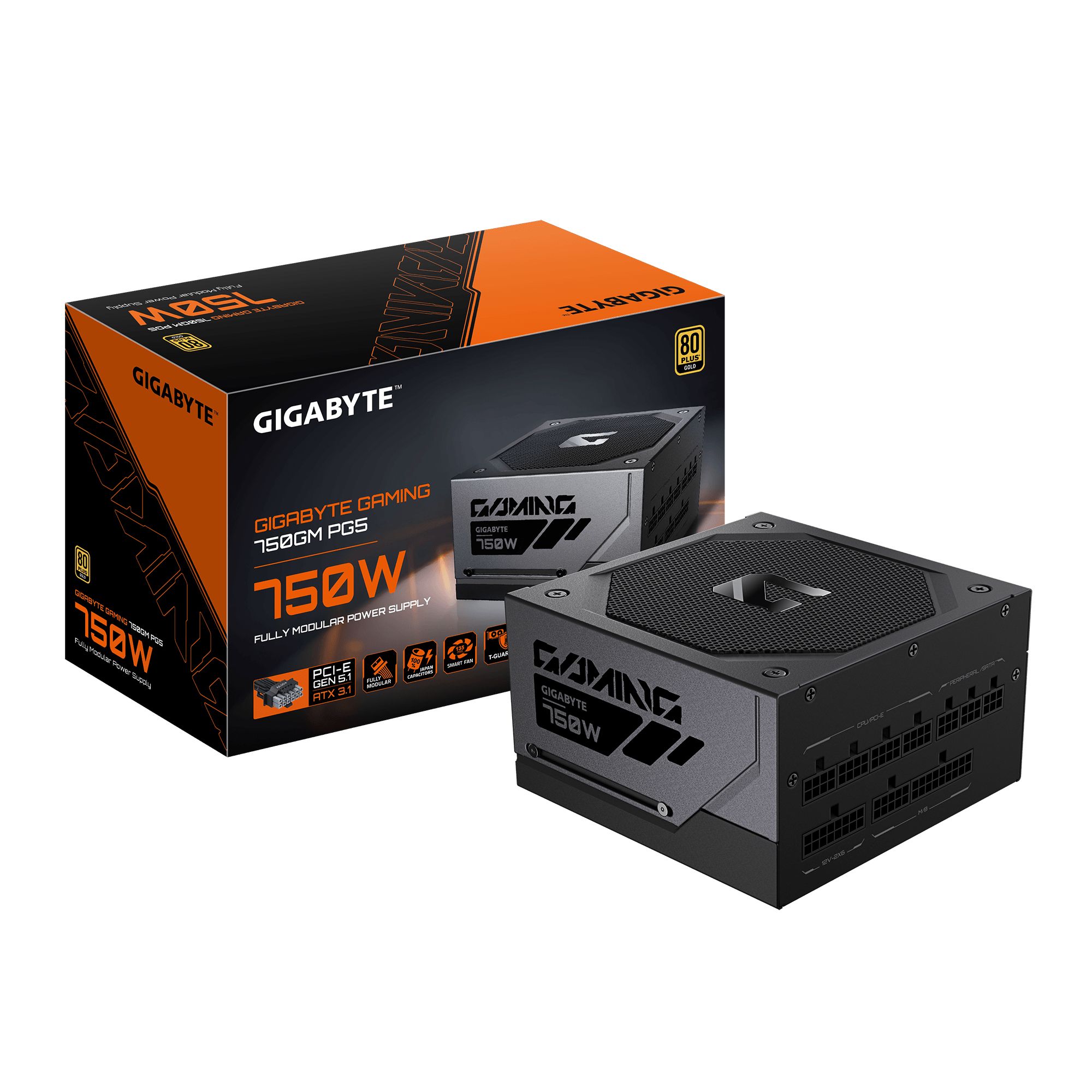

GIGABYTE GAMING 750GM PG5 Power Supply Unit - PCIe 5.1, 80 PLUS Gold, Fully Modular Design, 135mm Fan, ATX 3.1 compatible, EU Plug, 750 W, 100 - 240 V, 50/60 Hz, 10 A, Active, 120 W
Item no.: [25734106] | Manufacturer: Gigabyte Technology | Model no.: GP-GME750GM PG5 EU | EAN: 4719331557140
Remote stock (2-3 days)
The item is in a remote warehouse, delivery time is 2-3 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
109,70
Incl. VAT 137,13
Total incl. delivery
152,13
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists. Create user Login

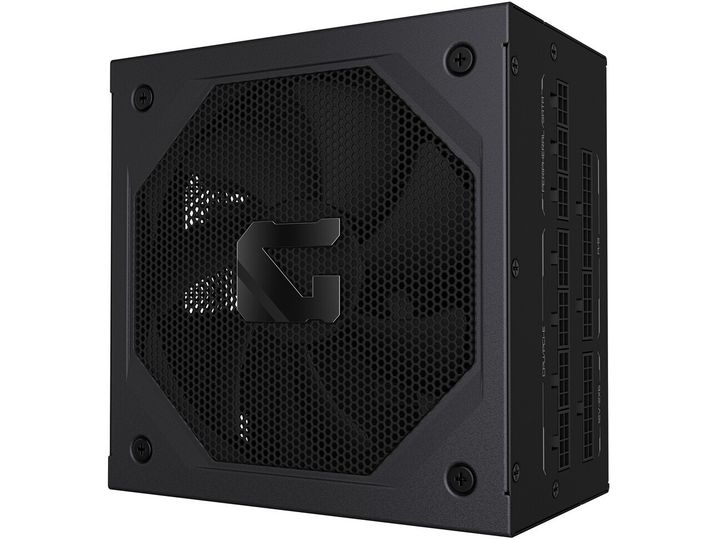

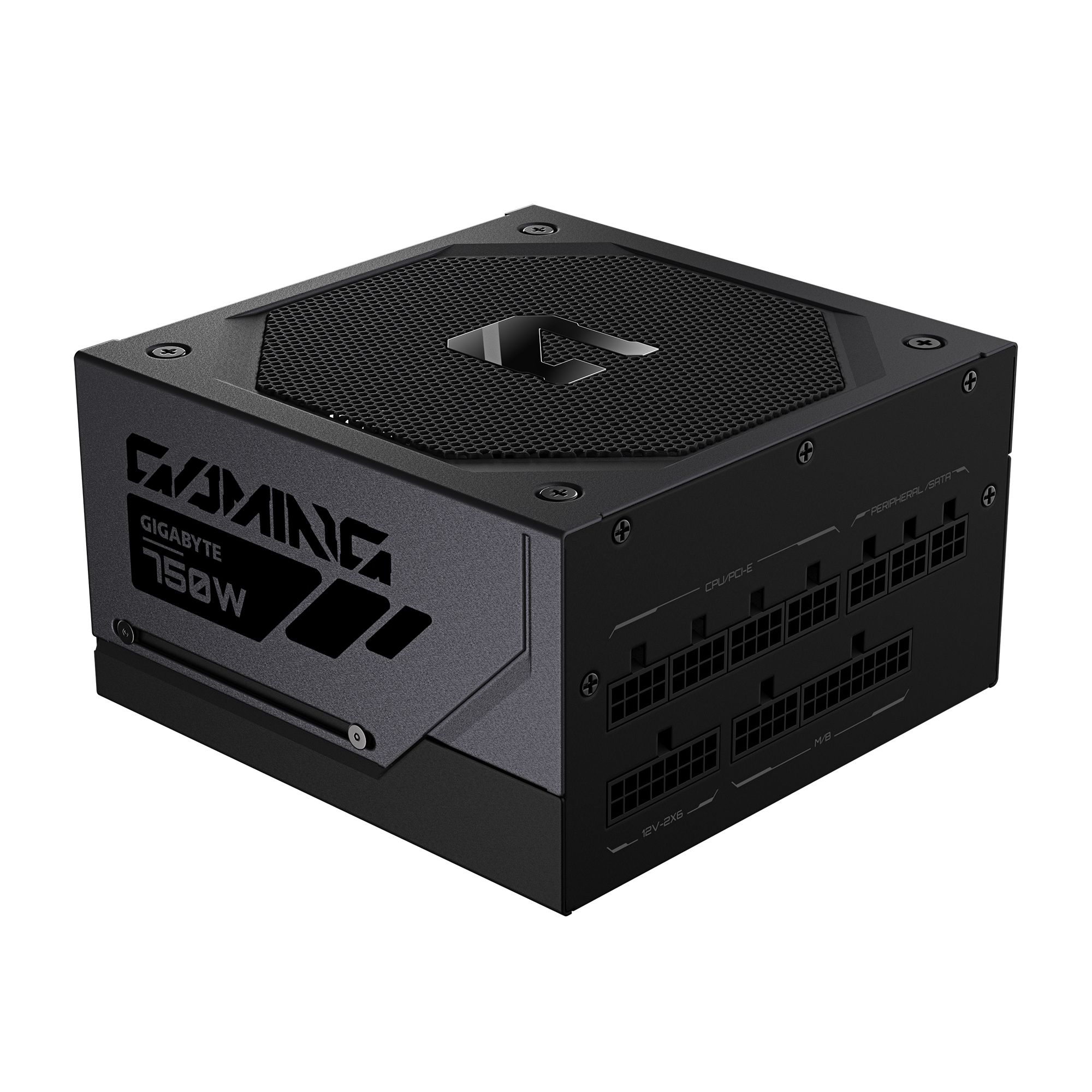

The GIGABYTE GAMING 750GM PG5 is a reliable power supply designed to support high-performance systems. With a power output of 750 W, it ensures stable and efficient operation for PC and server applications. This power supply features an active Power Factor Correction (PFC) for minimizing energy loss, achieving an efficiency of 90% and possessing an 80 PLUS Gold certification. The fully modular design allows for flexible cable management, helping to reduce clutter and improve airflow within the case.
Safety features are a priority with this power supply, incorporating multiple protections including overvoltage protection, short-circuit protection, and overheat protection. The 135 mm fan with fluid dynamic bearing provides efficient cooling while maintaining low noise levels. With an MTBF of 100,000 hours, the GIGABYTE GAMING 750GM PG5 is engineered for longevity and dependable performance, making it an ideal choice for gamers and professionals alike.
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 3.1/ EPS12V
80 PLUS certificering
80 PLUS Gold
Cybenetics-certificering
Cybenetics Platinum
Indgangspænding
AC 100-240 V
Udgangspænding
+3.3, +5, ±12 V, +5Vsb V
Strømkapacitet
750 watt
Output Current

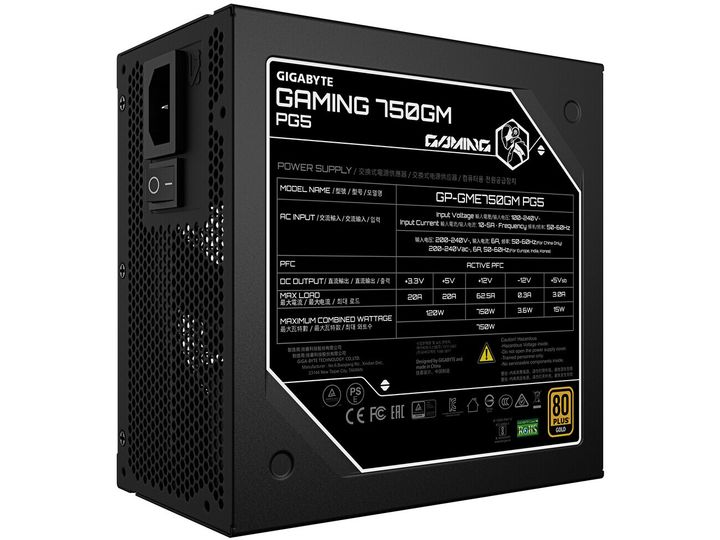

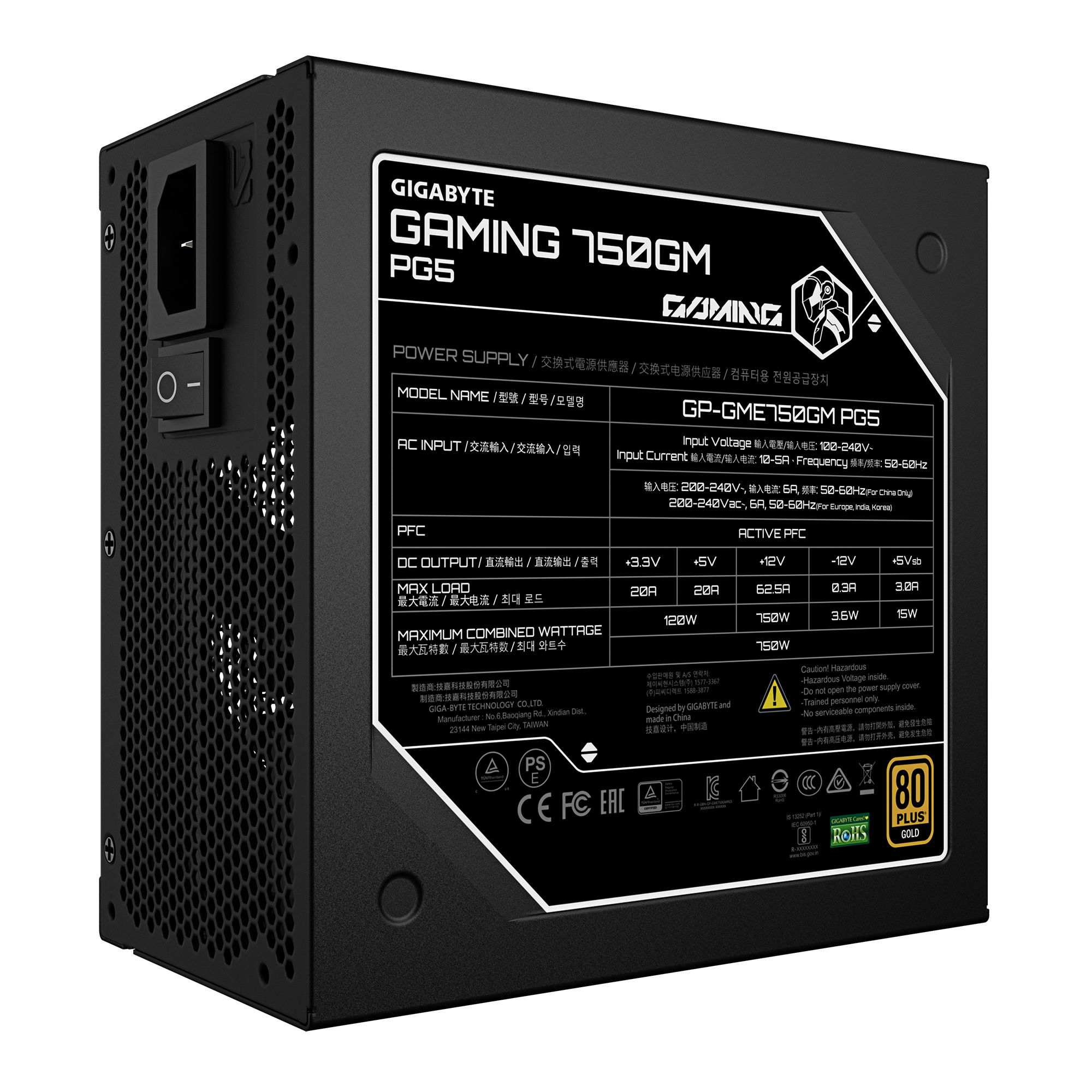

+3.3V - 20 A +5V - 20 A +12V - 62.5 A -12V - 0.3 A +5VSB - 3 A
Output-stikforbindelser

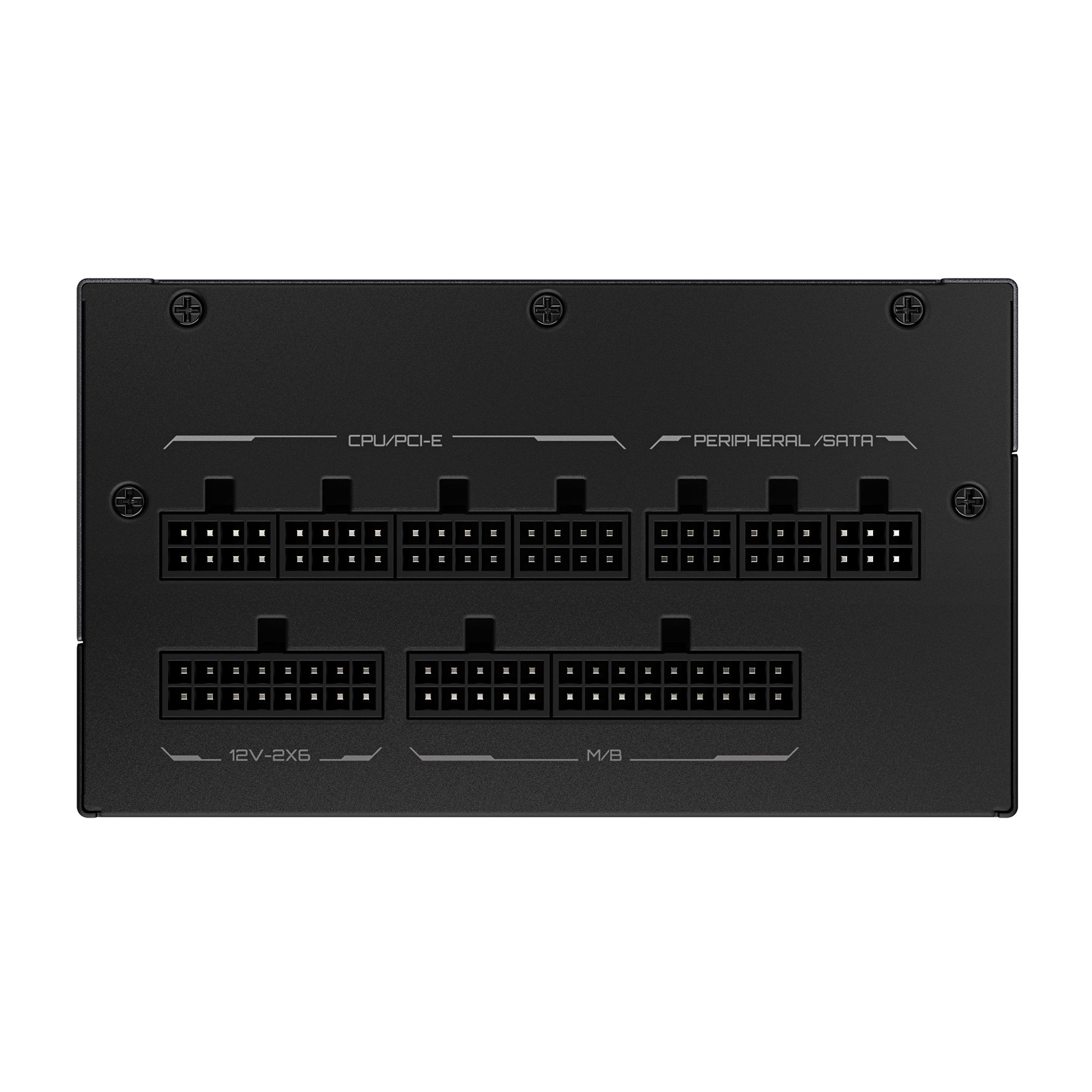

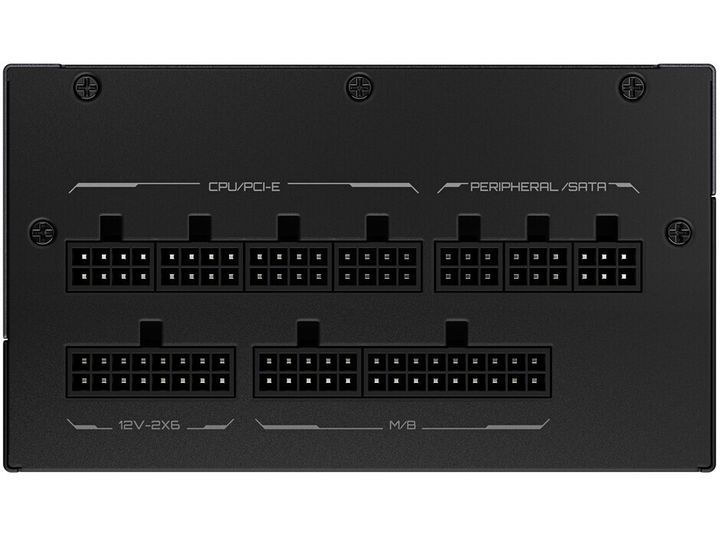

1 x strøm 24 pin ATX med aftagelig 4 pin sektion 2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion 1 x 16-pin PCI Express-strøm 4 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 8 x 15 pin Serial ATA strøm 4 x 4-PIN intern strøm
Modulær Kabel Administration
Ja
Kølesystem

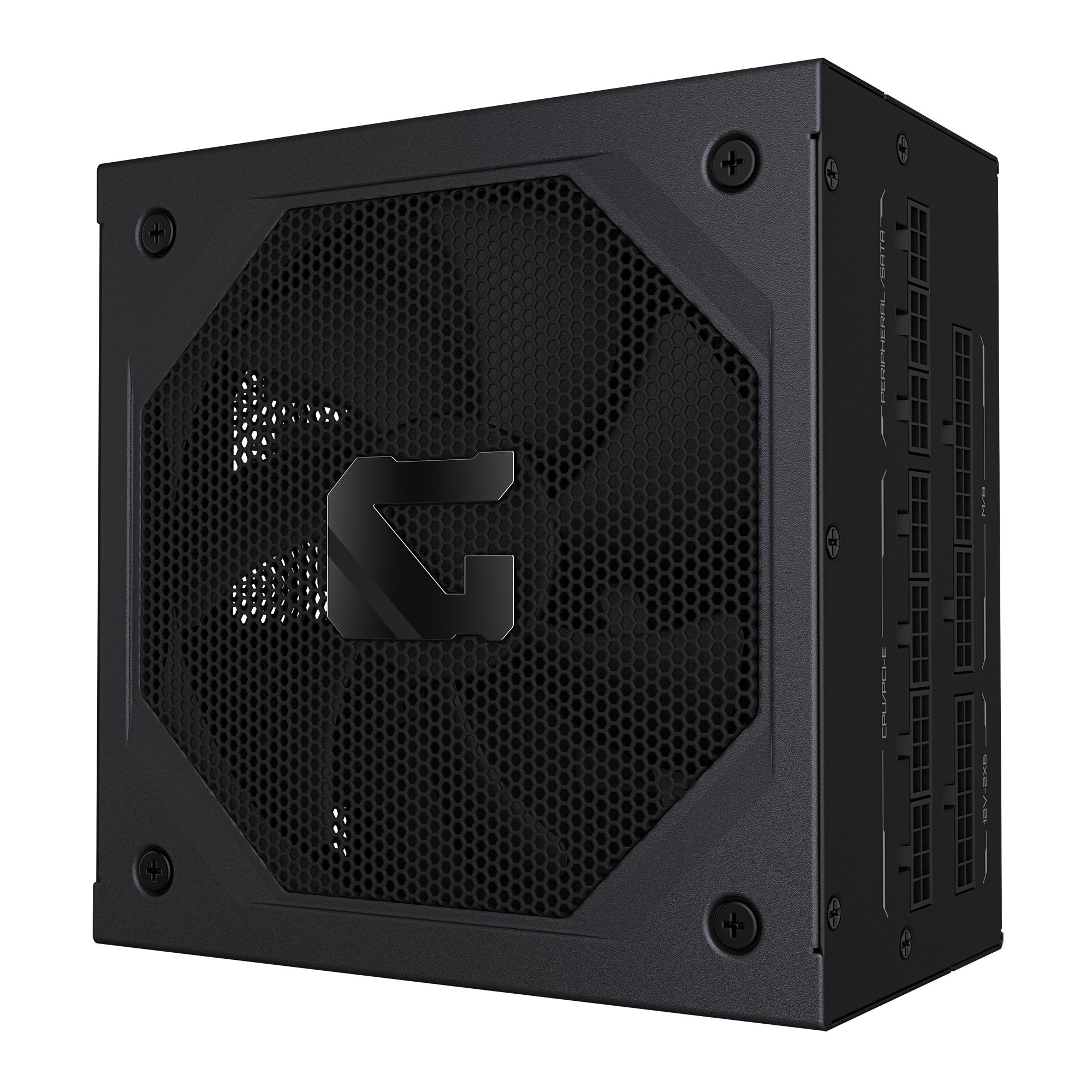

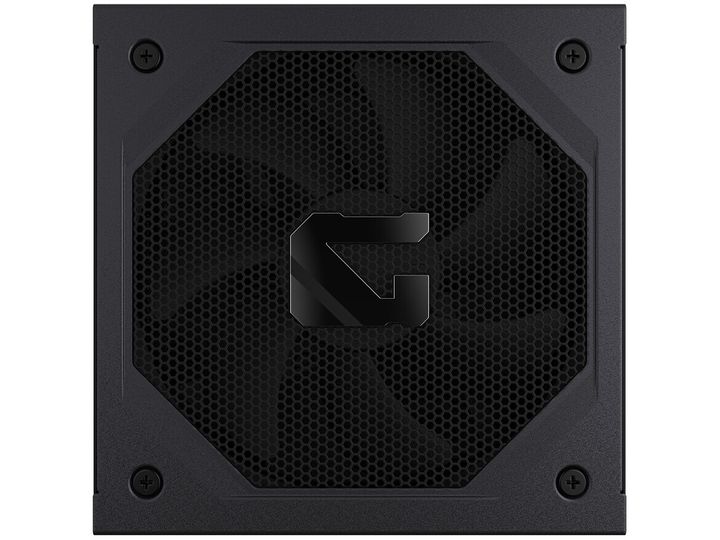

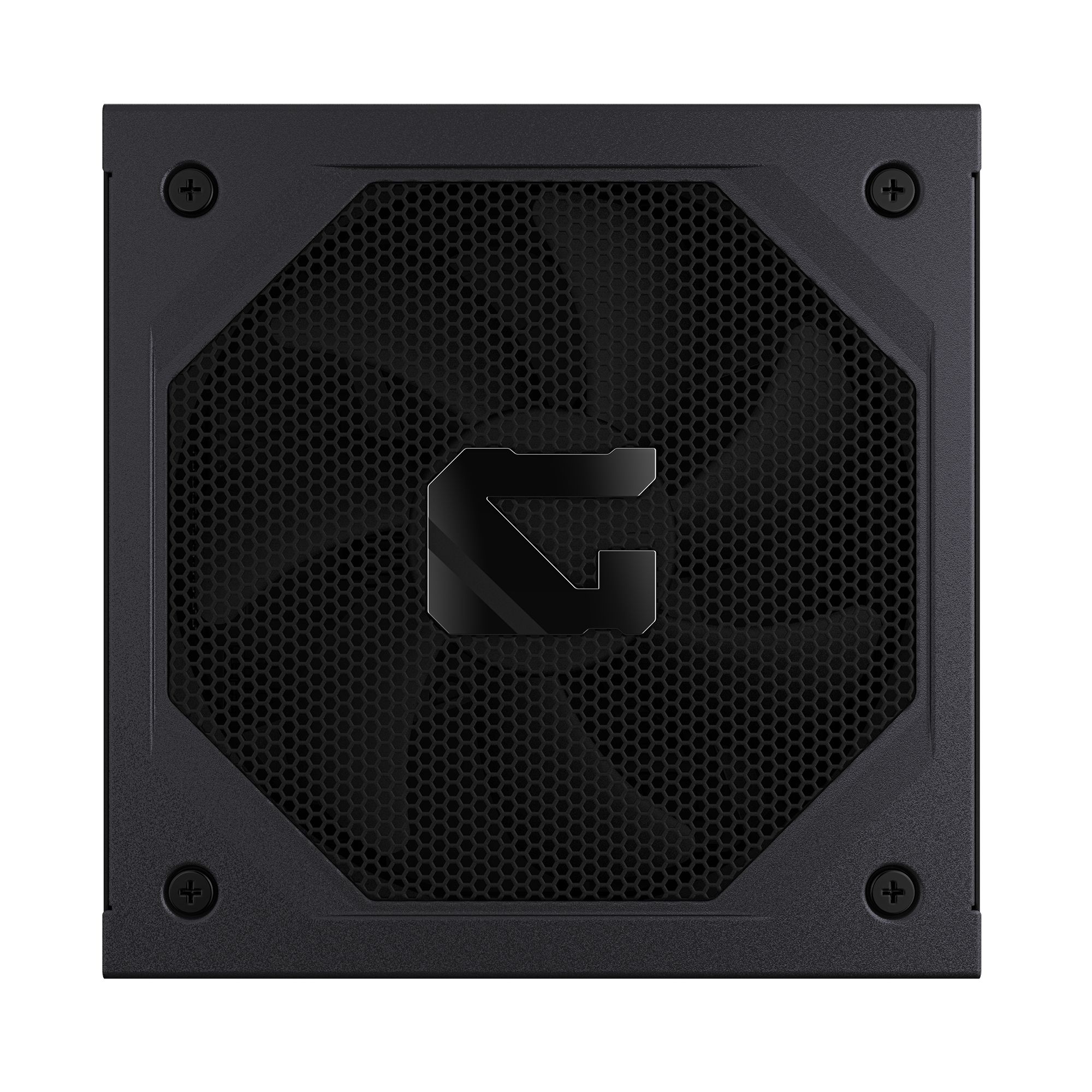

135 mm ventilator
Dimensioner (B x D x H)
15 cm x 15 cm x 8.6 cm
Producentgaranti
10-års garanti
Generelt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 3.1/ EPS12V
PSU formfaktor
ATX
Strømenhed
Indgangspænding
AC 100-240 V
Nødvendig frekvens
50 - 60 Hz
Detaljer om strømudgangskonnektorer
1 x strøm 24 pin ATX med aftagelig 4 pin sektion 2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion 1 x 16-pin PCI Express-strøm 4 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 8 x 15 pin Serial ATA strøm 4 x 4-PIN intern strøm
Udgangspænding
+3.3, +5, ±12 V, +5Vsb V
Strømkapacitet
750 watt
Output Current
+3.3V - 20 A +5V - 20 A +12V - 62.5 A -12V - 0.3 A +5VSB - 3 A
Effektivitet
90%
Strømfaktor (PF)
0.9
Modulær Kabel Administration
Ja
80 PLUS certificering
80 PLUS Gold
Cybenetics-certificering
Cybenetics Platinum
Diverse
Medfølgende ledninger
AC-strømkabel Strøm 24 pin ATX med aftageligt 4 pin sektion modulært kabel 61 cm 2 x strøm 8 pin +12 V med aftageligt 4 pin sektion modulært kabel 60 cm 16-pin PCIe 5.0 kabel 70 cm 2 x 8 pin PCI Express strøm med udtrækkelig 2 pin sektion modulærtkabel 75 cm 2 x strøm 15 pin SATA-kabel 105 cm 4 pin internt strømkabel 80 cm
MTBF (forventet tid mellem fejl)
100,000 timer
Kølesystem
135 mm ventilator
Egenskaber
Køleblæser til flydende dynamisk leje, overspændingsbeskyttelse, overbelastningsbeskyttelse, kortslutnings beskyttelse, beskyttelse mod underspænding, beskyttelse mod overstrøm, beskyttelse mod overophedning, fuld modulær, ingen lastdriftbeskyttelse, spændings- og tilstrømningsbeskyttelse, Cybenetics A+, Thermal Guard technology, enkelt 12V skinne
Producentgaranti
Service & Support
Begrænset garanti - 10 år
Mål og vægt
Bredde
15 cm
Dybde
15 cm
Højde
8.6 cm
