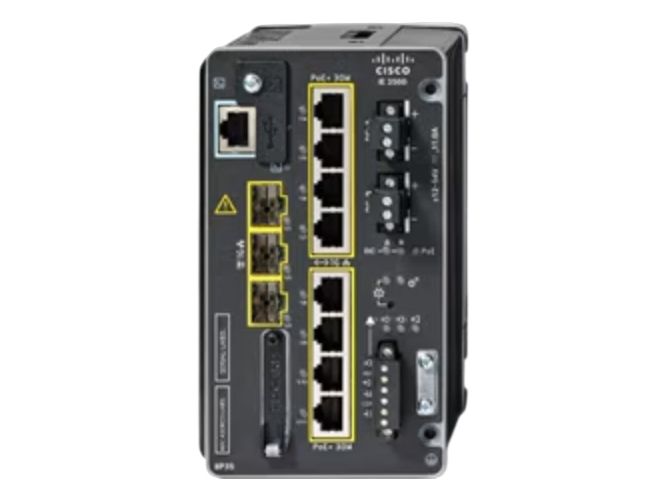

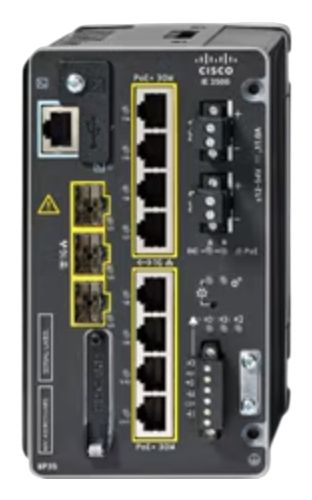

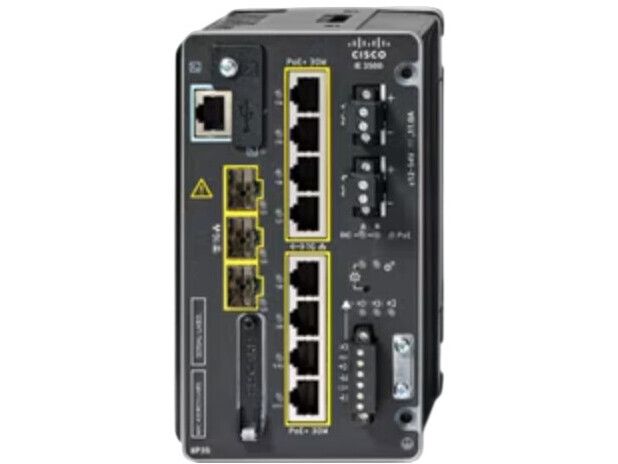

Cisco Catalyst IE-3500-8P3S-A, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting

Item no.: [25745546] | Manufacturer: Cisco | Model no.: IE-3500-8P3S-A | EAN: 0889728597890

Remote stock (5-7 days)

The item is in a remote warehouse, delivery time is 5-7 business days. More info

Shipping @price - GLS

12,00

EUR 6.400,66

Incl. VAT 8.000,83

Total incl. delivery 8.015,83

Read further specifications and description

The Cisco IE3500 Rugged Series IE-3500-8P3S switch is designed for demanding environments, offering performance with a variety of features for industrial applications. With a wide operating temperature range from -40°C to 75°C, this switch can thrive in extreme conditions, ensuring reliable connectivity even in harsh weather. The built-in SD card reader enables easy storage expansion, while the PoE+ capability allows for flexible installation of powered devices. Support for various networking protocols ensures a high degree of compatibility and management options, making it suitable for complex network environments.

Produktbeskrivelse	Cisco IE3500 Rugged Series IE-3500-8P3S - switch - 11 porte - Administreret
Enhedstype	Switch - 11 porte - L3 - Administreret
Undertype	Gigabit Ethernet
Porte	8 x 10/100/1000 (PoE+) + 3 x 1 Gigabit SFP
Power Over Ethernet (PoE)	PoE+
PoE-budget	240 W
Kapacitet	Køerl': 8 IGMP multicast-grupper: 1024 Aktive VLANer: 1024 VLAN ID'er: 4096 Indirekte IPv4-ruter: 7000 Indirekte IPv6-ruter: 1522 Unicast MAC-adresser: 24000 STP-instanser: 128 Access Control Lists (PACL/VACL/RACL): 1536
MAC adresse table størrelse	24K indtastningshukommelse
Jumborammesupport	9198 byte
Routingprotokol	MSTP, RSTP, IGMP, IGMPv2, IGMPv3, statisk IP routing, MLD, VRF, OSPF, OSPFv3, RIP, police-baseret routing (PBR), OSPF for IPv6, BGP-4, BGP-6, Bidirectional Forwarding Detection (BFD), EIGRP, HSRP, IS-ISv4, IS-ISv6, GRE, PIM-SM, PIM-DM, MSDP, STP
Protokol til fjernadministration	HTTP, NTP, MIB, DHCP, NETCONF, RESTCONF, SCP, SNMP 3, HTTPS, TFTP, YANG, Syslog, SNMP 1, SNMP 2, IPv4, IPv6, ICMP, Telnet, BOOTP, RMON
Egenskaber	TSN, MRP, REP, sikkerhedsstøvle, blæserløs, PTP, MACsec, TrustSec-support, FNF, UDLD, CDP, PAgP support, VTP v.2, VTP v.3, EtherChannel support, Q-i-Q tunnelering, Voice VLAN, PVST+, IGMP-filtrering, IGMP-forespørger, DHCP server, SPAN, Syslog understøttet, DHCP snooping, DAI, Guest VLAN, IP-kildebekyttelse, BPDU Guard, SUDI, QoS, PROFINET, MRP, VRF-Lite, SGACL
Overensstemmelsesstandarder	IEEE 802.1Qbu, IEEE 802.3br, IEEE 802.1ab (LLDP), IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1ae, IEEE 1588v2, IEEE 802.1D, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Effekt	DC 12 - 54 V 11 A
Dimensioner (B x D x H)	8.84 cm x 13.44 cm x 15.24 cm
Vægt	1.77 kg
Producentgaranti	5 års garanti

Generelt
Enhedstype	Switch - 11 porte - L3 - Administreret
Pakningstype	DIN monterbar på skinne
Undertype	Gigabit Ethernet
Porte	8 x 10/100/1000 (PoE+) + 3 x 1 Gigabit SFP
Power Over Ethernet (PoE)	PoE+
PoE-budget	240 W
Kapacitet	Køerl': 8 IGMP multicast-grupper: 1024 Aktive VLANer: 1024 VLAN ID'er: 4096 Indirekte IPv4-ruter: 7000 Indirekte IPv6-ruter: 1522 Unicast MAC-adresser: 24000 STP-instanser: 128 Access Control Lists (PACL/VACL/RACL): 1536
MAC adresse table størrelse	24K indtastningshukommelse
Jumborammesupport	9198 byte
Routingprotokol	MSTP, RSTP, IGMP, IGMPv2, IGMPv3, statisk IP routing, MLD, VRF, OSPF, OSPFv3, RIP, police-baseret routing (PBR), OSPF for IPv6, BGP-4, BGP-6, Bidirectional Forwarding Detection (BFD), EIGRP, HSRP, IS-ISv4, IS-ISv6, GRE, PIM-SM, PIM-DM, MSDP, STP
Protokol til fjernadministration	HTTP, NTP, MIB, DHCP, NETCONF, RESTCONF, SCP, SNMP 3, HTTPS, TFTP, YANG, Syslog, SNMP 1, SNMP 2, IPv4, IPv6, ICMP, Telnet, BOOTP, RMON
Krypterings algoritme	EAP-TLS
Autentificeringsmetode	RADIUS, Secure Shell (SSH), TACACS+
Egenskaber	TSN, MRP, REP, sikkerhedsstøvle, blæserløs, PTP, MACsec, TrustSec-support, FNF, UDLD, CDP, PAgP support, VTP v.2, VTP v.3, EtherChannel support, Q-i-Q tunnelering, Voice VLAN, PVST+, IGMP-filtrering, IGMP-forespørger, DHCP server, SPAN, Syslog understøttet, DHCP snooping, DAI, Guest VLAN, IP-kildebekyttelse, BPDU Guard, SUDI, QoS, PROFINET, MRP, VRF-Lite, SGACL
Overensstemmelsesstandarder	IEEE 802.1Qbu, IEEE 802.3br, IEEE 802.1ab (LLDP), IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1ae, IEEE 1588v2, IEEE 802.1D, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
RAM	8 GB
Flashhukommelse	5.1 GB
Indbygget udstyr	SD-kortlæser
Ekspansion / Konnektivitet
Interface	8 x 10/100/1000 Base-T RJ-45 PoE+ 3 x 100/1000 Base-X SFP uplink 1 x seriel (RS-232) RJ-45 1 x USB-C 2 x alarm input 1 x alarm output 1 x USB 2.0
Ekspansionsåbninger	1 (total) / 1 (fri) x SD-hukommelseskort
Effekt
Strømenhed	Intern strømforsyning
Nødvendig spænding	DC 12 - 54 V
Elektrisk strøm påkrævet	11 A
Strømforbrug ved drift	32 Watt
Diverse
MTBF (forventet tid mellem fejl)	474,469 timer
Overensstemmelsesstandarder	FCC 47 CFR Part 15 Subpart B Class A, AS/NZS CISPR 32 Class A, CISPR 11 class A, CISPR 32 Class A, CNS 15936 Class A, EN 300 386, EN 55032, ICES-003 Klasse A, KS C 9832 Class A, VCCI Class A, CISPR 35, EN 55035, EN 61000-4-10, EN 61000-4-16, EN 61000-4-17, EN 61000-4-18, EN 61000-4-2, EN 61000-4-29, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-1, EN 61000-6-2, EN 61000-6-4, EN 61326-1, EN 61850-3, IEC 61850-3, IEEE 1613, IP30, KS C 9835, CSA 213, EN 60079-0, EN 60079-7, IEC 60079-0, IEC 60079-7, IEC 62368-1 CB Scheme, IECEx, UL 121201, UL/CSA 60079-0, UL/CSA 61010-2-201, UL/CSA 62368-1, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-30, IEC 60068-2-52, IEC 60068-2-6, IEC 60068-2-60, IEC 60068-2-78, REACH, RoHS, WEEE
Programmer / Systemkrav
Med software	Cisco Network Advantage
Mål og vægt
Bredde	8.84 cm
Dybde	13.44 cm
Højde	15.24 cm
Vægt	1.77 kg
Producentgaranti
Service & Support	Begrænset garanti - forudgående komponentudskiftning - 5 år - responstid: 10 dage
Miljømæssige parametre
Min. driftstemperatur	-40 °C
Maks. driftstemperatur	75 °C
Fugtighedsgrad ved brug	5 - 95% RH (non-condensing)
Min. lagertemperatur	-40 °C
Maks. Opbevaringstemperatur	85 °C

The item is known under the following item numbers in our system

EAN:	0889728597890
UPC:	889728597890
SKU:	IE-3500-8P3S-A
