Item no.: [25776936] | Manufacturer: Alcatel-Lucent | Model no.: OAW-AP1501-RW
Remote stock (14-21 days)
The item is in a remote warehouse, delivery time is 14-21 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
519,47
Incl. VAT 649,34
Total incl. delivery
664,34
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists. Create user Login

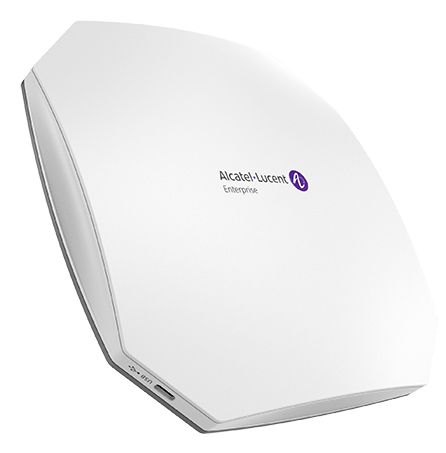

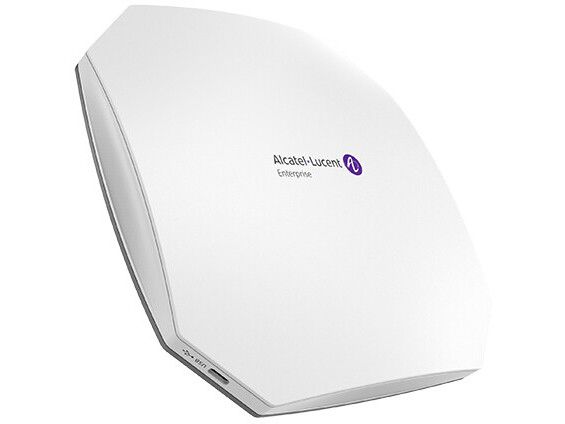

OmniAccess Stellar Indoor AP1501. Tri radio, Tri band 2.4/5/6GHz 2x2 Wi-Fi 7, integrated omni antenna. 1x 2.5GE (PoE), Console, 48V DC. AP mount to be ordered separately. Regulatory domain not for use in US, Japan.
The Alcatel-Lucent OmniAccess® Stellar AP1501 delivers an accessible entry point into Wi-Fi 7, combining next-generation wireless performance with the cost efficiency enterprises expect. The OmniAccess Stellar AP1501 makes Wi-Fi 7 performance affordable for everyday connectivity. Built for mid-density and distributed environments such as branch offices, retail locations and small campuses, it delivers the high bandwidth, low latency and reliability required by nextgeneration mobility and connected services. With AlcatelLucent Enterprise’s proven enterprise wireless architecture, the OmniAccess Stellar AP1501 enables organizations to modernize their wireless networks with confidence, efficiency and long-term value.
The OmniAccess Stellar AP1501 is powered by three radios serving Wi-Fi clients. The OmniAccess Stellar AP1501 supports a maximum aggregate data rate of 9.328 Gbps (688 Mbps in 2.4GHz, 2.882 Gbps in 5GHz, 5.76 Gbps in 6GHz). As part of the optimized design, the OmniAccess Stellar AP1501 uses a Multigigabit Ethernet interface capable of 2.5 Gbps, suited for those spaces with a mid-density of wireless clients, but with intensive bandwidth needs.
The OmniAccess Stellar AP1501 supports 802.11be features, including MLO, OFDMA, DL MU-MIMO, UL MUMIMO, 4096-QAM modulation and more. These features make tomorrow’s diverse digital workspaces highly reliable and efficient.
The OmniAccess Stellar AP1501 features enhanced WLAN technology with RF Radio Dynamic Adjustment, a distributed control Wi-Fi architecture, secure network admission control (NAC) with Unified Access and built-in application intelligence and analytics (Layer 7). This makes it ideal for enterprises of all sizes that demand simple, secure and scalable wireless solutions.
2.4 GHz
Yes
5 GHz
Yes
6 GHz
Yes
Maximum data transfer rate
2500 Mbit/s
Ethernet LAN data rates
2500 Mbit/s
Quality of Service (QoS) support
Yes
Maximum Tx power (2.4 GHz)
18 dBmW
Maximum Tx power (5 GHz)
18 dBmW
Maximum Tx power (6 GHz)
18 dBmW
Security algorithms
WPA2, WPA3, WEP, AES
Number of SSID supported
8
Access Control List (ACL)
Yes
DHCP server
Yes
DHCP client
Yes
Ethernet LAN (RJ-45) ports
1
USB 2.0 ports quantity
1
DC-in jack
Yes
Power over Ethernet (PoE)
Yes
DC voltage range
40 V
Placement
Ceiling
Product colour
White
Antenna type
Internal
Antenna direction type
Omni-directional
Antenna gain level (max)
6.4 dBi
Width
190 mm
Depth
190 mm
Height
38 mm
Weight
760 g
Package width
228 mm
Package depth
198 mm
Package height
66 mm
Package weight
950 g
Package type
Box
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
40 - 70 °C
