GIGABYTE X870 AORUS STEALTH motherboard X870 chipset AM5 ATX DDR5

Item no.: [25785235] | Manufacturer: Gigabyte Technology | Model no.: X870 AORUS STEALTH | EAN: 4719331878801

Remote stock (2-3 days)

The item is in a remote warehouse, delivery time is 2-3 business days. More info

Shipping @price - GLS

12,00

EUR 298,57

Incl. VAT 373,21

Total incl. delivery 388,21

Read further specifications and description

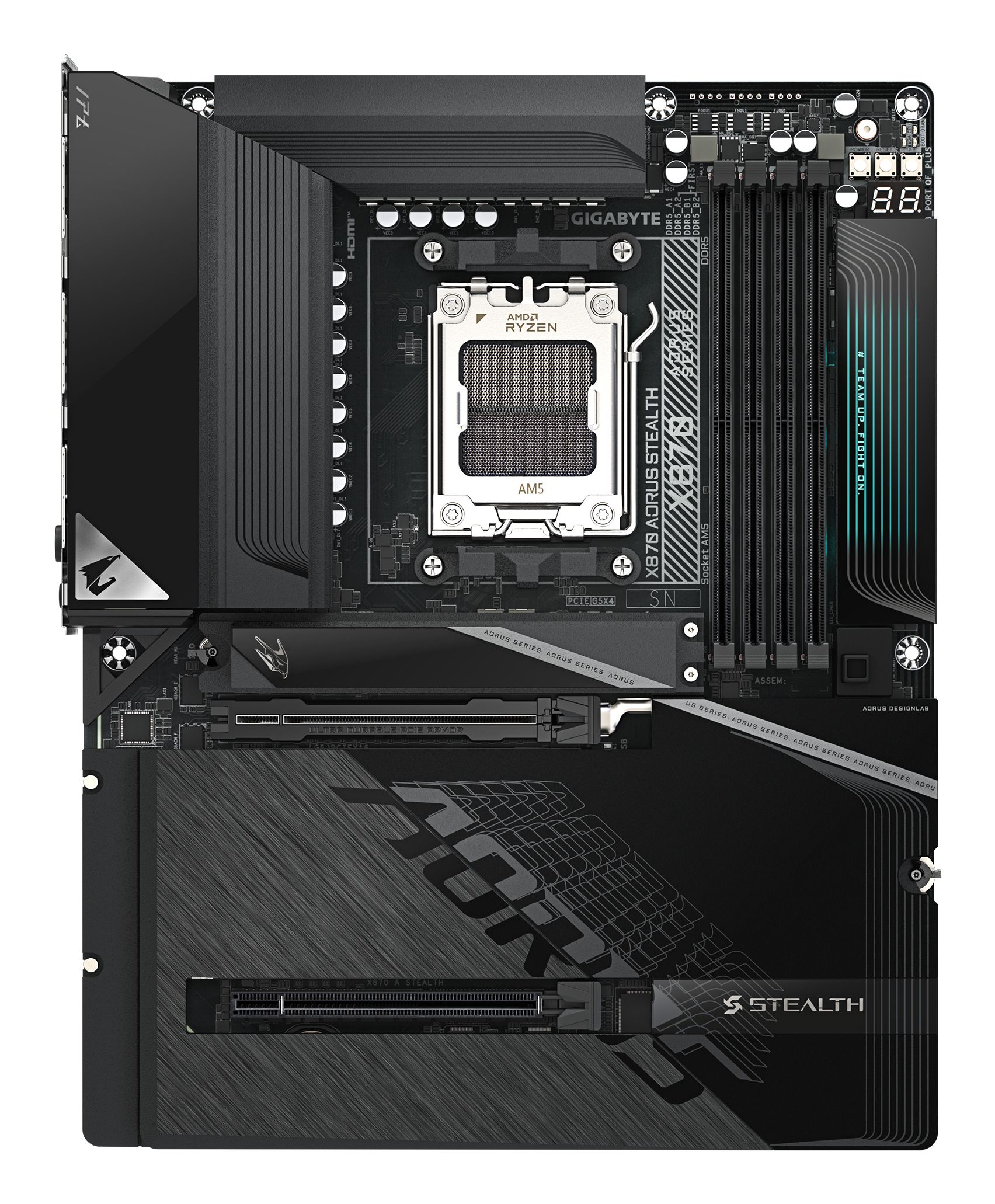

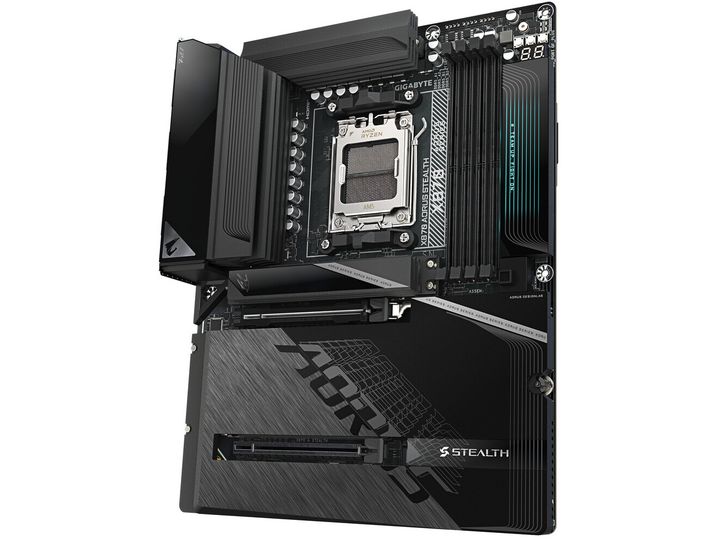

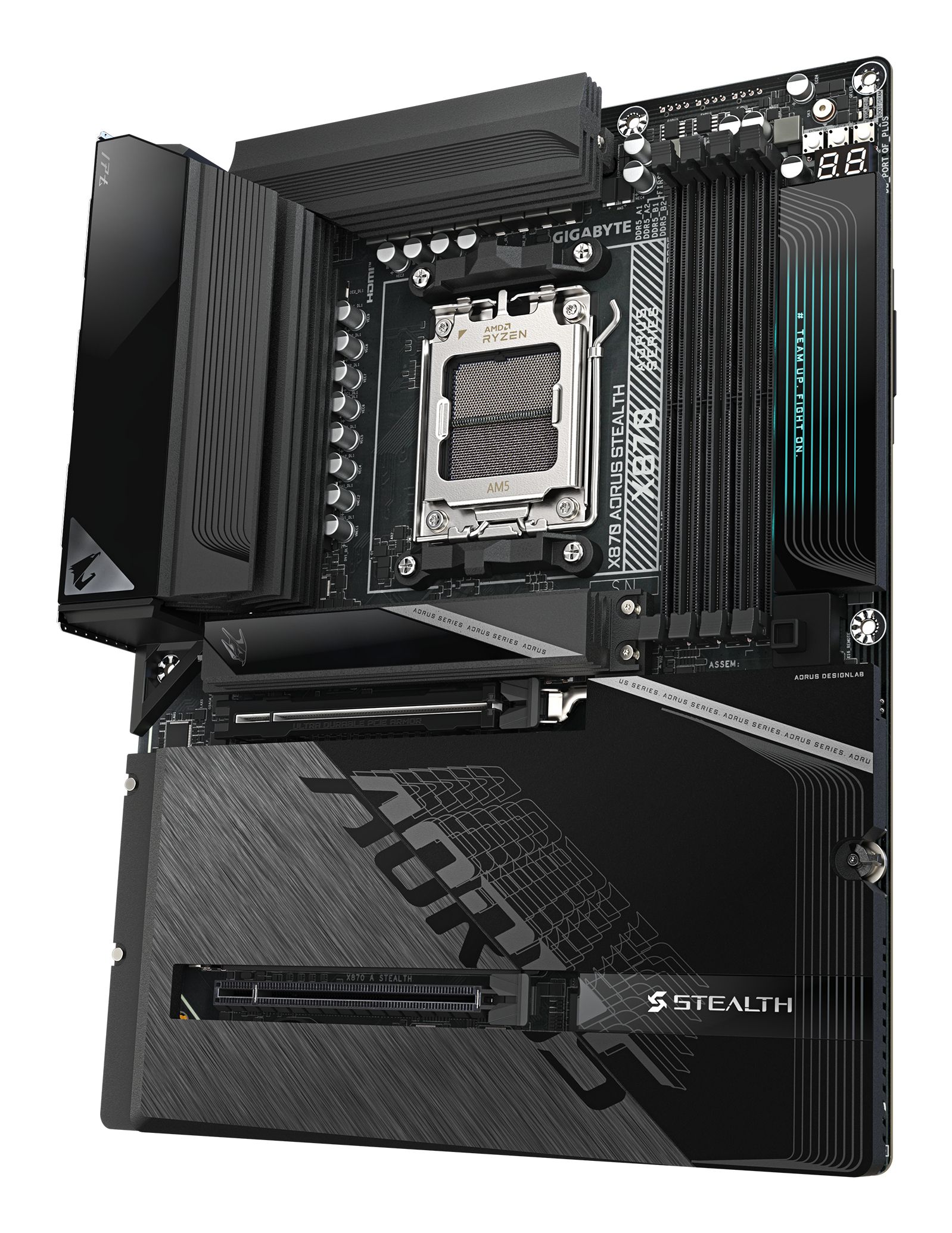

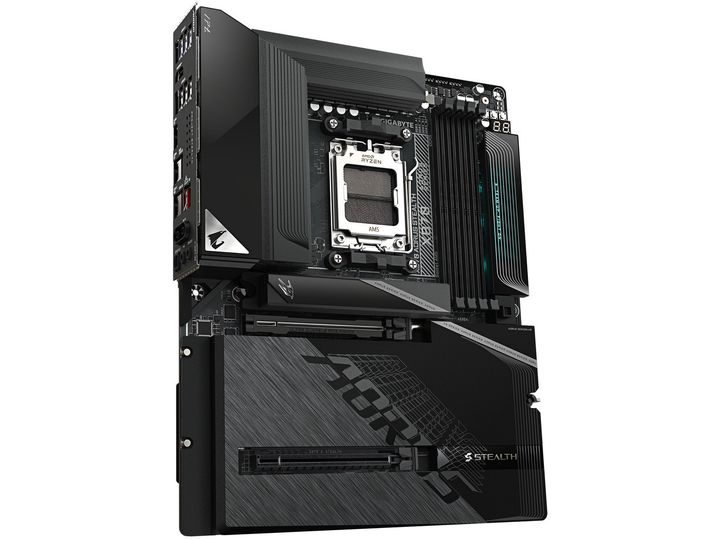

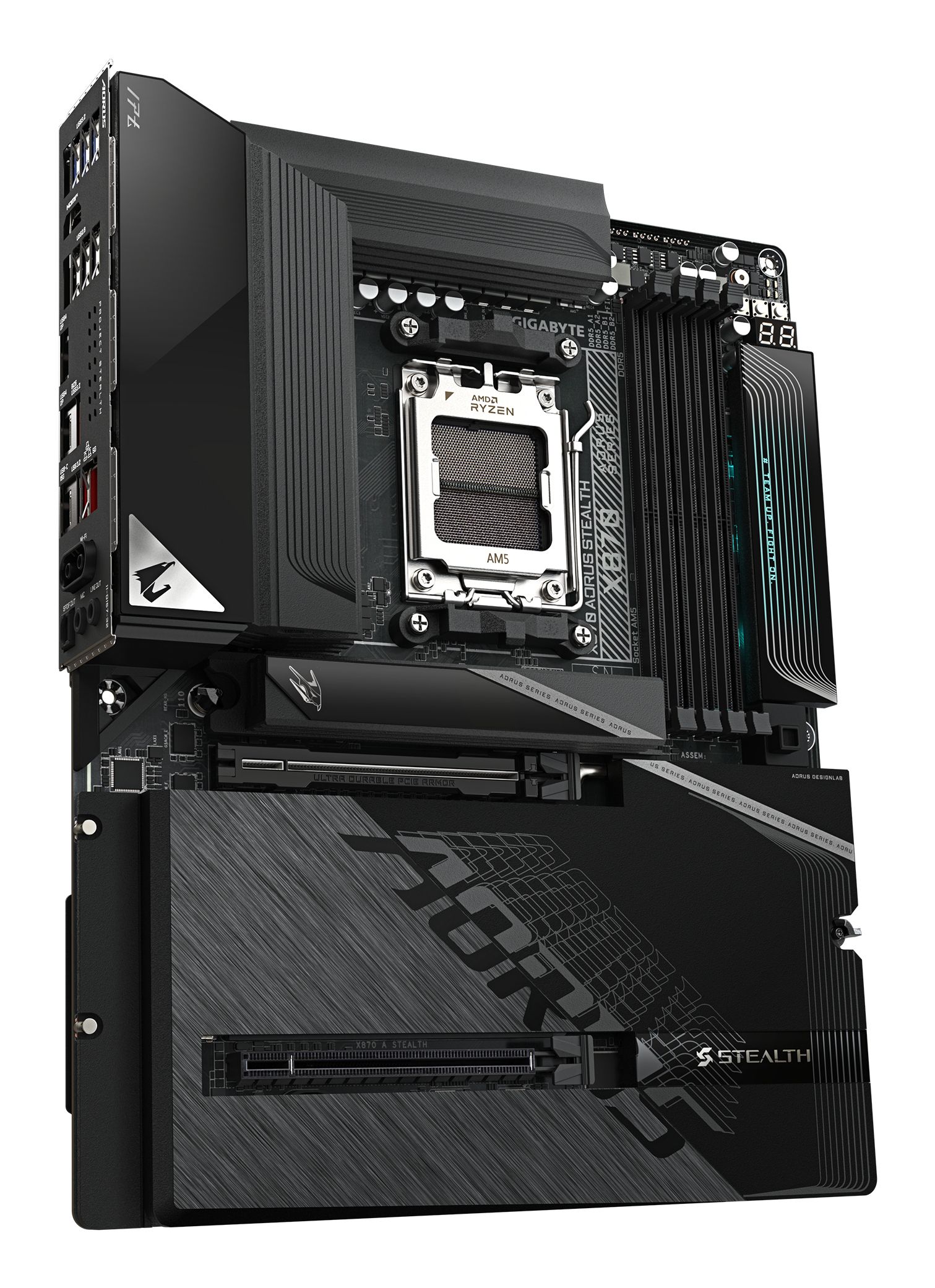

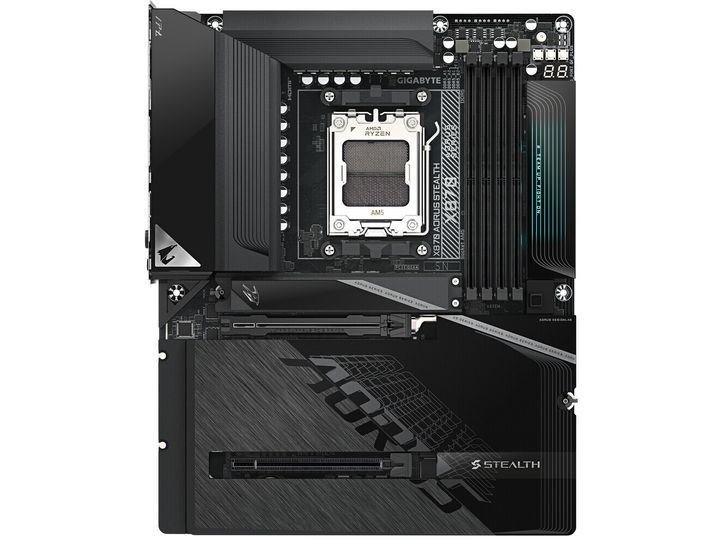

The GIGABYTE AORUS X870 STEALTH motherboard is designed to elevate the performance and efficiency of any gaming or high-performance computing setup. This ATX motherboard features support for AMD Ryzen processors, ensuring compatibility with the Ryzen 7000, 8000, and 9000 series. Equipped with a robust AMD X870 chipset, it offers expansion possibilities, allowing you to utilize multiple PCIe slots and M.2 connections for a customizable and powerful experience. High-definition audio capabilities and a range of connectivity options, including USB 4 and 5 Gigabit Ethernet, enhance the overall functionality for gaming and multimedia operations.

The AORUS X870 STEALTH motherboard features support for DDR5 memory with speeds reaching up to 8000 MT/s overclocked, making it suitable for advanced memory configurations. Its 16+2+2 phase power design, coupled with thermal armor and advanced cooling solutions, ensures stability and efficiency under heavy loads. The RGB FUSION lighting system provides customizable aesthetics, while features like the EZ Debug LED and MultiKey simplify troubleshooting and enhance usability. This motherboard is a solid foundation for builders looking to maximize performance and deliver quality results for demanding applications.

Produktbeskrivelse	AORUS X870 STEALTH - bundkort - ATX - Socket AM5 - AMD X870
Produkttype	Bundkort - ATX
Chipsættype	AMD X870
Processor-socket	1 x Socket AM5
Kompatible processorer	Ryzen (understøtter Ryzen 7000/8000/9000 Serien)
Max RAM-størrelse	256 GB
RAM understøttet	4 DIMM åbninger - DDR5, ikke-ECC, ikke bufferet
Lagringsporte	2 x SATA-600 (RAID), 4 x M.2
USB / FireWire porte	1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
Audio	HD Audio (8-kanaler)
LAN	802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.3, 5 Gigabit Ethernet

Generelt
Produkttype	Bundkort - ATX
Chipsættype	AMD X870
Processor-socket	Socket AM5
Max antal processorer	1
Kompatible processorer	Ryzen (understøtter Ryzen 7000/8000/9000 Serien)
Understøttet RAM
Maks. størrelse	256 GB
Teknologi	DDR5
Bus Clock	4400 MT/s, 4800 MT/s, 5200 MT/s, 5600 MT/s (O.C.), 5800 MT/s (O.C.), 6000 MT/s (O.C.), 6200 MT/s (O.C.), 6400 MT/s (O.C.), 6600 MT/s (O.C.), 6800 MT/s (O.C.), 7000 MT/s (O.C.), 7200 MT/s (O.C.), 7400 MT/s (O.C.), 7600 MT/s (O.C.), 7800 MT/s (O.C.), 7900 MT/s (O.C.), 7950 MT/s (O.C.), 8000 MT/s (O.C.), 8200 MT/s (O.C.)
Understøttet RAM-integritetskon	Ikke-ECC
Registreret eller buffer	Ikke bufferet
Egenskaber	Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP), AMD EXPO-teknologi
Audio
Type	HD Audio (8-kanaler)
Audio codec	Realtek ALC1220
Overensstemmelsesstandarder	High Definition Audio
LAN
Netværk controller	Qualcomm QCNCM865
Netværks interfaces	802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.3, 5 Gigabit Ethernet
Ekspansion / Konnektivitet
Ekspansionsåbninger	1 x CPU 4 x DIMM 288-pins 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4-modus) 1 x M.2 socket (2280/2580/22110/25110 M.2 Key M åbning) 3 x M.2 socket (2280/22.110 M.2 Key M-åbning)
Grænseflade (lagring)	SATA-600 -stikforbindelser: 2 x 7-pin Seriel ATA - RAID 0 / RAID 1 PCIe 5.0 -stikforbindelser: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -stikforbindelser: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5

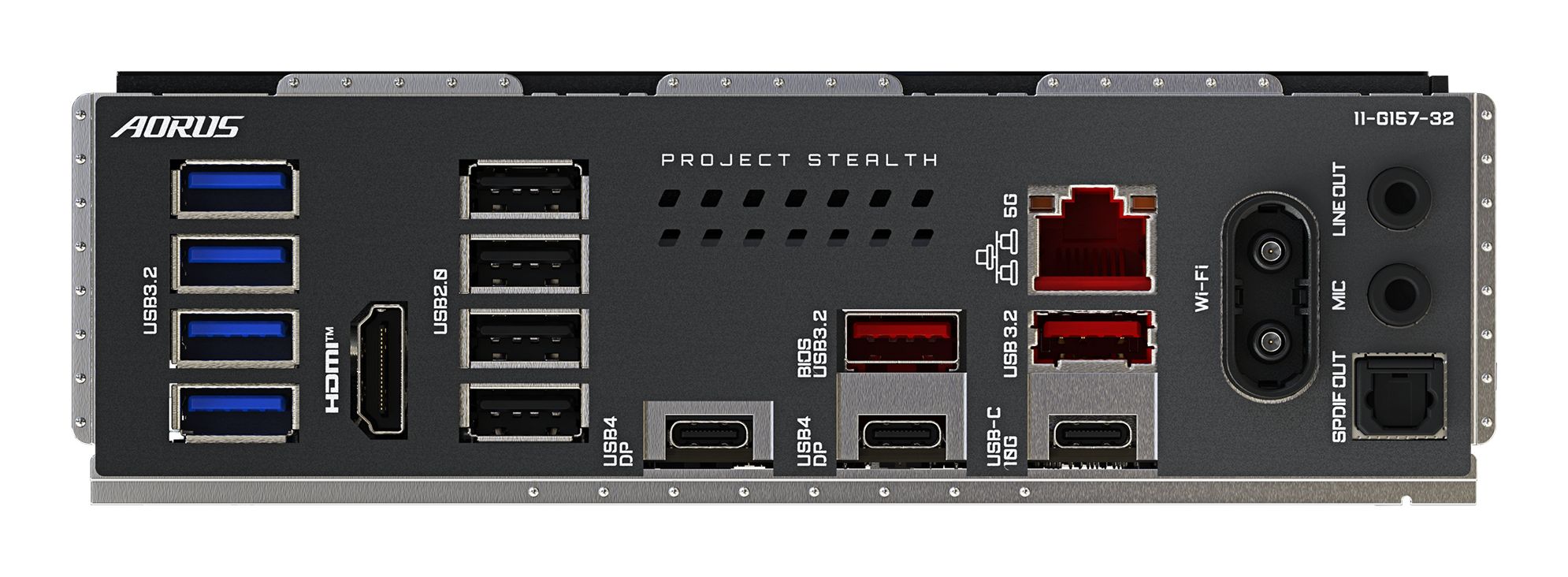

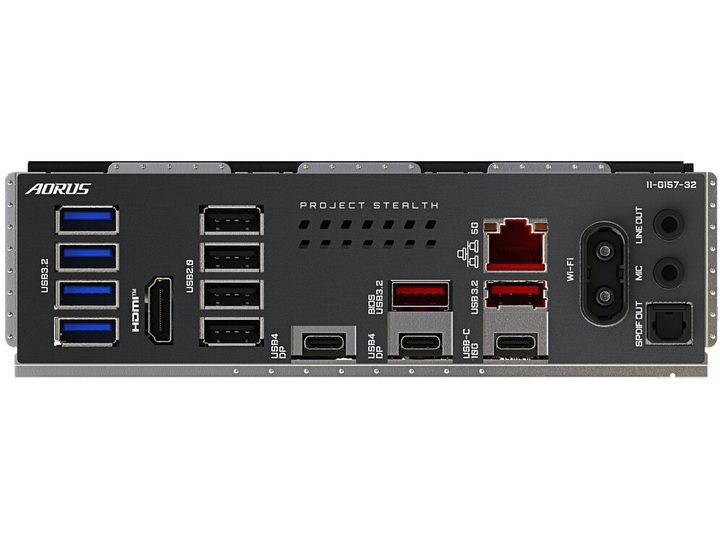

Interface	1 x LAN (5Gigabit Ethernet) 1 x audio linje-ind - mini-jack 1 x audio linje-ud - mini-jack 1 x SPDIF-ud 2 x antenne 4 x USB 3.2 Gen 1 2 x USB 3.2 Gen 2 2 x USB4 1 x HDMI 4 x USB 2.0
Interne interfaces	4 x USB 2.0 - intern stik 2 x USB 3.2 Gen 1 - intern stik 1 x USB-C 3.2 Gen 2x2 - intern stik 1 x audio - intern stik 1 x SPI - intern stik
Strømkontakter	24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt, 4-pin ATX12V konnektor
Egenskaber
BIOS-type (Basic Input/Output System)	AMI
BIOS-egenskaber	UEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 understøttet, SMBIOS 2.7 support, ACPI 5.0 support
Hardwareovervågning	Systemspænding, temperaturdetektion, blæserhastighedsdetektion, vandkølings-flowrate, blæserfejlvarsel, blæserkontrol
Hardware egenskaber	16+2+2 Phase Power Design, 2x Copper PCB, 6 Layer PCB, Premium Power Choke, RGB FUSION, VRM Thermal Armor Advanced, M.2 Thermal Guard L, M.2 EZ Flex Design, M.2 Thermal Guard Ext., High-end Audio Capacitors, WIFI EZ-Plug, M.2 EZ Latch plus, M.2 EZ Latch klik, EZ Debug LED, MultiKey, PCIe EZ Latch Plus, Ultra Durable, GIGABYTE Smart Fan 6, Q-Flash
Diverse
Med software	GIGABYTE Control Center, Norton Internet Security (OEM Version)
Bredde	30.5 cm
Dybde	24.4 cm

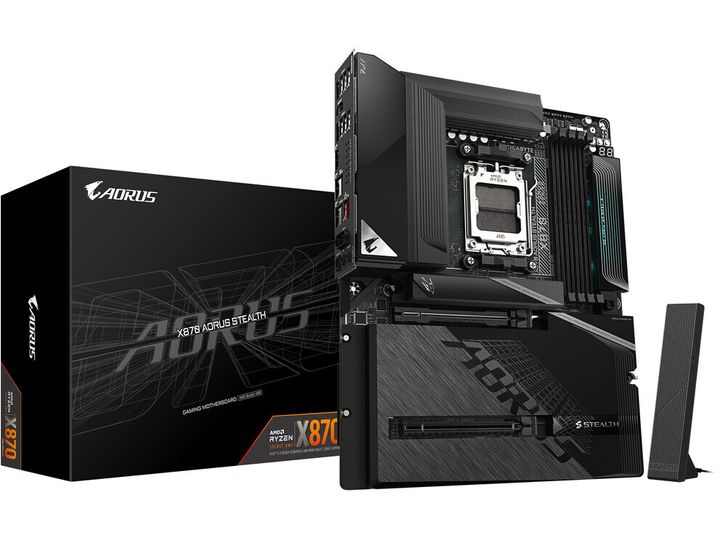

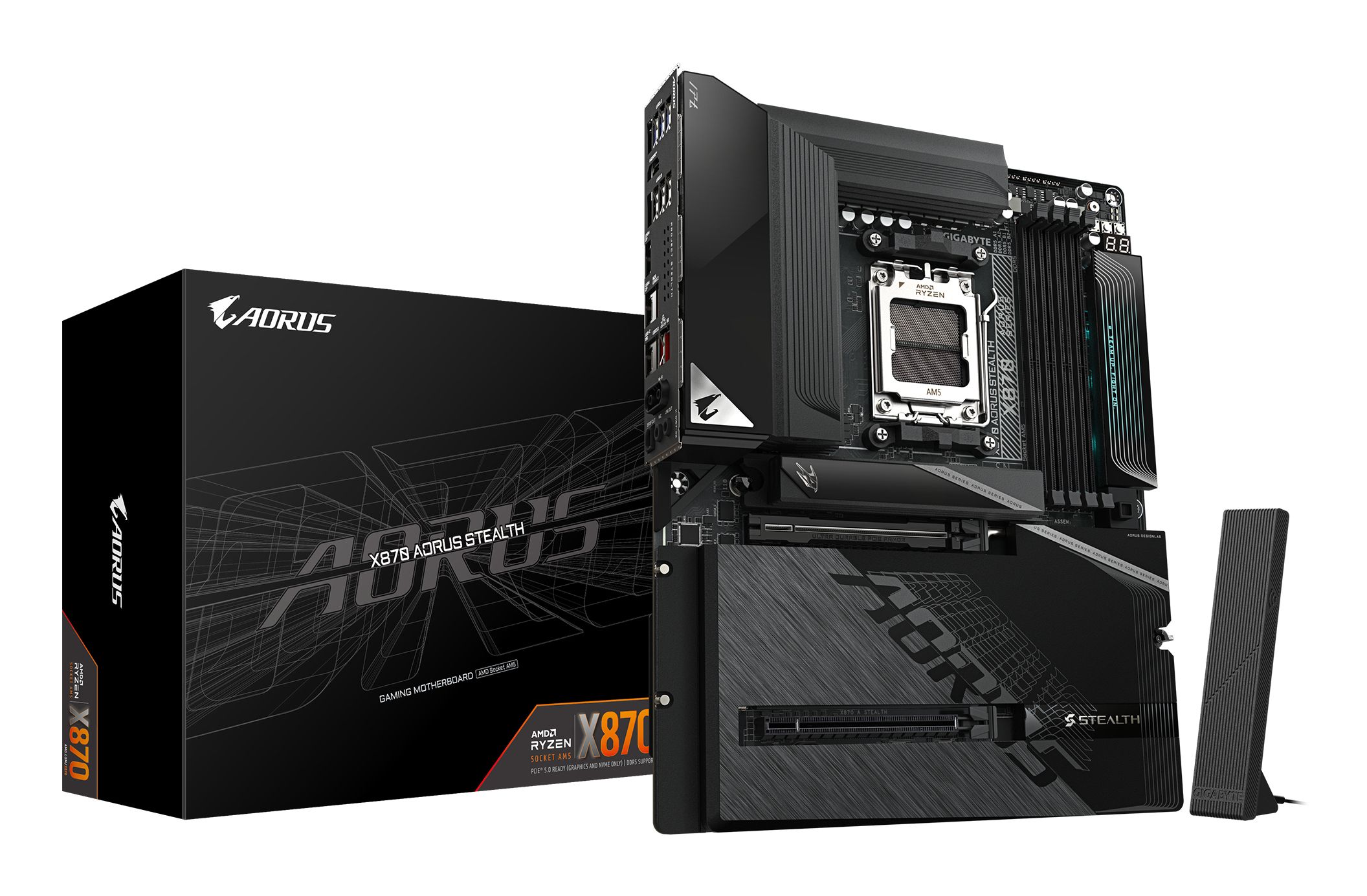

Pakkedetaljer	Boks
