InLine wtyk 6,35mm do zlacza Mono 2-pin
Item no.: [25786152] | Manufacturer: Inline | EAN: 4043718346226
Remote stock (5-7 days)
The item is in a remote warehouse, delivery time is 5-7 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
5,30
Incl. VAT 6,63
Total incl. delivery
21,63
Add to list
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Send på mail
Time savings during installation:Quick wiring via screw terminals for 18–26 AWG – tool-assisted with flat-head screwdriver ≤ 2.5 mm.
Reliable mono audio connection:6.35 mm jack plug (TS) with clearly assigned terminals (signal/ground) – ideal for audio technology, test setups, or control lines.
Side terminal strip for compact installation: Adjacent terminals in a 5.0 mm grid size enable space-saving integration – e.g., in audio racks or test environments.
Versatile use in industry: For analog signal wiring in audio applications, control devices, development laboratories, or measuring systems.
High signal quality:An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of up to 1 A per pin ensure stable and reliable signal transmission in industrial environments.

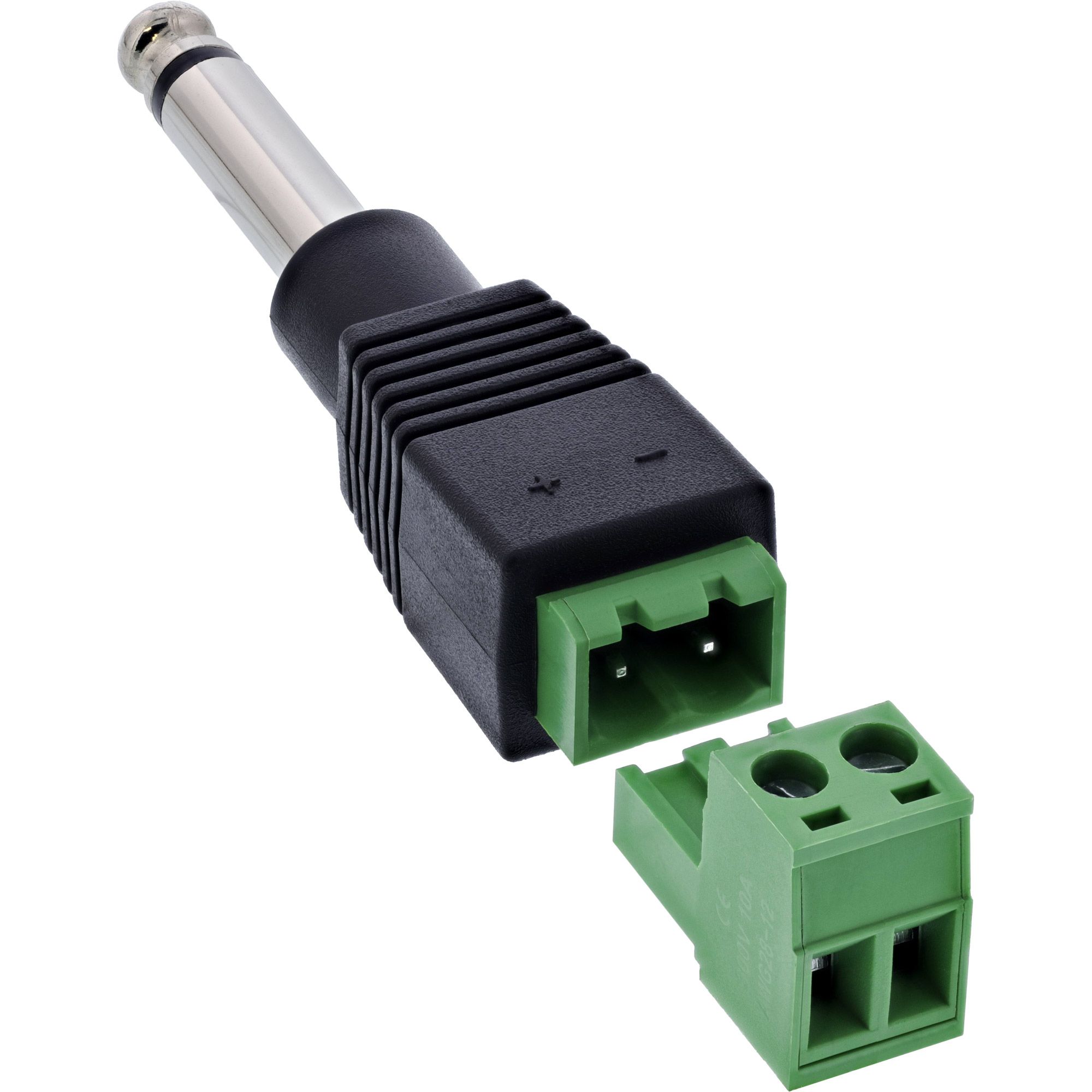

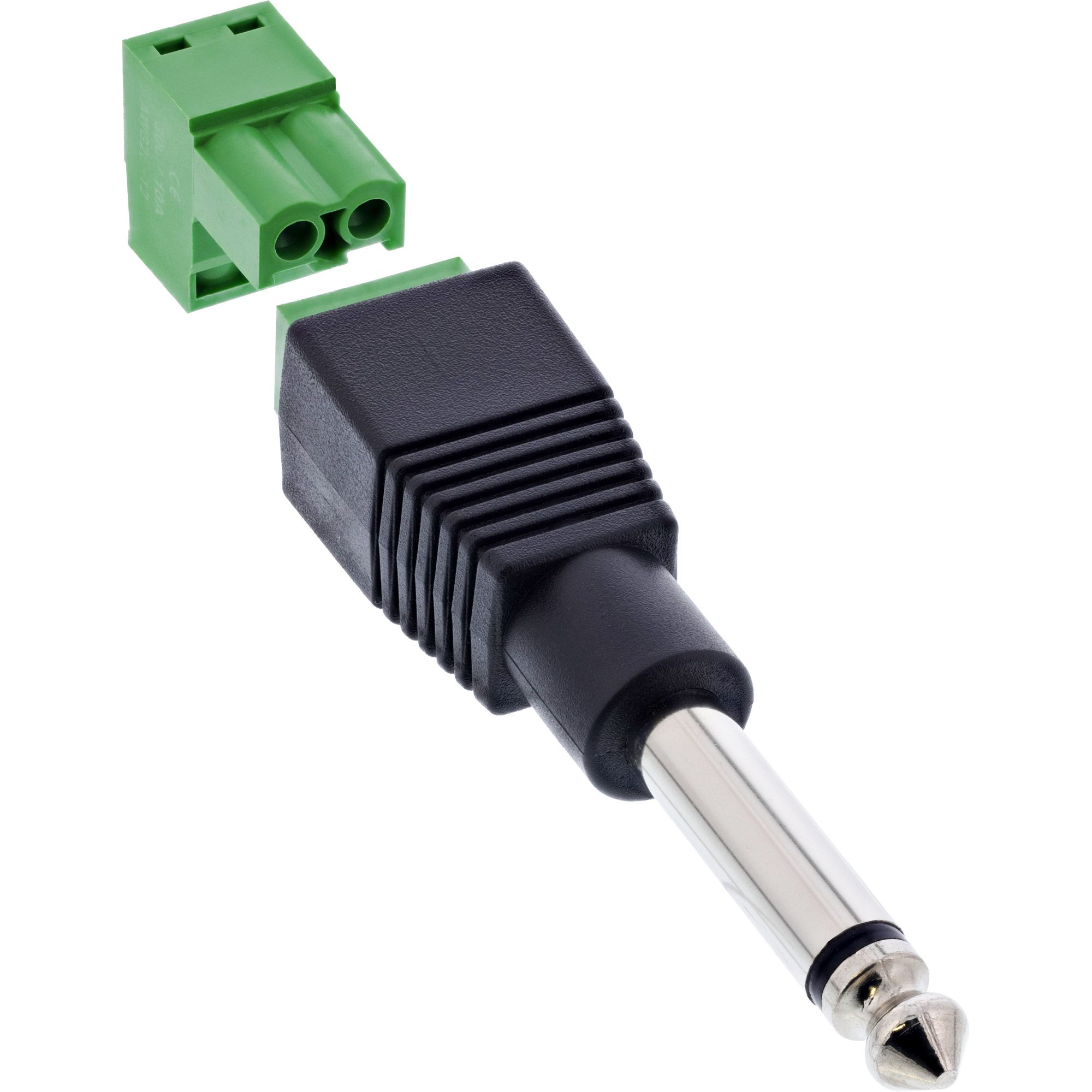

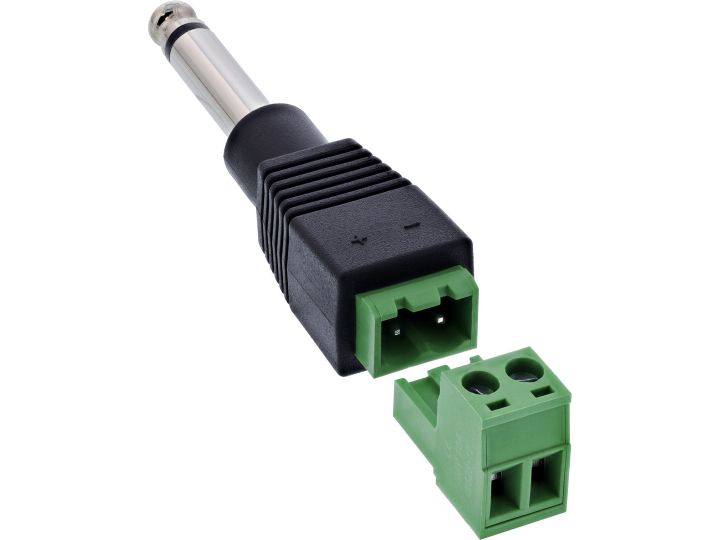

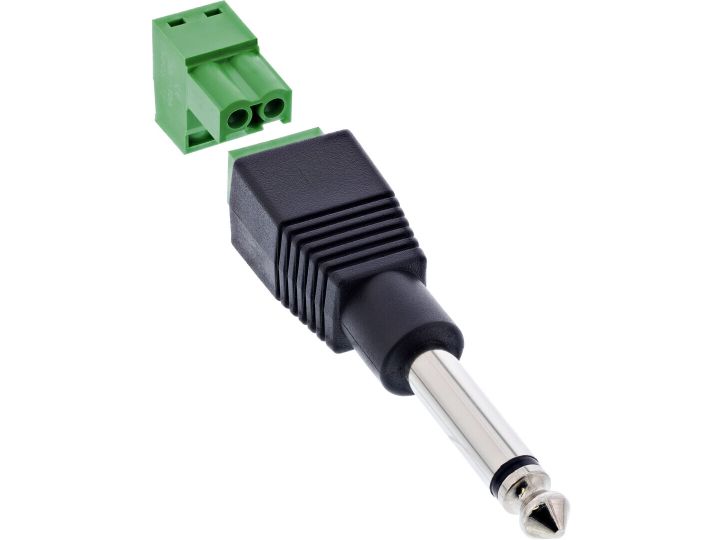

The InLine® 6.35 mm jack plug (TS, mono) on terminal block enables fast and solder-free wiring of analog signals. Ideal for audio signals, control lines, or test setups, this adapter offers an easy way to make contact – without any soldering.

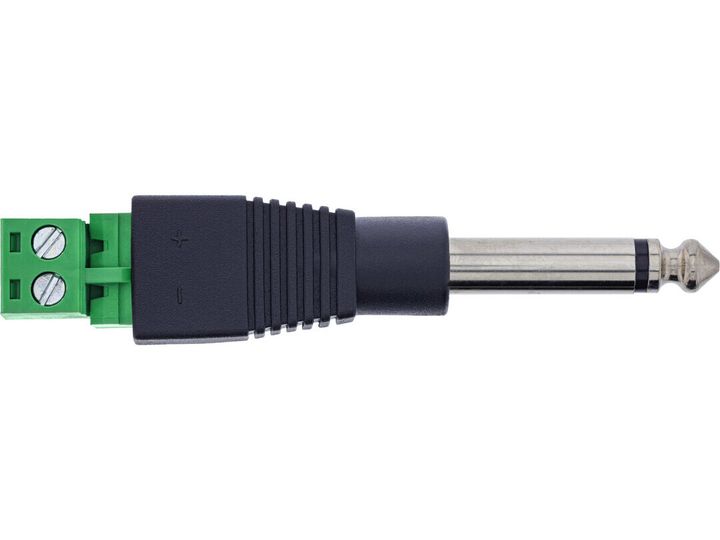

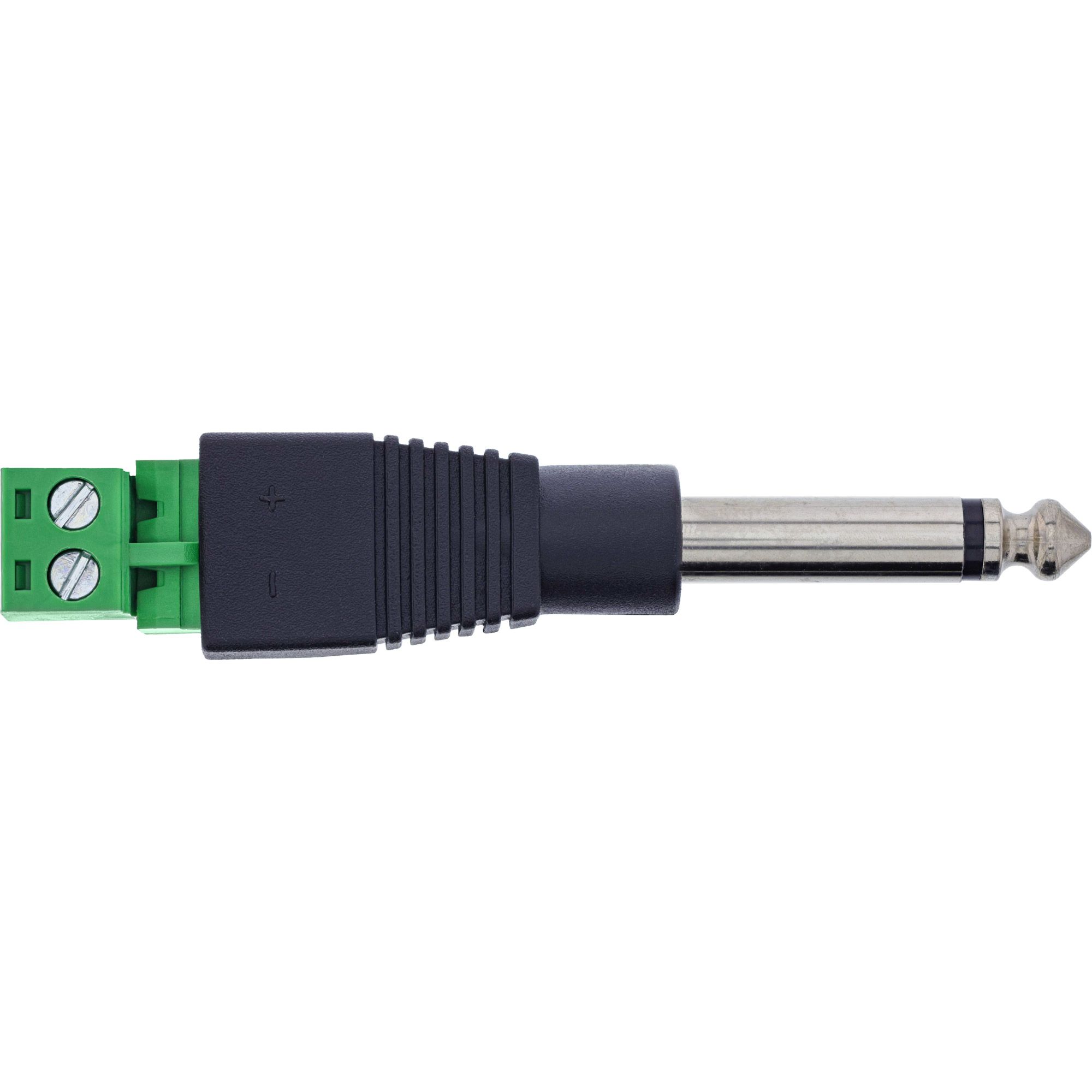

The 2-pole screw terminal strip is clearly labeled: +(signal), –(ground). It supports wires in the range of 18–26 AWG and allows tool-assisted wiring with a flat-head screwdriver ≤ 2.5 mm. The robust housing with EVA insulation layer provides reliable protection when mounted on a conductive surface.
Thanks to its compact design, the adapter is also suitable for space-critical applications – e.g., in audio racks, test systems, or embedded projects.
Jack connection:6.35 mm TS jack plug (2-pin, mono)
Number of pins / terminal assignment:2 terminals / + (signal), – (ground)
Connection technology:Screw terminal with pressure plate, 5.0 mm pitch
Connection range:18–26 AWG
Actuation:With flat-blade screwdriver ≤ 2.5 mm
Rated current:1.0 A per pin
Max. operating voltage:100 V between two signals
Insulation resistance:≥ 10 MΩ @ 300 V DC
Max. conductor resistance:5 ohms
Operating temperature:–10 °C to +70 °C
Insulation layer:EVA insulation on underside
