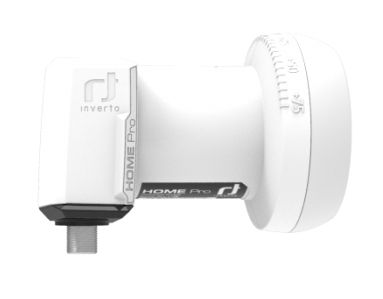

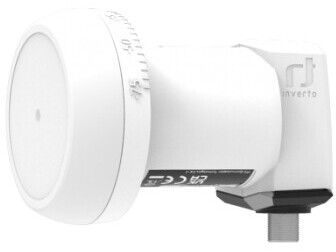

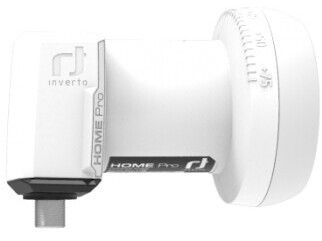

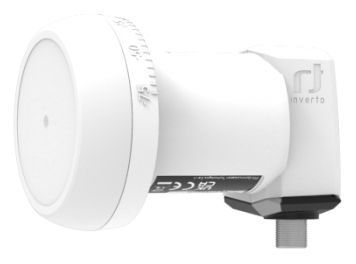

Specifically designed to address the demand of the global DTH market for a competitive and 4G/LTE protected solution, this LNB provides optimized reception capabilities using the latest chipset technology and waveguide design for satellite signal reception. It enables the reception of satellite TV from a single satellite and its distribution to a single tuner Set-top box. The LNB supports HD and UHD transmissions, delivers excellent RF performances, very low power consumption and importantly engineered to mitigate interferences from 4G/LTE/5G transmissions. Manufactured to the highest industry quality standards and engineered to meet strict specifications, this LNB is an ideal solution for DTH operators and satellite broadcast reception across the world.
Type
Single LNB
Input frequency range
10.7 - 12.75 GHz
Low band LO frequency
9.75 GHz
High band LO frequency
10.6 GHz
Output frequency range
950 - 2150 MHz
Local Oscillator (LO) phase noise (10 kHz)
80 dBc/Hz
Conversion gain range
58 - 65 dB
Conversion gain
65 dB
Noise figure
0.4 dB
Voltage Standing Wave Ratio (VSWR)
2.5 : 1
Output impedance
75 Ω
Spurious emission
60 dBmW
Product colour
White
Gain ripple (±)
0.75 dB
Control signal Cc (band switching)
22 kHz
Supply voltage Ca (vertical polarization)
11 - 14 V
Supply voltage Cb (horizontal polarization)
16 - 20 V
Cross-polarization isolation
22 dB
Compression point (1 dB)
0 dBmW
Compliance certificates
CE, UKCA
RF connector type
F
Power consumption
105 mA
Weight
66 g
Quantity
1
Package width
131 mm
Package depth
81 mm
Package height
76 mm
Package weight
100 g
Operating temperature (T-T)
30 - 60 °C
