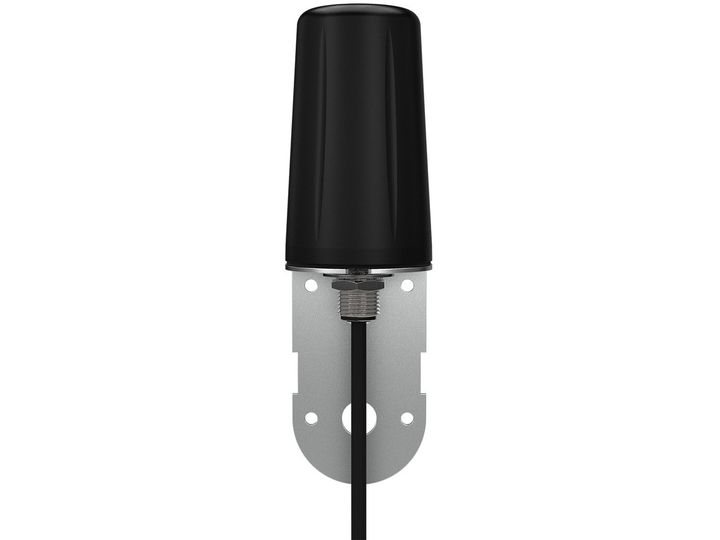

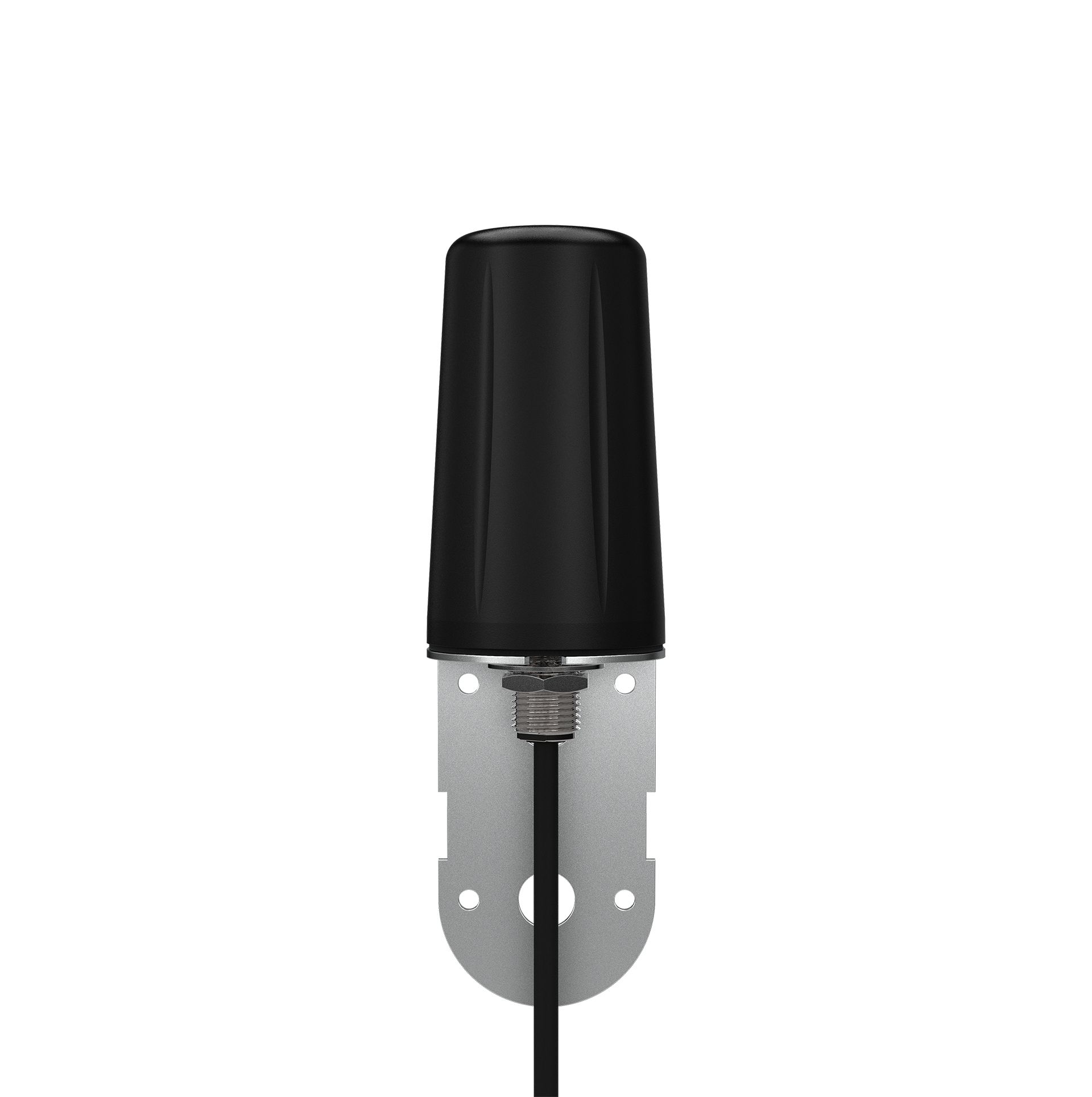

The Panorama B4BE is a robust bracket mount antenna for LTE, M2M, and IoT applications.
The B4BE range has been designed to provide cost-effective coverage booster antennas for 2G/3G/4G and 5G devices. The antennas are designed for wall or mast mounting and are weatherproof which allows the device to reap the benefits of an antenna mounted in an elevated or external location where the signal is strongest.
The Omni-directional radiation pattern allows the antenna to be quickly installed while the global Cellular/GSM/LTE coverage provided by the antenna allows it to be utilised for 2G/3G & 4G applications the world over.
Antenna gain level (max)
5 dBi
Frequency band
0.617 - 6 GHz
Impedance
50 O
Antenna type
Omni-directional antenna
Antenna connector type
SMA
Polarization
Vertical polarization
Voltage Standing Wave Ratio (VSWR)
2.5:1
Product colour
Black
Housing material
Acrylonitrile styrene acrylate (ASA), Aluminium
International Protection (IP) code
IP66
Cable length
10 m
Mounting
Universal
Height
164 mm
Diameter
4.8 cm
