FRITZ!Box 4630 Edition International

FRITZ!Box 4630 Edition International

For a Fast Home Network with Multi-Gigabit WAN and Wi-Fi 7

The 2.5-gigabit WAN port makes the FRITZ!Box 4630 ideal for connecting to a fibre optic modem, while the device also supports cable, DSL and mobile network connections. Innovative Wi-Fi 7 provides transmission rates of up to 3568 Mbit/s and ensures stable connections for demanding applications.

In addition to excellent network performance, the FRITZ!Box 4630 offers comprehensive features such as professional telephony, advanced security mechanisms, seamless Smart Home integration via DECT ULE and the proven, regularly updated FRITZ!OS.

It is ideal for getting started with a fast fibre optic home network.

Innovative Wi-Fi 7 for a Mesh Home Network with Many Wireless Devices

The new Wi-Fi 7 standard is designed to meet the constantly growing number of wireless devices in modern households. It provides significantly better performance and stability, even when multiple devices are connected at the same time.

Thanks to intelligent technologies, Wi-Fi 7 offers greater capacity and reduces interference, resulting in a more reliable and faster Wi-Fi connection. The result is smooth streaming, fluid gaming and optimal performance for all applications.

A Powerful Hub in the Mesh Wi-Fi Network

As a Mesh Wi-Fi hub, the FRITZ!Box 4630 is ready for demanding scenarios in the home network. In Mesh Wi-Fi, multiple distributed wireless access points, such as the FRITZ!Box and several FRITZ! Mesh Repeaters, are combined into a single intelligent Wi-Fi network.

The FRITZ!Box 4630 works as the Mesh Master, actively coordinating all other access points so that wireless devices used in the home network are always connected to the access point that offers the best connection.

Communication and Entertainment Throughout the Smart Home

The FRITZ!Box 4630 combines comprehensive communication and multimedia features. The integrated VoIP telephone system supports conventional telephone connections, up to six DECT phones and smartphones, together with features such as answering machines and phone books.

With the DECT base station, FRITZ! Smart Home products such as radiator controls, smart plugs and switches can be easily integrated.

In addition, the FRITZ!Box 4630 features an integrated media server with NAS support, making films, music and images stored on USB storage media or online services available for streaming to playback devices throughout the network. This makes the FRITZ!Box 4630 the centrepiece for entertainment in your connected Smart Home.

FRITZ!Box 4630 Edition International at a Glance

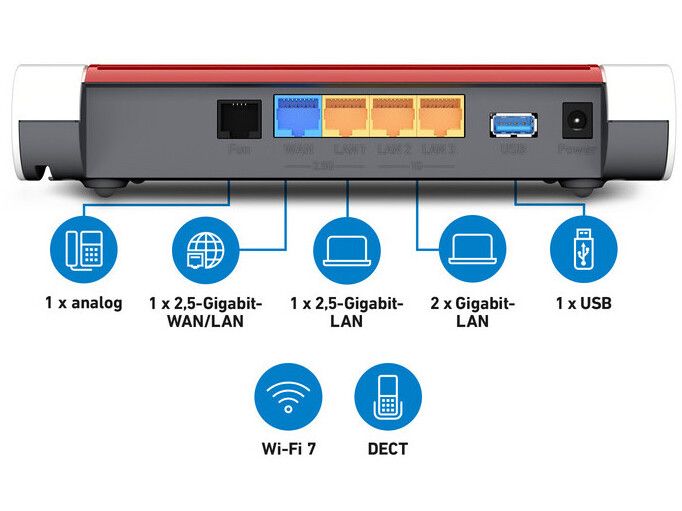

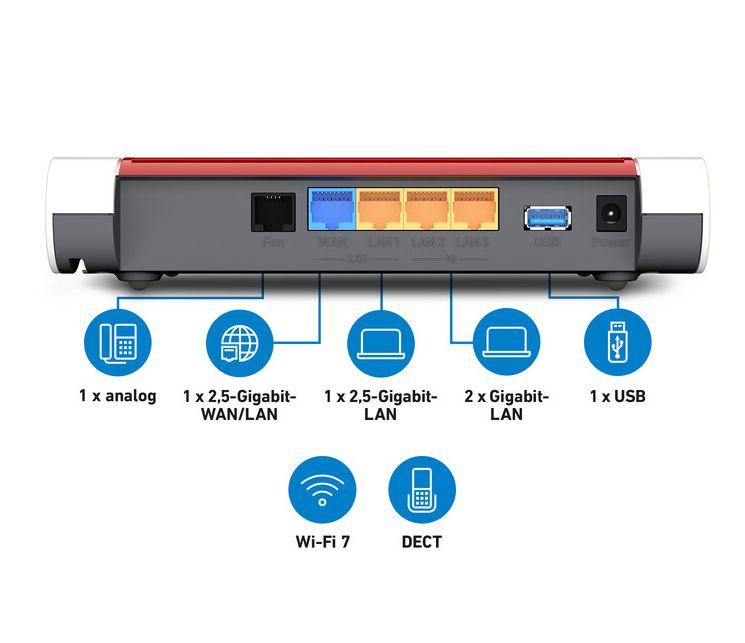

Network

• Wireless router for a fibre optic, cable or DSL modem or mobile dongle.


• 1 × 2.5-gigabit WAN.


• 1 × 2.5-gigabit LAN.


• 2 × Gigabit LAN.


• Optimised for video streaming and IPTV.


• MyFRITZ! – secure access to your own FRITZ!Box from anywhere.


• Stateful Packet Inspection Firewall with port sharing for secure browsing.


• Comprehensive parental controls.


• Full IPv6 support.


• Simple setup in the browser-based interface using a PC, smartphone or tablet.


• Security wizard with diagnostic tool and automatic updates.


• Secure remote internet access with VPN (IPSec and WireGuard).

Wi-Fi

• Wi-Fi 7 with speeds of up to 2880 Mbit/s on 5 GHz and 688 Mbit/s on 2.4 GHz.


• Mesh Wi-Fi – easily combine several FRITZ! products into one intelligent system and extend the home network.


• Compatible with IEEE 802.11a/g/n/ac/ax/be Wi-Fi standards.


• Wi-Fi network encryption with WPA3/WPA2.


• Wi-Fi Protected Setup (WPS).


• Wi-Fi can be turned on and off using a button and telephones.


• Wi-Fi guest access – secure browsing for guests.

Telephony

• Telephone system for IP-based connections.


• Integrated DECT base station for up to 6 cordless phones.


• Connection for an analogue phone, answering machine or fax.


• 5 integrated answering machines with voice-to-mail.


• Manage phone contacts locally or online through Google, Apple and Telekom.


• Fax function with fax-to-mail.


• Call lists, call blocking, quick-dial numbers and extensions.


• FRITZ!App Fon for iOS and Android.

Smart Home and Media

• Smart Home features for energy, heating, lighting and more via DECT ULE.


• 1 × USB port for printers and storage media on the network (USB 3.0).


• FRITZ!App Smart Home for convenient control of the FRITZ! Smart Home.


• FRITZ!NAS: Central storage for all data in the home network.


• Media server distributes music, photos and videos throughout the home network via DLNA/UPnP AV.


• Easily and securely share files with friends and family.


• Also supports online storage, internet radio and podcasts.

Package Contents

• FRITZ!Box 4630 Edition International.


• Power adapter.


• LAN cable.


• Quick guide in German, English, Spanish, French, Italian and Dutch.


• Service card (FRITZ! Notes).
