Phanteks EX5 Max PC case ATX tempered glass DRGB, black

Description

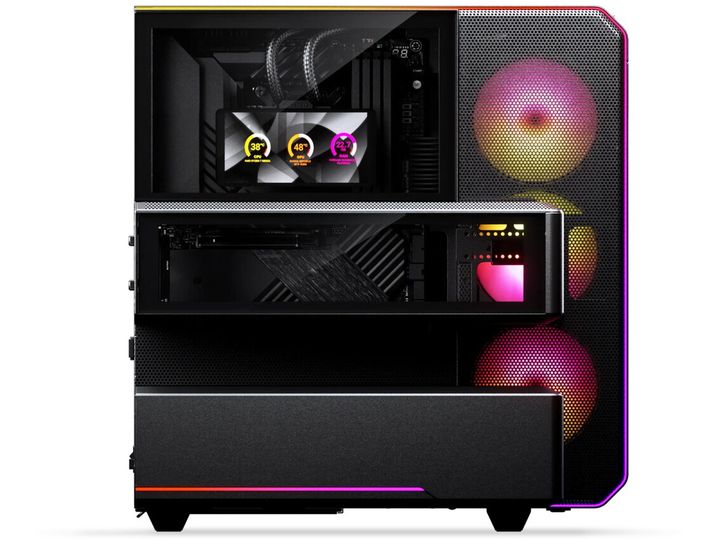

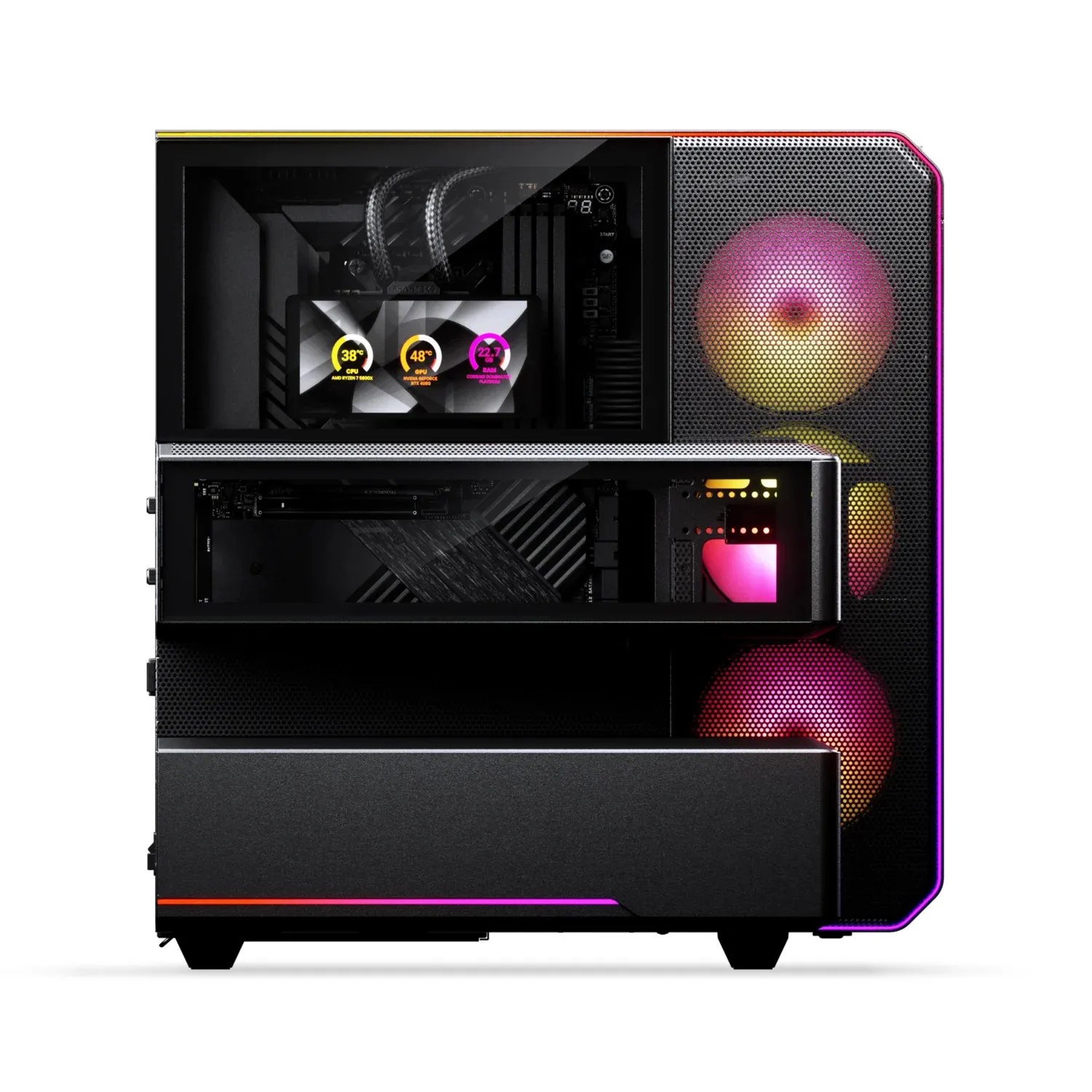

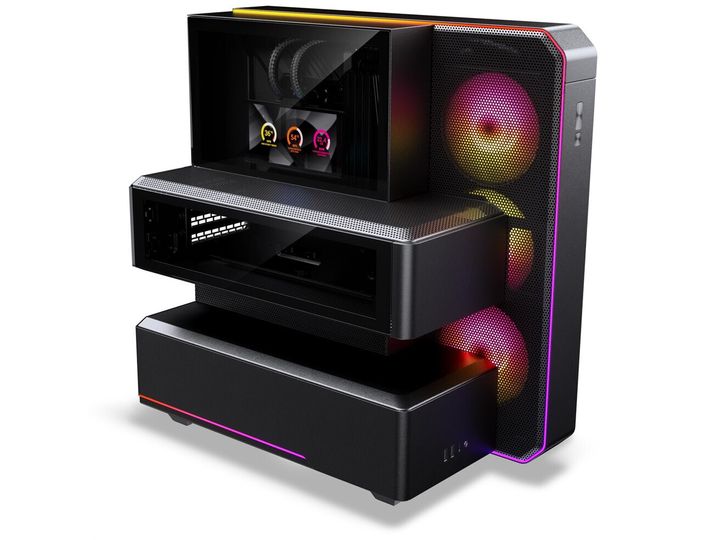

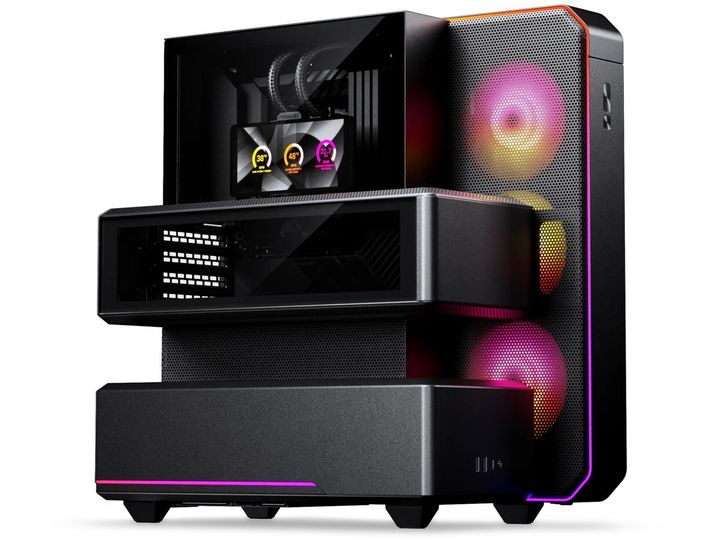

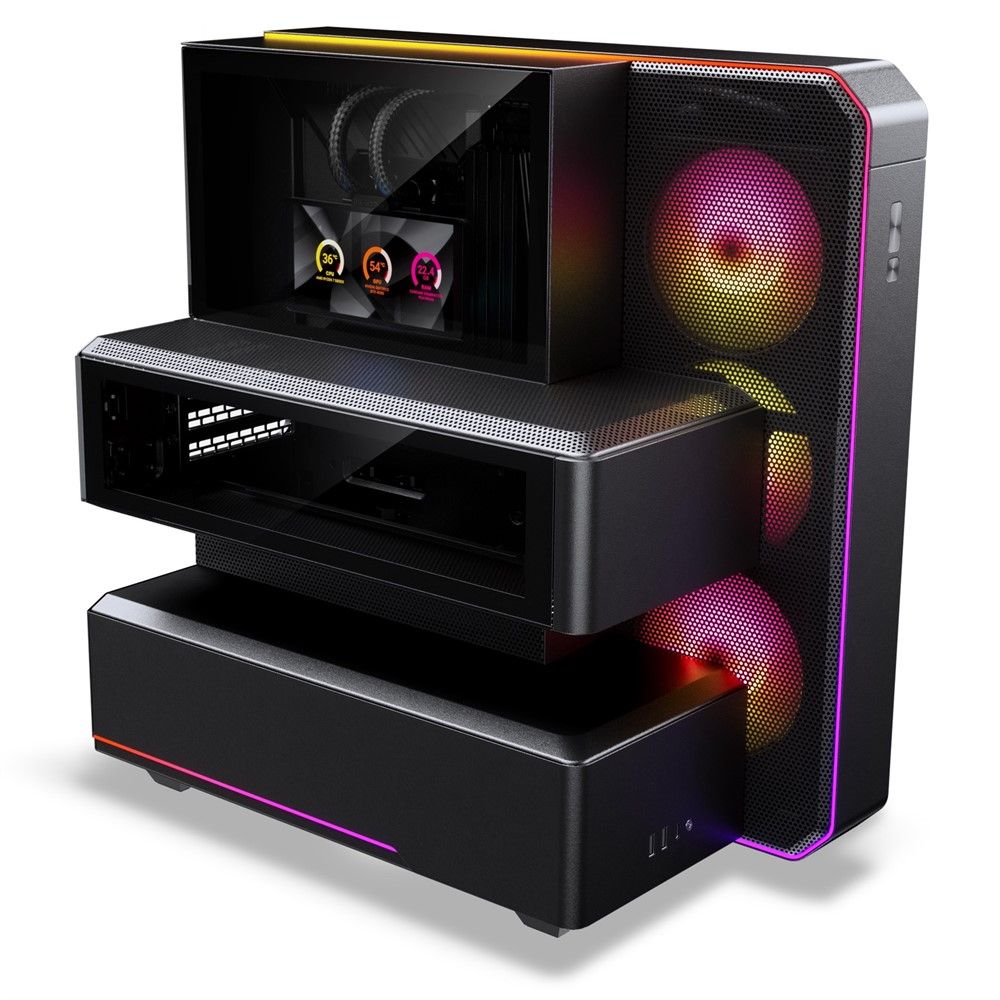

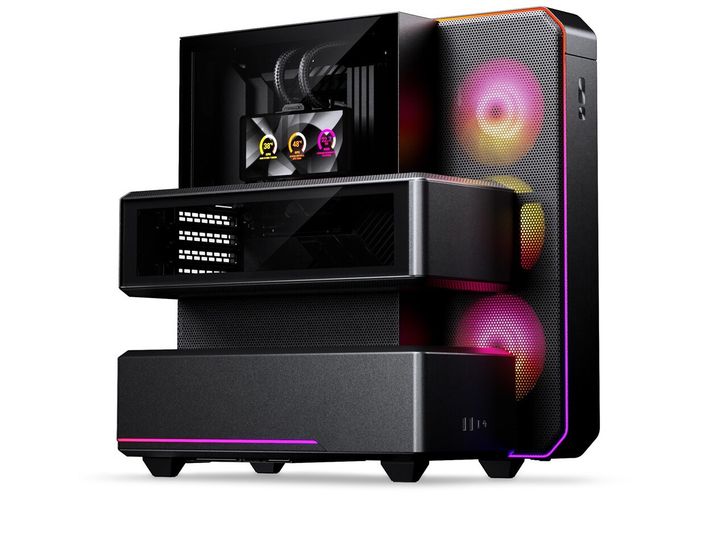

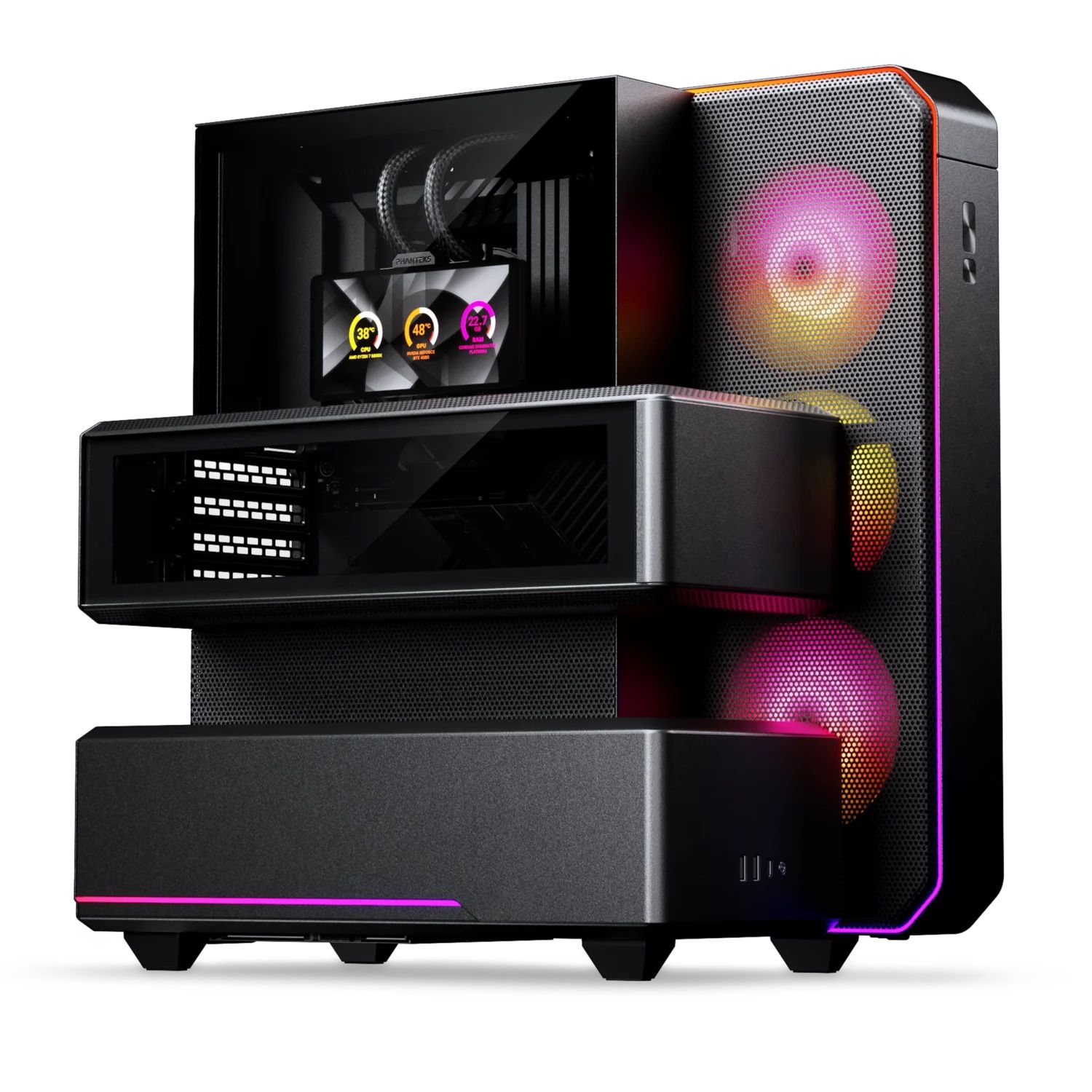

Phanteks introduces the EX5 MAX, a new chassis designed with a compartmentalised structure. This layout organises key components into dedicated chambers, ensuring each receives a direct flow of fresh air.

The EX5 MAX moves away from the traditional boxy "fish tank" look and presents a bold, creative way to showcase a PC build. The unique layout optimises cooling efficiency by directing fresh air precisely where it is needed and expelling heat more effectively.

This effective airflow design reduces reliance on excessive fan setups, allowing builders to achieve excellent thermals with fewer fans. It is built for high-performance hardware, easily accommodating large GPUs and a dedicated 360 mm radiator.

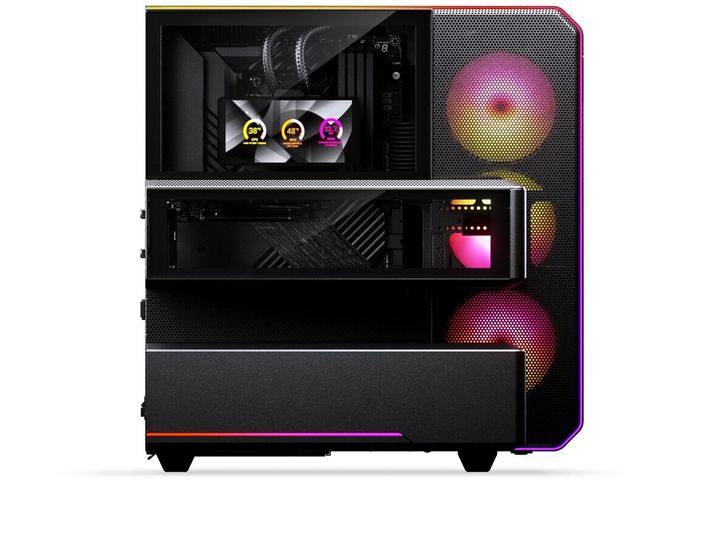

The EX5 MAX features an integrated AIO liquid cooler paired with a stunning 6-inch display behind the glass side panel. The strategically placed fan behind the motherboard effectively cools the VRM and RAM while also directing heat from the GPU away from key components to maintain optimal temperatures.

The EX5 MAX combines generous interior space with intuitive cable management for a clean, effortless setup. Vibrant ARGB lighting wraps around the chassis for a clean, modern finish. Synchronised via the NexLinq app or your motherboard, the EX series offers a polished, efficient build that stays as cool as it looks.

The EX5 MAX combines an innovative layout with form-fitting panels, integrated lighting and high-quality materials to create a standout centrepiece for any premium desk setup.

Features

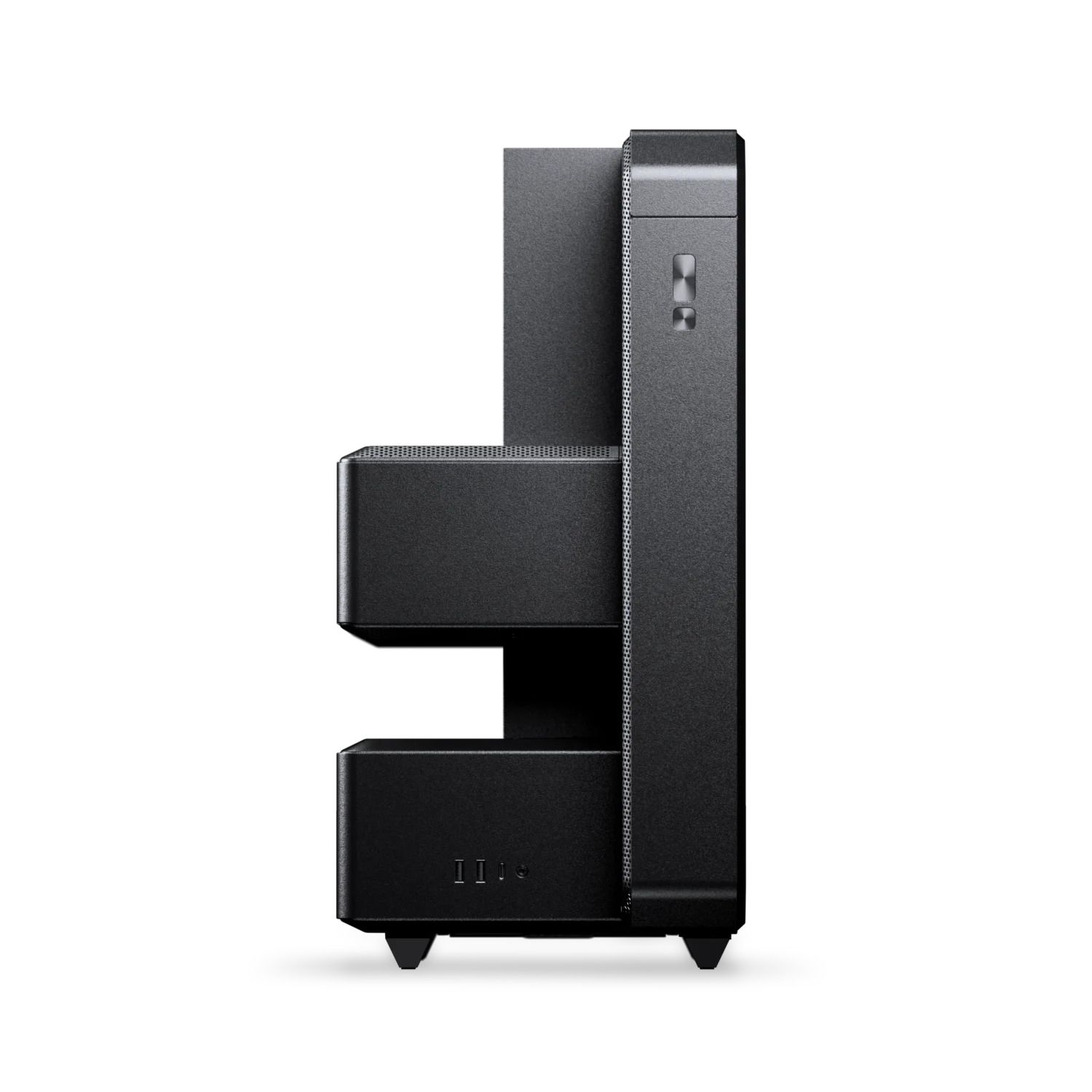

• Multi-Chamber Cooling Design: The compartmentalised design provides direct fresh air to each component


• Built-In 6" LCD AIO Cooler: Fully integrated 360 mm AIO with 6" LCD and 120 mm chassis fan included, with no additional fans required


• ATX Boards and 3.5-Slot GPU: Supports ATX and MicroATX motherboards and large GPUs up to 358 mm long and 3.5 slots thick


• Interior Features: Integrated ARGB lighting, 40 mm cable clearance, Velcro cable ties and a server-style GPU mounting bracket


• Exterior Features: Tempered glass GPU and motherboard windows, dual USB 3.0 ports and a high-speed USB-C 20 Gbps port

Product Specifications

• Product Name: EX5 MAX


• Model No.: PH-EX526M_DBK01


• UPC Code: 886523304746


• Color: Black


• Dimensions (L × W × H): 449 × 234 × 474 mm


• Form Factor: Mid Tower


• Materials: Steel Chassis, Tempered Glass, ABS Plastic


• Motherboard Support: ATX, micro-ATX, mini-ITX


• Front I/O: 1 × USB-C 3.2 Gen 2x2, 2 × USB-A 3.0, Microphone/Headphone Combo, Reset Button, Power Button


• Connectors: Power Switch, Reset Switch, HD Audio, USB 3.0, USB 3.2 Gen 2 Type-E, SATA Power


• Side Window: Tempered Glass MB Panel


• Integrated ARGB Lighting: PSU cover: 18 LEDs, around motherboard: 81 LEDs

Expansion & Drive Bays

• Expansion Slots: 4, starting from 1st slot position


• Vertical GPU Support: No


• GPU Support Bracket Included: Yes – bracket 1: 247–308 mm, bracket 2: 275–358 mm


• Internal 3.5" Bay: 1


• Internal 2.5" Bay: 1

Fan Support 120/140 mm

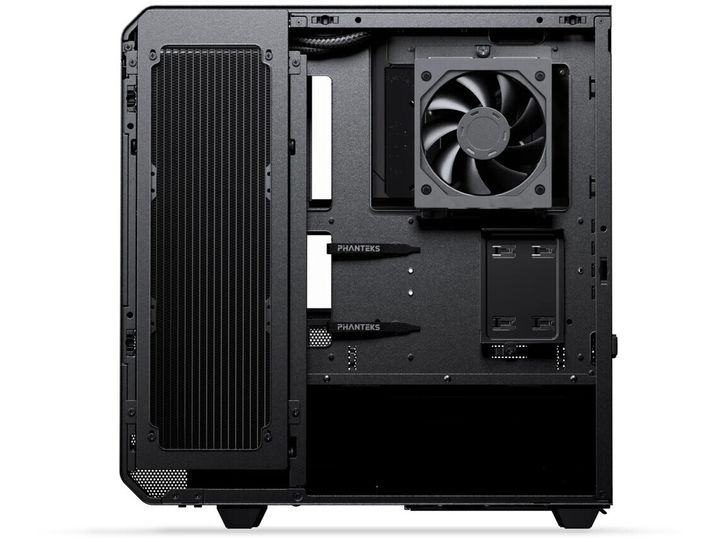

• Behind MB: 1 × 120 mm / –


• Right Side: 3 × 120 mm / –

Radiator Support 120/140 mm

• Behind MB: – / –


• Right Side: Up to 360 mm

Clearances

• Graphics Card Length: 358 mm


• GPU Thickness from 1st Slot: 4.6 slots (93 mm)


• GPU Thickness from 2nd Slot: 3.6 slots (73 mm)


• GPU Thickness from 3rd Slot: 2.6 slots (53 mm)


• CPU Cooler Height: 72 mm


• PSU Length: 210 mm


• Side 360 mm Radiator: 413 × 134 × 60 mm


• Cable Management Space: 40 mm


• Liquid Cooler Tube OD: 10–12 mm

Packaging & Shipping

• Net Weight: 9.50 kg


• Outer Box Dimensions (W × H × D): 519 × 315 × 556 mm


• Gross Weight: 11.21 kg

Scope of Delivery

• EX5 chassis × 1


• S25-120mm Black × 1


• Custom Glacier One 360S25-LCD AIO × 1


• SSD bracket × 1


• HDD bracket × 1


• SSD / GPU / Mainboard screws × 16


• HDD screws × 4


• PSU / GPU bracket screws × 6


• GPU bracket Short GPU × 1


• GPU bracket Large GPU × 1


• ARGB Mainboard Adapter (80 mm) × 1


• Mainboard Stand-off × 1


• Zip Ties × 6

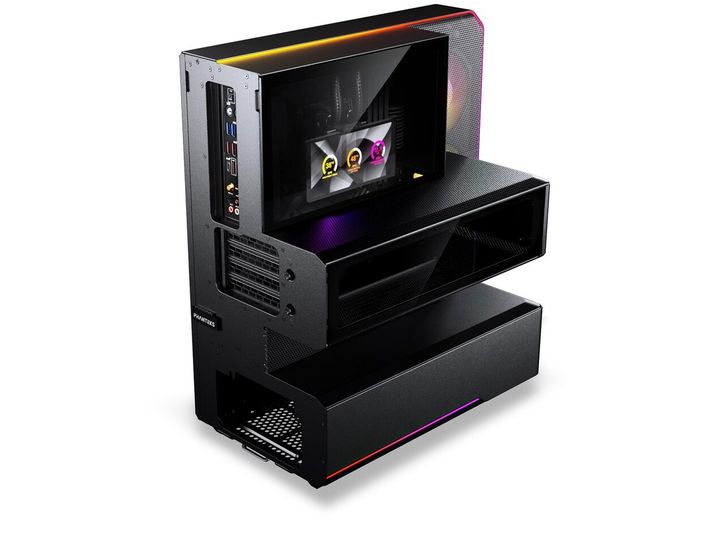

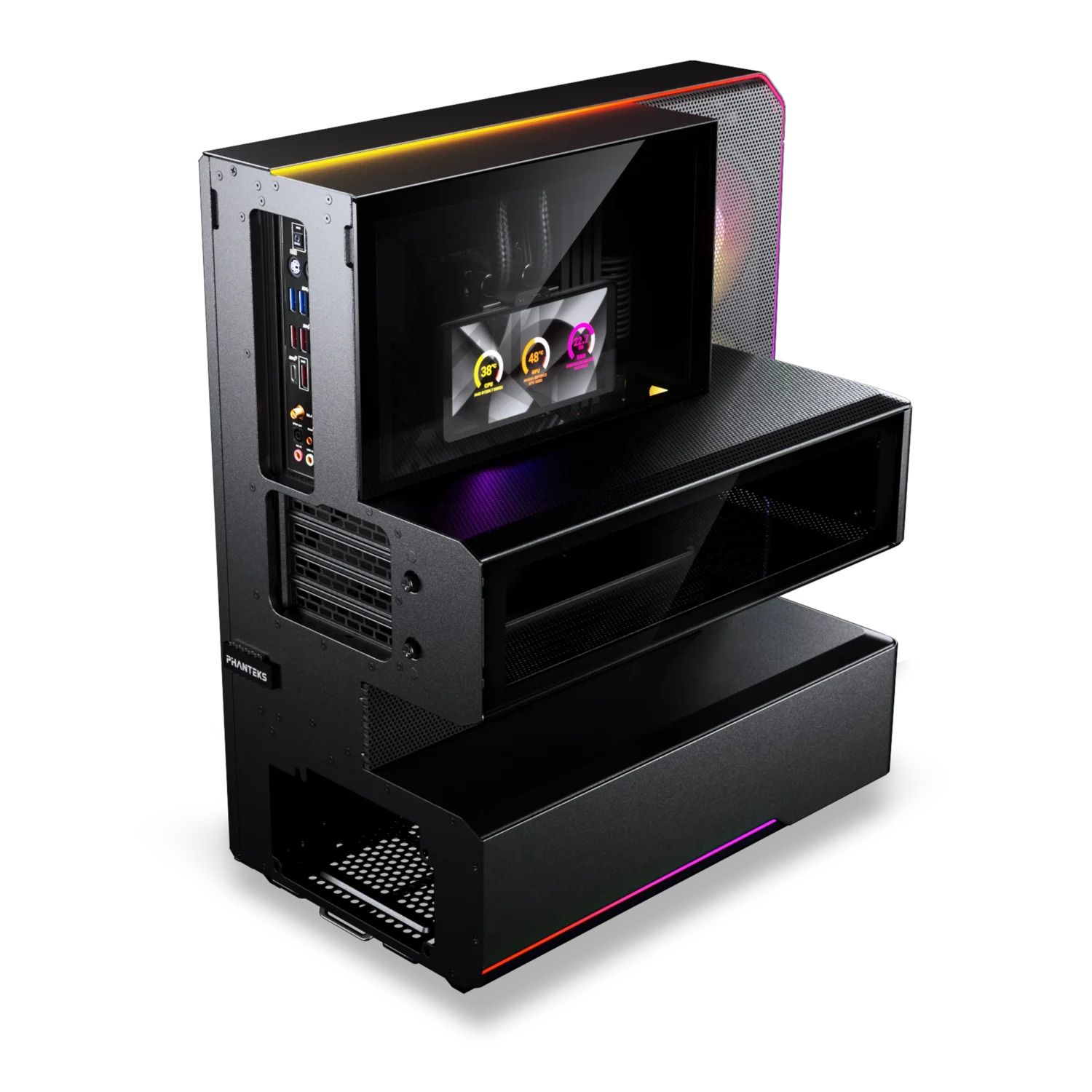

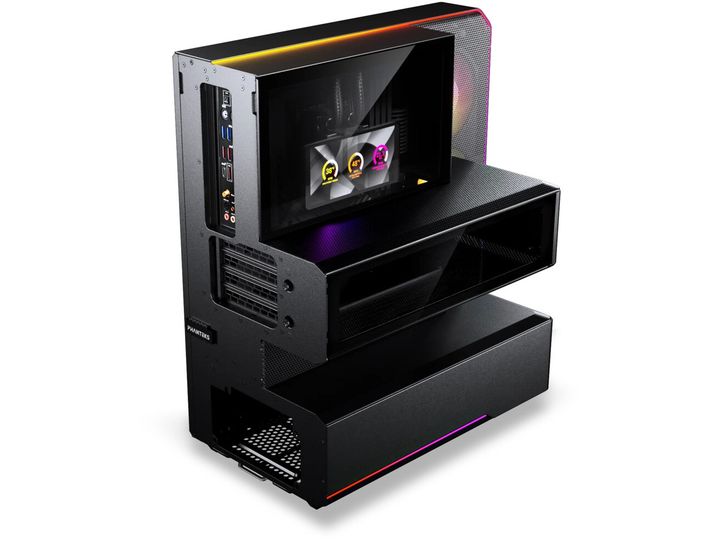

Defined by form, driven by flow and divided for precision
Phanteks introduces the EX5; the new chassis is designed with a compartmentalized structure. This layout organizes key components into dedicated chambers, ensuring each receives a direct flow of fresh air.

Designed for a “no-tubes” aesthetic. This model includes a fully integrated AIO liquid cooler with sidemounted connections, keeping the interior remarkably uncluttered, and making system installation a breeze.

The EX5 moves away from the traditional boxy, ‘fish tank’ look and presents a bold, creative way to showcase a PC build. The unique layout optimizes cooling efficiency by directing fresh air precisely where it’s needed and expelling heat more effectively. This effective airflow design reduces reliance on excessive fan setups, allowing builders to achieve excellent thermals with fewer fans.

Direct Fresh Air Cooling
- A unique compartmentalized design provides direct fresh air intake.
- Optimized airflow paths reduce heat buildup inside the chassis.
- Built to unlock maximum hardware performance.

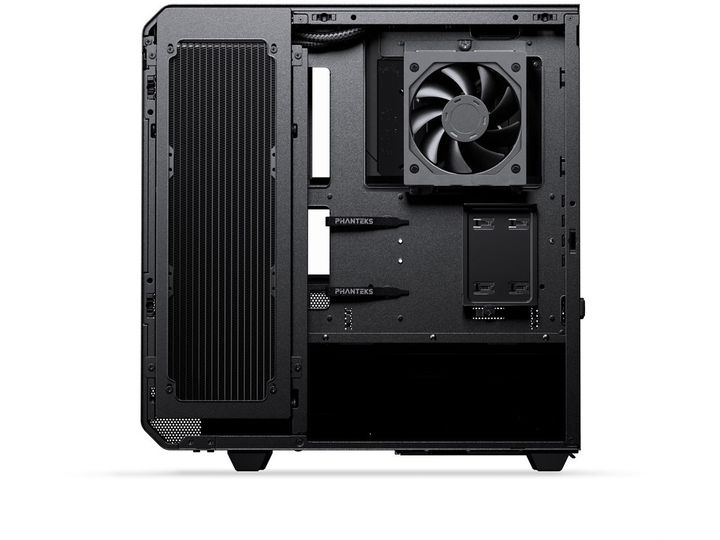

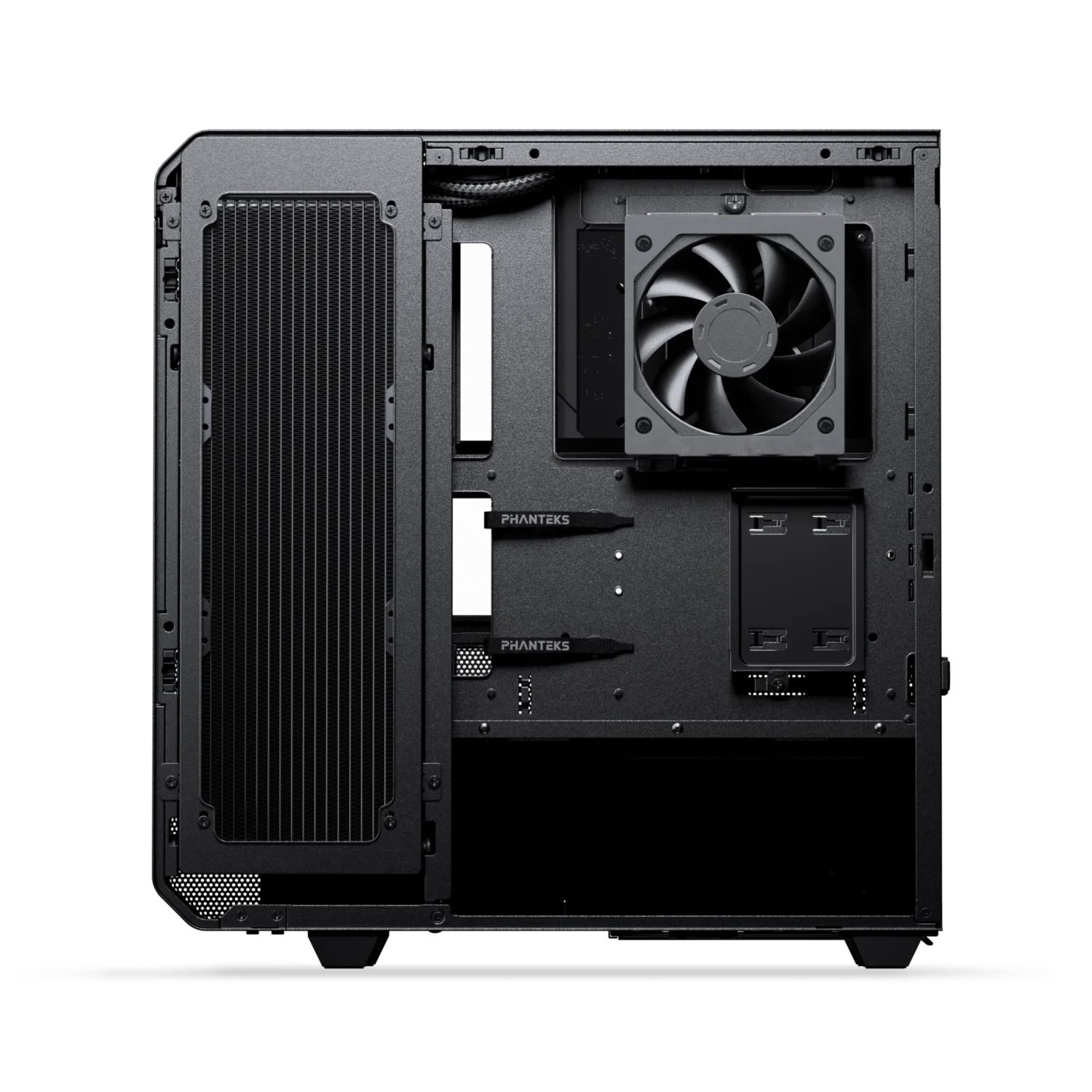

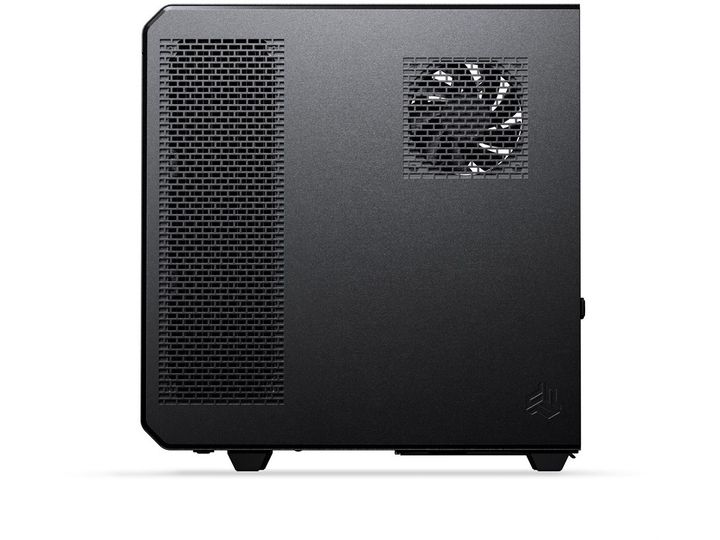

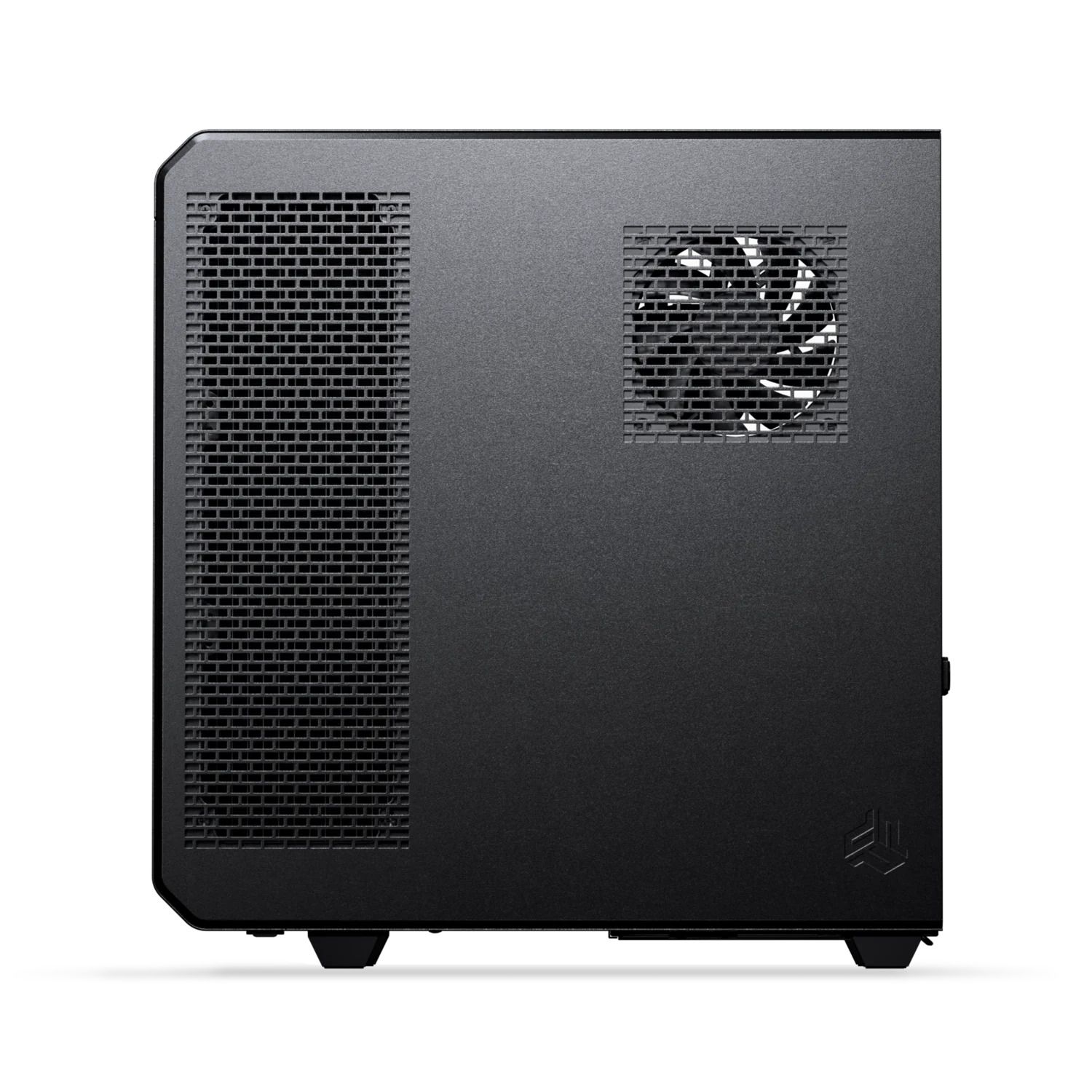

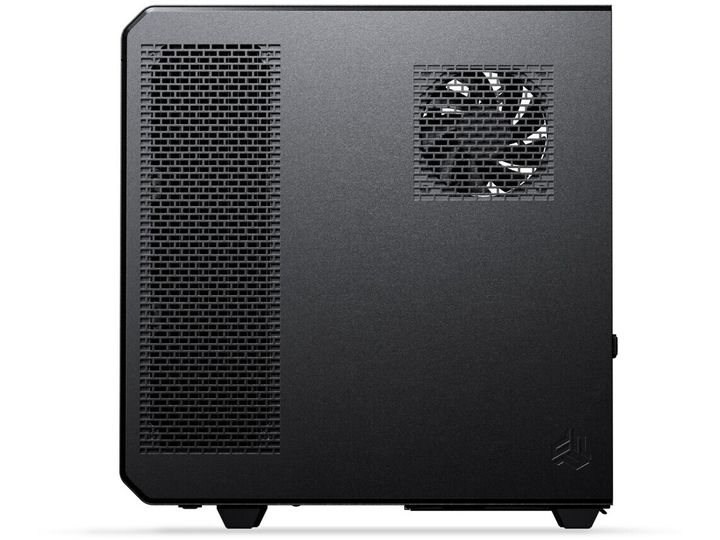

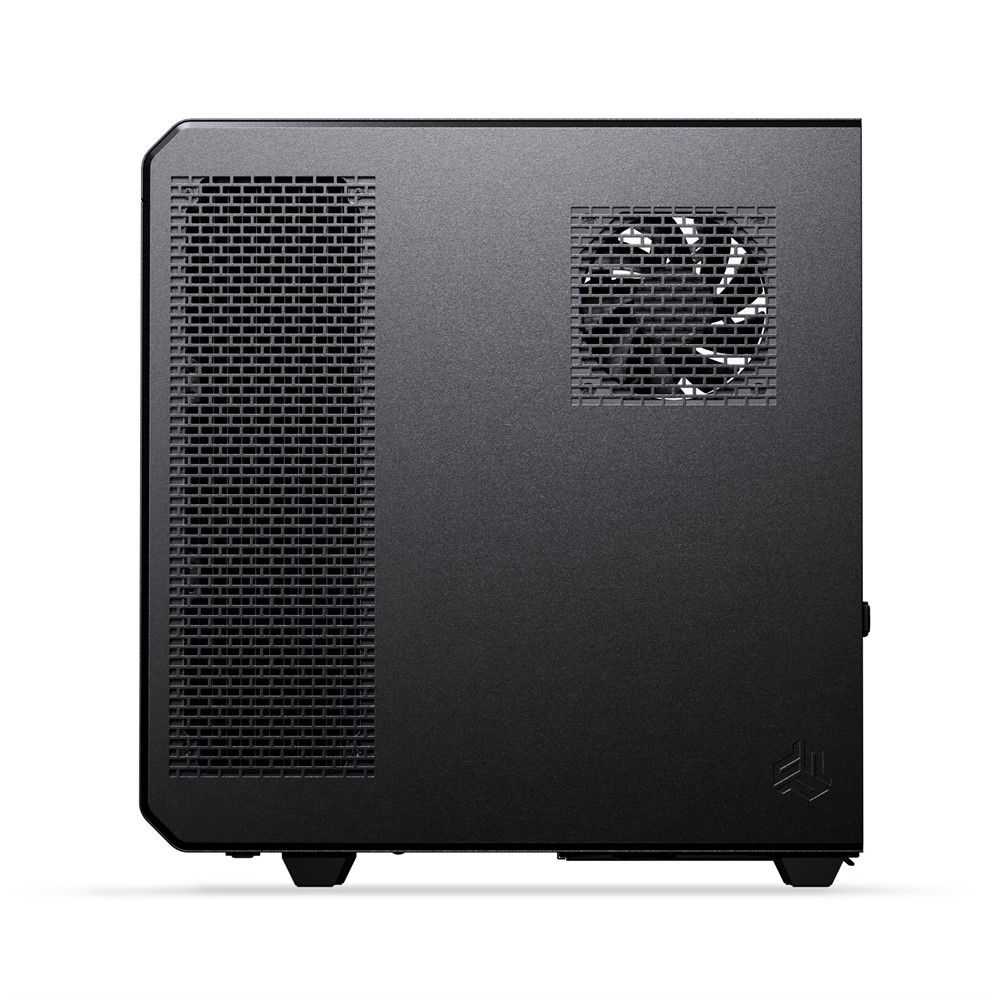

- Includes pre-installed S25-120 mm mainboard rear fan.

Focused Airflow Design
- Fresh air flows directly across the motherboard and surrounding components.
- Helps cool the CPU socket area, VRMs, memory, and M.2 SSDs.
- Works together with GPU airflow to efficiently remove heat from the chassis.

Precision Crafted
- High-quality materials and refined finish.
- Covered AIO tubes routed through the inside of the chassis.
- Reinforced mainboard spine adds structural rigidity.
- Velcro cable management system for easy cable routing.
- High-speed Type-C (20Gbps) and dual USB 3.0 ports.

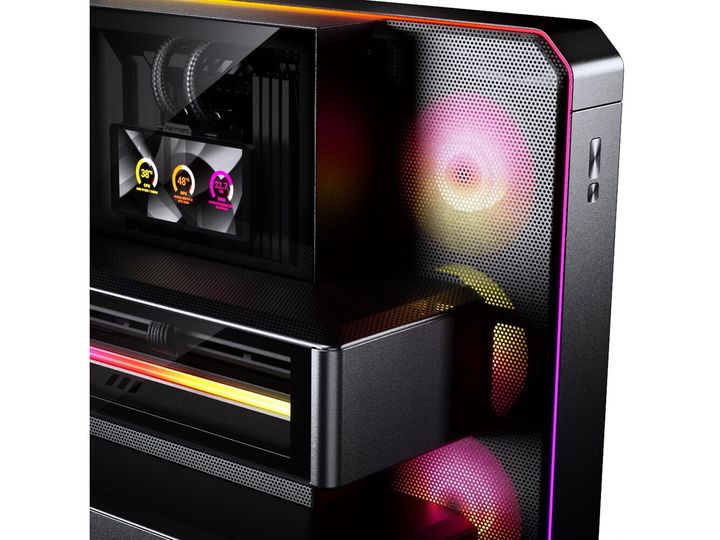

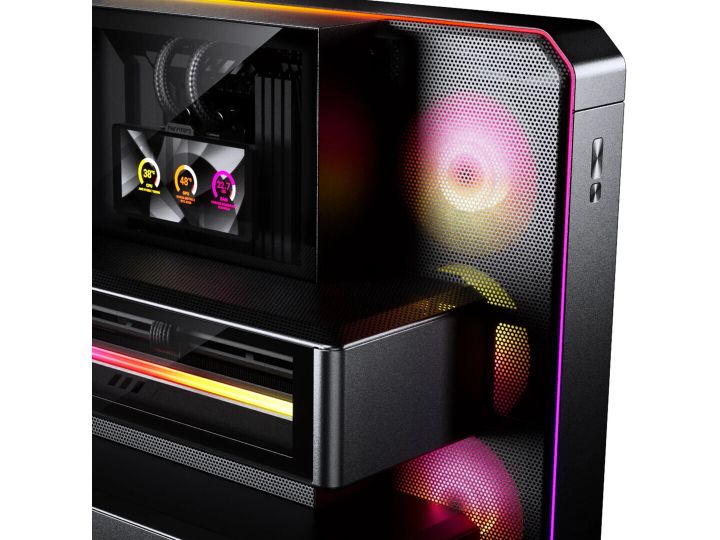

Clear and Customizable Display
- Pre-installed custom tubing saves you installation time and additional costs. Giving you a premium custom look, right out of the box.
- Large 6″ LCD-IPS screen for easy viewing.
- Show system stats and more with the NexLinq App for Windows.
- Simple customization to match your setup.
- Adjustable orientation for flexible placement.

Integrated Lighting
- A smooth and diffuse ARGB line runs from the top to the bottom of the EX5 chassis.
- Integrated ARGB lighting highlights the PSU cover.
- Take your ARGB lighting further with the NexLinq Hub, available separately for advanced customization and full lighting control.
To operate the ARGB lighting, it must be connected to a Phanteks controller or an ARGB-equipped mainboard. We strive to make it as easy to use and compatible as possible.

Showcase Your GPU
- A tempered glass GPU window puts your graphics card on display.
- Supports graphics cards up to 3.6 PCIe slots.
- 73 mm maximum thickness

Integrated GPU support bracket securely holds and stabilizes the graphics card.
