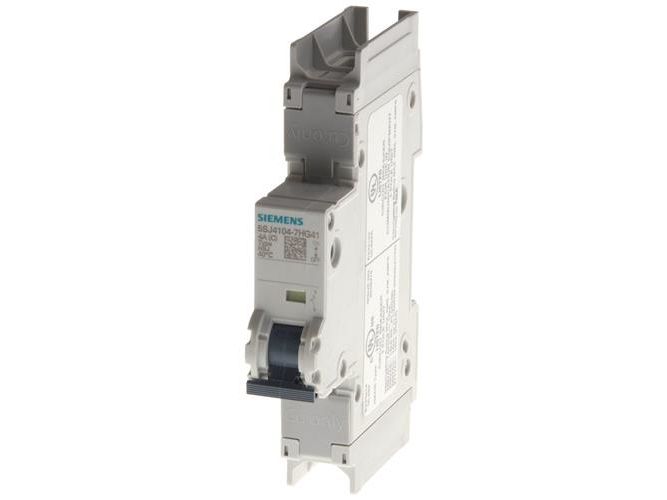

Leitungsschutzschalter 240V 10kA, 1-polig, D, 35A, T=70mm nach UL 489 Leitungsschutzschalter SENTRON 5SJ4 gemäß UL489 für den effektiven Personen- und Anlagenschutz bei industriellen Anwendungen und in der Infrastruktur. Die Leitungsschutzschalter 5SJ4 bieten eine einfache, durchgängige Verschienung und Verdrahtung durch ihre hinten liegende Sammelschiene. Der Geräteaustausch aus dem Sammelschienenverbund ist sehr schnell und einfach möglich. Die Leitungsschutzschalter 5SJ4 sind in vielen verschiedenen Varianten für alle Anwendungsfälle verfügbar. Das vielfältige Zubehör istfür alle Varianten einheitlich und ist nicht nur einfach zu montieren sondern auch jederzeit austauschbar. Einfach sicher mit den Schutzgeräten von SENTRON.
Rated current
35 A
Input current
35 A
Input voltage
240 V
Input frequency
50 Hz
Rated voltage
400 V
Total power loss
3.4 W
Circuit breaker type
Miniature circuit breaker
Type
Type B
Number of poles
1
International Protection (IP) code
IP20
Pollution degree
3
Certification
CE
Width
18 mm
Depth
70 mm
Height
110 mm
Weight
178 g
Quantity per pack
1 pc(s)
Package width
23 mm
Package depth
114 mm
Package height
84 mm
Package weight
178 g
Compliance certificates
CE, RoHS
Number of modular spacings
1
Voltage type
AC/DC
Mounting depth
7 cm
Ambient temperature range
25 - 55 °C
Release characteristic
D
Switching neutral conductor
No
Overvoltage category
CAT III
Rated insulation voltage (Ui)
440 V
Rated short-circuit breaking capacity (Icn, EN 60898, 230V)
10 kA
Rated short-circuit breaking capacity (Icn, EN 60898, 400V)
