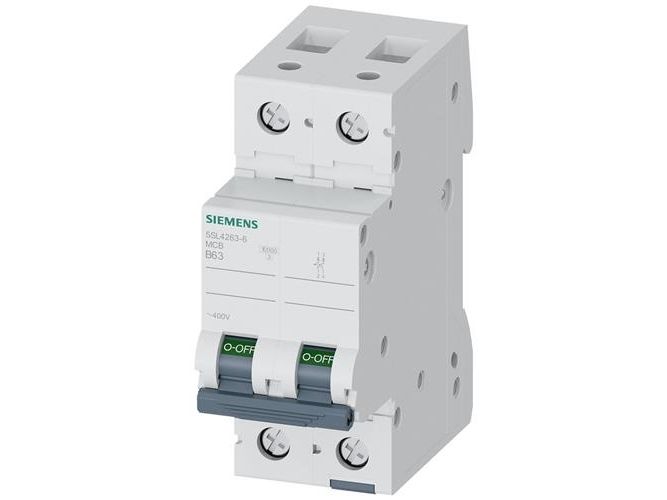

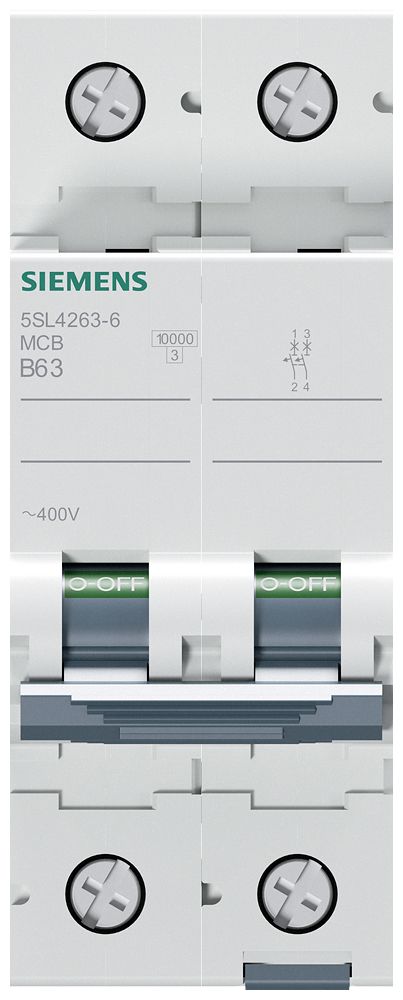

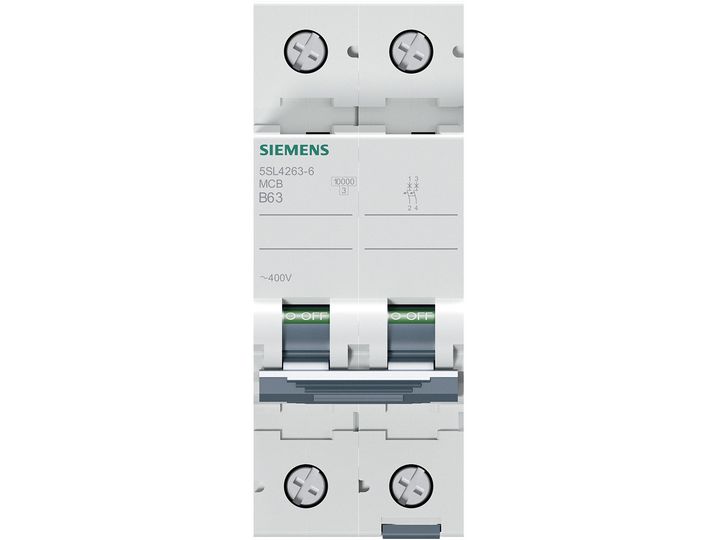

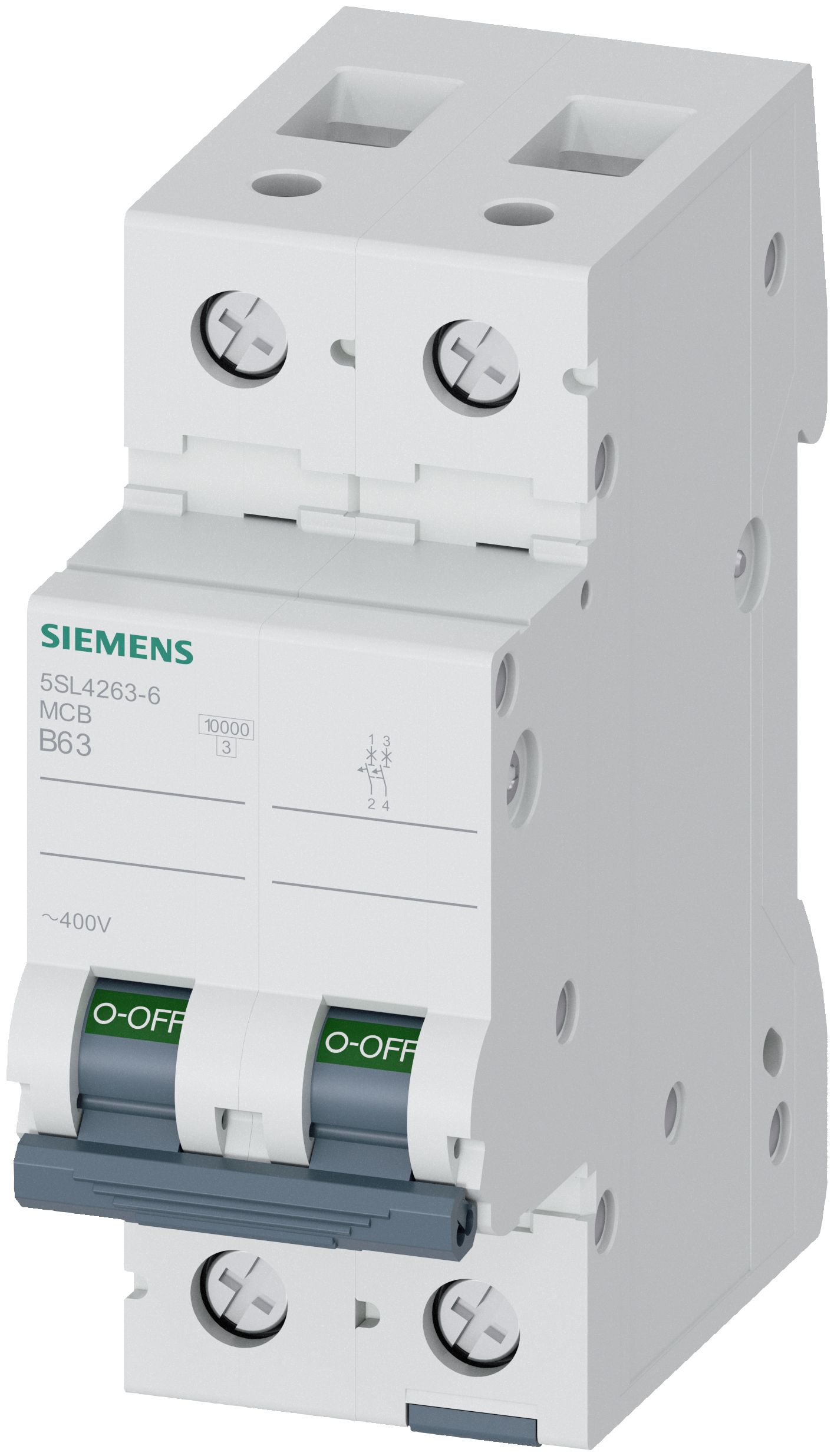

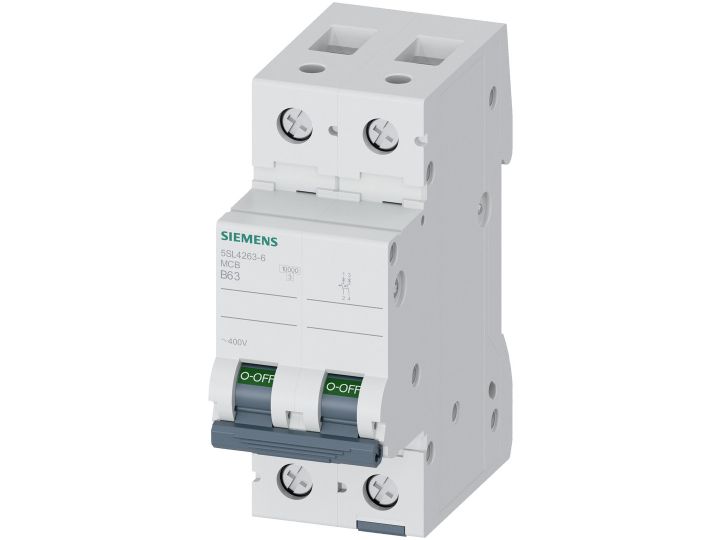

Miniature circuit breaker 400 V 10kA, 2-pole, B, 63 A Miniature circuit breaker SENTRON 5SL4 for fail-safe short-circuit and overload protection for standard applications in residential and non-residential buildings. Assembly and disassembly of the device without tools. Simple wiring of the infeed through the rear busbar. The 5SL miniature circuit breakers are available in 1-, 2-, 3-, 4-pole and 1+N- and 3+N-pole versions and in further special types. The extensive accessories, such as the auxiliary switch, allow the functions to be extended in a wide varietyof ways. Simply safe with the protection devices from SENTRON.
Rated current
63 A
Input frequency
50 Hz
Rated voltage
400 V
Total power loss
10 W
Number of poles
2
International Protection (IP) code
IP20
Pollution degree
2
Package width
40 mm
Package depth
93 mm
Package height
84 mm
Package weight
330 g
Compliance certificates
CE, RoHS, REACH
Number of modular spacings
2
Voltage type
AC
Mounting depth
7 cm
Ambient temperature range
25 - 55 °C
Release characteristic
B
Connectable solid conductor cross-section
0.75 - 25 mm²
Connectable stranded conductor cross-section
0.75 - 25 mm²
Switching neutral conductor
No
Overvoltage category
CAT III
Rated short-circuit breaking capacity (Icn, EN 60898, 230V)
10 kA
Rated short-circuit breaking capacity (Icn, EN 60898, 400V)
