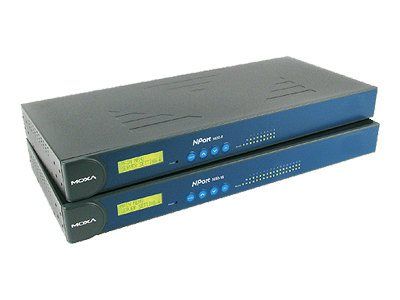

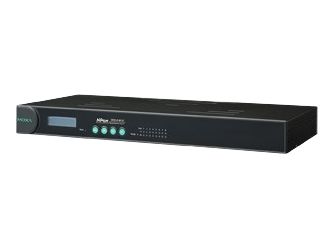

The NPort 5650 rackmount device server can conveniently and transparently connect up to 8 serial devices to an Ethernet, allowing you to network your existing serial devices with only basic configuration. Data transmission between the serial and Ethernet interfaces is bi-directional. By using NPort device servers, you not only protect your current hardware investment, but also allow for future network expansion. You can both centralize the management of your serial devices, and distribute management hosts over the network.
Produktbeskrivelse
Moxa NPort 5650-8 - enhedsserver
Enhedstype
Enhedsserver
Formfaktor
Rackmonterbar
Antal porte
8
Dataforbindelsesprotokol
Ethernet, Fast Ethernet, RS-232, RS-422, RS-485
Effekt
AC 120/230 V (50/60 Hz)
Dimensioner (B x D x H)
44 cm x 19.8 cm x 4.5 cm
Vægt
3.36 kg
Producentgaranti
5 års garanti
Generelt
Enhedstype
Enhedsserver
Indbygget udstyr
Status-LCD
Bredde
44 cm
Dybde
19.8 cm
Højde
4.5 cm
Vægt
3.36 kg
Netværk
Model
Rackmonterbar
Antal porte
8
Forbindelsesteknologi
Kablet
Dataoverførselshastighed
921.6 Kbps
Dataforbindelsesprotokol
Ethernet, Fast Ethernet, RS-232, RS-422, RS-485
Netværks/overføselsprotokol
TCP/IP, UDP/IP, ICMP/IP, SLIP, ARP, SMTP, BOOTP, DHCP, DNS
Protokol til fjernadministration
SNMP 1, Telnet, HTTP
Statusindikatorer
Status, send, modtag
Egenskaber
Auto-sensing per device, DHCP-understøttelse, understøttet af BOOTP, auto-uplink (auto MDI/MDI-X), SNTP-understøttet, 15 KV Electrostatic Discharge Protection
Ekspansion / Konnektivitet
Interface
8 x serial - RJ-45 1 x 100Base-TX - RJ-45
Diverse
MTBF (forventet tid mellem fejl)
117,584 timer
Overensstemmelsesstandarder
UL, TUV, cUL, EN55024, EN55022 Klasse A, FCC Part 15, RoHS, UL 60950-1, EN 60950-1, IP30
Effekt
Strømenhed
Intern strømforsyning
Nødvendig spænding
AC 120/230 V (50/60 Hz)
Programmer / Systemkrav
Med software
Drivers & Utilities
Producentgaranti
Service & Support
Begrænset garanti - 5 år
Miljømæssige parametre
Min. driftstemperatur
0 °C
Maks. driftstemperatur
55 °C
Fugtighedsgrad ved brug
5 - 95 % (ikke-kondenserende)
