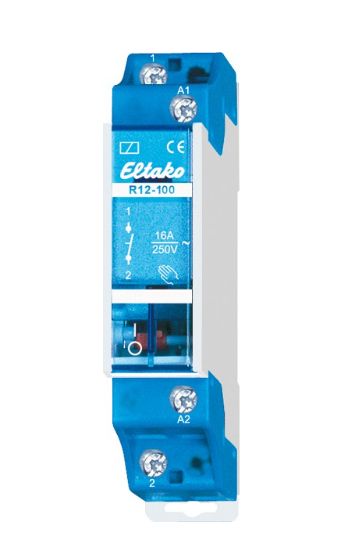

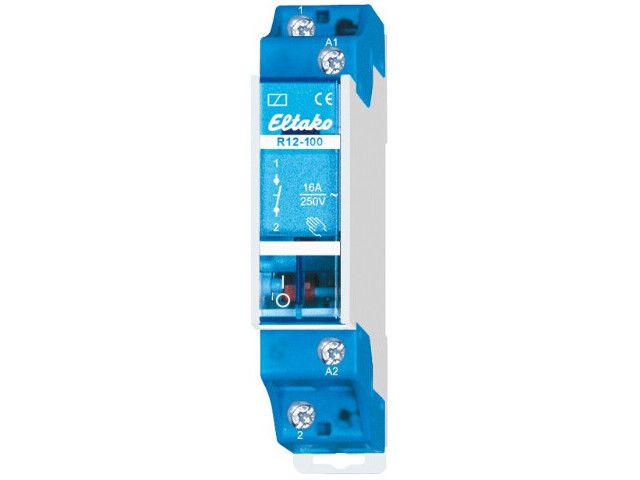

Eltako switch relay 230V R12-100-230V 22100030 1 NO 16 A, blue
Item no.: [3335353] | Manufacturer: eltako | Model no.: 22100030 | EAN: 4010312200445 | UNSPSC.: 39122325 | EL-nr.: 5422502437
Remote stock (1-2 days)
The item is in a remote warehouse, delivery time is 1-2 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
18,62
Incl. VAT 23,28
Total incl. delivery
38,28
Add to list
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Send på mail
Modular devices for DIN 60715 TH35 rail mounting with manual control and switch position indicator. 1 module = 18mm wide, 55mm deep.
100% time on. Control power demand 1.9W.
Contacts: 1 NO, 2 NO, 1 NO + 1 NC, 2 NC (closed-circuit current relay, 230V only).
Contact gap 3mm.
Contact/contact test voltage 2000V and control connections/contact test voltage 4000V.
100% time on. Control power demand 1.9W.
Contacts: 1 NO, 2 NO, 1 NO + 1 NC, 2 NC (closed-circuit current relay, 230V only).
Contact gap 3mm.
Contact/contact test voltage 2000V and control connections/contact test voltage 4000V.
