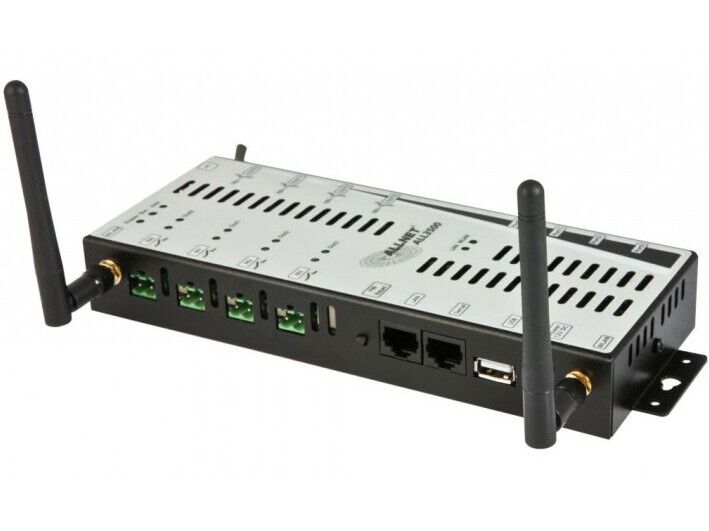

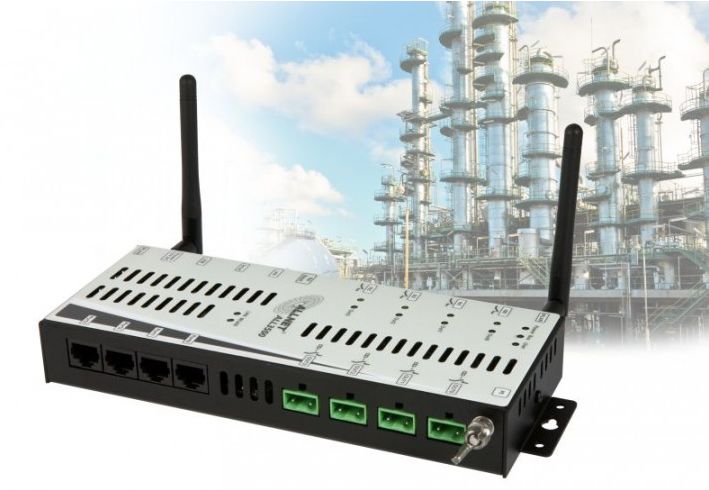

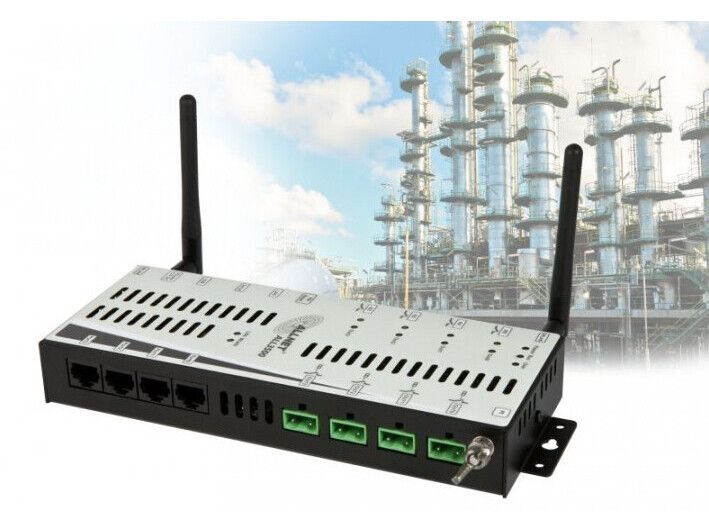

ALLNET ALL3500, Black, Grey, 2.4 GHz, Metal, CE, Wired & Wireless, Fast Ethernet

The economical entry into the home automation

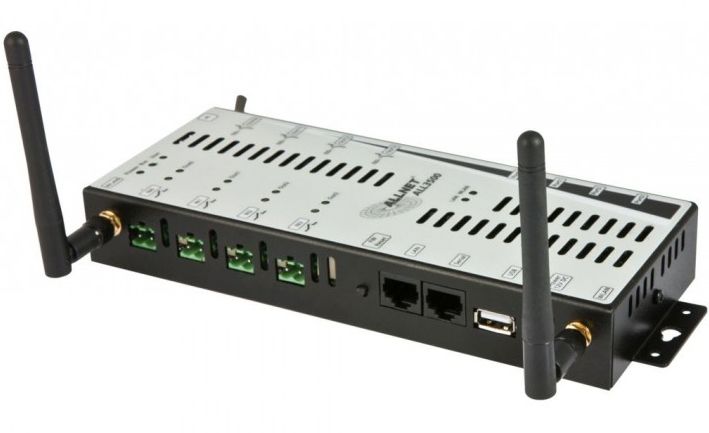

The ALLNET ALL3500 Home Automation Appliance provides a solid and cost-effective platform for the implementation of control solutions based on measured data.

As the model ALL3418V2 based the ALL3500 on the new ALL5002 CPU board and
a GNU/Linux firmware.

Thus it is open to your own applications and all additional modules ALL3000/4000/5000 series can be operated with the ALL3500 central unit.

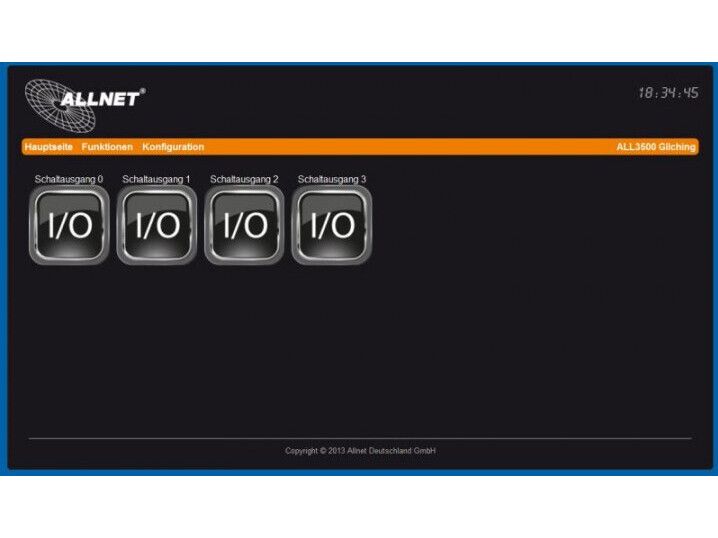

The ALL3500 can be conveniently read from anywhere via web interface, con gure and operate. The integrated XML interface allows for easy integration into complex
installations or proprietary software products for controlling and monitoring.

Controlling, measurement, regulation via network, Internet and Smartphone

Application examples:
- Temperature monitoring in HACCP or alarm scenarios , as well as depending of alarm detection circuits
- Climate control of a room by monitoring temperature and humidity, as well as needs-based control of heating and humidication.
- Recognition of a crisis in mission critical areas and turn of alarms if you smell gas, ooding, smoke, etc.
- Time-and humidity-controlled garden irrigation
- Consumption-based circuit using external sensors such as ALL4950 power meter module
- SNMP Modul

Compact, powerful, economical
The right platform for your home automation application

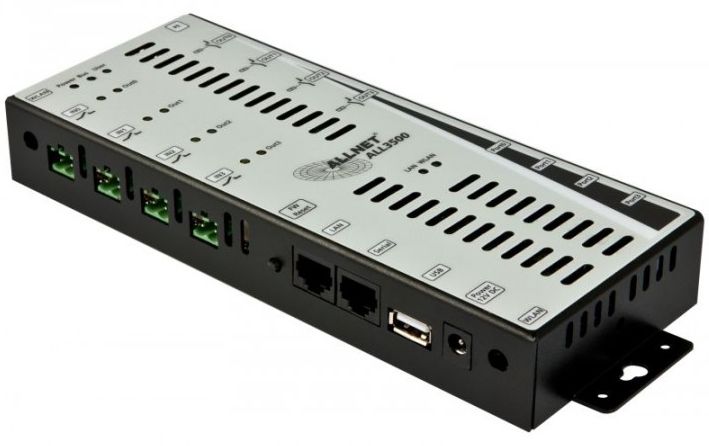

We are suceed in integrating a lot of functionality in a compact and cost-saving design in the ALL3500. This saves space and cost, yet delivers impressive functionality. Four relays, sensor ports and contact interfaces are available. Thus the ALL3500 is extremely versatile.

Sensors, actuators and switches
A wide productrange allows complex application

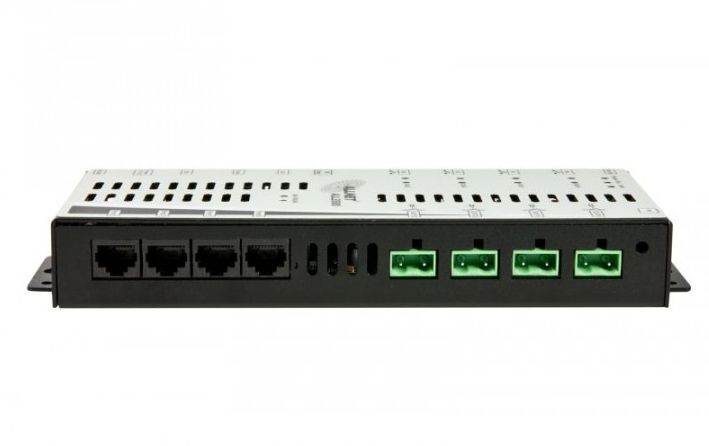

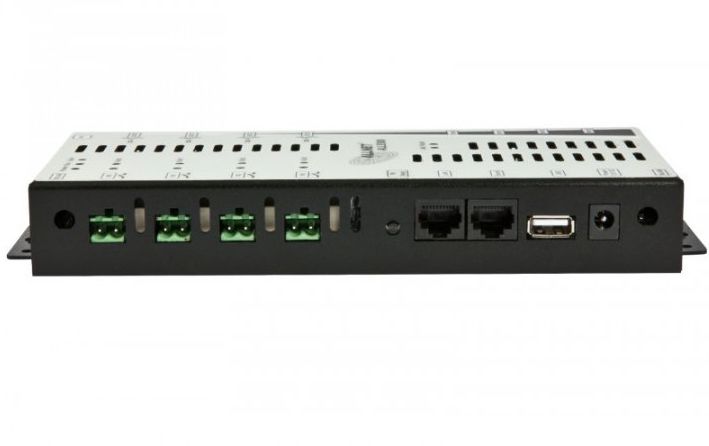

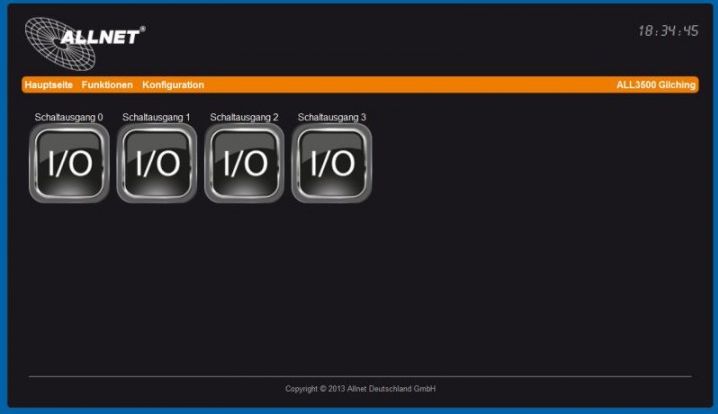

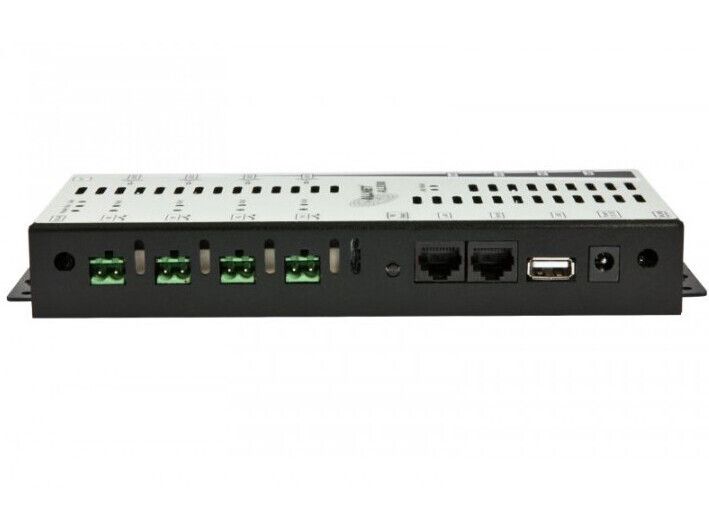

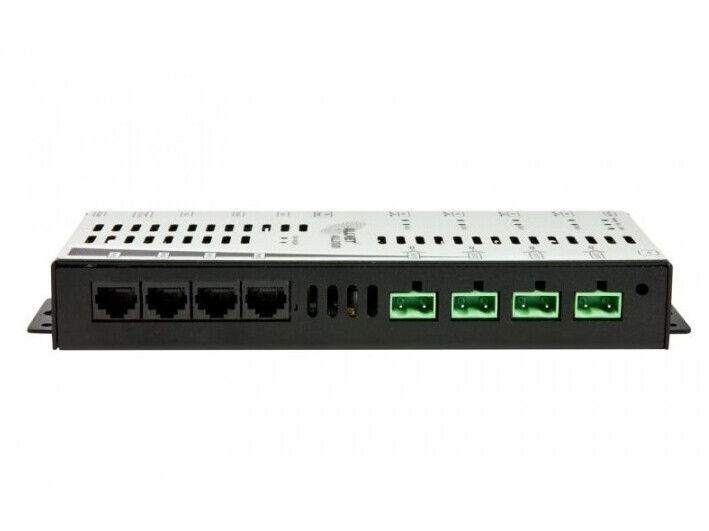

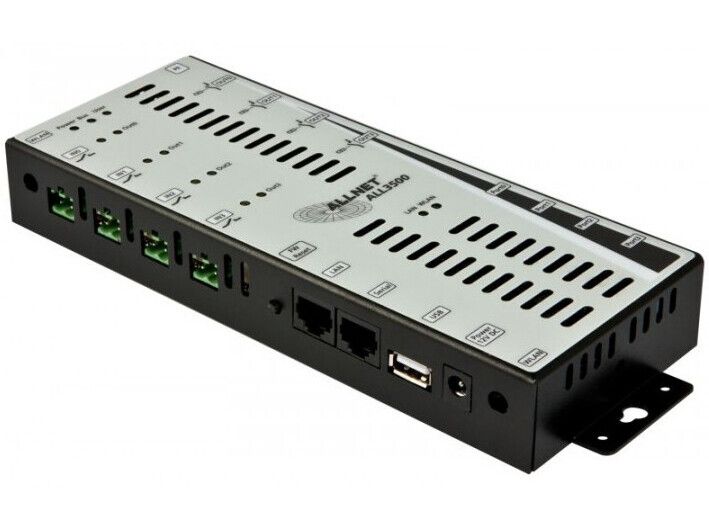

The ALL3500 central unit has four ports for connecting external sensors and actuators, and four relay outputs for switching any loads. In addition, the device has four contact inputs, eg can be used to connect push buttons and switches. Thus, ambient conditions such as temperature, humidity, air pressure, and much more can capture, share and process, as well as switching processes via actuators or relays. This can be performed manually, time-controlled or depending of the detected values.

Connectivity
With Ethernet and built-in WLAN easily accessible

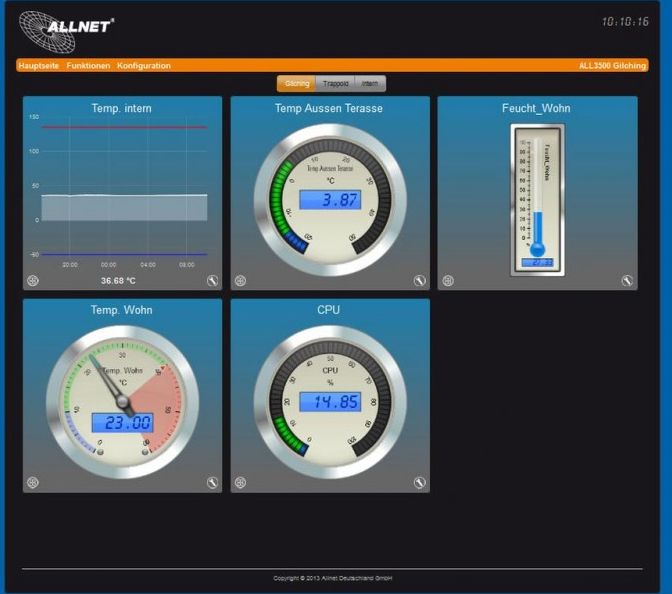

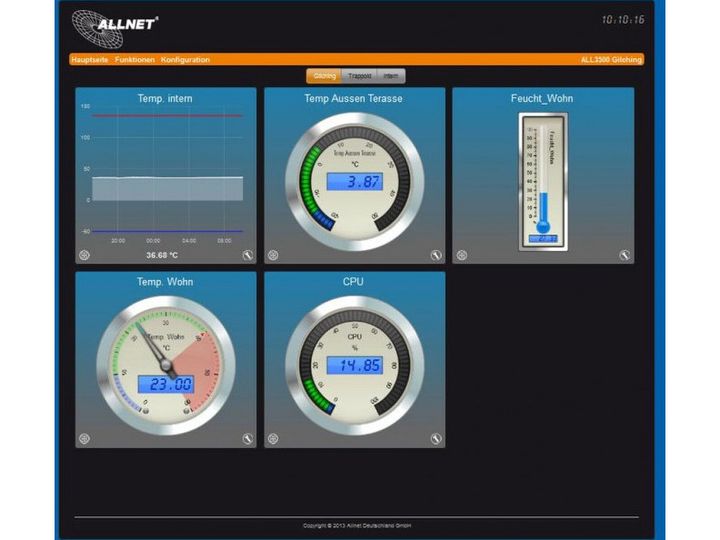

The ALL3500 central unit is accessed via an IP address in the TCP / IP network. The values can be accessed via the web browser directly from the device, processed or sent periodically via email. An integrated XML interface is used for data retrieval and control via the Internet, bringing the ALL3500 can be integrated into an overall control solution.

I2C-Bus
Use existing cable networks to connect sensors
To connect the measurement and control modules to the central units all ALLNET home automation products use a simple network cable (RJ45 connector, Cat. 5). For this purpose, an existing wired network such as the own network or phone wiring can be used. The maximum cable length between the central unit and module can be up to 100 meters. Here the modules are supplied with voltage by the CPU. A separate power source for each module is not necessary.

USB Port
Integrate external radio technologies
External sensors/actuators can for example be connected via a separate wireless USB stick with the ALL3500. The ALL3500 can recognize and process these sensors. The following technologies/manufacturers are already integrated in the ALL3500:
- Plugwise
- EnOcean
