VOLTCRAFT LSG-3 Ledningssøger

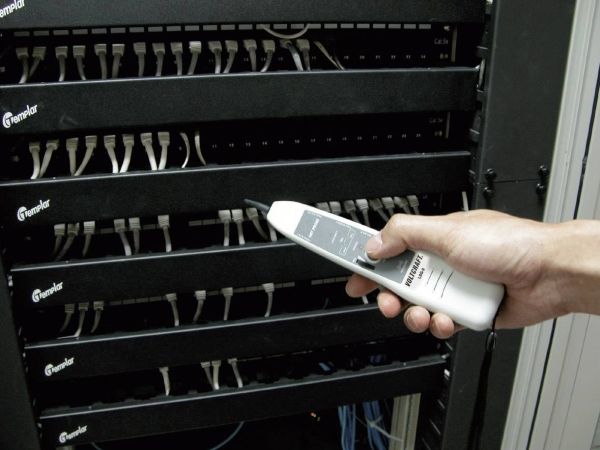

Practical detector for locating and monitoring lines and cables. Also suitable for examining and locating telephone and network lines (Coax, 10/100/100 Base-T) - determines correct cable layout and rechecks for passage. The LSG-3 consists of an acoustic generator that modulates a high frequency signal to the line under test, and a highly sensitive inductive receiver that detects cables reliably down to a depth of 15 cm in the wall. It allows the cables to be detected directly.


Measurement values
Identification, passage, interruption, short circuit
Cable length (max.) 615 m
Optical indicator Yes
Audible indication Yes
Power supply 2x 9 V batteries
Weight 90 g
Transmitter dimensions (W x H x D) 68 x 125 x 26 mm
Weight (transmitter) 120 g
Width 40 mm
Height 210 mm

Equipment
High sensitivity
Ideal detector for network and telecommunications installations
Features
Transmitter: Capacitive signal connection
Adjustable signal strength
Pass tester

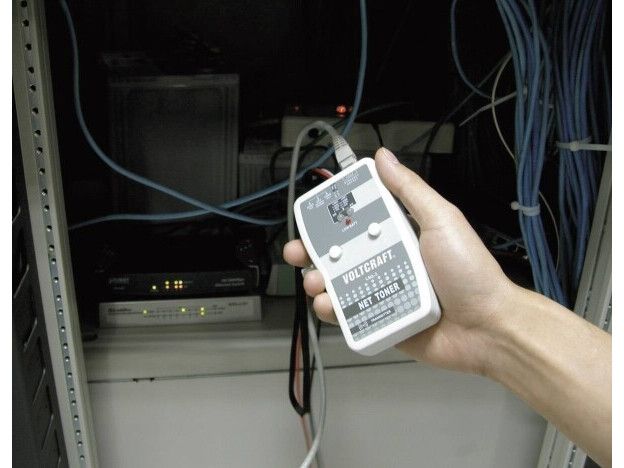

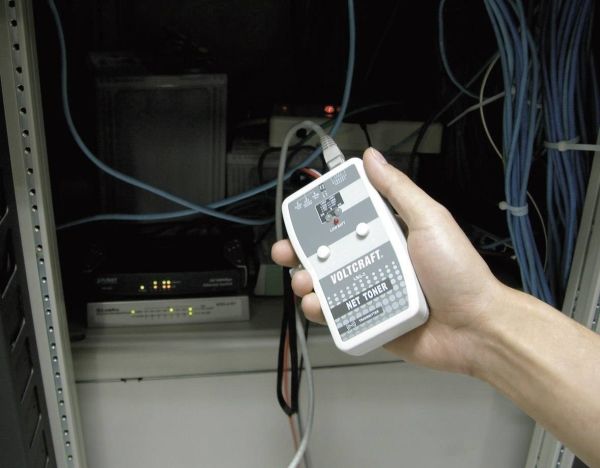

Network testing function
Low battery indication. Receiver: high sensitivity amplifier
Adjustable volume
Switching from speaker to headphone jack

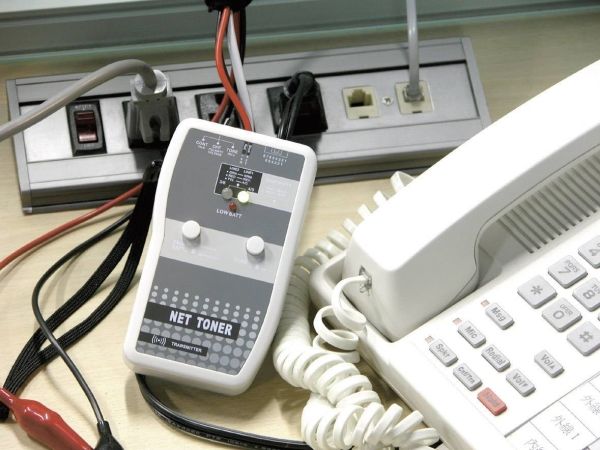

Telephone line test
Optical and acoustic indication

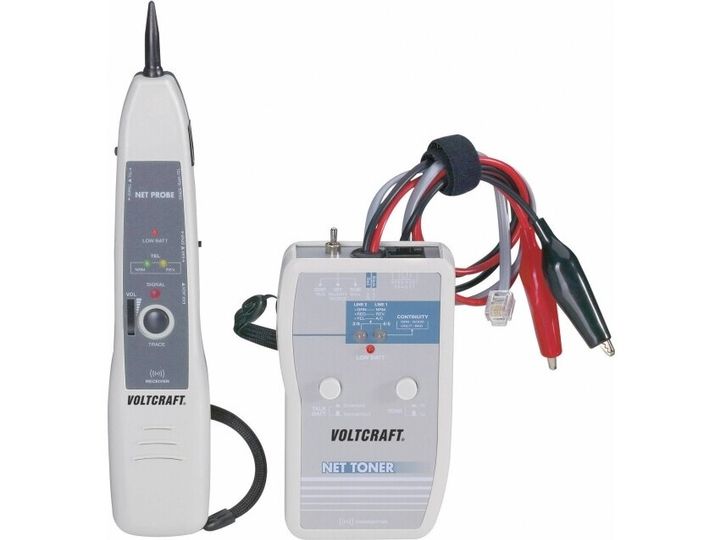

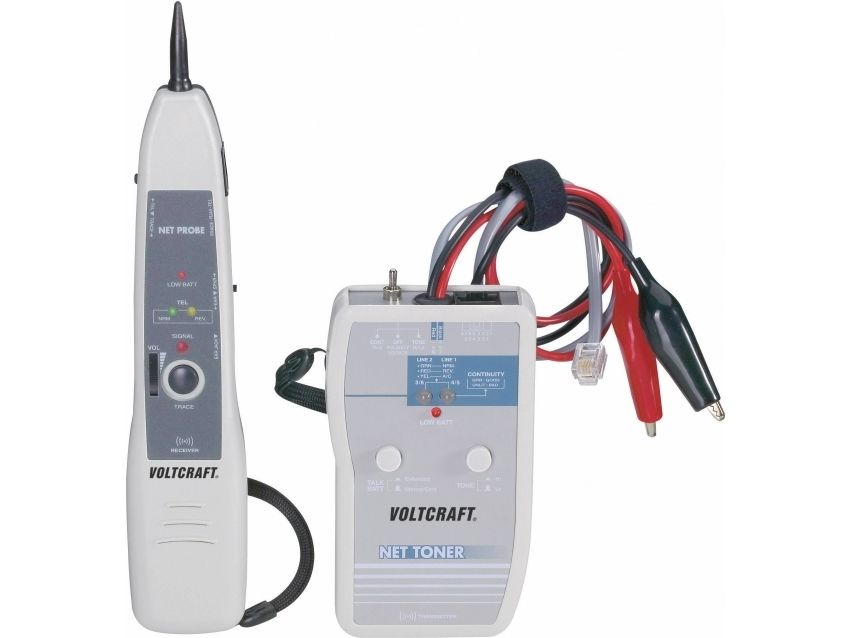

Scope of delivery:
Transmitter
Receiving test
Replacement tip

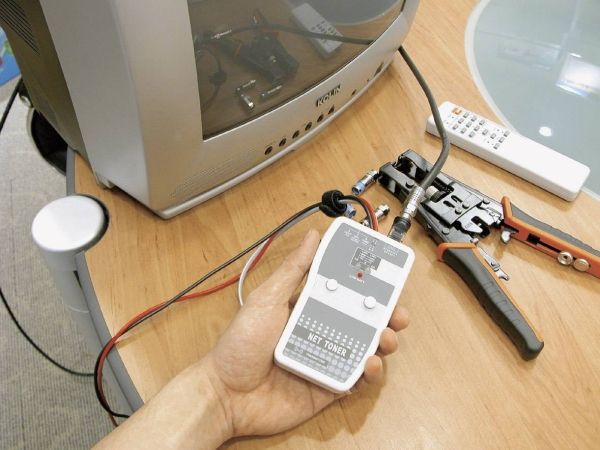

Adapter with F connector
Transport bag
