Finder 14.01.8.230.0000 Treppenhaus-Lichtautomat Multifunktionel 230 V/AC 1 stk Tidsområde: 30 s - 20 min 1 x sluttekontakt

Multifunction, 17.5mm - 14.01 Series
Timing step relay, step relay, light constantly ON, staircase relay
Incandescent lamp load and halogen lamp load 2000W, Fluorescent lamp load 1000W
LED indication of power and operation status
Switch off early warning

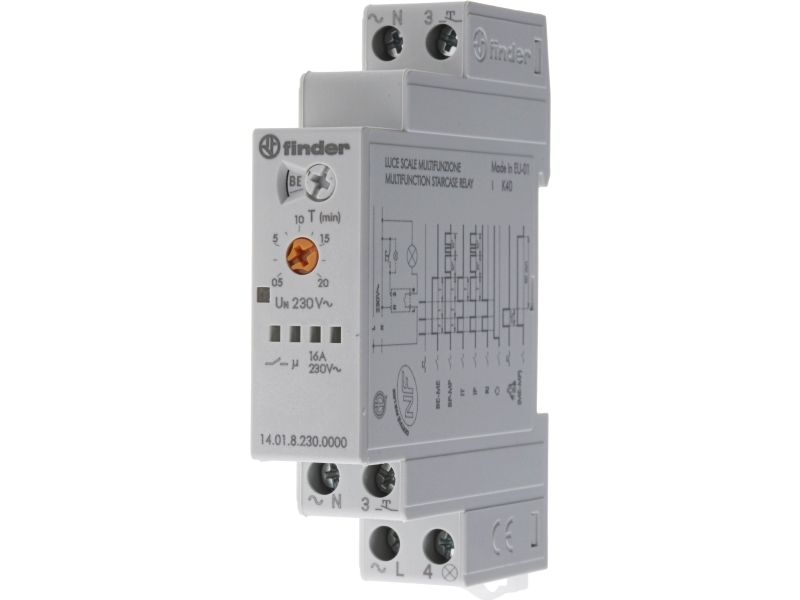

Finder Staircase Timer, 230V Supply Voltage, Screw Terminal - 14.01.8.230.0000
This staircase timer is an electronic device designed to control lighting in stairwells and similar areas. It operates at a supply voltage of 230V and features a screw terminal for straightforward installation. With a compact height of 88.8mm and depth of 63.8mm, it is suitable for standard mounting applications and ensures consistent operation.
Features & Benefits
Eight multifunction options offer flexibility for various configurations
Time range spans from 30 seconds to 20 minutes for enhanced control
Compatible with movement detectors for automated functionality
LED status indicators allow for easy monitoring
Utilises cadmium-free materials for safe use in diverse environments
Built for a 35mm rail mount to facilitate assembly
Applications
Ideal for stairway lighting control in residential settings
Suitable for automatic lighting in public buildings
Employed in facilities needing maintenance functions for safety
Integrates with motion sensors to improve energy efficiency
Can it be used with standard light bulbs?
Yes, it supports various lamp ratings up to 3000W for incandescent and halogen types.
Will it work in both 3-wire and 4-wire systems?
Yes, it automatically identifies and operates within both systems.
Is it suitable for outdoor installations?
No, it has an IP20 protection category and is intended for indoor use only.
Can the timer settings be adjusted for specific needs?
Yes, users can easily set the timer adjustments.
Does it level current during switching?
Yes, it employs zero crossing load switching to minimise inrush current.
