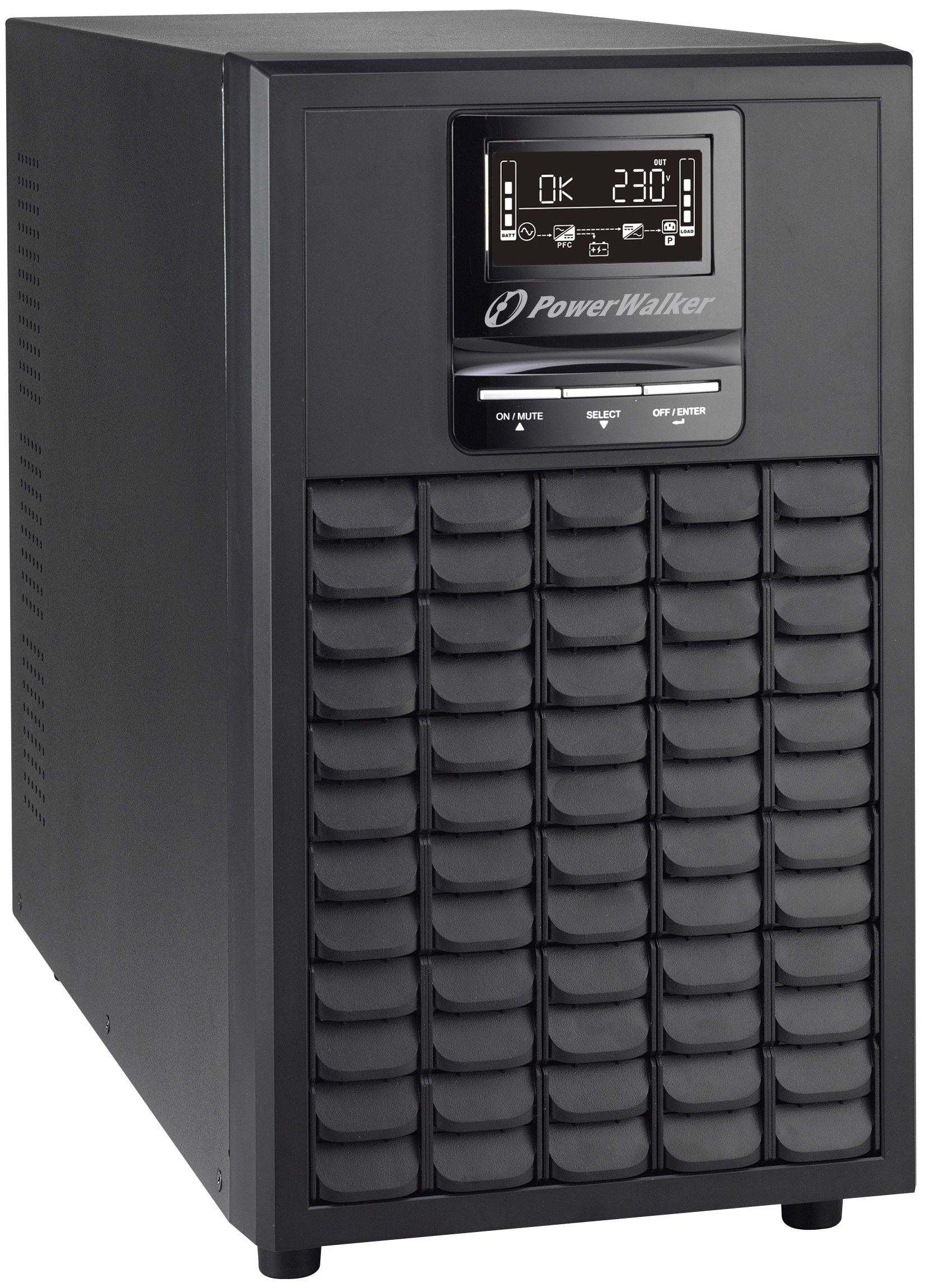

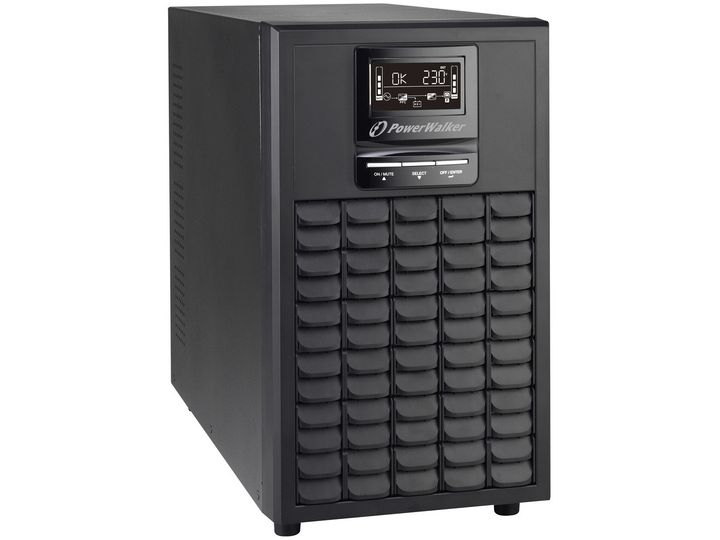

The PowerWalker VFI 1000-10000 CG PF1 is a professional series for commercial applications featuring unity Power Factor (PF=1.0). The wide input voltage and frequency ranges allow operation in unstable networks and provide generator support. 1-3kVA are equipped with a very strong charger with adjustable current and 6-10kVA can present very low harmonic distortions (<1%) and high efficiency (up to 94%).
Multiple accessories, including battery packs and communication cards, enhance the functionality of the UPS and allow a greater backup time. The system can be monitored locally via an LCD panel or remotely via the PowerWalker ViewPower software.
UPS topology
Double-conversion (Online)
Output power capacity
3 kVA
Output power
3000 W
Input operation voltage (min)
110 V
Input operation voltage (max)
300 V
Input frequency
40/70 Hz
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Output voltage regulation
1%
Efficiency
89%
Power factor
0.99
Crest factor
3:1
Emergency Power Off (EPO)
Yes
Output voltage Total Harmonic Distortion (THD)
2%
Input current Total Harmonic Distortion (THD)
1.6%
Noise level
50 dB
Surge protection
Yes
Surge protection features
Fax, Modem, Network
AC outlet types
C13 coupler, C19 coupler
Power plug
C20 coupler
AC outlets quantity
9 AC outlet(s)
USB port
Yes
Serial interface
Yes
Serial interface type
RS-232
Emergency Power Off (EPO) connector
Yes
Battery capacity
9 Ah
Battery voltage
12 V
Number of batteries supported
3
Typical backup time at full load
3 min
Typical backup time at half load
10.1 min
Battery recharge time
6 h
Form factor
Tower
Product colour
Black
Cooling type
Active
Display type
LCD
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
20 - 95%
Cables included
Input power cable, Output power cable, USB cable
Manual
Yes
Width
190 mm
Depth
421 mm
Height
318 mm
Weight
28 kg
Resource CD
Yes
Warranty card
Yes
Bundled software
ViewPower
Package width
230 mm
Package depth
472 mm
Package height
325 mm
Package weight
15 kg
Package type
Box
Harmonized System (HS) code
85078000
