Managed Gigabit Edge Switches The CentreCOM® GS970M Series of Layer 3 switches provide high performance with gigabit to the desktop, the ability to connect and power endpoints, and lower management costs—a high value network edge solution from Allied Telesis.
Overview - Reduce costs and automate network and device management with the Allied Telesis Autonomous Management Framework™ (AMF) - Flexible deployment with 10, 18 and 28 port models - High-speed gigabit network access for power users - Support converged networks with PoE+ to power devices like wireless access points, digital surveillance cameras and IP phones - Easy management with an industry-standard Command Line Interface (CLI) and intuitive Graphical User Interface (GUI)
Key Features - AlliedWare Plus Enterprise-class operating system - Eco-friendly for reduced running costs - Network Access Control (NAC) for edge security - Ethernet Protection Switched Ring (EPSR) enables resilient high-speed ring-based networks - Static Routing and RIP support Layer 3 environments
Produktbeskrivelse

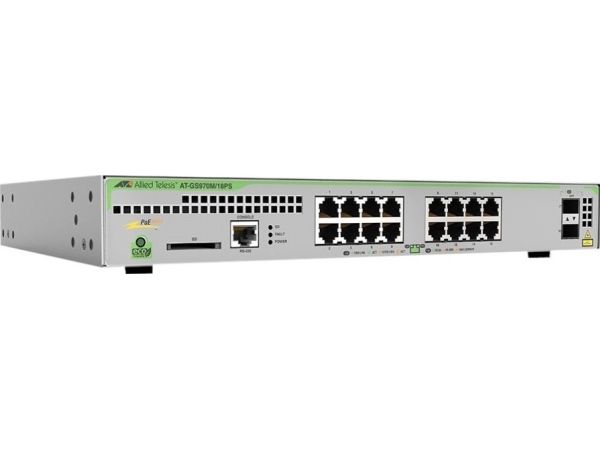

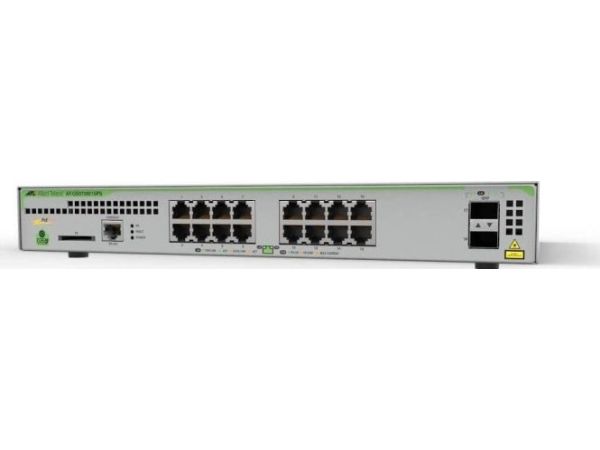

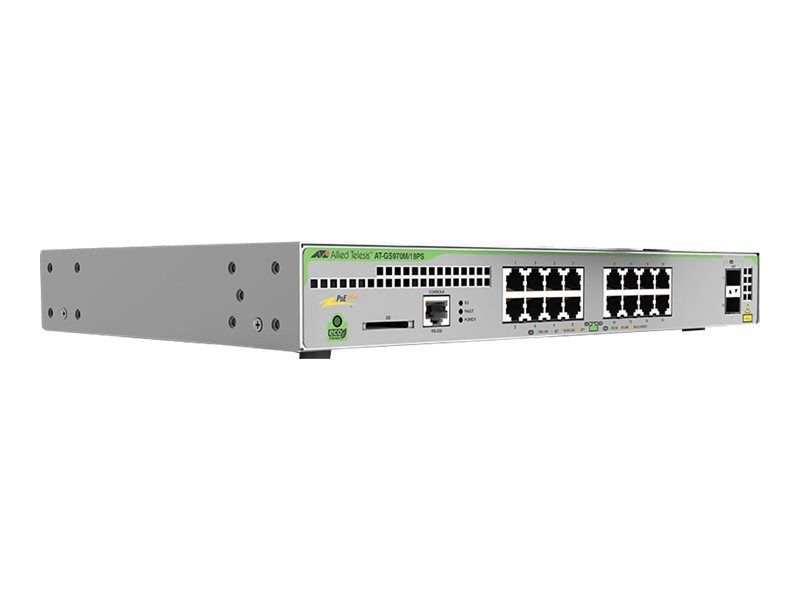

Allied Telesis CentreCOM AT-GS970M/18PS - switch - 18 porte - Administreret - monterbar på stativ
Enhedstype
Switch - 18 porte - L3 - Administreret
Pakningstype
Monterbar på stativ
Undertype
Gigabit Ethernet
Porte
16 x 10/100/1000 (PoE+) + 2 x SFP (mini-GBIC) (uplink)
Power Over Ethernet (PoE)
PoE+
PoE-budget
247 W
Præstation
Skift af stofbåndbredde: 36 Gbps Fremsendelsespræstation: 26,8 Mpps
16 x 1000Base-T RJ-45 PoE+ 2 x 1000Base-X SFP uplink 1 x konsol RJ-45
Effekt
Strømenhed
Intern strømforsyning
Nødvendig spænding
AC 120/230 V
Diverse
Overensstemmelsesstandarder
FCC Klasse A certificeret, UL, TUV, cUL, EN55024, EN55022 Klasse A, RoHS, UL 60950-1, EN 60950-1, cULus, EN 60825-1, HMAC, VCCI Class A, China RoHS, DRBG, EN61000-3-2, EN61000-3-3, CISPR Class A
Mål og vægt
Bredde
34.1 cm
Dybde
23.1 cm
Højde
4.4 cm
Vægt
3 kg
Miljømæssige parametre
Min. driftstemperatur
0 °C
Maks. driftstemperatur
50 °C
Fugtighedsgrad ved brug
5 - 95 % (ikke-kondenserende)
Min. lagertemperatur
-20 °C
Maks. Opbevaringstemperatur
70 °C
Lagerfugtighedsgrad
5 - 95 % (ikke-kondenserende)
