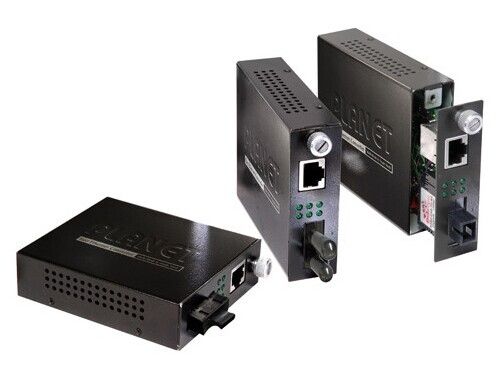

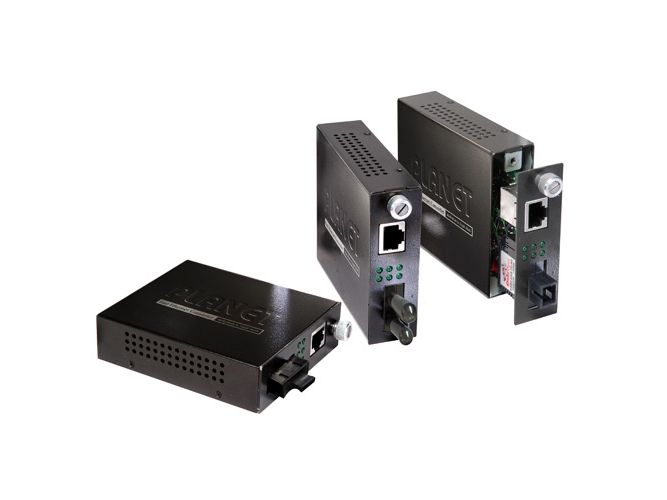

For the feature of plug and play and powerful smart function, Planet releases a 10/100Base-TX to 100Base-FX smart media converter FST-80x series.
The FST-80x series smart media converter provide auto MDI/MDI-X on their TP ports and store-and-forward mechanism for eliminating faulty packets. Use the DIP switch from the FST-80x to configure the available smart functions, such as the half / full duplex, auto-negotiation / force and 10/100Mbps options for TP and fiber interface. The LLR function can also immediately alarm network administrators for the media link issue and provide efficient solutions to monitor the entire network.
Produktbeskrivelse

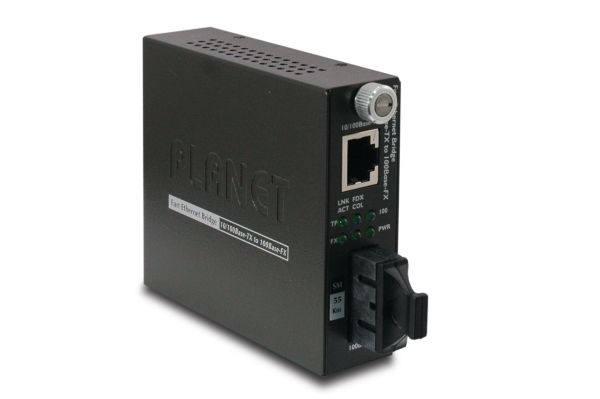

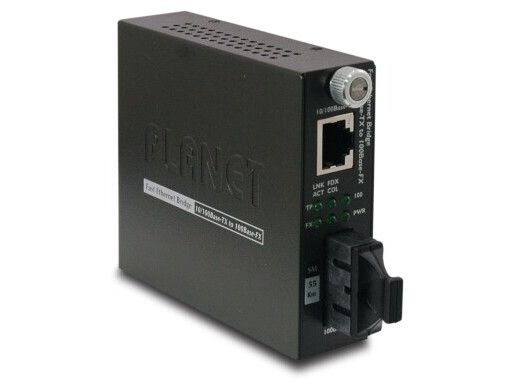

PLANET FST-802S50 - fibermedieomformer - 10Mb LAN, 100Mb LAN
Enhedstype
Fibermedieomformer - RJ-45 / SC enkelttilstand
Model
Ekstern
Kabeltype
10Base-T, 100Base-FX, 100Base-TX
Dataoverførselshastighed
100 Mbps
Optisk bølgelængde
1310 nm
Dataforbindelsesprotokol
10Mb LAN, 100Mb LAN
Maks. overføringsafstand
50 km
Dimensioner (B x D x H)
94 mm x 81 mm x 26 mm
Vægt
220 g
Generelt
Enhedstype
Fibermedieomformer
Model
Ekstern
Netværk
Forbindelsesteknologi
Kablet
Kabeltype
10Base-T, 100Base-FX, 100Base-TX
Dataforbindelsesprotokol
10Mb LAN, 100Mb LAN
Dataoverførselshastighed
100 Mbps
Optisk bølgelængde
1310 nm
Maks. overføringsafstand
50 km
Statusindikatorer
Strøm, link/aktivitet
Egenskaber
Auto-negotiation, auto-uplink (auto MDI/MDI-X), halv dupleksmodus, fuld dupleksmodus, Link Loss Return (LLR), Link Loss Carry Forward (LLCF), Link Fault Pass Through function (LFP)
Overensstemmelsesstandarder
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ekspansion / Konnektivitet
Interface
1 x Ethernet 10Base-T/100Base-TX - RJ-45 1 x Ethernet 100Base-FX - SC single-mode
Diverse
Overensstemmelsesstandarder
FCC Klasse B-certificeret
Mål og vægt
Bredde
94 mm
Dybde
81 mm
Højde
26 mm
Vægt
220 g
Miljømæssige parametre
Min. driftstemperatur
0 °C
Maks. driftstemperatur
50 °C
Fugtighedsgrad ved brug
5 - 90%
