PLANET IGSW-24040T, Managed, L3, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, 1U

Item no.: [3720250] | Manufacturer: Planet Technology | Model no.: IGSW-24040T | EAN: 4711213688898

out of stock

The item is not in stock. More info

Varen er ikke på lager.

Brug funktionen ”Giv mig besked..." herunder for opdateringer.

Shipping @price - GLS

12,00

EUR 768,10

Incl. VAT 960,13

Total incl. delivery 975,13

Notify me when the item is in stock again

Read further specifications and description

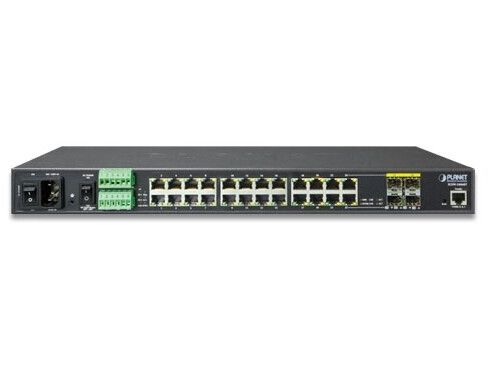

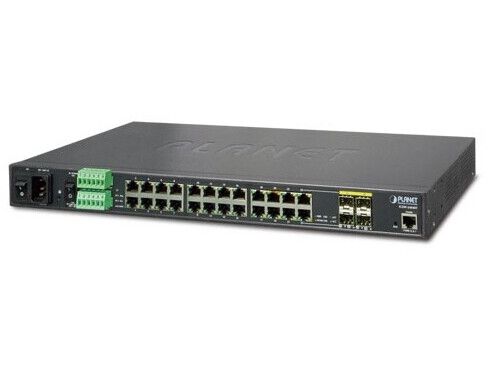

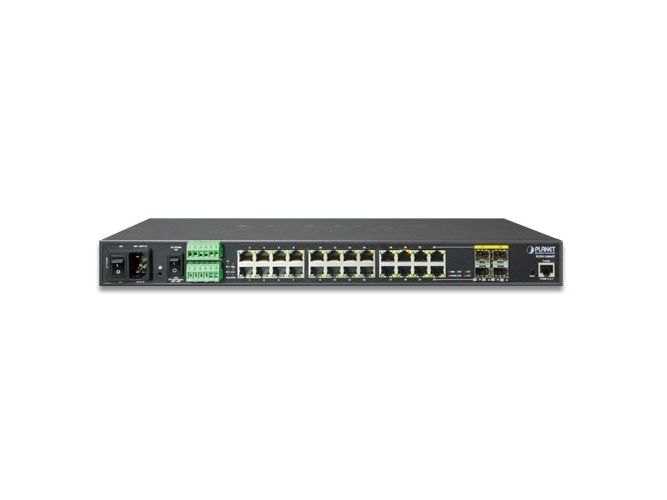

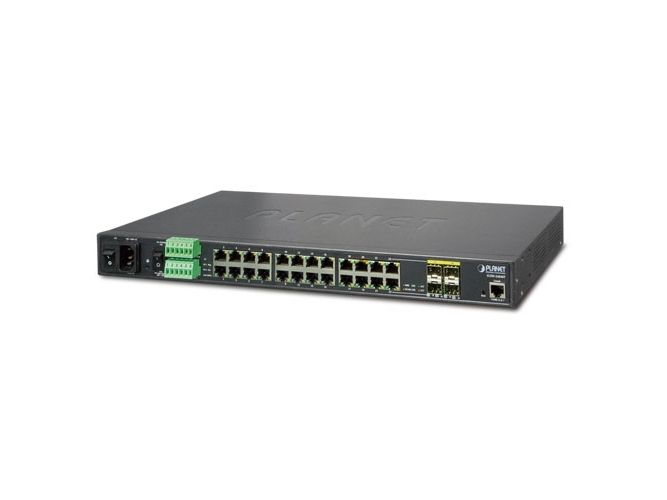

PLANET IGSW-24040T, an improved industrial Layer 2+ managed Gigabit switch, features 24 10/100/1000 ports and 4 shared SFP ports, and supports static Layer 3 routing in a 1U case. With a total switch fabric, the IGSW-24040T can handle large amounts of data in a secure topology, linking to an industrial backbone or high-capacity servers. The IGSW-24040T is capable of providing non-blocking switch fabric and wire-speed throughput in the wide temperature range without any packet loss and CRC error. It greatly simplifies the tasks of upgrading the industrial LAN for catering to increasing bandwidth demands. Furthermore, it adopts user-friendly "front access" design for easy wiring and maintenance of the IGSW-24040T, when placed in the cabinet.

Produktbeskrivelse	PLANET IGSW-24040T - switch - 24 porte - Administreret
Enhedstype	Switch - 24 porte - L2+ - Administreret
Pakningstype	1U
Undertype	Gigabit Ethernet
Porte	24 x 10/100/1000 + 4 x delt Gigabit SFP
Præstation	Båndbredde (fuld duplex): 16 Gbps Skift af stofbåndbredde: 48 Gbps Kapacitet: 35,71 Mpps
Kapacitet	VLAN-grupper: 255 Statiske ruter: 32 QoS hardware køer: 8
MAC adresse table størrelse	8K indtastningshukommelse
Jumborammesupport	9KB
Routingprotokol	IGMP, IGMPv2, IGMPv3, MLD, MLDv2
Protokol til fjernadministration	SNMP 3, SSH, Telnet, CLI, SNMP 1, SNMP 2c, TFTP, HTTP, RMON 1, RMON 2, RMON 3, RMON 9
Egenskaber	IGMP snooping, MDL snooping, MSTP support, QoS, ACL support, 802.1x autentificering, DHCP snooping, DAI, SNMP fælde, fuld dupleksmodus, halv dupleksmodus, mærket VLAN, BPDU, STP support, RSTP support, LACP, portspejling, løkkeforebyggelse, CoS, ToS, WRR kø, MVR, IP-kildebekyttelse, understøttet af BOOTP, firmware kan opgraderes, nulstillingsknap, dobbelt firmware-billeder, DHCP videresendelse, LLDP support, Cable Diagnostics Function, Syslog understøttet, auto-uplink (auto MDI/MDI-X), gem og send, 6KV ESD Protector, auto-negotiation, MIB II
Overensstemmelsesstandarder	IEEE 802.1x, IEEE 802.1s, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1D, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.1p, IEEE 802.1ab (LLDP), IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab
Dimensioner (B x D x H)	44 cm x 20 cm x 4.45 cm
Vægt	2.788 kg

Generelt
Enhedstype	Switch - 24 porte - L2+ - Administreret
Pakningstype	Desktop 1U
Undertype	Gigabit Ethernet
Porte	24 x 10/100/1000 + 4 x delt Gigabit SFP
Præstation	Båndbredde (fuld duplex): 16 Gbps Skift af stofbåndbredde: 48 Gbps Kapacitet: 35,71 Mpps
Kapacitet	VLAN-grupper: 255 Statiske ruter: 32 QoS hardware køer: 8
MAC adresse table størrelse	8K indtastningshukommelse
Jumborammesupport	9KB
Routingprotokol	IGMP, IGMPv2, IGMPv3, MLD, MLDv2
Protokol til fjernadministration	SNMP 3, SSH, Telnet, CLI, SNMP 1, SNMP 2c, TFTP, HTTP, RMON 1, RMON 2, RMON 3, RMON 9
Krypterings algoritme	SSL
Autentificeringsmetode	Secure Shell (SSH), RADIUS, TACACS+
Egenskaber	IGMP snooping, MDL snooping, MSTP support, QoS, ACL support, 802.1x autentificering, DHCP snooping, DAI, SNMP fælde, fuld dupleksmodus, halv dupleksmodus, mærket VLAN, BPDU, STP support, RSTP support, LACP, portspejling, løkkeforebyggelse, CoS, ToS, WRR kø, MVR, IP-kildebekyttelse, understøttet af BOOTP, firmware kan opgraderes, nulstillingsknap, dobbelt firmware-billeder, DHCP videresendelse, LLDP support, Cable Diagnostics Function, Syslog understøttet, auto-uplink (auto MDI/MDI-X), gem og send, 6KV ESD Protector, auto-negotiation, MIB II
Overensstemmelsesstandarder	IEEE 802.1x, IEEE 802.1s, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1D, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.1p, IEEE 802.1ab (LLDP), IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab
Statusindikatorer	Link/aktivitet, system
Ekspansion / Konnektivitet
Interface	24 x 1000Base-T RJ-45 4 x 1000Base-X SFP 1 x administration (RS-232) DB-9
Diverse
Overensstemmelsesstandarder	IP30, FCC Part 15 A
Mål og vægt
Bredde	44 cm
Dybde	20 cm
Højde	4.45 cm
Vægt	2.788 kg
Miljømæssige parametre
Fugtighedsgrad ved brug	5 - 95 % (ikke-kondenserende)
Min. lagertemperatur	-40 °C
Maks. Opbevaringstemperatur	80 °C
Lagerfugtighedsgrad	5 - 95 % (ikke-kondenserende)

The item is known under the following item numbers in our system

EAN:	4711213688898
SKU:	IGSW-24040T

Why do I find that the same product is available on different item numbers?

Manufacturers often release the same product with different item numbers, typically just different versions of the packaging. For example, the packaging may be targeted at different countries. We try our best to unify the products, but it can happen that the same product appears on different item numbers in our system.
