The NPort 6600 series of secure device server is the right choice for applications that use large numbers of serial devices packed into a small space. If you're worried about security, you can rest assured with the NPort 6600, since it supports DES, 3DES, and AES, the three most common standards for data encryption. Serial devices can be connected to the NPort 6600, and the serial port on the NPort can be configured for RS-232 transmission.
Produktbeskrivelse

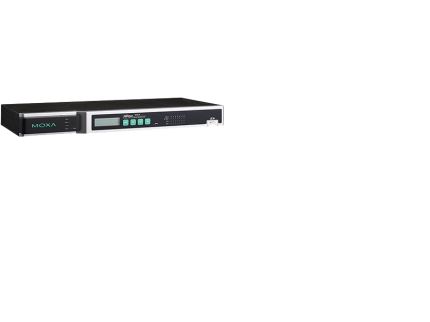

Moxa NPort 6610-16 - enhedsserver
Enhedstype
Enhedsserver
Formfaktor
Ekstern
Antal porte
16
Dataforbindelsesprotokol
Ethernet, Fast Ethernet, RS-232
OS nødvendig
SCO OpenServer, UnixWare 7, SCO Unix, QNX, FreeBSD, UnixWare 2.1, Microsoft Windows XP Embedded, Microsoft Windows Server 2003, Linux 2.4.x, IBM AIX 5.x, Microsoft Windows 95/98/ME/NT/2000/XP, SunSoft Solaris 10, Microsoft Windows 7, Linux 2.6.x, Microsoft Windows CE 5.0, Microsoft Windows Server 2008, Microsoft Windows CE 6.0
Effekt
AC 120/230 V
Dimensioner (B x D x H)
44 cm x 19.5 cm x 4.4 cm
Vægt
3.6 kg
Producentgaranti
5 års garanti
Generelt
Enhedstype
Enhedsserver
Bredde
44 cm
Dybde
19.5 cm
Højde
4.4 cm
Vægt
3.6 kg
Netværk
Model
Ekstern
Antal porte
16
Forbindelsesteknologi
Kablet
Dataoverførselshastighed
921.6 Kbps
Dataforbindelsesprotokol
Ethernet, Fast Ethernet, RS-232
Netværks/overføselsprotokol
TCP/IP, UDP/IP, ICMP/IP, PPPoE, ARP, SMTP, BOOTP, DHCP, DNS
Routingprotokol
RIP-1, RIP-2, statisk IP routing
Protokol til fjernadministration
SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, SSH
Egenskaber
Datatransport, auto-sensing per device, DHCP-understøttelse, understøttet af BOOTP, dynamisk DNS-server, håndterbar, 15 KV Electrostatic Discharge Protection
Krypterings algoritme
DES, trippel DES, AES, SSL
Autentificeringsmetode
Secure Shell (SSH)
Overensstemmelsesstandarder
IEEE 802.3af
Kommunikationer
Understøttede flashhukommelseskort
SD hukommelseskort
Ekspansion / Konnektivitet
Interface
1 x 100Base-TX - RJ-45 16 x RS-232 - RJ-45 1 x administration
Diverse
Overensstemmelsesstandarder
EN55024, EN55022 Klasse A, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, FCC, EN 61000-4-11, RoHS, EN 61000-4-8, UL 60950-1, EN 60950-1, WEEE, IEC 60068-2-32, IEC 60068-2-6, IEC 60529 IP30, FCC Part 15 B Class A
Effekt
Strømenhed
Ekstern strømforsyning
Nødvendig spænding
AC 120/230 V
Programmer / Systemkrav
Med software
Drivers & Utilities
OS nødvendig
SCO OpenServer, UnixWare 7, SCO Unix, QNX, FreeBSD, UnixWare 2.1, Microsoft Windows XP Embedded, Microsoft Windows Server 2003, Linux 2.4.x, IBM AIX 5.x, Microsoft Windows 95/98/ME/NT/2000/XP, SunSoft Solaris 10, Microsoft Windows 7, Linux 2.6.x, Microsoft Windows CE 5.0, Microsoft Windows Server 2008, Microsoft Windows CE 6.0
Producentgaranti
Service & Support
Begrænset garanti - 5 år
Miljømæssige parametre
Min. driftstemperatur
0 °C
Maks. driftstemperatur
55 °C
Fugtighedsgrad ved brug
5 - 95 % (ikke-kondenserende)
