The NPort 6600 series of secure device servers is the right choice for applications that use large numbers of serial devices packed into a small space. Security breaches are intolerable and the NPort 6600 ensures data transmission integrity with support of DES, 3DES, and AES encryption algorithms. Serial devices of any type can be connected to the NPort 6600, and each serial port on the NPort can be configured independently for RS-232, RS-422, or RS-485 transmission.
Produktbeskrivelse

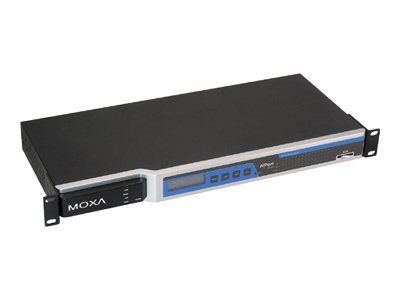

Moxa NPort 6610-8 - terminalserver
Enhedstype
Terminalserver
Formfaktor
Rackmonterbar
Antal porte
8
Dataforbindelsesprotokol
Ethernet, Fast Ethernet, RS-232, RS-485
OS nødvendig
SCO OpenServer, UnixWare 7, SCO Unix, QNX, FreeBSD, UnixWare 2.1, Microsoft Windows XP Embedded, IBM AIX 5.x, Microsoft Windows 95/98/ME/NT/2000/XP, SunSoft Solaris 10, Microsoft Windows Embedded CE 6.0, Linux Kernel 2.4 eller nyere, Linux Kernel 2.6 eller nyere, Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Microsoft Windows Vista / 7, Microsoft Windows Vista / XP / 7 (64-bit versioner)
Effekt
AC 120/230 V
Dimensioner (B x D x H)
44 cm x 19.5 cm x 4.4 cm
Vægt
3.6 kg
Producentgaranti
5 års garanti
Generelt
Enhedstype
Terminalserver
Bredde
44 cm
Dybde
19.5 cm
Højde
4.4 cm
Vægt
3.6 kg
Netværk
Model
Rackmonterbar
Antal porte
8
Forbindelsesteknologi
Kablet
Dataoverførselshastighed
921.6 Kbps
Dataforbindelsesprotokol
Ethernet, Fast Ethernet, RS-232, RS-485
Netværks/overføselsprotokol
TCP/IP, UDP/IP, ICMP/IP, PPPoE, ARP, SMTP, BOOTP, DHCP, DNS
Routingprotokol
RIP-1, RIP-2, statisk IP routing
Protokol til fjernadministration
SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, SSH
Egenskaber
Datatransport, auto-sensing per device, DHCP-understøttelse, understøttet af BOOTP, dynamisk DNS-server, håndterbar, 15 KV Electrostatic Discharge Protection
Krypterings algoritme
DES, trippel DES, AES, SSL
Autentificeringsmetode
Secure Shell (SSH)
Overensstemmelsesstandarder
IEEE 802.3af
Kommunikationer
Understøttede flashhukommelseskort
SD hukommelseskort
Ekspansion / Konnektivitet
Interface
1 x 100Base-TX - RJ-45 8 x RS-232 - RJ-45 1 x administration
Diverse
MTBF (forventet tid mellem fejl)
135,370 timer
Overensstemmelsesstandarder
EN55024, EN55022 Klasse A, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, FCC, EN 61000-4-11, RoHS, EN 61000-4-8, UL 60950-1, EN 60950-1, WEEE, FCC Part 15 B Class A
Effekt
Strømenhed
Ekstern strømforsyning
Nødvendig spænding
AC 120/230 V
Programmer / Systemkrav
Med software
Drivers & Utilities
OS nødvendig
SCO OpenServer, UnixWare 7, SCO Unix, QNX, FreeBSD, UnixWare 2.1, Microsoft Windows XP Embedded, IBM AIX 5.x, Microsoft Windows 95/98/ME/NT/2000/XP, SunSoft Solaris 10, Microsoft Windows Embedded CE 6.0, Linux Kernel 2.4 eller nyere, Linux Kernel 2.6 eller nyere, Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Microsoft Windows Vista / 7, Microsoft Windows Vista / XP / 7 (64-bit versioner)
Producentgaranti
Service & Support
Begrænset garanti - 5 år
Miljømæssige parametre
Min. driftstemperatur
0 °C
Maks. driftstemperatur
55 °C
Fugtighedsgrad ved brug
5 - 95 % (ikke-kondenserende)
