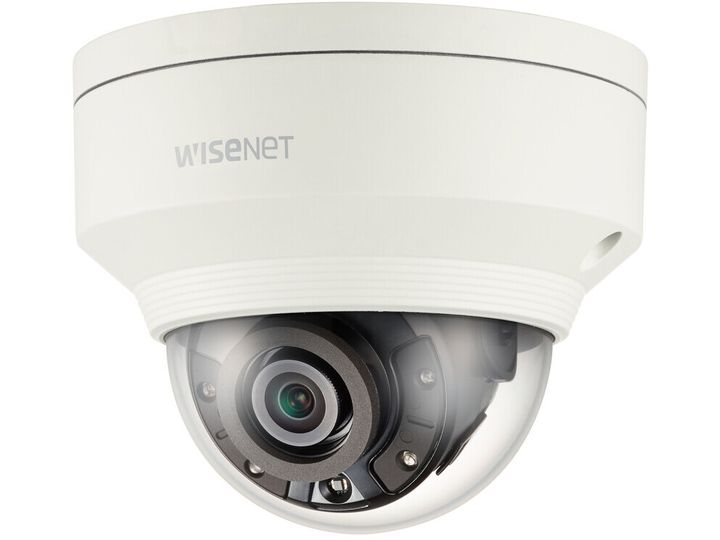

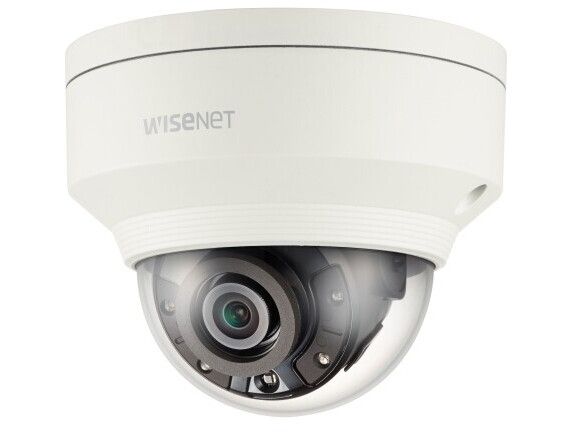

Hanwha XNV-6020R, IP security camera, Outdoor, Wired, Digital PTZ, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, French, Greek,..., Ceiling

Item no.: [4036350] | Manufacturer: Hanwha Techwin | Model no.: XNV-6020RP/EX | EAN: 8801089145697 | UNSPSC.: 45121521

Remote stock (14-21 days)

The item is in a remote warehouse, delivery time is 14-21 business days. More info

Shipping @price - GLS

12,00

EUR 646,88

Incl. VAT 808,60

Total incl. delivery 823,60

Read further specifications and description

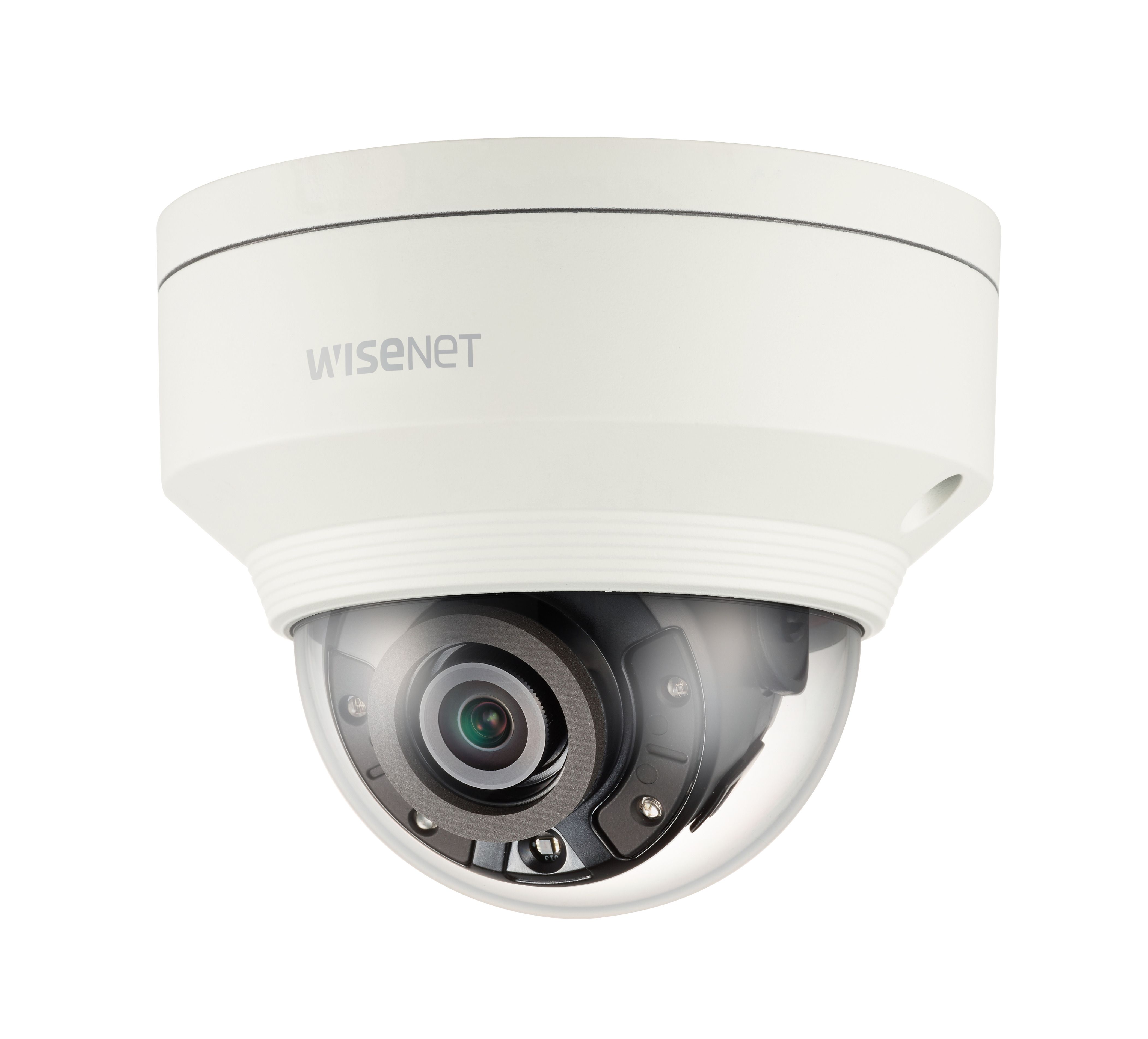

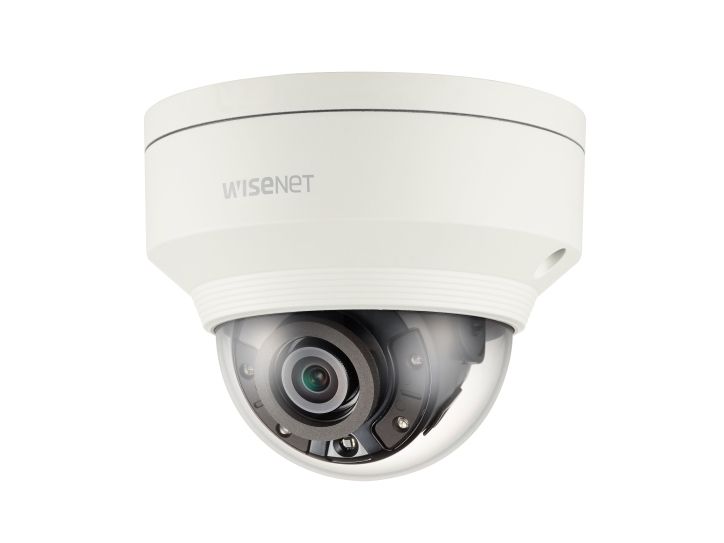

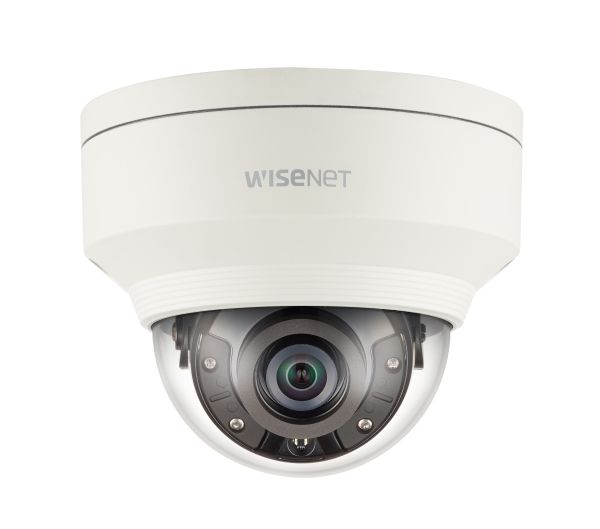

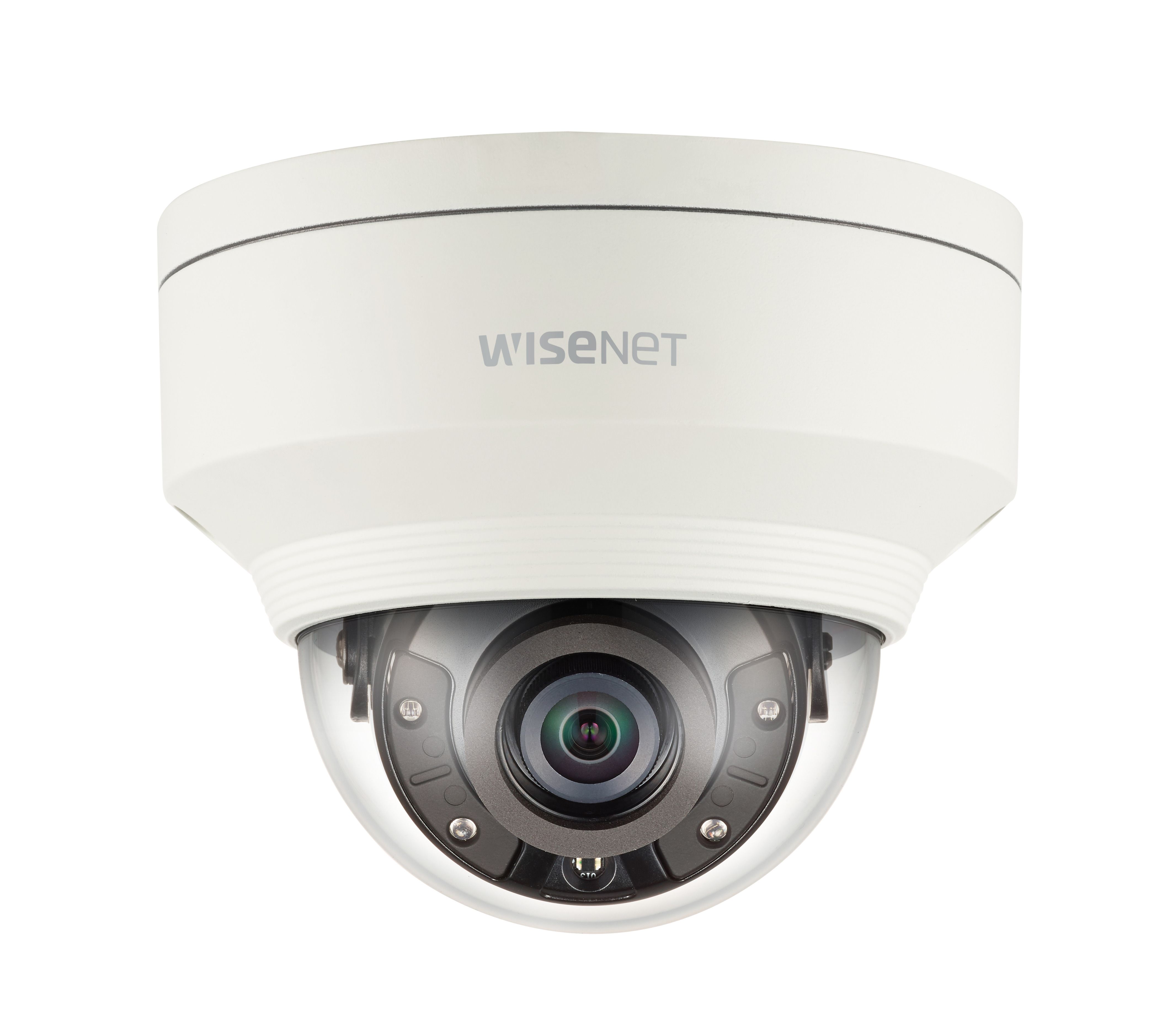

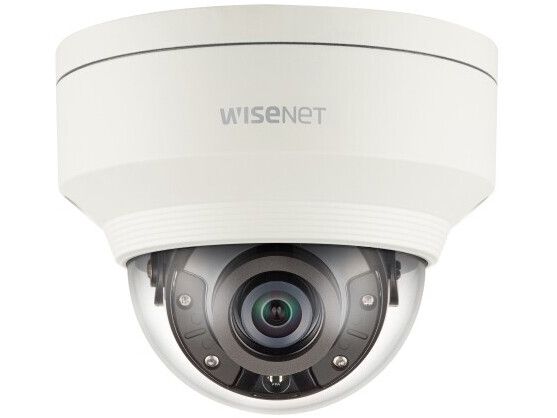

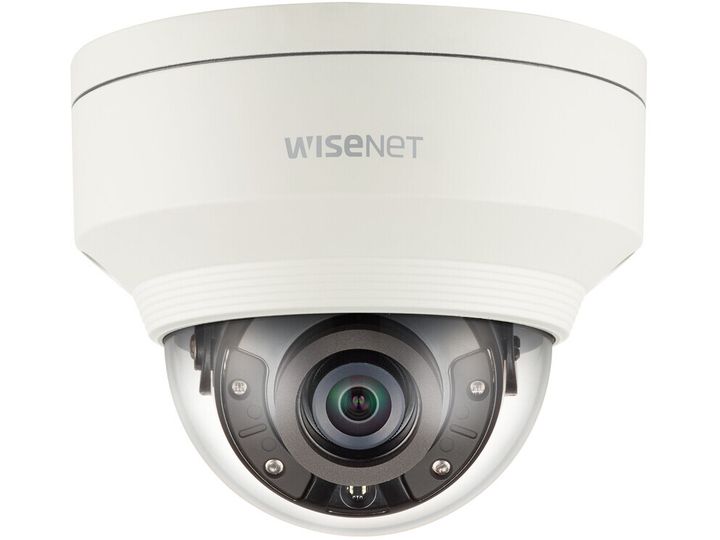

XNV-6020R
2M Vandal-Resistant Network Dome Camera

Max. 2megapixel (1920 x 1080) resolution
Built-in 4mm fixed lens
Max. 60fps@all resolutions (H.265/H.264)
IR Viewable length : 30m
H.265, H.264, MJPEG codec supported, Multiple streaming
Day & Night (ICR), WDR (150dB), Defog
Loitering, Directional detection, Fog detection,
Audio detection, Digital auto tracking, Sound
classification, Heatmap, People counting,
Queue management, Tampering
Motion detection, Handover
SD/SDHC/SDXC memory slot (Max. 512GB), PoE / 12V DC
Hallway view, WiseStream II support, IP67/IP66, IK10
LDC support (Lens Distortion Correction)

Wisenet X powered by Wisenet 5 network IR outdoor vandal dome camera, 2MP @60fps, 4mm fixed lens (88.6°), triple codec H.265/H.264/MJPEG with WiseStream II, Multiple streaming, 150dB WDR, True Day & Night (ICR), High Powered IR LEDs with IR viewable length 30m, Advanced Video Analytics and Sound Classification and Business Analytics, Hallway View, Motion detection, Fog detection, HLC, Handover, Digital Image Stabilization, Bi-directional audio and dual microSD/SDHC/SDXC slot, USB port for easy installation, IP67/IP66, IK10, PoE/12VDC

Accessories (Optional)
SBP-300B
SBP-300PM
SBP-122HM
SBP-300LM
SBP-300CM
SBP-300WM1
SBP-300WM
SBP-300KM
SBP-300NB

Bemærk, at alle Hanwha-produkter som standard leveres med 3 års garanti.
Hanwha STEP-partnere kan opnå op til 5 års garanti. Kontakt Solar Sikring for at høre nærmere om Hanwha STEP-partnerprogrammet.

Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
PTZ control	Yes
PTZ modes	Digital PTZ
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Alarm input/output	Yes
Languages support	Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish
Mounting type	Ceiling
Product colour	Ivory
Form factor	Dome
Housing material	Metal
Protection features	Vandal proof
International Protection (IP) code	IP67
IK code	IK10
Fog proof	Yes
Minimum illumination	0 lx
Angle of rotation	355°
Lens viewing angle, horizontal	88.6°
Lens viewing angle, vertical	47.5°
Lens viewing angle, diagonal	104.8°
Tilt angle range	0 - 67°
Pan range	0 - 354°
White balance	ATW, AWC, Indoor, Manual, Mercury lamp, Outdoor, Sodium lamp
Camera shutter type	Electronic
Camera shutter speed	2 - 1/12000 s
Adjustment shutter speed	Manual
Sensor type	CMOS
Optical sensor size	25.4 / 2.8 mm (1 / 2.8")
Progressive scan	Yes
Number of effective pixels (H x V)	1945 x 1097 pixels
Focus	Manual
Maximum aperture number	1.4
Fixed focal length	4 mm
Night vision	Yes
Night vision distance	30 m
LED type	IR
Maximum resolution	1920 x 1080 pixels
Total megapixels	2 MP
Video compression formats	H.264, H.265, M-JPEG, MPEG4
Supported graphics resolutions	320 x 240, 640 x 360, 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 448, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Frame rate	60 fps
Video streaming	Yes
Noise reduction	Yes
Full HD	Yes
Flip & mirror	Yes
Privacy masking	Yes
Back Light Compensation (BLC)	Yes
Highlight Compensation (HLC)	Yes
Audio system	2-way
Signal-to-Noise Ratio (SNR)	50 dB
Voice codecs	G.711, G.726
Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.1x, IEEE 802.3af
Supported network protocols	TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Cabling technology	10/100Base-T(X)
Number of users	20 user(s)
Quality of Service (QoS) support	Yes
Streaming method	Multicast, Unicast
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC
Maximum memory card size	512 GB
Ethernet LAN (RJ-45) ports	1
Microphone in	Yes
Interface	RJ-45
Video motion detection	Yes
Active tampering alarm	Yes
IP address filtering	Yes
Power source type	PoE
Power consumption (max)	8 W
Power consumption (Power over Ethernet (PoE))	9 W
DC output voltage	12
Power over Ethernet (PoE)	Yes
Operating temperature (T-T)	30 - 55 °C
Storage temperature (T-T)	50 - 60 °C
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac compatibility	Yes
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra
Height	97.5 mm
Diameter	12 cm
Weight	615 g
Number of cameras	1
USB connectivity	Yes
Lens mount interface	Board mount
Maximum output level	1 Vpp
Output impedance	75 Ω
