Inter-Tech ASPOWER U1A-C20300-D, 300 W, 115 - 230 V, Over current, Over power, Over voltage, Overheating, Short circuit, 20+4 pin ATX, Non-Modular, Server
The item is in a remote warehouse, delivery time is 2-3 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
106,91
Incl. VAT 133,64
Total incl. delivery
148,64
Add to list
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Hochwertiges, 300 Watt starkes, Server-Netzteil mit bis zu 90% Effizienz.
Produktbeskrivelse

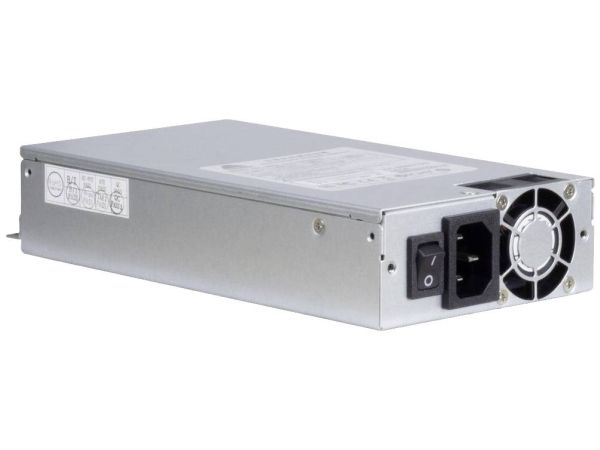

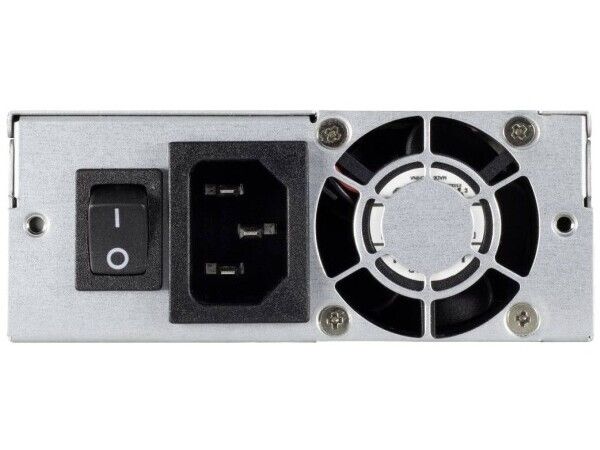

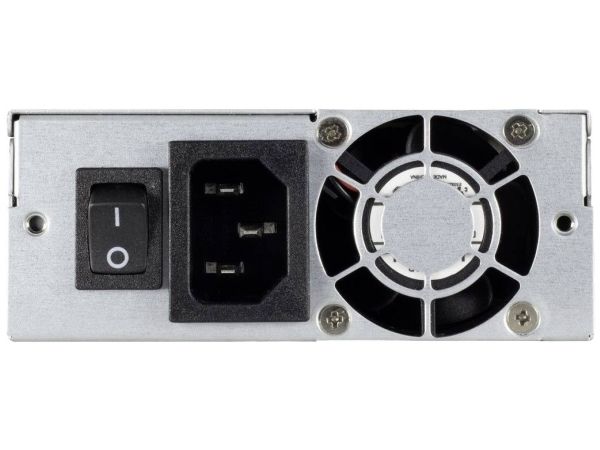

ASPOWER U1A-C20300-D - strømforsyning - 300 watt
Enhedstype
Strømforsyning - Power Factor Correction (PFC) - intern
Vægt
1.28 kg
Indgangspænding
AC 100-240 V
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
300 watt
Output Current
+3.3V - 18 A +5V - 18 A +12V - 24 A -12V - 1 A +5VSB - 3 A
Output-stikforbindelser
2 x 15 pin Serial ATA strøm 4 x 4-PIN intern strøm 1 x 4-PIN mini-strømforsyningsforbinder 1 x strøm 24 pin ATX 1 x strøm 8 pin +12 V med aftagelig 4 pin sektion
Kølesystem
40mm blæser
Dimensioner (B x D x H)
10 cm x 20.5 cm x 4 cm
Producentgaranti
3 års garanti
Generelt
Enhedstype
Strømforsyning - Power Factor Correction (PFC) - intern
Strømenhed
Indgangspænding
AC 100-240 V
Nødvendig frekvens
47 - 63 Hz
Detaljer om strømudgangskonnektorer
2 x 15 pin Serial ATA strøm 4 x 4-PIN intern strøm 1 x 4-PIN mini-strømforsyningsforbinder 1 x strøm 24 pin ATX 1 x strøm 8 pin +12 V med aftagelig 4 pin sektion
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
300 watt
Output Current
+3.3V - 18 A +5V - 18 A +12V - 24 A -12V - 1 A +5VSB - 3 A
Diverse
Medfølgende ledninger
Strømkabel
MTBF (forventet tid mellem fejl)
100,000 timer
Kølesystem
40mm blæser
Egenskaber
Beskyttelse mod overstrøm, overspændingsbeskyttelse, overbelastningsbeskyttelse, beskyttelse mod overophedning, kortslutnings beskyttelse
Producentgaranti
Service & Support
Begrænset garanti - 3 år
Mål og vægt
Bredde
10 cm
Dybde
20.5 cm
Højde
4 cm
Vægt
1.28 kg
