Finder 22.21.8.230.4000 Industrirelæ Nominel spænding: 230 V/AC Brydestrøm (max.): 20 A 1 x sluttekontakt 1 stk
Item no.: [4242917] | Manufacturer: FINDER | Model no.: 22.21.8.230.4000 | EAN: 8012823111087
Remote stock (4-5 days)
The item is in a remote warehouse, delivery time is 3-4 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
17,38
Incl. VAT 21,73
Total incl. delivery
36,73
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Create user
Login
Create user
Login
Send på mail

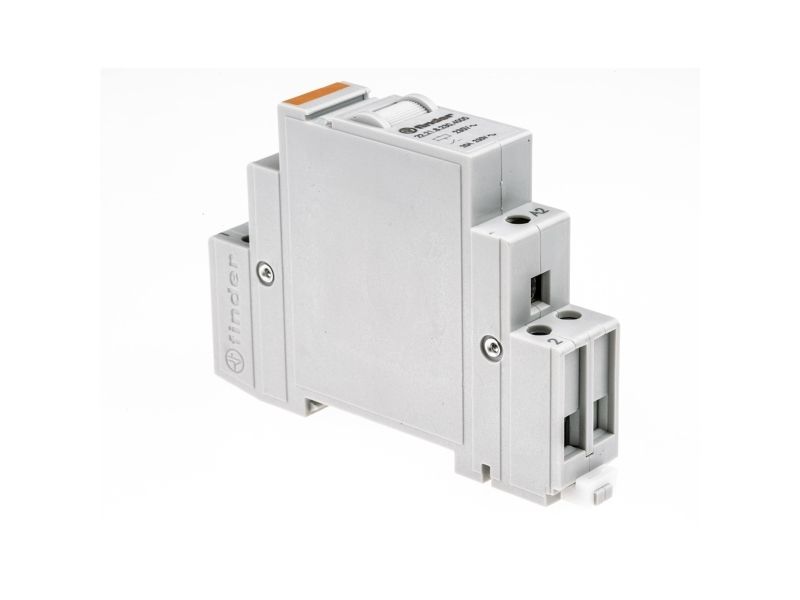

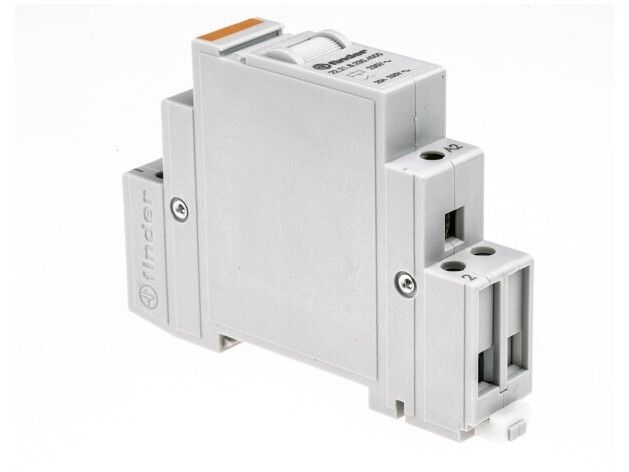

Finder Non-latching Relay
The Finder 22 series DIN rail mount non-latching relay has contact configuration of SPNO. It is actuated with 230V coil voltage and 20A switching current. This modular monostable relay is equipped with 20A, 250VAC cadmium-free contacts rated at 5000V AC1. This relay has a nominal lamp load rating of 1000W for incandescent and 360W for compensated fluorescent.
Features and Benefits
Coil power is 1.25W
Coil resistance is 4.25Kohm
17.5mm wide
35mm DIN rail mount housing
Identification label
Insulation between coil and contacts (1.2/50??) is 4KV
Manual test button
Mechanical life is 500 x103 cycles
Operating temperature ranges between -40°C and 40°C
Screw terminal type
Applications
Air conditioning
Heating
Lighting
Certifications
CE certified
GOST
IP20 rated
EN 50022
The Finder 22 series DIN rail mount non-latching relay has contact configuration of SPNO. It is actuated with 230V coil voltage and 20A switching current. This modular monostable relay is equipped with 20A, 250VAC cadmium-free contacts rated at 5000V AC1. This relay has a nominal lamp load rating of 1000W for incandescent and 360W for compensated fluorescent.
Features and Benefits
Coil power is 1.25W
Coil resistance is 4.25Kohm
17.5mm wide
35mm DIN rail mount housing
Identification label
Insulation between coil and contacts (1.2/50??) is 4KV
Manual test button
Mechanical life is 500 x103 cycles
Operating temperature ranges between -40°C and 40°C
Screw terminal type
Applications
Air conditioning
Heating
Lighting
Certifications
CE certified
GOST
IP20 rated
EN 50022
