Finder 22.23.8.230.4000 Industrirelæ Nominel spænding: 230 V/AC Brydestrøm (max.): 20 A 1 x sluttekontakt, 1 x brydekontakt 1 stk
Item no.: [4242927] | Manufacturer: FINDER | Model no.: 22.23.8.230.4000 | EAN: 8012823268064
Remote stock (1-2 days)
The item is in a remote warehouse, delivery time is 1-2 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
24,71
Incl. VAT 30,89
Total incl. delivery
45,89
Add to list
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Send på mail

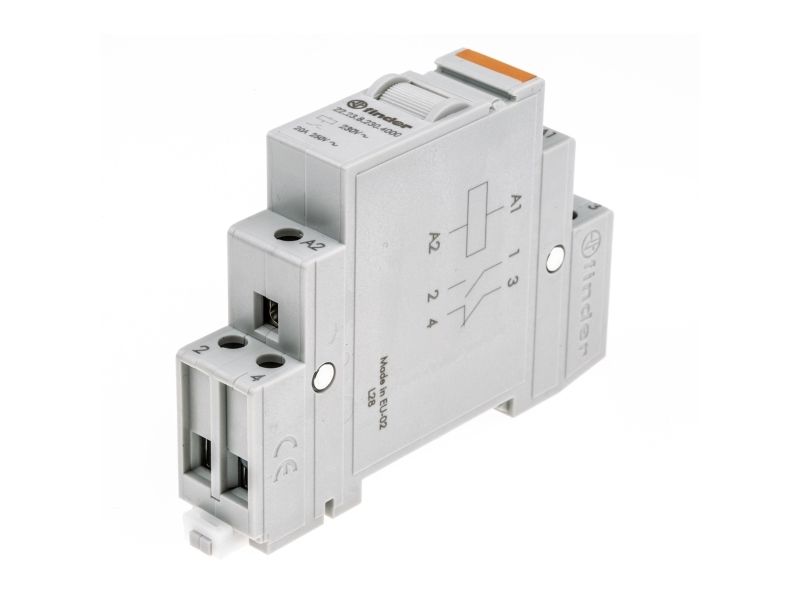

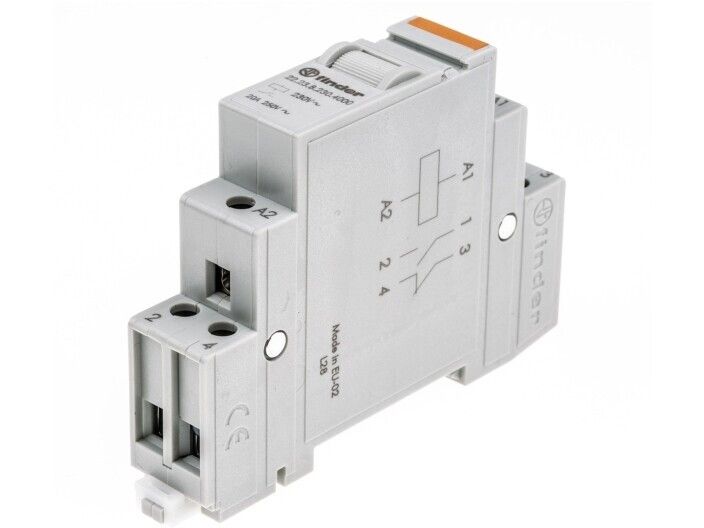

Finder Monostable Din Relay
The Finder 22 series DIN rail mount non-latching relay has contact configuration of SPST-NC, SPST-NO. It is actuated with a 230VAC coil and 20A switching current. This relay is equipped with 20A, 250VAC Cadmium-free contacts rated at 5000VAC1. The relay has a nominal lamp load rating of 1000W for incandescent and 360W for compensated fluorescent.
Features and Benefits
17.4 mm wide
35 mm rail mount
Coil power is 3W
Coil resistance is 4.25Kohm
Identification label
Insulation between coil and contacts(1.2/50??) 4KV
Manual test button
Mechanical life 500 x103 cycles
Operating temperature ranging between -40°C and 40°C
Screw terminal type
Applications
Air conditioning
Heating
Lighting
Certifications
CE certified
GOST
IP20 rated
EN 60715
