Finder DIN Rail Power Relay, 12V dc Coil, 20A Switching Current, SPST-NC, SPST-NO
Item no.: [4242928] | Manufacturer: FINDER | Model no.: 22.23.9.012.4000 | EAN: 8012823124797
out of stock
The item is not in stock. More info
Udsolgt
Varen er ikke på lager.
Brug funktionen ”Giv mig besked..." herunder for opdateringer.
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
21,12
Incl. VAT 26,40
Total incl. delivery
41,40
Notify me when the item is in stock again
Add to list
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Send på mail

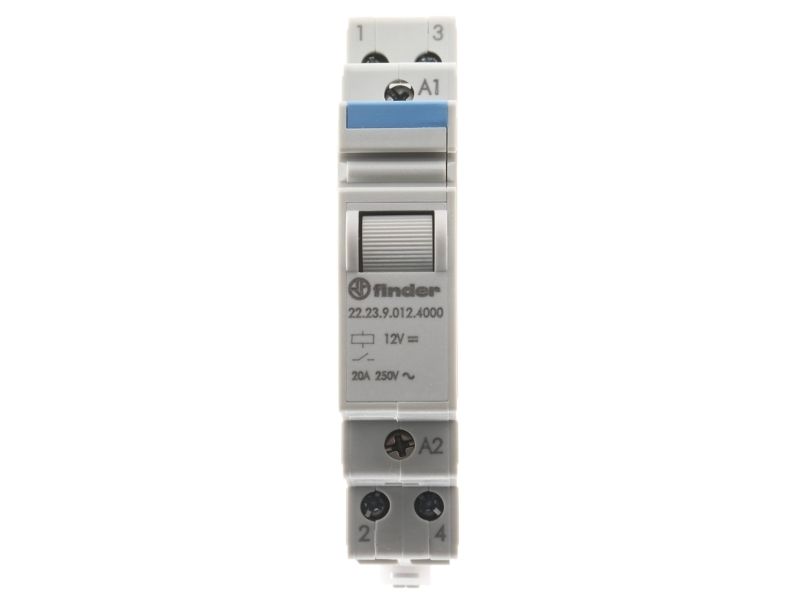

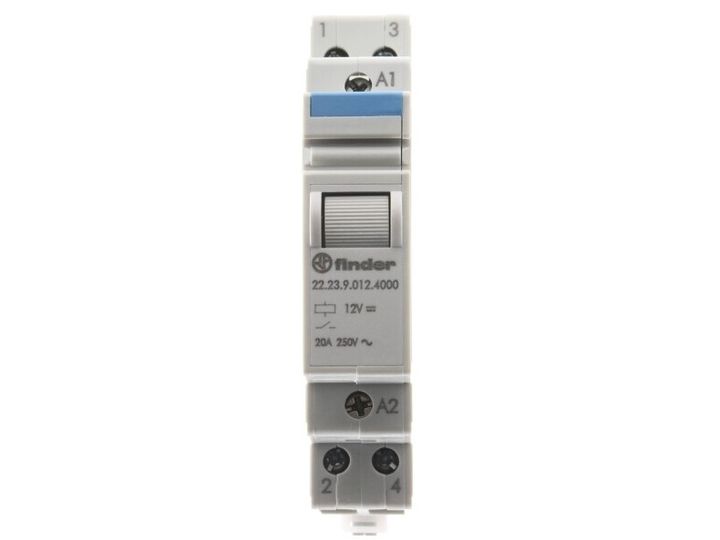

Finder Monostable Din Relay
The Finder 22 series DIN rail mount non-latching relay has contact configuration of SPST-NC, SPST-NO. It is actuated with a 12VDC coil and 20A switching current. This relay is equipped with 20A, 250VAC Cadmium-free contacts rated at 5000VAC1. The relay has a nominal lamp load rating of 1000W for incandescent and 360W for compensated fluorescent.
Features and Benefits
17.4 mm wide
35 mm rail mount
Coil power is 1.25W
Coil resistance is 115ohm
Identification label
Insulation between coil and contacts(1.2/50??) is 4KV
Manual test button
Mechanical life 500 x103 cycles
Operating temperature ranging between -40°C and 40°C
Screw terminal type
Applications
Air conditioning
Heating
Lighting
Certifications
CE certified
GOST
IP20 rated
EN 60715
The Finder 22 series DIN rail mount non-latching relay has contact configuration of SPST-NC, SPST-NO. It is actuated with a 12VDC coil and 20A switching current. This relay is equipped with 20A, 250VAC Cadmium-free contacts rated at 5000VAC1. The relay has a nominal lamp load rating of 1000W for incandescent and 360W for compensated fluorescent.
