Finder PCB Mount Power Relay, 12V dc Coil, 10A Switching Current, SPDT

Item no.: [4243117] | Manufacturer: FINDER | Model no.: 40.51.9.012.0000 | EAN: 2050013280881
Remote stock (4-5 days)
The item is in a remote warehouse, delivery time is 3-4 business days. More info
Delivery options  - Select at checkout
Shipping @price - GLS
12,00
EUR 4,79
Incl. VAT 5,99
Total incl. delivery 20,99

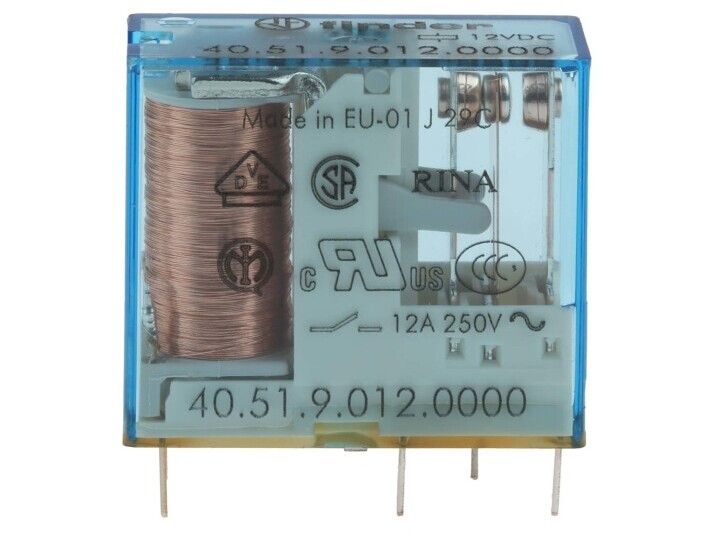

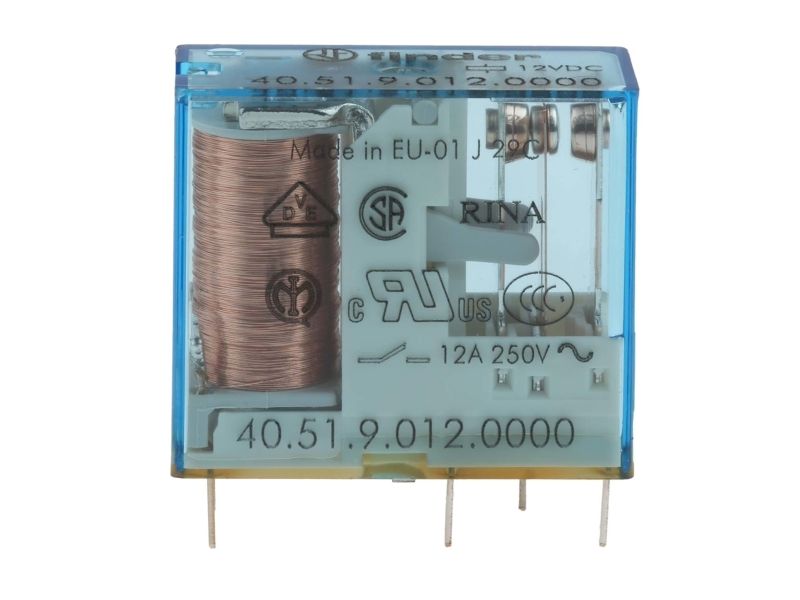

Finder SPDT Miniature PCB Relay
The Finder 40 series PCB mount non-latching relay has a contact configuration of SPDT. It is actuated with a 12VDC coil voltage and 10A switching current.
Features and Benefits
Insulation coil to contact is 6kV
Coil power is 650mW
Coil resistance is 220ohm
Pin pitch is 5mm
Pin length 5mm
Cadmium-free contact material
8mm creepage and clearance
Operating temperature ranging between -40°C and 85°C
PCB pin terminal type
Applications
Automation for blinds, grilles and shutters
Door and gate openers
Electronic circuit boards
Medical and dentistry control panels
Panels for electrical distribution
Toys
Vending machines
Certifications
CSA certified
GOST approved
IMQ approved
RINA approved
SEV approved
UL approved
US approved
VDE approved
