Finder Plug In Power Relay, 12V dc Coil, 12A Switching Current, DPDT
Item no.: [4243251] | Manufacturer: FINDER | Model no.: 56.32.9.012.0040 | EAN: 8012823098180
Remote stock (5-7 days)
The item is in a remote warehouse, delivery time is 5-7 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
74,09
Incl. VAT 92,61
Total incl. delivery
107,61
Add to list
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Send på mail

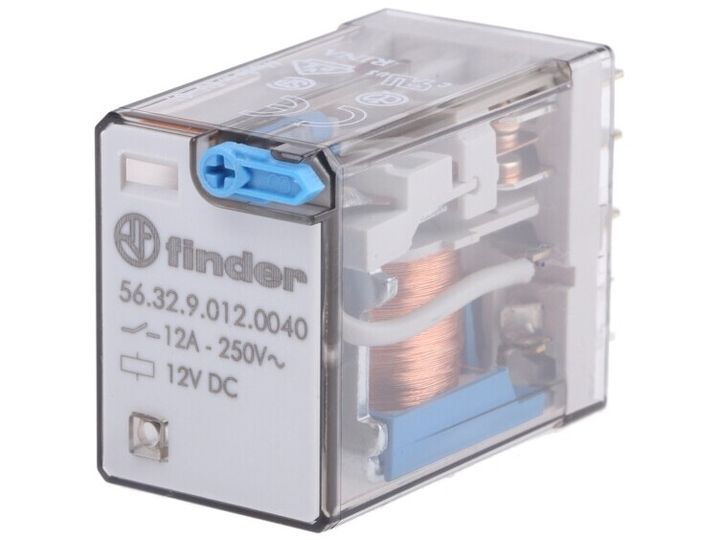

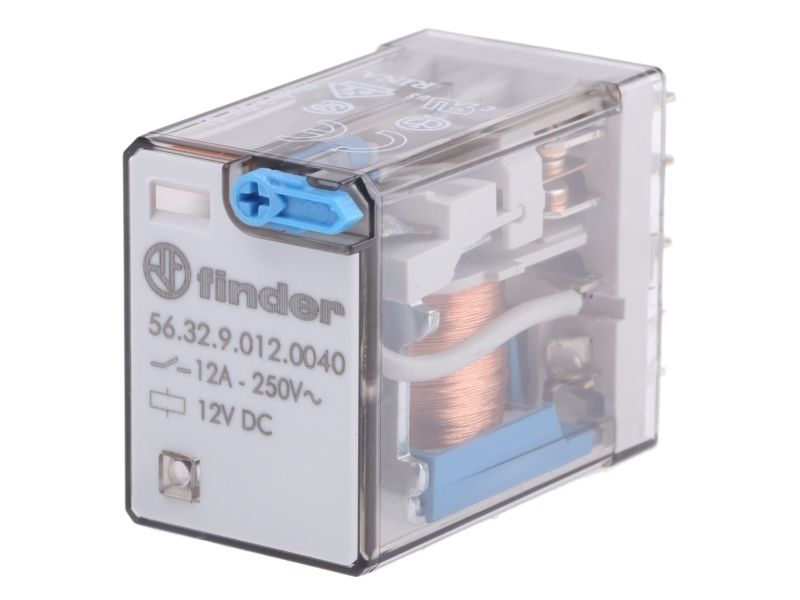

Finder DPDT Miniature Power Plug-In Relay
The Finder 56 Series 2-pole plug-in mount non-latching relay has a contact configuration of DPDT. It is actuated with a 12VDC coil and has switching current of 12A.
Note:
Uses 96 series sockets
Features and Benefits
Coil power is 1.5W
Coil resistance is 17kohm
Ambient temperature ranges between -40°C and 70°C
Lockable test button
mechanical flag indicator
Silver-nickel cadmium free contacts
Quick connect terminal type
Certifications
CE certified
IMQ
VDE approved
CSA certified
The Finder 56 Series 2-pole plug-in mount non-latching relay has a contact configuration of DPDT. It is actuated with a 12VDC coil and has switching current of 12A.
Note:
Uses 96 series sockets
Features and Benefits
Coil power is 1.5W
Coil resistance is 17kohm
Ambient temperature ranges between -40°C and 70°C
Lockable test button
mechanical flag indicator
Silver-nickel cadmium free contacts
Quick connect terminal type
Certifications
CE certified
IMQ
VDE approved
CSA certified
