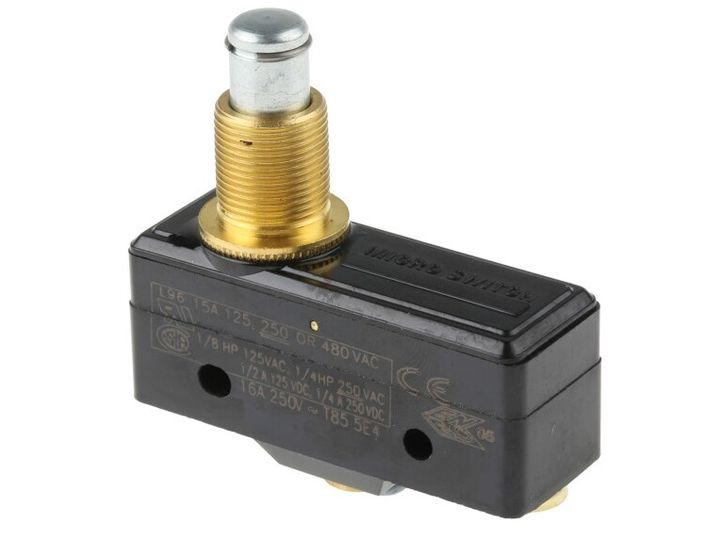

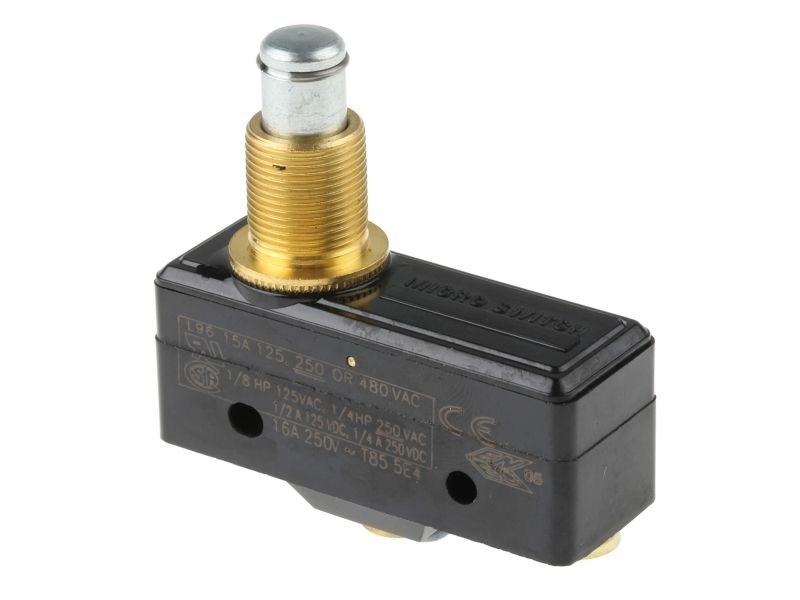

Honeywell Plunger Micro Switch, Screw Terminal, SP-CO, IP65
Item no.: [4249829] | Manufacturer: Honeywell | Model no.: BZ-2RQ1-A2 | EAN: 2050001344632
Remote stock (4-5 days)
The item is in a remote warehouse, delivery time is 3-4 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
20,67
Incl. VAT 25,84
Total incl. delivery
40,84
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Create user
Login
Create user
Login
Send på mail
Heavy-duty Type (a) Microswitch
Available with a choice of actuators
Connection by screw and cup washer
Panel mounting types should be bush mounted using the supplied fixing nuts
The collapsible roller version operates in one direction only
Optional terminal cover has knockouts to provide a choice of wiring positions
Contact Rating; 15A 480Vac/28Vdc
Contact material; silver
Approvals
UL; CSA
Honeywell Plunger Microswitch, 15A, Panel Mounting - BZ Series - BZ-2RQ1-A2
Use this plunger microswitch from Honeywell for enhanced control in your industrial machinery. Its plunger actuator features extra overtravel to break the circuit if operating limits are surpassed, protecting equipment against damage and personnel against injury. The unit's SPDT (single pole double throw) configuration means it has two output terminals, making it a good choice for controlling two systems at once for increased efficiency. Thanks to its phenolic housing material, it's resistant to heat, chemicals and impact for use in demanding environments.
Features & Benefits
Silver contacts are highly conductive and resistant to corrosion for reliable switching
Long service life of up to 20 million mechanical cycles for long-lasting performance
Wide operating temperature range of -55°C to +85°C for use in demanding environments
Compact dimensions of 49.3 (length) x 17.5 (width) x 24.1mm (height) to add minimal bulk to your equipment
Applications
Measuring and timing devices
Conveyor systems
Manufacturing industry
What's the voltage rating of this microswitch?
This microswitch has a broad operating voltage range of 125 to 250V AC/DC, making it suitable for use in a wide variety of setups.
Available with a choice of actuators
Connection by screw and cup washer
Panel mounting types should be bush mounted using the supplied fixing nuts
The collapsible roller version operates in one direction only
Optional terminal cover has knockouts to provide a choice of wiring positions
Contact Rating; 15A 480Vac/28Vdc
Contact material; silver
Approvals
UL; CSA
Honeywell Plunger Microswitch, 15A, Panel Mounting - BZ Series - BZ-2RQ1-A2
Use this plunger microswitch from Honeywell for enhanced control in your industrial machinery. Its plunger actuator features extra overtravel to break the circuit if operating limits are surpassed, protecting equipment against damage and personnel against injury. The unit's SPDT (single pole double throw) configuration means it has two output terminals, making it a good choice for controlling two systems at once for increased efficiency. Thanks to its phenolic housing material, it's resistant to heat, chemicals and impact for use in demanding environments.
Features & Benefits
Silver contacts are highly conductive and resistant to corrosion for reliable switching
Long service life of up to 20 million mechanical cycles for long-lasting performance
Wide operating temperature range of -55°C to +85°C for use in demanding environments
Compact dimensions of 49.3 (length) x 17.5 (width) x 24.1mm (height) to add minimal bulk to your equipment
Applications
Measuring and timing devices
Conveyor systems
Manufacturing industry
What's the voltage rating of this microswitch?
This microswitch has a broad operating voltage range of 125 to 250V AC/DC, making it suitable for use in a wide variety of setups.
