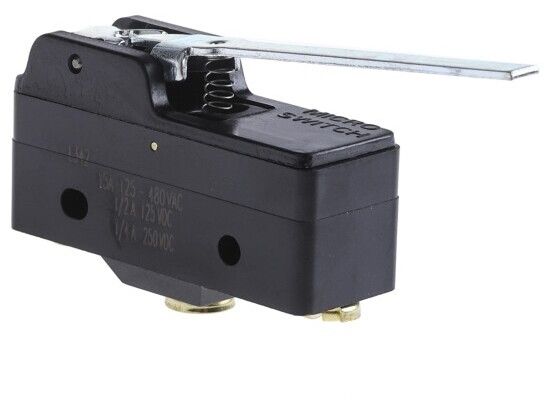

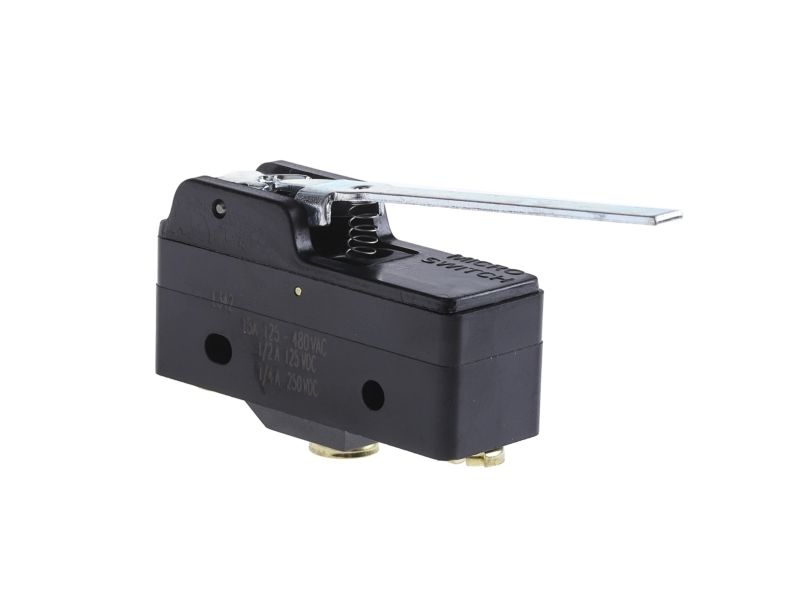

Honeywell Lever Micro Switch, Screw Terminal, 15 A 125 V ac, SPDT, IP64
Item no.: [4249830] | Manufacturer: Honeywell | Model no.: BZ-2RW80-A2 | EAN: 2050001344649
Remote stock (4-5 days)
The item is in a remote warehouse, delivery time is 3-4 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
20,48
Incl. VAT 25,60
Total incl. delivery
40,60
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Create user
Login
Create user
Login
Send på mail
Heavy-duty Type (a) Microswitch
Available with a choice of actuators
Connection by screw and cup washer
Panel mounting types should be bush mounted using the supplied fixing nuts
The collapsible roller version operates in one direction only
Optional terminal cover has knockouts to provide a choice of wiring positions
Contact Rating; 15A 480Vac/28Vdc
Contact material; silver
Approvals
UL; CSA
Honeywell SPDT Heavy-Duty Lever Microswitch, 15A, 125V AC - BZ Series - BZ-2RW80-A2
This heavy-duty microswitch from Honeywell provides a high-quality control solution for commercial and industrial machines. The snap-action lever is reliable and long-lasting thanks to the strong, one-piece copper-beryllium alloy spring. This helps the switch achieve an extended mechanical lifespan of 20,000,000 cycles. The microswitch's internal mechanism has a tough, high-grade phenolic resin protective case that's accurately moulded to keep the device compact at 49.3mm in length. This means you can install it in tight spaces. The silver contacts ensure a reliable connection and the screw terminals keep the wiring securely in place.
Features & Benefits
Comes with fixing nuts and wide mounting hole for easy installation
Compact 2.5-inch lever to work in tight spaces
Wide operating temperature range of -55°C +85°C makes it suitable for extreme conditions
Industry-standard current rating of 15A at 125V AC, so it's compatible with common electrical supply systems
Applications
Automotive industry
Medical test equipment and instrumentation
HVAC (heating, ventilation and air conditioning) systems
Where can I install this microswitch?
This type of lever microswitch is handy for installing on doors and guards to increase workplace safety and security. It's also useful to control lifts, irrigation systems and dental equipment.
Approvals
UL; CSA
Available with a choice of actuators
Connection by screw and cup washer
Panel mounting types should be bush mounted using the supplied fixing nuts
The collapsible roller version operates in one direction only
Optional terminal cover has knockouts to provide a choice of wiring positions
Contact Rating; 15A 480Vac/28Vdc
Contact material; silver
Approvals
UL; CSA
Honeywell SPDT Heavy-Duty Lever Microswitch, 15A, 125V AC - BZ Series - BZ-2RW80-A2
This heavy-duty microswitch from Honeywell provides a high-quality control solution for commercial and industrial machines. The snap-action lever is reliable and long-lasting thanks to the strong, one-piece copper-beryllium alloy spring. This helps the switch achieve an extended mechanical lifespan of 20,000,000 cycles. The microswitch's internal mechanism has a tough, high-grade phenolic resin protective case that's accurately moulded to keep the device compact at 49.3mm in length. This means you can install it in tight spaces. The silver contacts ensure a reliable connection and the screw terminals keep the wiring securely in place.
Features & Benefits
Comes with fixing nuts and wide mounting hole for easy installation
Compact 2.5-inch lever to work in tight spaces
Wide operating temperature range of -55°C +85°C makes it suitable for extreme conditions
Industry-standard current rating of 15A at 125V AC, so it's compatible with common electrical supply systems
Applications
Automotive industry
Medical test equipment and instrumentation
HVAC (heating, ventilation and air conditioning) systems
Where can I install this microswitch?
This type of lever microswitch is handy for installing on doors and guards to increase workplace safety and security. It's also useful to control lifts, irrigation systems and dental equipment.
