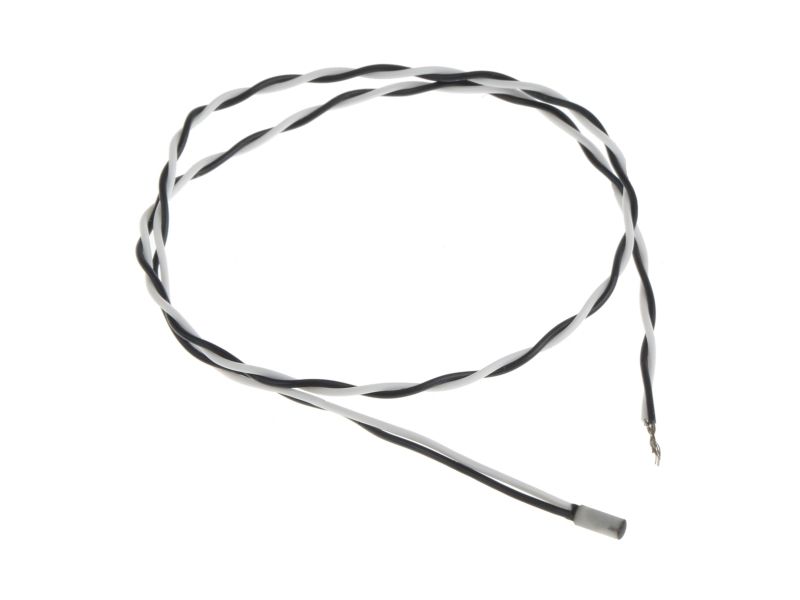

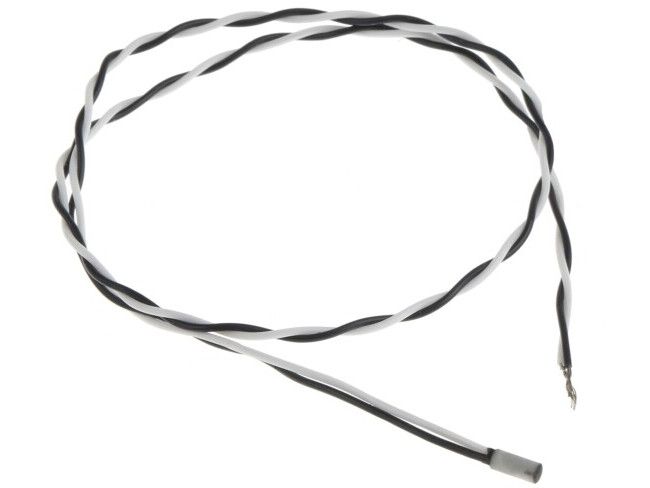

Honeywell PT1000 RTD Sensor, 2.18mm Dia, 4.75mm Long, 2 Wire, Probe, ?±0.2 % +540°C Max
Item no.: [4249851] | Manufacturer: Honeywell | Model no.: HEL-705-U-0-12-00 | EAN: 2050000600678
Remote stock (4-5 days)
The item is in a remote warehouse, delivery time is 3-4 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
58,59
Incl. VAT 73,24
Total incl. delivery
88,24
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Create user
Login
Create user
Login
Send på mail
HEL 700 series Platinum RTD
Miniature Pt 1000 and Pt 100 ceramic-cased temperature probes.
PTFE or fibreglass wired output.
Linear output.
Honeywell PT1000 RTD Sensor, 2 Wire, 4.75mm Length - HEL-700 Series - HEL-705-U-0-12-00
Use this RTD (resistance temperature detector) from Honeywell to collect accurate temperature data during laboratory or industrial processes. This sensor is designed for reliability with recyclable PTFE (polytetrafluoroethylene) lead wires that are resistant to moisture and chemicals. This material also means the wires remain stable and continue functioning under radical variations in temperatures from -75°C to +540°C without degrading. At its core is a thin film of PT1000 platinum deposited on an alumina substrate that's largely responsible for sensing the temperature change. This device's fast response time of 0.15s and high repeatability make it a popular choice for applications that call for accurate readings at extreme temperatures.
Features & Benefits
Two-wire configuration for easy connection
Simple configuration is useful with high resistance sensors
Produces a resistance of 1000Ohms at 0°C, so it's suitable for applications where heat is applied at once
Applications
Machine building
Refrigeration equipment
Does this RTD sensor consume a lot of power?
No, it doesn't. This RTD sensor has a cable length of 305mm and a resistance of 1000Ohms. This means lower current flow and low power consumption.
Miniature Pt 1000 and Pt 100 ceramic-cased temperature probes.
PTFE or fibreglass wired output.
Linear output.
Honeywell PT1000 RTD Sensor, 2 Wire, 4.75mm Length - HEL-700 Series - HEL-705-U-0-12-00
Use this RTD (resistance temperature detector) from Honeywell to collect accurate temperature data during laboratory or industrial processes. This sensor is designed for reliability with recyclable PTFE (polytetrafluoroethylene) lead wires that are resistant to moisture and chemicals. This material also means the wires remain stable and continue functioning under radical variations in temperatures from -75°C to +540°C without degrading. At its core is a thin film of PT1000 platinum deposited on an alumina substrate that's largely responsible for sensing the temperature change. This device's fast response time of 0.15s and high repeatability make it a popular choice for applications that call for accurate readings at extreme temperatures.
Features & Benefits
Two-wire configuration for easy connection
Simple configuration is useful with high resistance sensors
Produces a resistance of 1000Ohms at 0°C, so it's suitable for applications where heat is applied at once
Applications
Machine building
Refrigeration equipment
Does this RTD sensor consume a lot of power?
No, it doesn't. This RTD sensor has a cable length of 305mm and a resistance of 1000Ohms. This means lower current flow and low power consumption.
